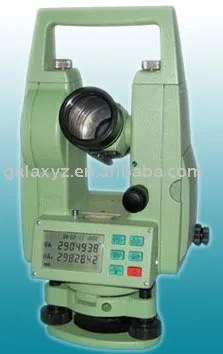

MET 202 electronic theodolite
MET-202 electronic theodolite
MET-202 electronic theodolite

MET 202 electronic theodolite

Share on (222390455):


Price:

Quantity:


Product Overview

Description


Product Description





theodolite

MODEL

GLS-602

Telescope


Erect

Magnification

30X

Effective Aperture

45mm(DTM 50mm)

Resolving Power

4"

Field Of View



1°30'

Minimum Focus

1.5m

Distance Measurement(under Fair Weather Condition)

None prism

100m

Range 1P

5.0km

sheet

800m

Accuracy

2mm+2ppmxD

Minimum Count

1mm

Distance Unit

ft.Or m selectable

Measuring Time



Fine

 1.8sec.(first time2.5sec.)

Tracking

0.4 Sec.

Maximum display

999999.999m

Atmospheric Correction



Temperature

C or F

Atmospheric Pressure

hPa/mmH/inHg

Atmospheric Deflection &



Earth Curvature Correction

k=0.14/0.20/0

Prism Constant

0 mm / 30 mm

Angle Measurement

Measurement Method

Incremental Photoelectronic Encoder

Detection Method



Horizontal

Dual

Vertical

Dual

Accuracy

2"

Minimum Readout

1"and5"

Sensitivity of Vials

Plate Vial

30"/2mm

Circular Vial

8'/2mm

Vertical Compensation

Available

Type

Liquid-electric detection/Plate level

Compensation Range

+/-3'

Resolution

1"

Optical Plummet


Erect

Magnification

3X

Focus Rang

0.5m-infinity

Display

Double Side, LCD, Four-line Display

Data Port

RS-232

Battery

Lithium Rechargeable

Voltage

7.4VDC

Operation Time

Distance and angle measurement: 8.5hours; Angle measurement 30 hours

Charging Tine

2 hour



Packaging & Shipping

Original Packing.

Your products will be shipped within 3 days after received payment.


Our Services

Your inquiry will be replied within 24 hours, we welcome your email and call at any time.

Our products are original and 100% new. and they will be carefully checked before we ship them out.

All the products we sell have one year warranty and we can supply technical support.

Company Information

Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

Our goal is to produce the best surveying instruments in the world.

Our target is to globalize the market, internationalize the quality and maximize the profit!A.png
