waterproof honeycomb floor underlay insulation and sound reducing

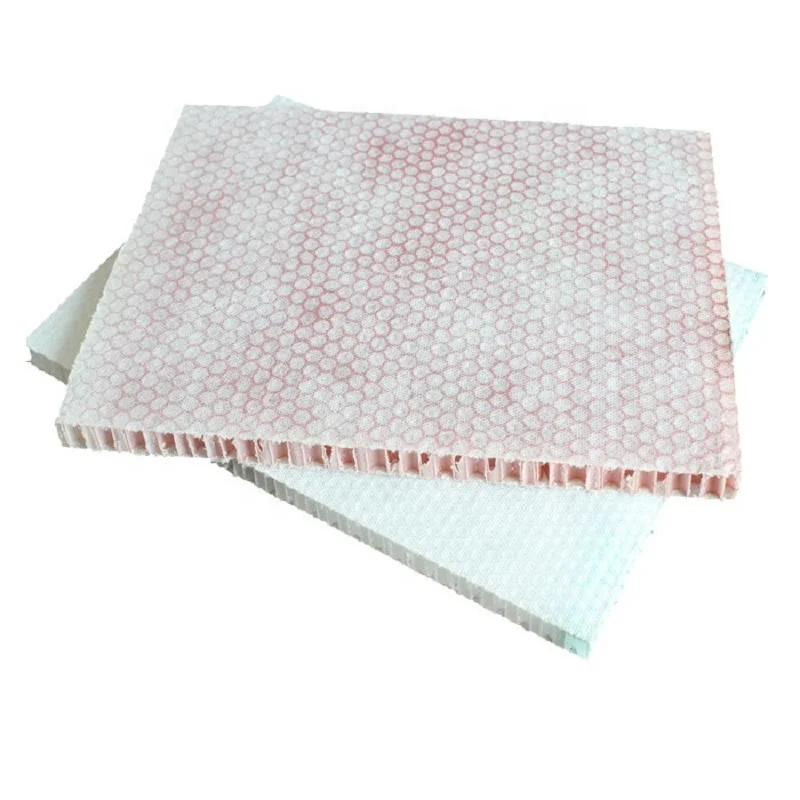

Acoustic Floor Underlay Composition: Acoustic Floor Underlay is made from pp honeycomb c

Acoustic Floor Underlay Property:

1. Reduce the impact noise through the frool below. Add one layer of 10mm thickness Acoustic Floor Underlay and 40mm

thickness  layer of fine sand reinforced concrete, floor impact sound can be reduced
2. Can be cut arbitrarily.

3. Nontoxic, aging resistance, dampproof and anti-moth

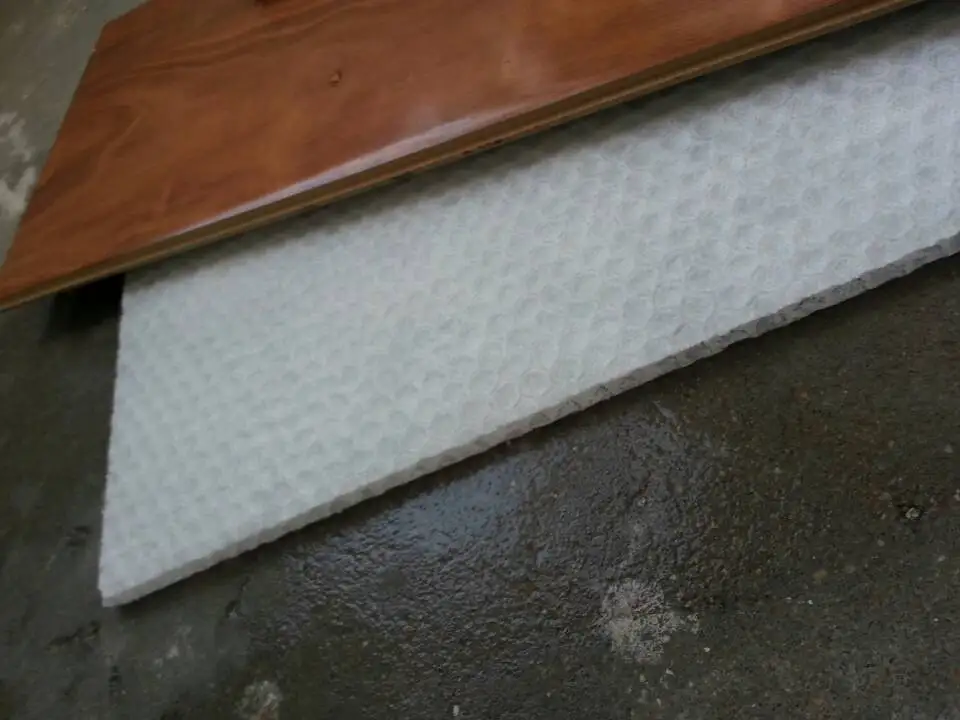

5. Install wood floor, floor tiles and carpets directly on the surface

Acoustic Floor Underlay Specification:
Standard size: 1000×1000×11mm

Surface density: 0.6kg/m2

Acoustic Floor Underlay Application:

This product is widely used at residence, hotel, schools, night club, ballroom, hospital, office building, recording room, studio,

industrial workshop

Acoustic Floor Underlay :

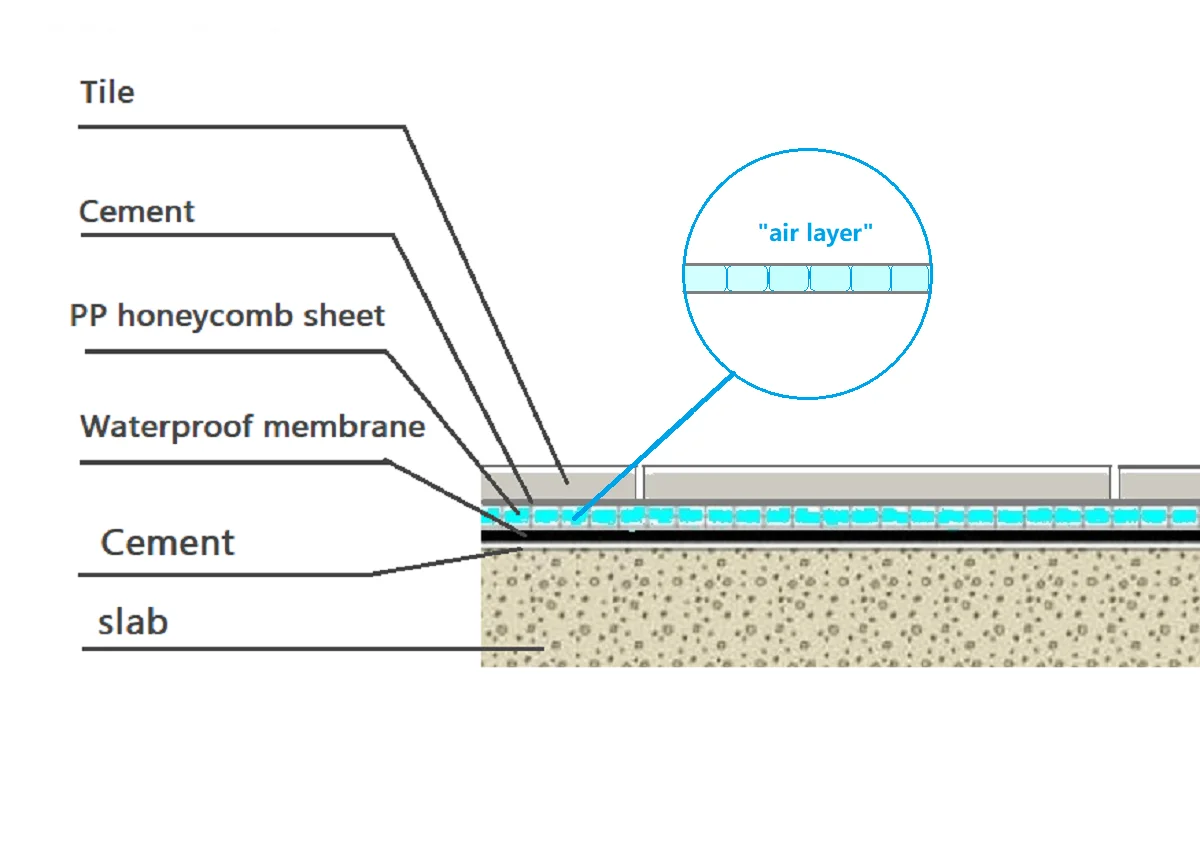

1. Basic preparation: floor slab must be smooth, if it is unsmooth, must use fine mortar to fill in
2. Pave noise insulation floor: pave noise insulation floor completely, fully pave the noise insulation floor on the four sides wall foot

(5060mm height) in order to prevent forming acoustic bridge between protection layer, decoration layer and wall surface. Use the

PVC adhesive belt to fix the lap joint of noise insulation floors
3. Construction of concrete protection layer: must pay attention to the lap joint of noise insulation floor so that to avoid tearing joint
4. Use skirting line to press the noise insulation in four sides

Acoustic Floor Underlay Use:
The noise insulation index of floor slab is improved greatly, footstep from upstairs and impact sound is eliminated
