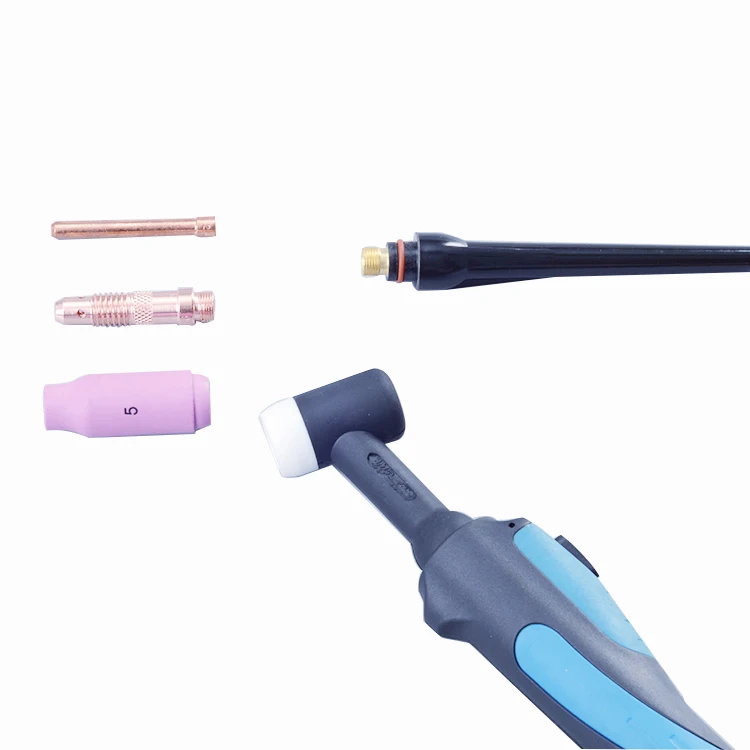

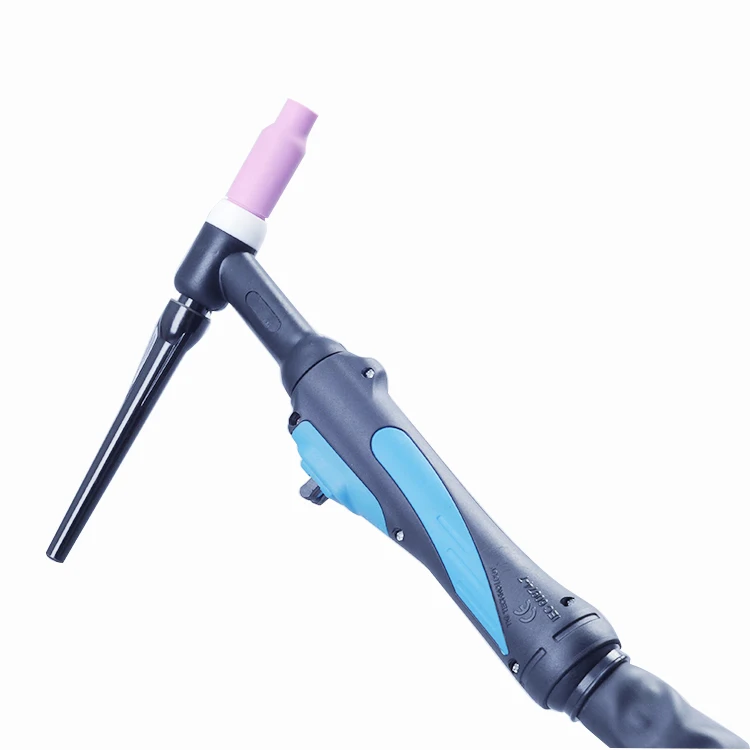

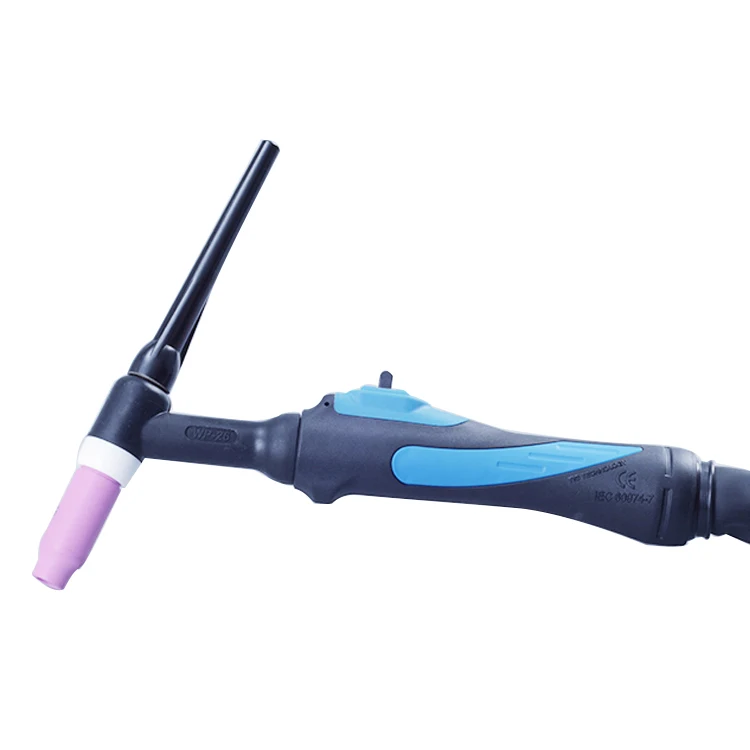

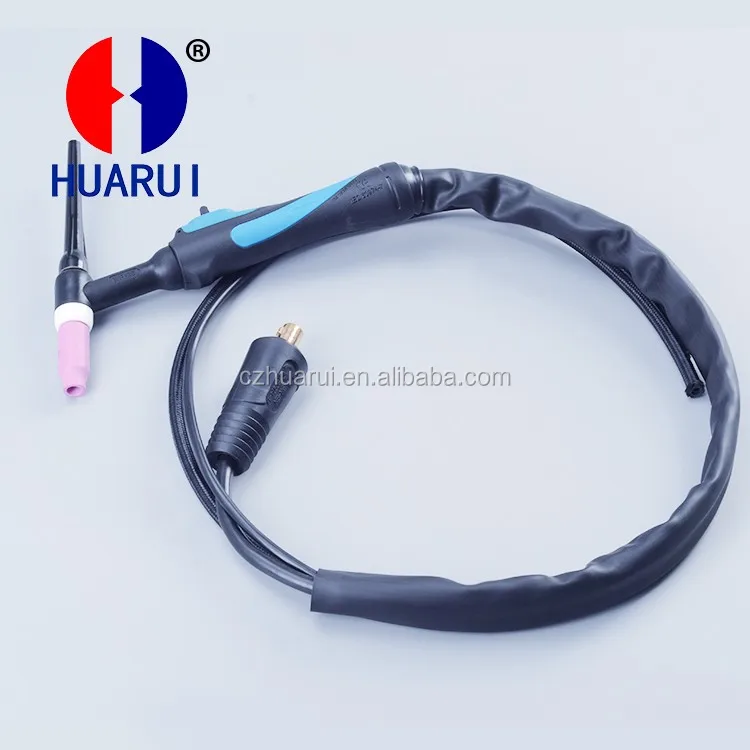

Tungsten Argon Arc WP26 gas cooled welding torch TIG Torch

Rating: 200A DC, 160A AC, Tungsten Diameter: 0.5-3.2mm
Rear Connector:M12*1, 35-50 connector, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH

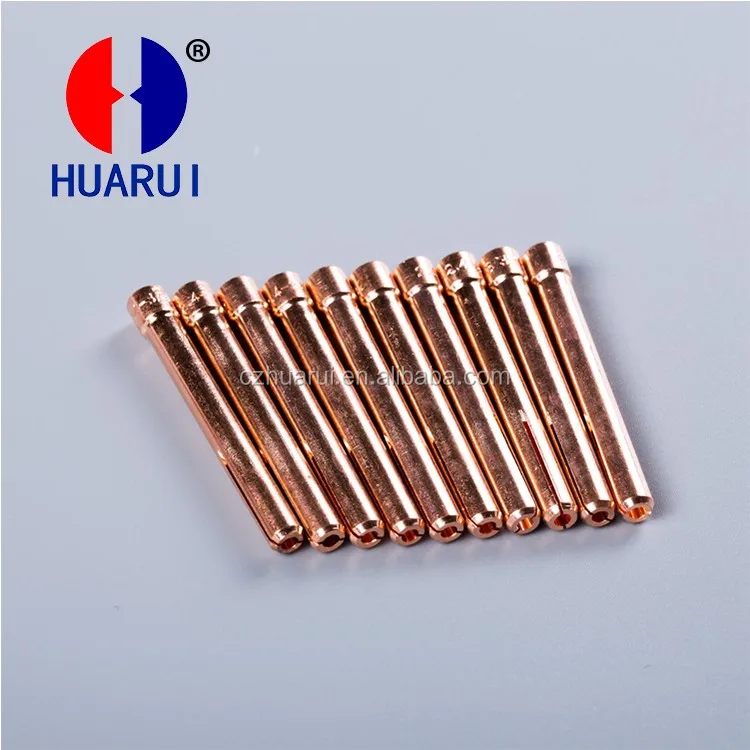

Collet
10N21
Collet Dia.0.5mm
10N22
Collet Dia.1.0mm
10N23
Collet Dia.1.6mm
10N24
Collet Dia.2.4mm
10N25
Collet Dia.3.2mm

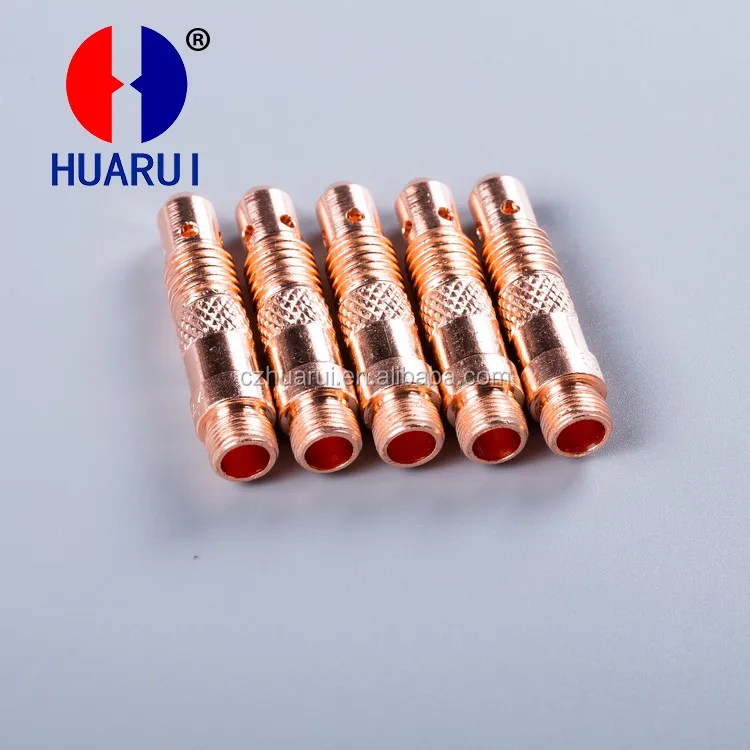

Collet Body
10N29
Collet Body Dia. 0.5mm
10N30
Collet Body Dia. 1.0mm
10N31
Collet Body Dia. 1.6mm
10N32
Collet Body Dia. 2.4mm
10N28
Collet Body Dia. 3.2mm

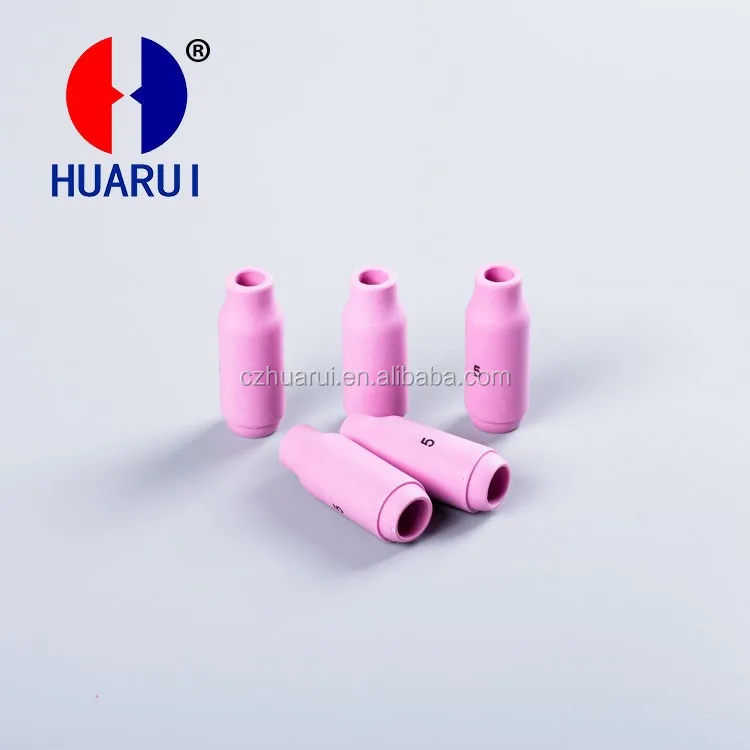

Alumina nozzle/ Ceramic Nozzle
10N50
Std. Ceramic Cup Dia. 6mm
10N49
Std. Ceramic Cup Dia. 8mm
10N48
Std. Ceramic Cup Dia. 10mm
10N47
Std. Ceramic Cup Dia. 11mm
10N46
Std. Ceramic Cup Dia. 13mm
10N45
Std. Ceramic Cup Dia. 16mm
10N44
Std. Ceramic Cup Dia. 19mm

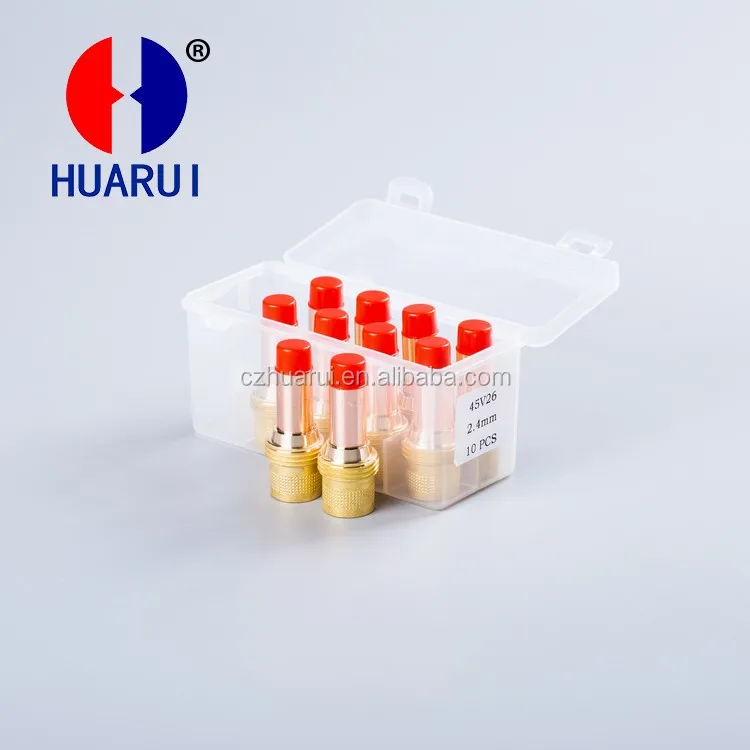

Gas Lens Collet Body
45V29
Gas Lens Body Dia. 0.5mm
45V24
Gas Lens Body Dia. 1.0mm
45V25
Gas Lens Body Dia. 1.6mm
45V26
Gas Lens Body Dia. 2.4mm
45V27
Gas Lens Body Dia. 3.2mm
CONSUMABLES PARTS
18CG
Heat Shield Cup Gasket
18CG20
Heat Shield Cup Gasket
54N01
Heat Shield Cup Gasket
54N63
Heat Shield Cup Gasket(Large Dia Gas Lens)
WP26
Torch body(With Gasket)
98W18
Back Cap O Ring
57Y02
Back Cap Long
57Y04
Back Cap Short

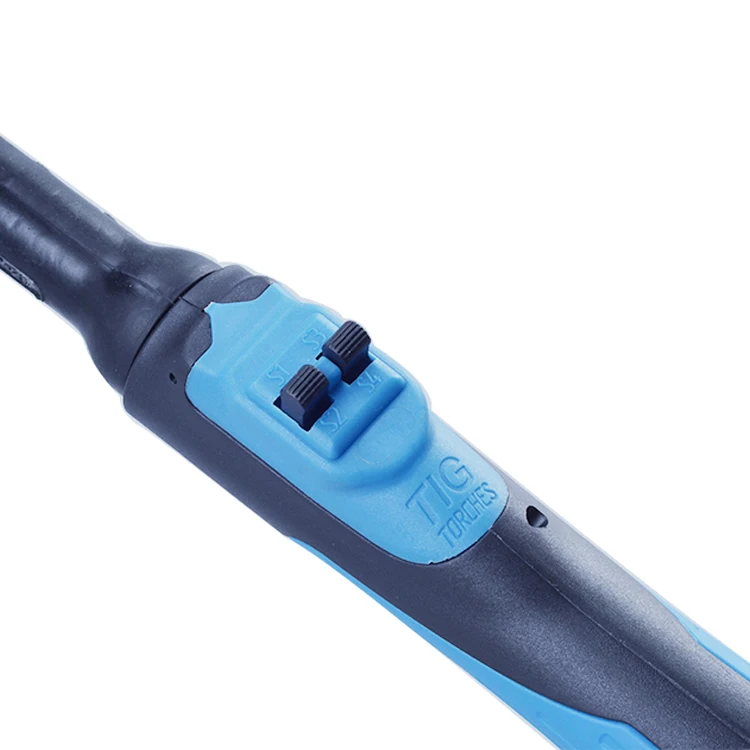

950
Micro Switch Bulbous Button
950F
Micro Switch Flat Button
950-40
Bulbous Micro switch C/W 4mt 2 Core Cable
950-80
Bulbous Micro switch C/W 8mt 2 Core Cable
RDZ0590
Switch Boot
607663
Switch Retaining Boot
609123
Protective Neoprene Cover, 4m
609125
Protective Neoprene Cover, 8m
10N15
Handle
315071
Insulation Boot
VS-1
Valve Stem
WP-26V
Torch Body With Valve
WP-26FX
Flexible Torch Body
WP-26VFX
Flexible Torch Body With Valve
