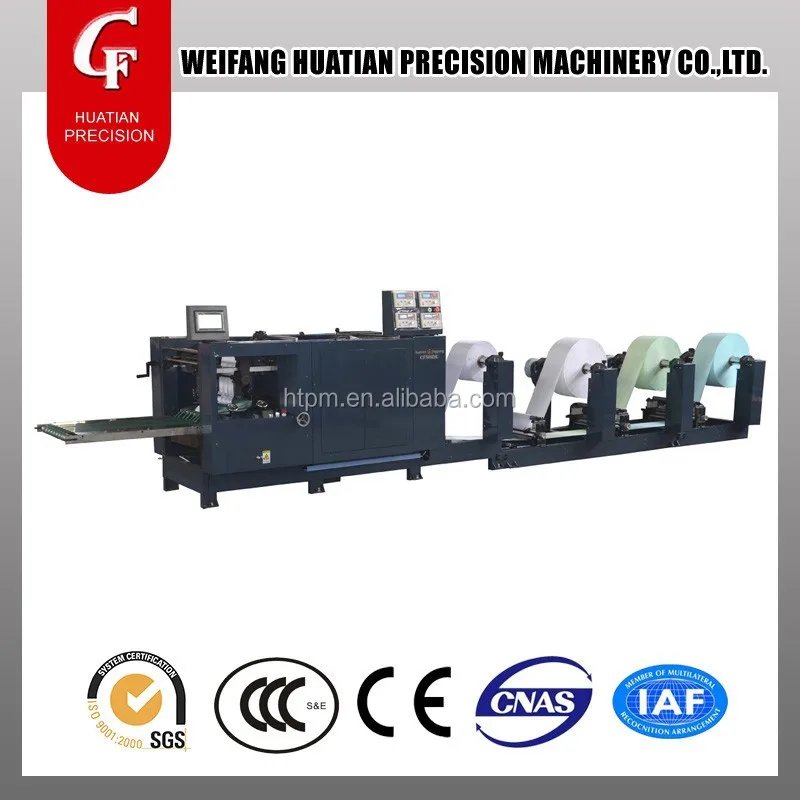

CF500DK roll paper Continuous Form paper punching machine and folding machine

Product Overview

Description

CF500DK: roll paper continuous form paper Punching and Folding machine



    this machinery is a combined bill printing productin line integrating experiences and technologies from home, as an advanced bill printing equipment

 A  Information:



 1)equipped with Yaskawa servo system,Omron control system,and frequency governor from Japan, American MOORE Companys 800 series paper feeder, high-precision 7 grade grind hear



2) It features precise perforation and folding,high-precision over printing, quick coding and collating,convenience in use,small power requirement, high production efficiency, and lowprice,it is an optimum choice for bill printing and computer paper production and processing enterprises.



3)equipped with a frequency-change stepless speed regulator,French tension controller and Japanese Silicon Valley foling knife;it features precise punching and folding,convenient and simple operation, and high production efficiency.

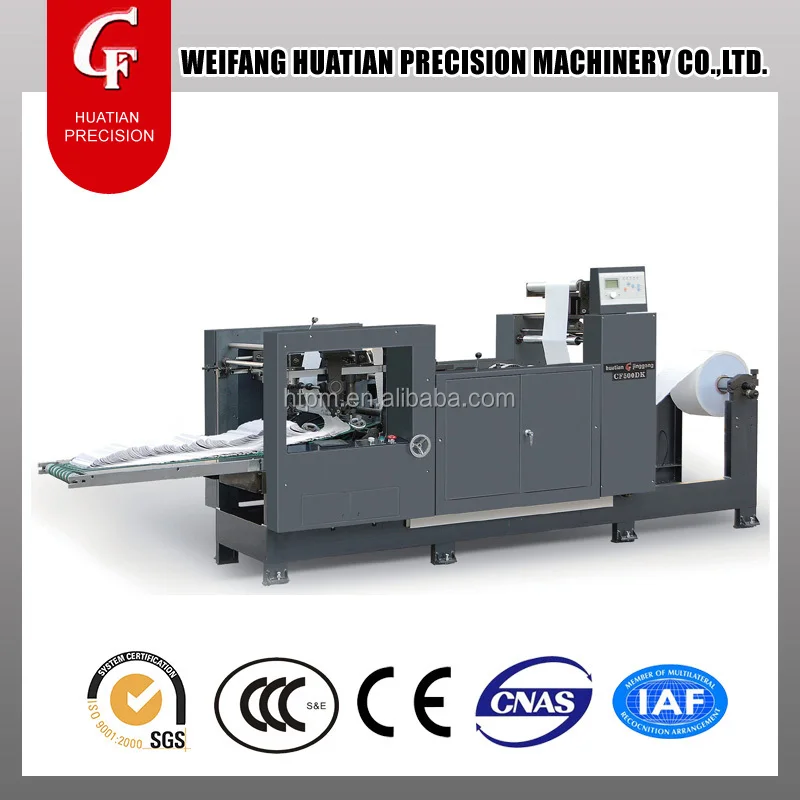

                                CF500DK :punching and folding machine





 B   Parameter:



Maximum paper width	500mm(20in)
Maximum web diameter	1000mm(40in)
Punching diameter	4±0.1mm
Paper mass	30-250g/
Folding length	8in-15in
Working speed	8-100m/min
Motor power	1.5kw/220v
Machine mass	1300kg
Machine size	3130L×1140W×1230Hmm

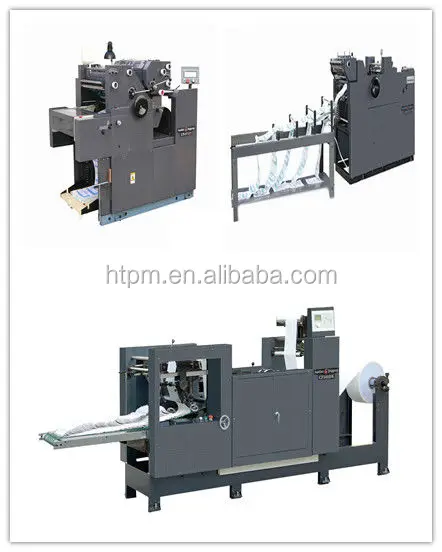

There are 3 machine in the whole set ,

   CF500DK;punching and folding machine ,it could make the roll paper to continous form

   CF470SPJ:do the 1-4 color printing work on the continous form paper

   CF450PY;do hte 1-6 layer coading and collating work for the continous form paper

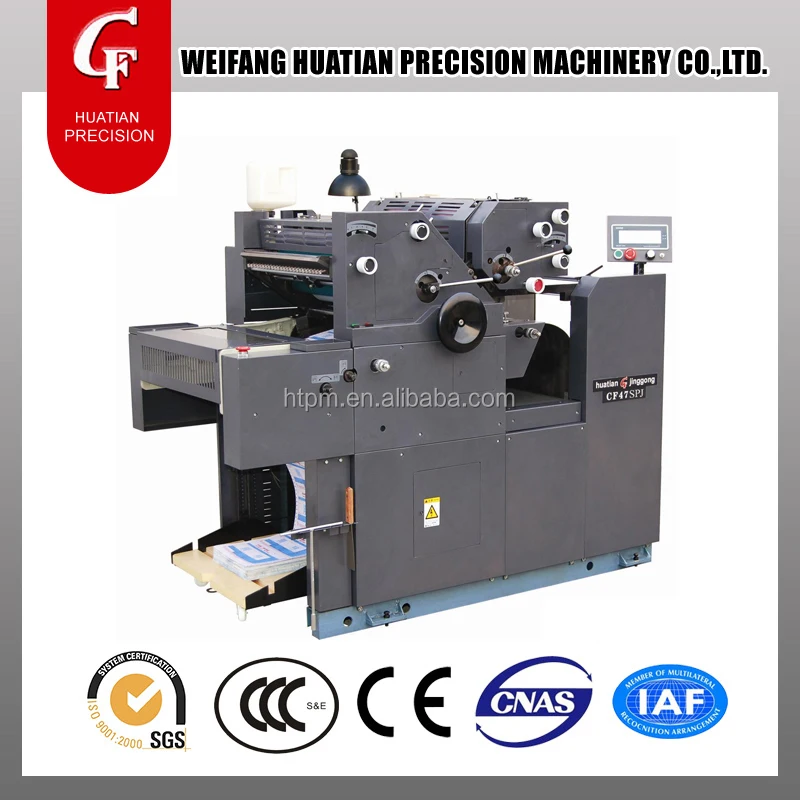

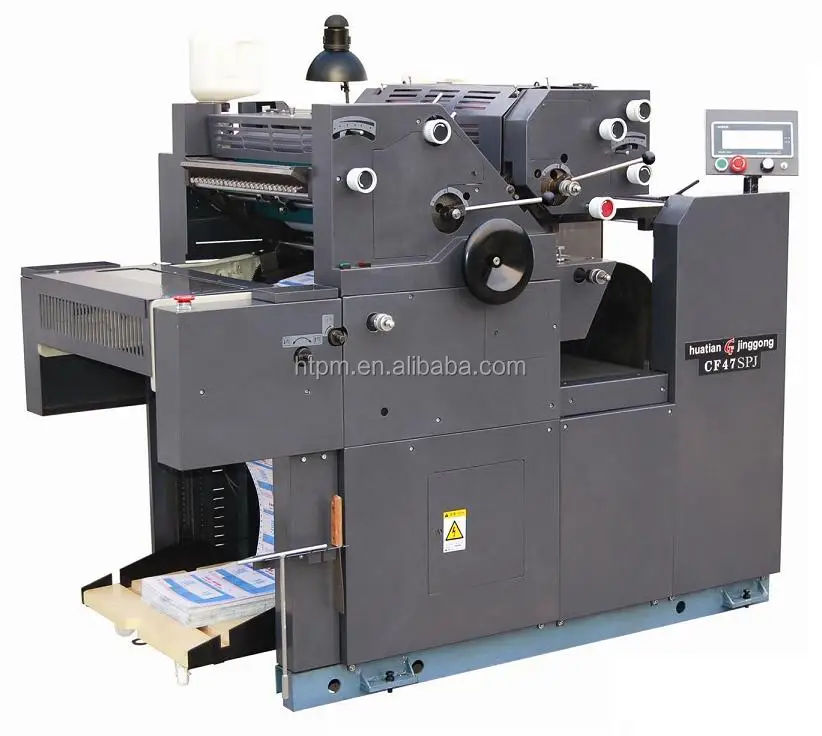

                  CF470SPJ: Continous  form paper printing machine

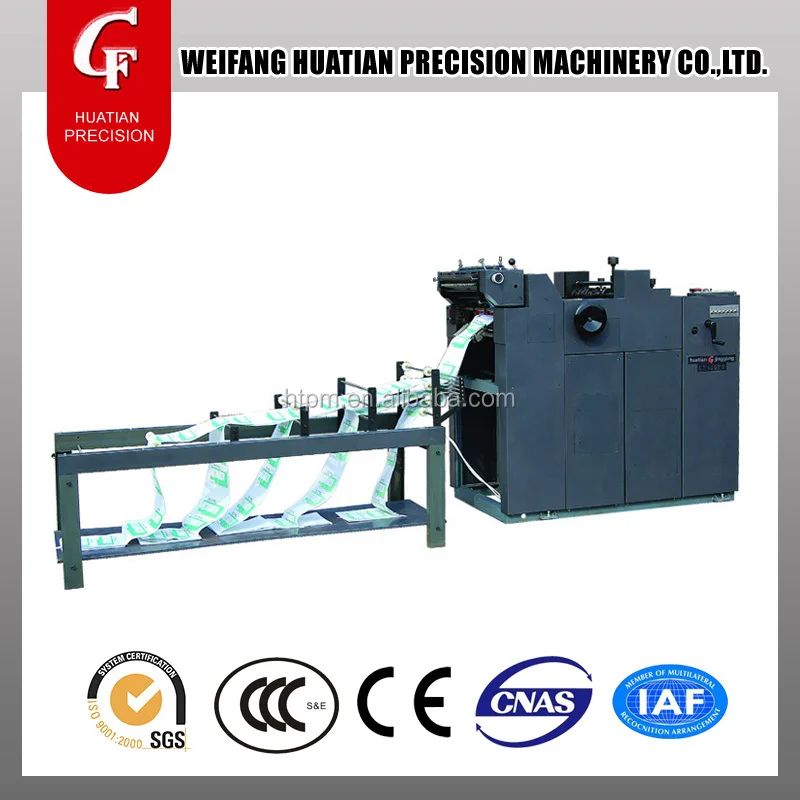

          CF450PY: 1-6 layer Number  and collate machine

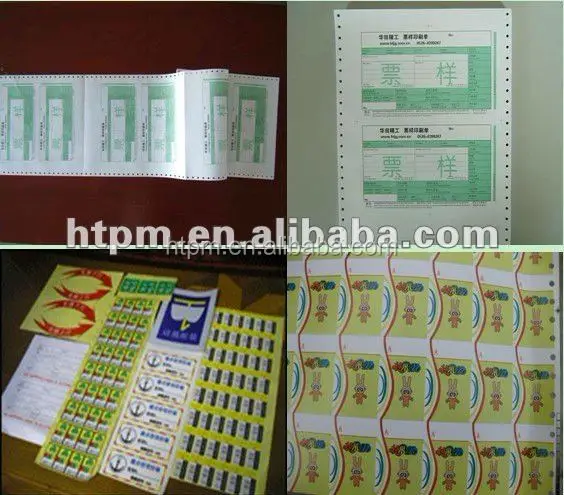

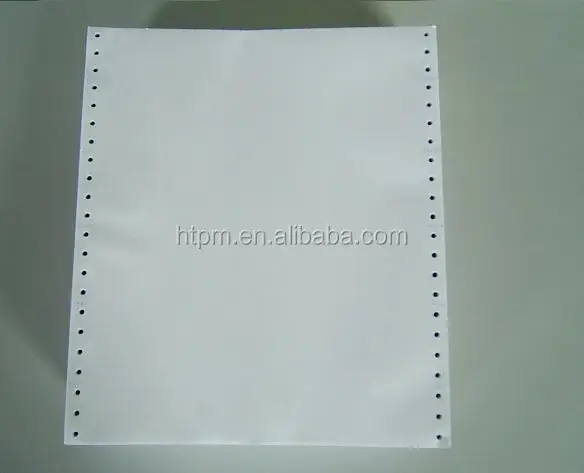

C  Sample



    our machine could do the 1-4 layer roll paper punching and folding work ,it could make the roll paper to continous form paper .and our this machine is automatically.





 D. Factory Show :



      Our factory is big and beautifual ,and we have many machine in our factory ,if have time ,we welcome you come to check our factory .





E Spare parts for the CF500DK;



      all the spare part have been done hardness process ,and all of the spare parts have been tested before inatalled on the machine .and some import spare parts are imported .







machine pic in customer factory:







      our machine sell well in the world ,and we have many machine in the asia,shouth afria, and so on ,so if you have the need ,we could show you our machine near your country or in your country .



   Contact :Niki   te;:0086-536-13793642280
