| Machine Function |

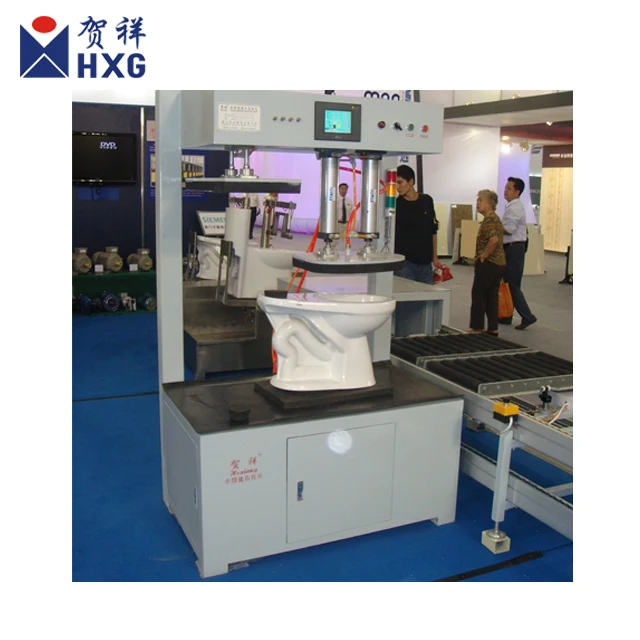

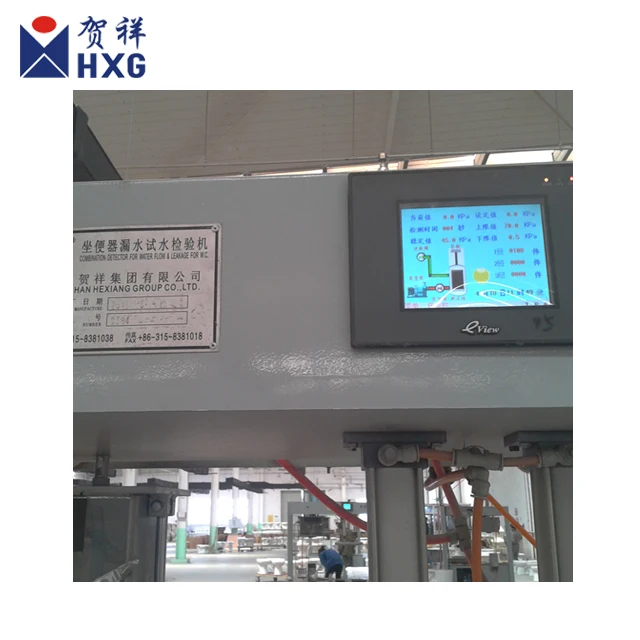

| This equipment is specially designed for the inspection of leaking and water testing of split toilets. The leak detection part uses a vacuum method to check whether the toilet is leaking; the test water testing part uses a cylinder lifting standard water tank to simulate the actual flushing situation to verify the flushing effect of the two-piece toilet. |
| Main model | |||
| Item No | Item name | Main feature | Testing method |
| 1 | Leak testing | Only leak testing | Positive pressure testing |
| 2 | Leak testing | Only leak testing | Negative pressure testing |
| 3 | Flushing testing | Only flushing test | |
| 4 | Leak and flushing testing | Table with roller | |
| 5 | Leak and flushing testing | Rubber table | |
| Machine Technical data |

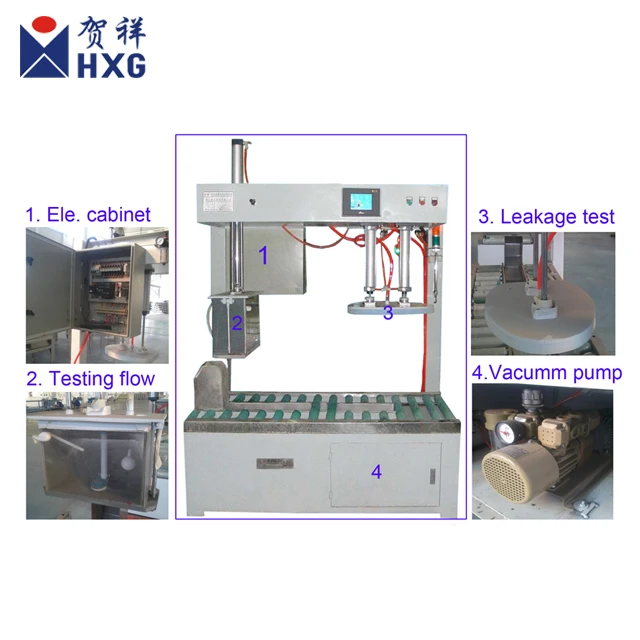

| 1. Regular working vacuum: 60KPa 2. Maximum air source pressure: 0.4MPa (4kgf/cm) 3. Air cylinder: a. SC-65x490-FA b. SC-63x420-FB c. Three-axis cylinder TC-M-40x30 4, The maximum output pressure of the cylinder: 1833N 5, Vacuum pump: a. Model: oil-free suction pump KRX6-PV03, b. Pumping rate: 575L/min c. Speed: 1450r/min d. Motor power: 1.5kw 6. Dimensions (length × width × height): 1500x902x2141mm 7, Working environment temperature: 0-40 ° C |

Founded in 1999, Tangshan Hexiang Industrial Co., Ltd. (Hexiang in brief below) is a science and technology innovative type enterprise with registered capital of 8 million USD and has self-managed power to engage in import and export trade. Hexiang focuses on sanitary ware equipment designing and developing, manufacturing, installation & commissioning and providing related technical services, is a “National-level High Technology Enterprise”, “National-level Contract-observing and Credit-valuing Enterprise”, “National-level Civilization Enterprise”, and boasts that both of the “China Sanitary Ceramics High Pressure Casting Research & Development Center” and the “Hebei Province Sanitary Ware Engineering Technology Designing & Research Center ” are located in TSHX factory.

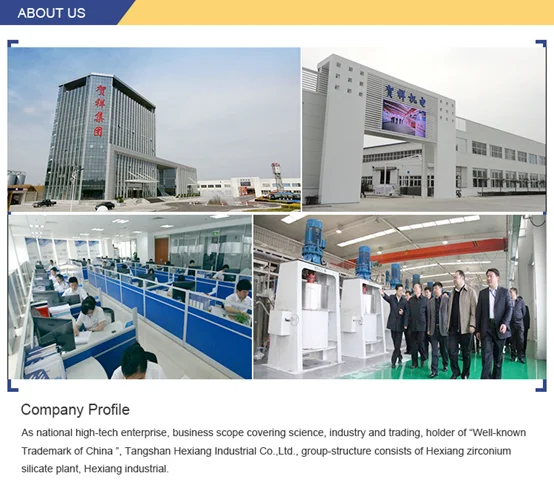

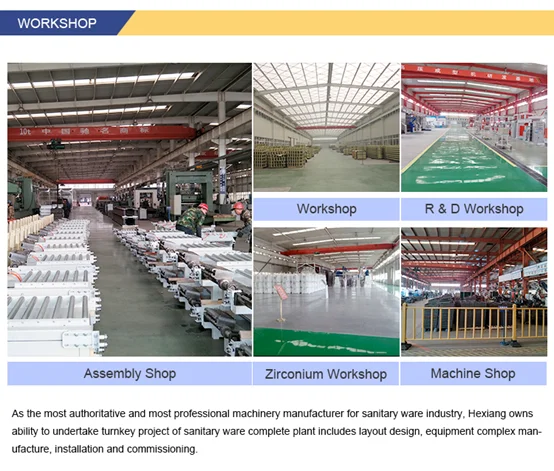

Hexiang owns a 11000m2 R&D building and a joint workshop with floor area over 53,200 m2, can undertake large and medium-capacity sanitary ware turnkey project plants including technical process designing, equipment installation & commissioning and after-sales service providing, is widely recognized as the "Well-known Technical Proposal Supplier, Equipment Manufacturer, Service Provider" by domestic and overseas customers.
Hexiang owns more than 100 invention and utility model patents possessing independent intellectual property rights in all, got ISO9001 and CE authentication in the year of 2002. The leading products "Series Sanitary Ceramics High-pressure Casting Machine" and "Sling Lift Casting Bench for Water Closet" have won many awards on account of famous products and technical innovation.
Listed on “National Equities Exchange and Quotations” approved by China Securities Regulatory Commission on 6th June 2017, Hexiang acquires more favorable development policies and gets better reputation and greater industry influence, under more extensive and stricter supervision at the same time also.
Hexiang always commits to development principle of "Customer first, Quality first", insists meticulous attitude, pursues perfect craftsman spirit, deepens precision management, researches directed by market growing trend, focuses on clients’ practical demands, devotes to revitalize national industry and forge national brand.
Hexiang has a wide range domestic and overseas marketing sales systems, owns five domestic direct selling & service centers and 13 overseas offices, establishes long-term technical communication and business cooperation with numerous sanitary ware enterprises, such as HUIDA, KOHLER, ROCA, LIXIL, TOTO, MILIM, ARROW, JOMOO, MONOPY, YING, HGG, AS and etc. The products are sold to all major ceramics producing areas in China and exported to 58 countries including Thailand, Malaysia, Vietnam, South Korea, Indonesia, Bangladesh, Australia and etc. With years of development, “HEXIANG” sanitary ware machinery becomes a well-known brand in the field of sanitary ceramics equipment industry all over the world, the market share is ranked as No.1 in China in consecutive 11 years and gets leading on the overseas market.
