Product Overview

Description

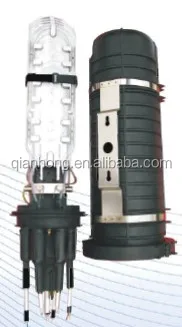

Fiber Optic Splice Closure (Model: GJS03B-144C)

General description:
·  The FOSC 400 system is a combination fiber organizer and cable closure designed to provide environmental and mechanical protection for joints for all common types of fiber optic cables.

· It may be used in underground, buried or aerial situations.



· FOSC closures have always been engineered specifically for fiber optic applications; they are not modified copper closures. The difference shows—ask someone who has worked with the product.









Main parameter:

·  Max. Fiber Capacity: 24×6=144 fibers (without fiber basket); If add fiber basket for extral or uncut cable, then, it will be available for 24 X 4=96 FIBERS.
·  IP degree: IP 68
·  Working temperature: 40 degree ~ 110 degree
·  Warranty: 25 years

·  Materials: closure body: PP alloy,  splice tray: ABS

Dimension:



Content of fiber optic splice closure

1.Outer fixing part

2.Clamp

3.Dome

4.Base

5.Splice tray

Cable seal kit: 1.Aluminum cable protection tape  2.Heat shrinkable sleeve  3.Abrasive strip  Other accessories: 1.Desiccant   2.Shield continuity wires  3.Connector   4.Smouvs (splicing protection tubing)     5.transparent tubes  Tie wraps

6.Tray lid

7.Shield continuity wires

8.Valve

9Shield continuity connector

10.Sealing ring

11.Inner fixing part

12.Strength member

13.Support ring on the base

14.Velcro strip with one X flake

Oval outlet cable seal kit:

1.Heat shrinkable sleeve

2.Aluminum cable protection tapes

3.Abrasive strip

4.Branch off clip



Packing information:

4 sets in 1 outer carton

61 cm*52*46=0.15 m³

Weight: 15 KG
