The BOPP film metallizing machine,the evaporation section accounts for only a quarter of the entire vacuum chamber so achieve high pumping speed,large free air capacity,excellent vacuum condition.The machine has the features of few energy consumption,easy operation, and maintenance, stable performance,free blank line,free edge line,free wrinkle, and no spatter of Aluminium dross,also better uniformity of Aluminium coating.It also has the features of thermal deformation force to the plastic film is small and cooling result is better.
Product Description
1 Siemens PLC with color HMI size 12"
2.German arc rollers
3. Japanese Yaskawa drives
4. Four Sweden ABB special motors
5. German Leybold maintain pumps
items
specification
dia.of chamber
2200X length 2000mm
web width
Max.1650mm,Min.800mm
web diameter
1000mm
winding speed
Max.800m/min,Min.200m/min
Al-wire feeding speed
0-5m/min
boats
18pieces
power
about 220KW

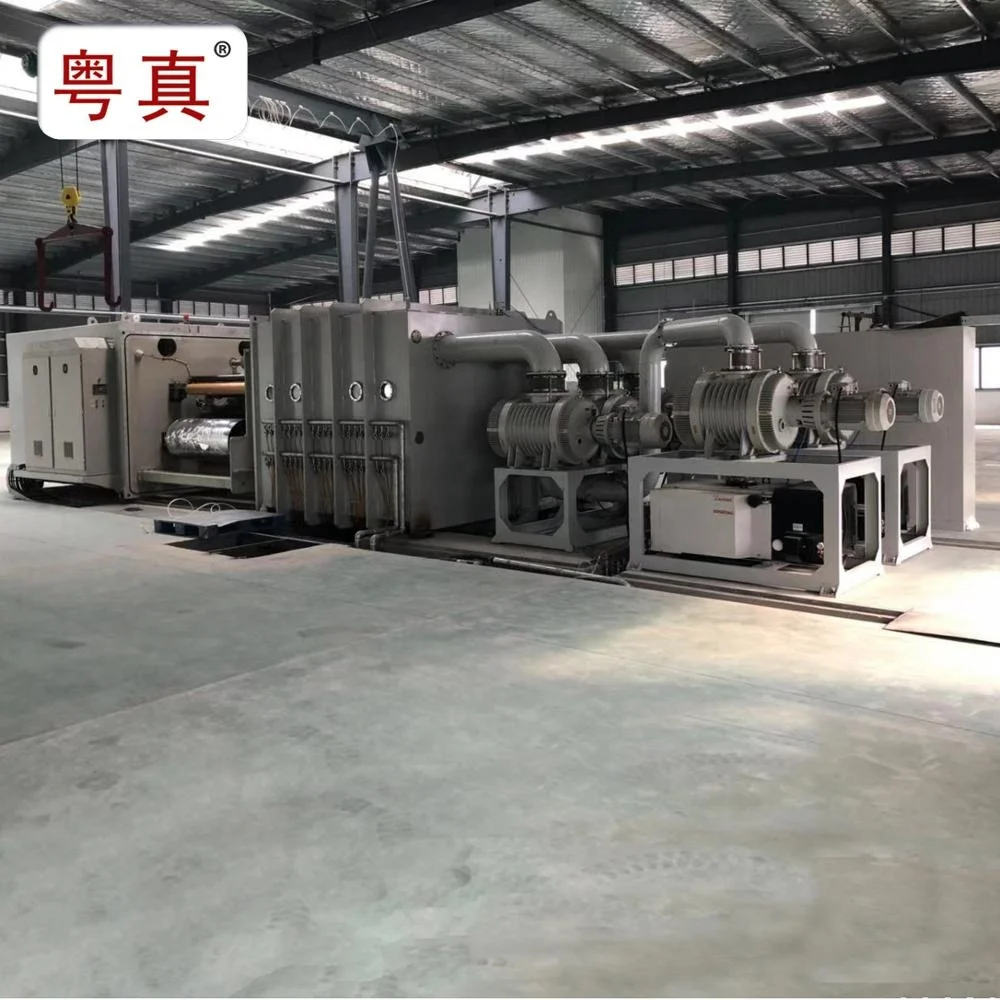

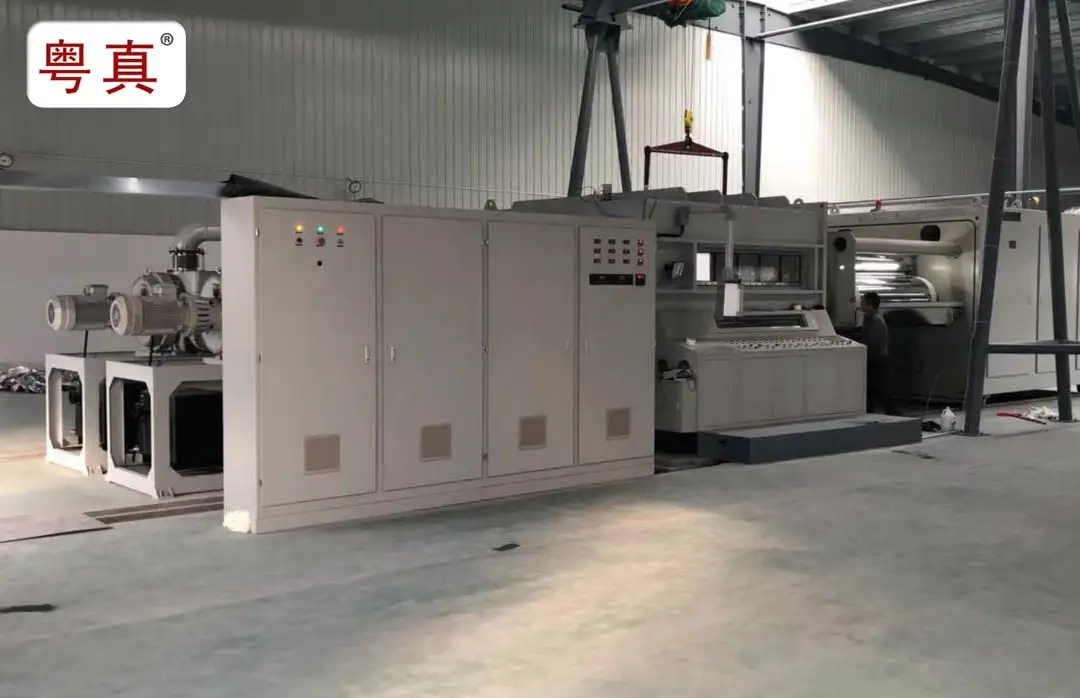

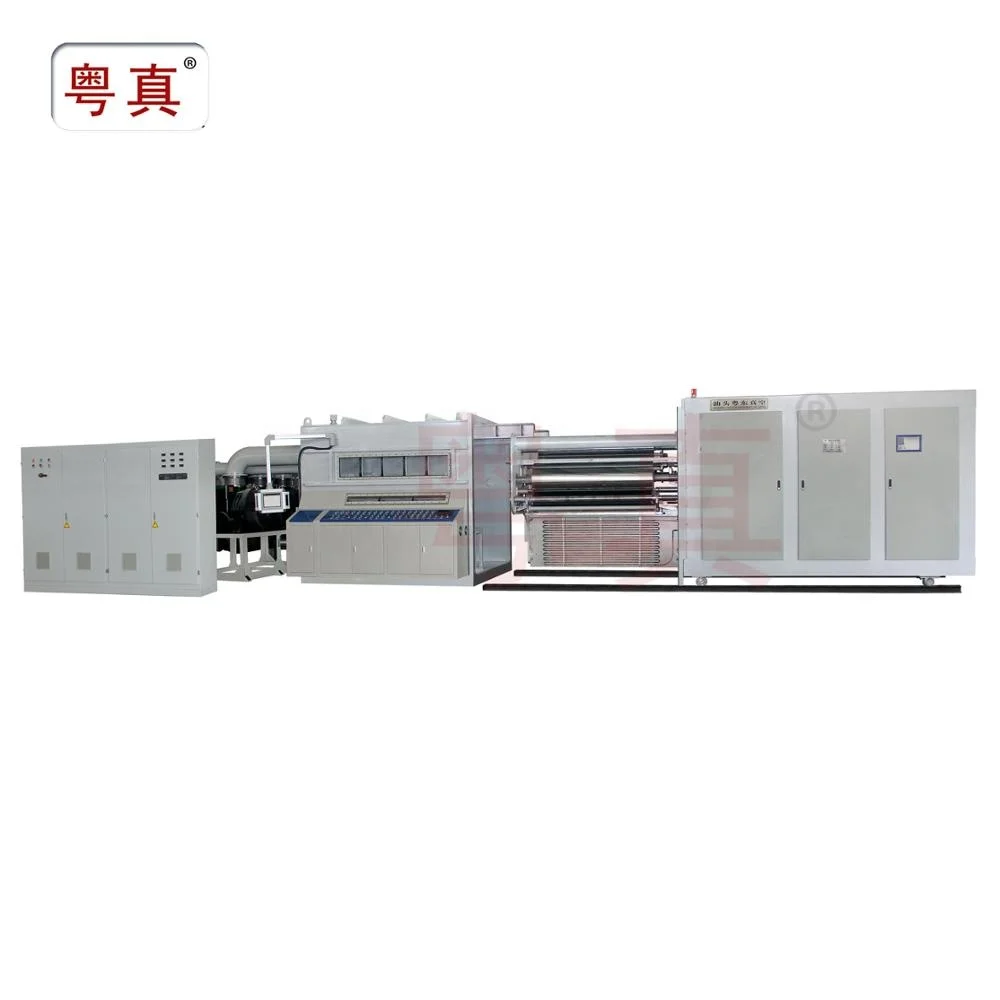

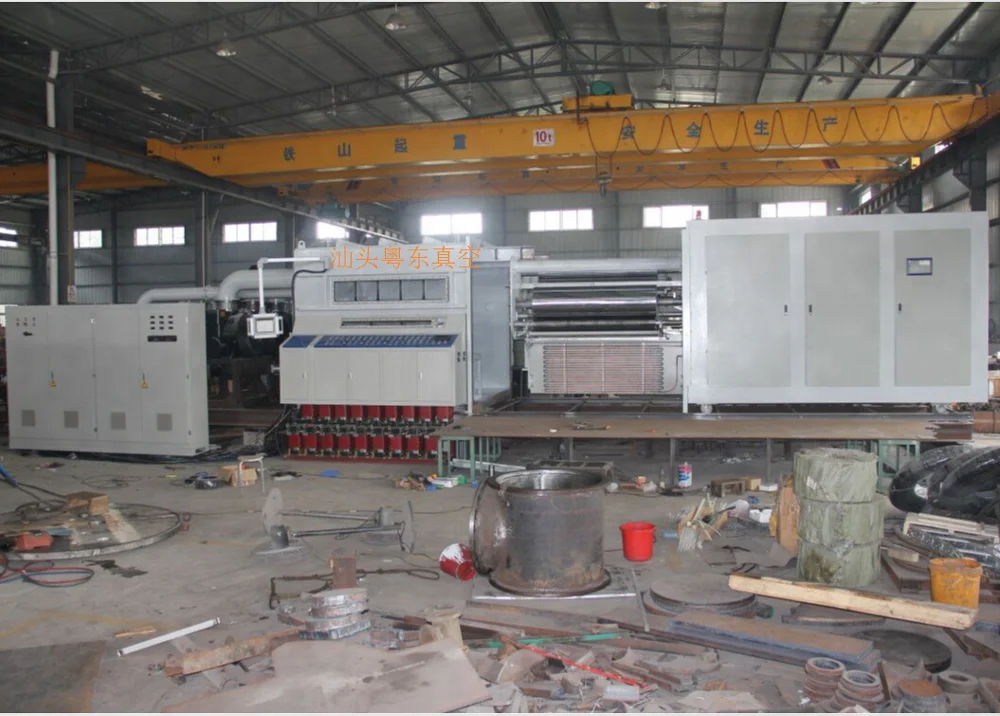

photos of BOPP film metallizing machine:
Packaging & Shipping
1.free packaging 2. some plywood cases as the following picture:
Our Services
1.Two engineers available to service machinary overseas.
2. It's 12 months after-sales service and improve machine performance forever.
3.We are a family company and not a partner company,so we can supply after-sales service for long term.
Company Information
1. Certificate: CE
2. World customers: We sold more than 22 machines to India,Turkey,Turkmenistan,Vietnam,Bangladesh,Uzbekistan and North Korea.
3. We are in 5th pavilion of Chinaplas2021 and booth number: R81
