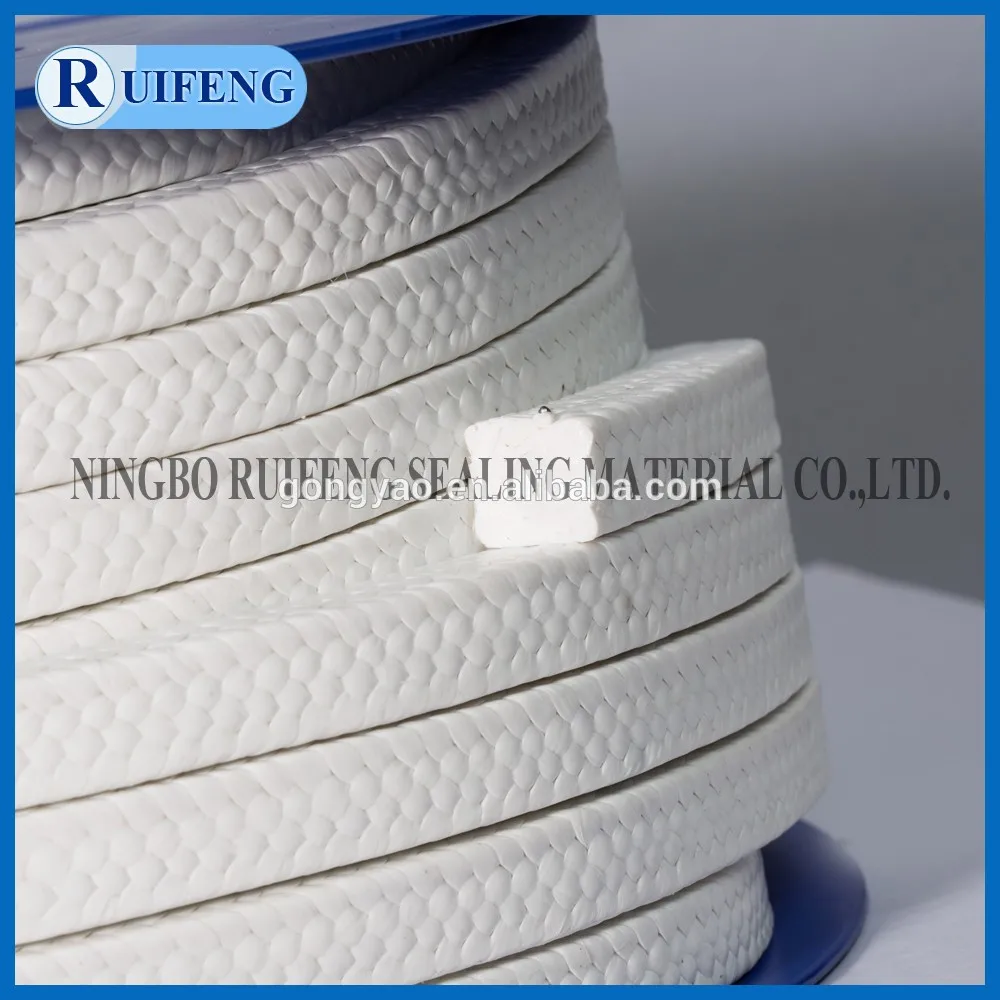

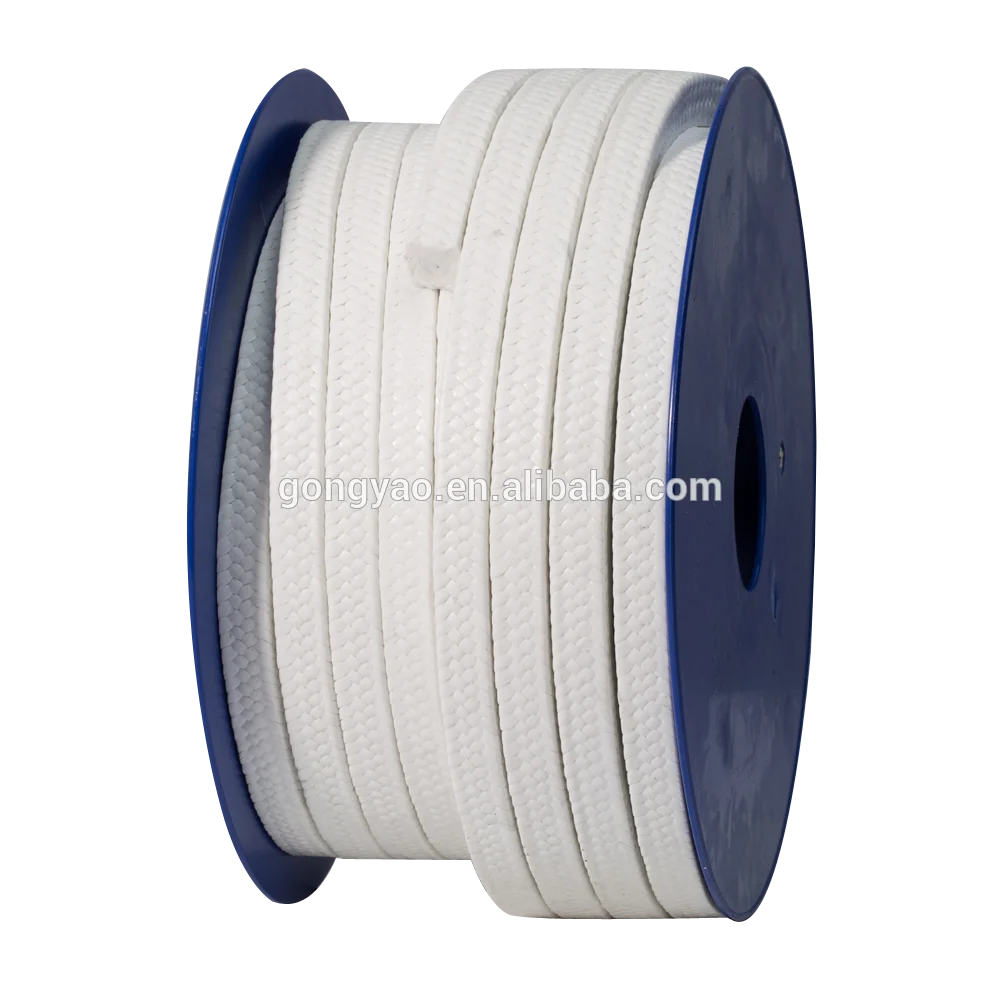

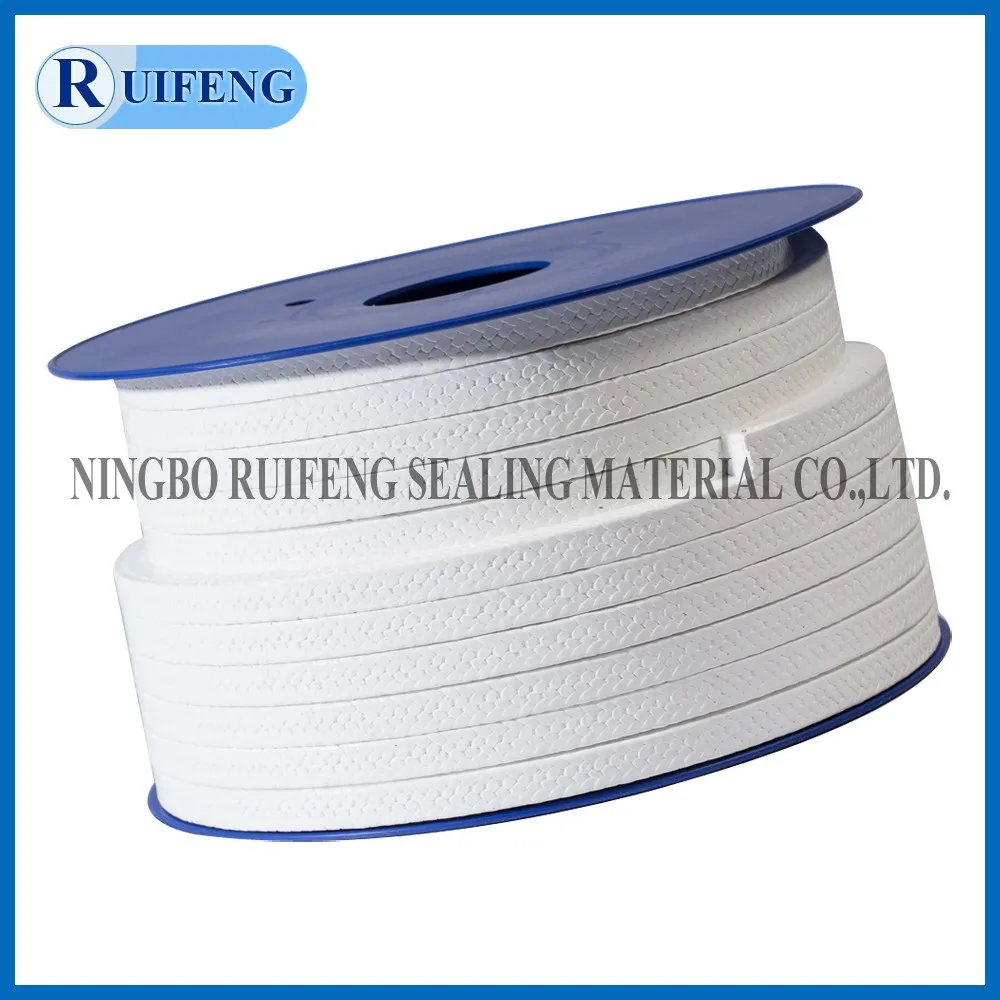

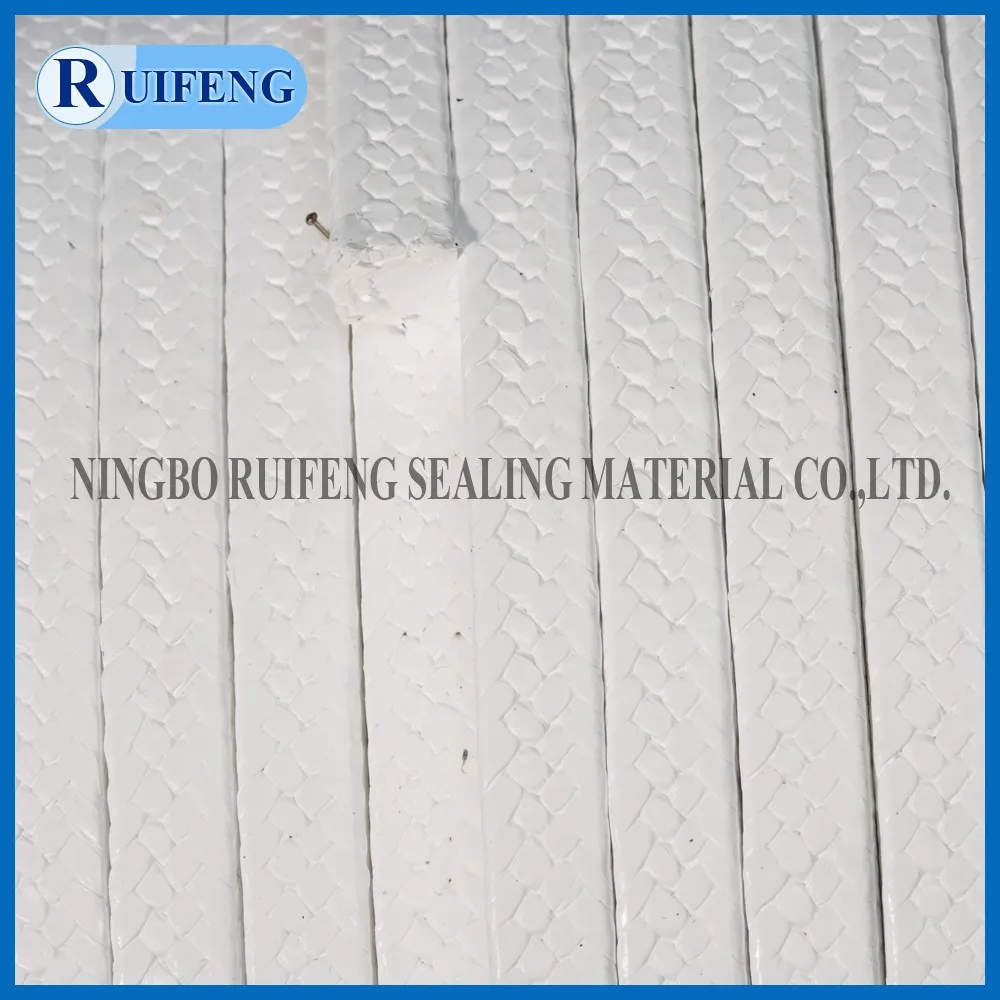

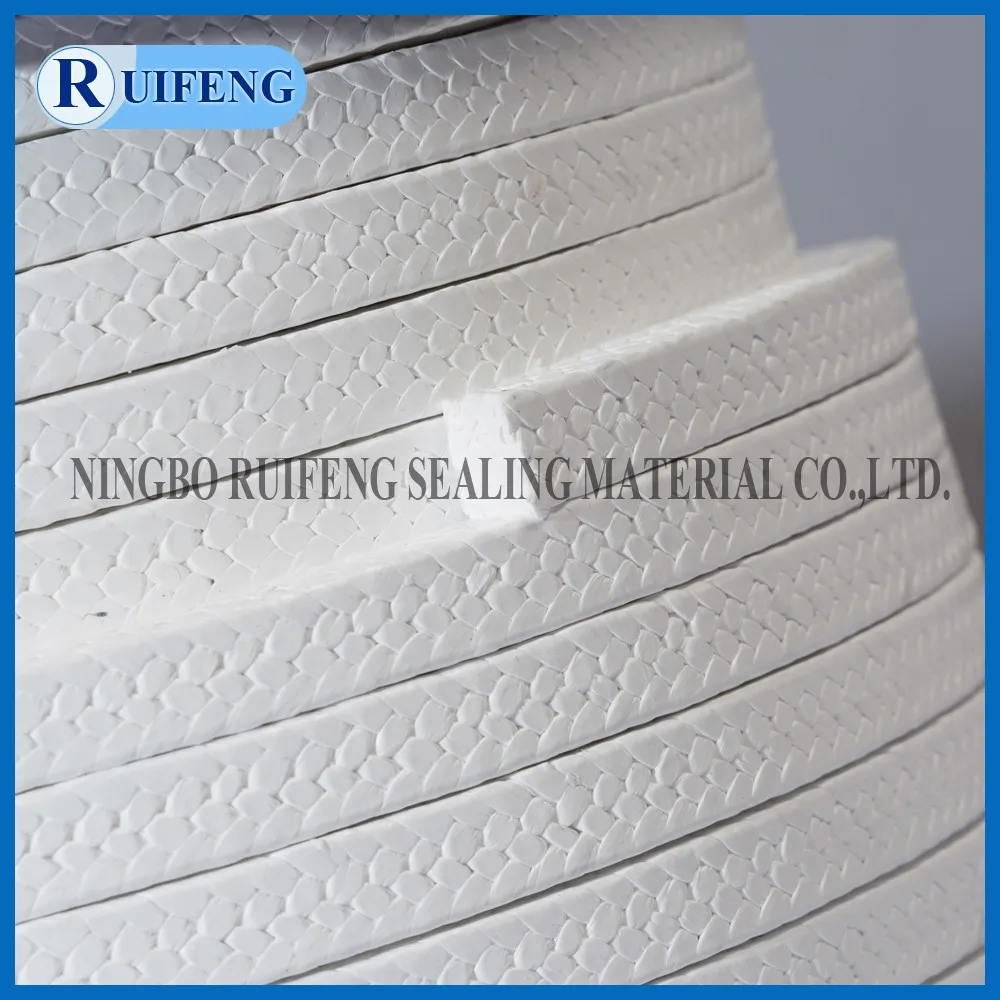

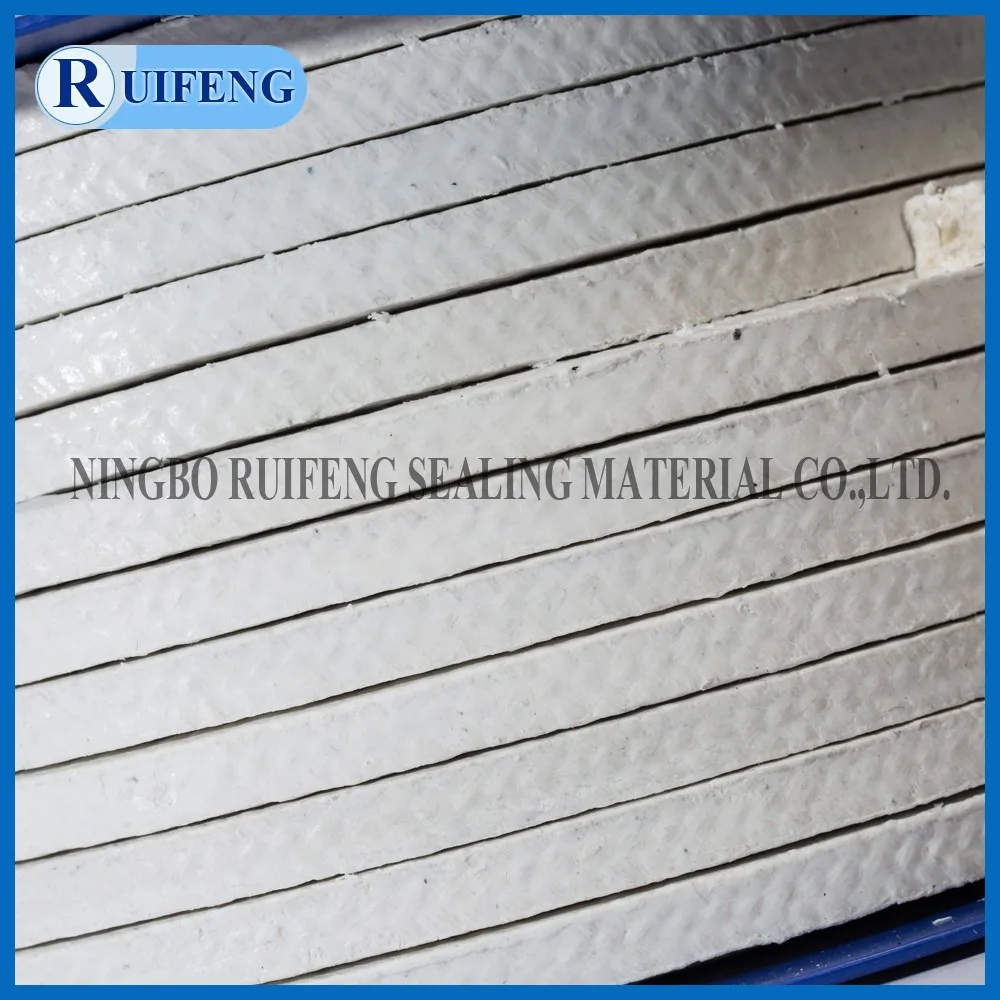

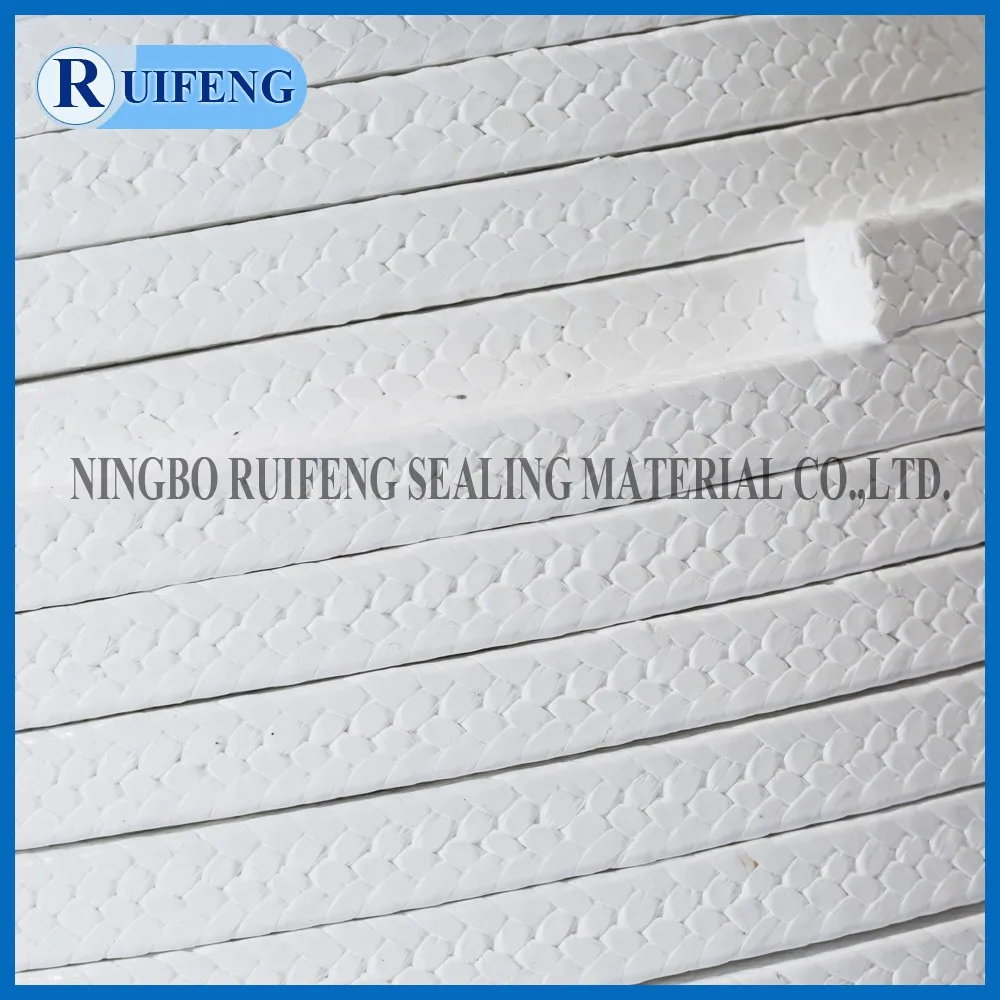

Pure PTFE braided packing for mechanical sealing

Product Overview

Description

PTFE braided packing

Features:
1) A kind of braided packing material made of pure PTFE thin yarns fiber, almost
complete chemical inertia, dimensional stability, low friction coefficient to
compression, and excellent
2) Resistance to compression is qualities classifying this packing among the best
ones available in the industrial field
3) Suitable for all the chemical compounds (excepting cast alkaline metals and the
gaseous fluorine), alternative and rotary motions shafts operating at low
peripheral speed, rods, pistons valve stems and expansion joints
4) The packing with PTFE impregnated (YP006) also available

Specifications:
1) Pressure: 2MPa in centrifugal pumps, 10MPa in piston pumps, 20MPa in valves
2) Temperature: <280°C
3) Linear speed: 4m/s in centrifugal pumps, 2m/s in piston pumps, 2m/s in valves
4) pH range: 0 - 14
5) Thickness: 3.0 - 50mm



Temperature	<280°C
pH range	0 - 14
Thickness	3.0 - 50mm



Packing:
Carton
N.W.: 20kg
