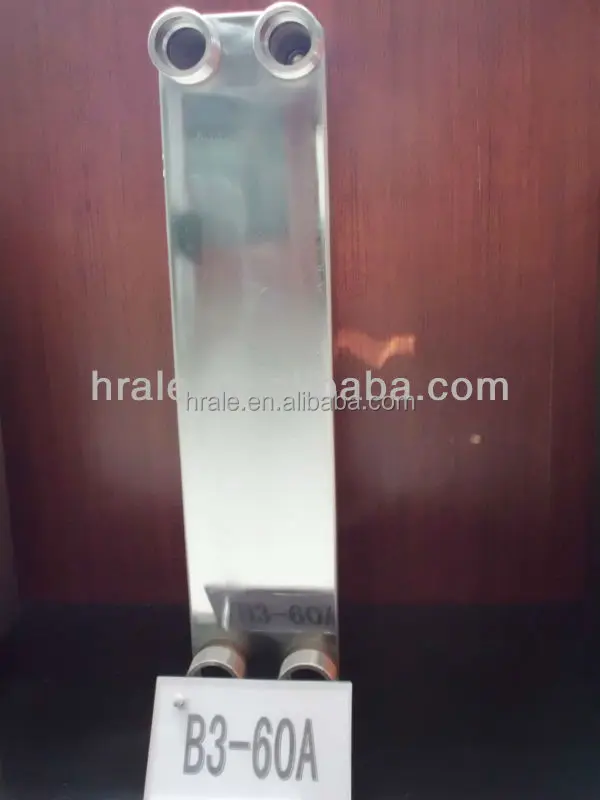

SWEP B25TH Brazed Plate Heat Exchanger

Product Overview

Description

Technical parameter
Product name	Flat Plate Heat Exchanger
Product model	B3-60A
Unit  heat exchanging area	0.060m2
Maximum Flowrate	22m3/h
Plate material	316L or 304 stainless steel
Welding material	99.9% copper
Thickness of plate	0.4mm
Volume per channel	0.111L
Maximum number of plate	120
Design pressure	3.0MPa or 4.5MPa
Test pressure	4.5MPa or 6.0MPa
Design temperature	-195 ~+220
Connections	the biggest screw threads pipe for water: 5/4", the biggest welded pipe for other fluid : 15/8"
Refrigeration Capacity	10-70KW
Basic Procedures	F1-> F3 F4-> F2
Application scope	Heaing Industry, Heat Pump, Cetral Air-conditioning, Refrigeration Equipment, Industrial water cooler, oil cooler, etc.
