High Output 1 ton ice cube maker /big cube ice machine
US $1050-$3150
Plate Heat Exchanger
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (239935846):
Product Overview
Description
VR
Products Description

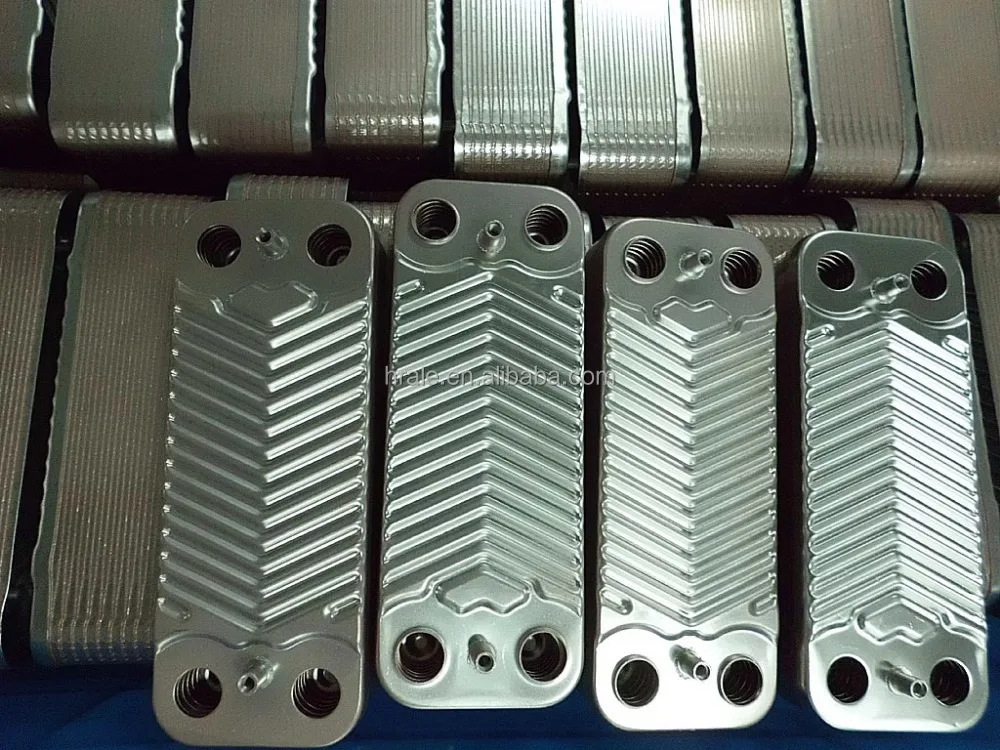

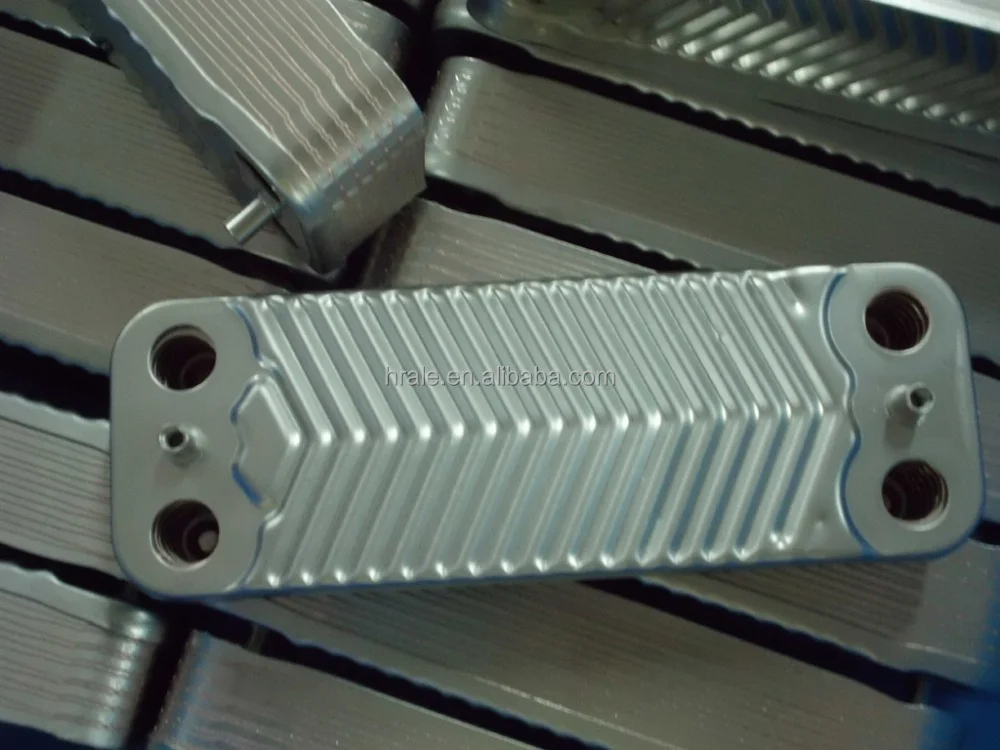

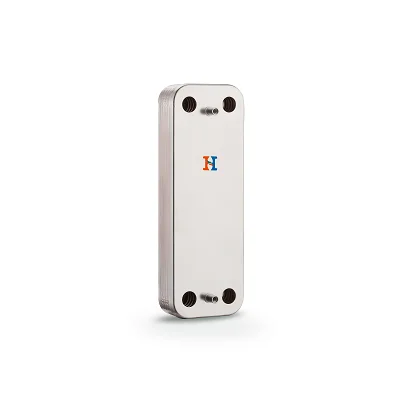

Product name | Plate Heat Exchanger, compact brazed heat exchanger, CE, UL, TUV,ISO9001:2000 |
Product model | B3-14C |
Unit heat exchanging area | 0.014m2 |
Maximum flowrate | 4m3/h |
Plate material | 316L or 304 stainless steel |
Welding material | 99.9% copper |
Thickness of plate | 0.3mm |
Volume per channel | 0.022L/ each channel |
Maximum number of plate | 60 |
Design pressure | 1.0MPa or 3.0MPa |
Test pressure | 2.0MPa or 4.5MPa |
Design temperature | -195 ~+220 |
Connections | the biggest screw thread pipe for water: 3/4", the biggest welded pipe for other fluid: 7/8" |
Refrigeration Capacity | 1-6KW |

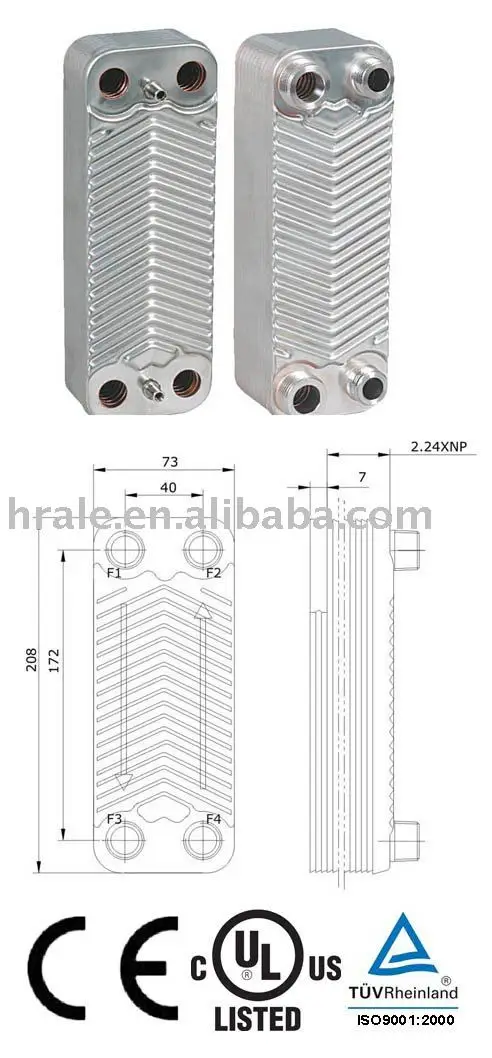

Basic Procedures | F1-> F3 F4-> F2 |
Application scope | Wall-mounted Heater, Heating Water Heater, Low Temperature Testing Equipment, Small-sized Refrigeration Equipment, etc. |
