electric winch ( lifting hoist) mining

Product Overview

Description

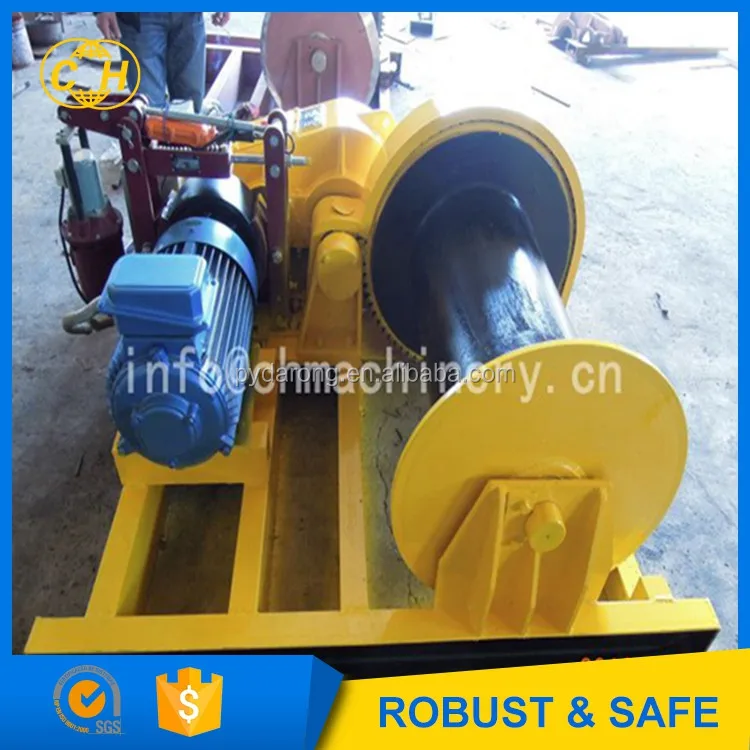

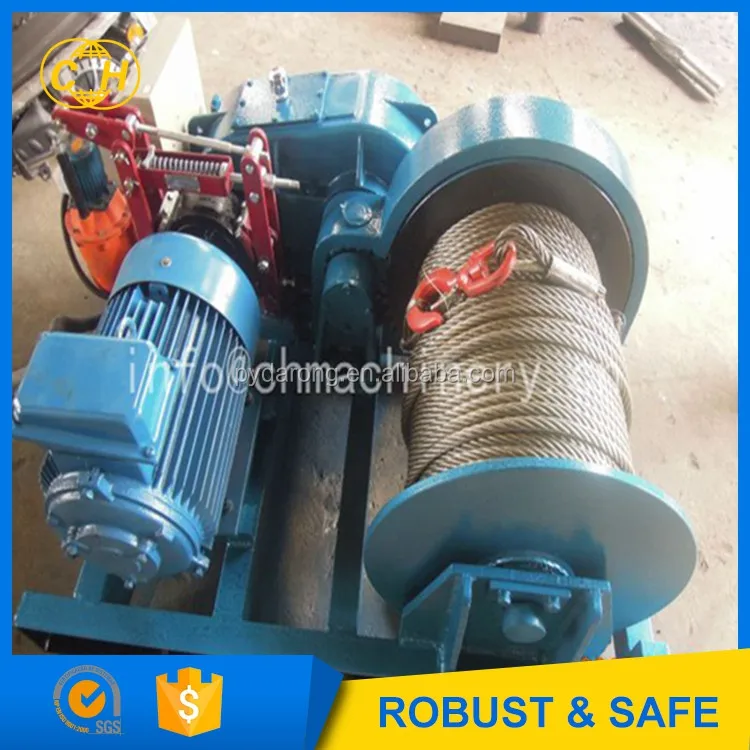

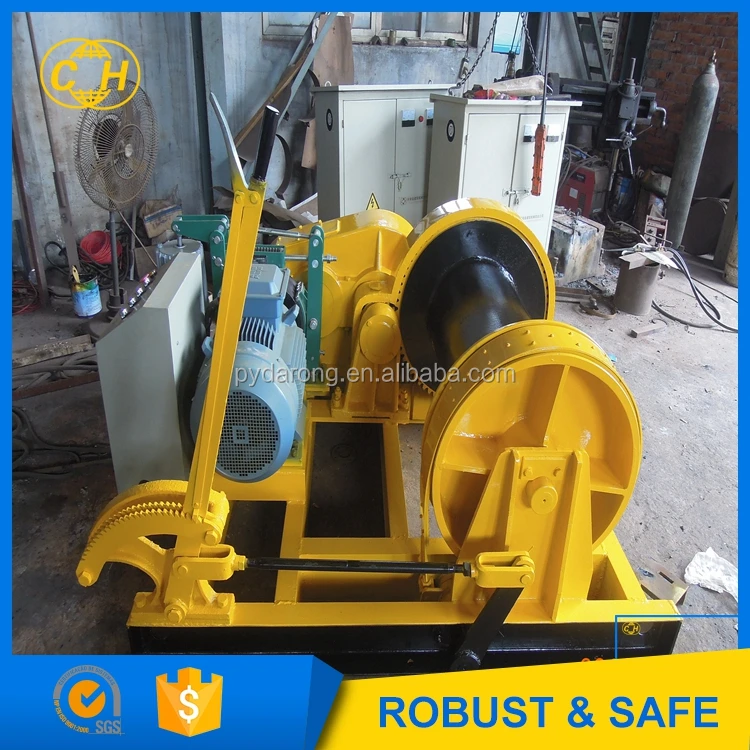

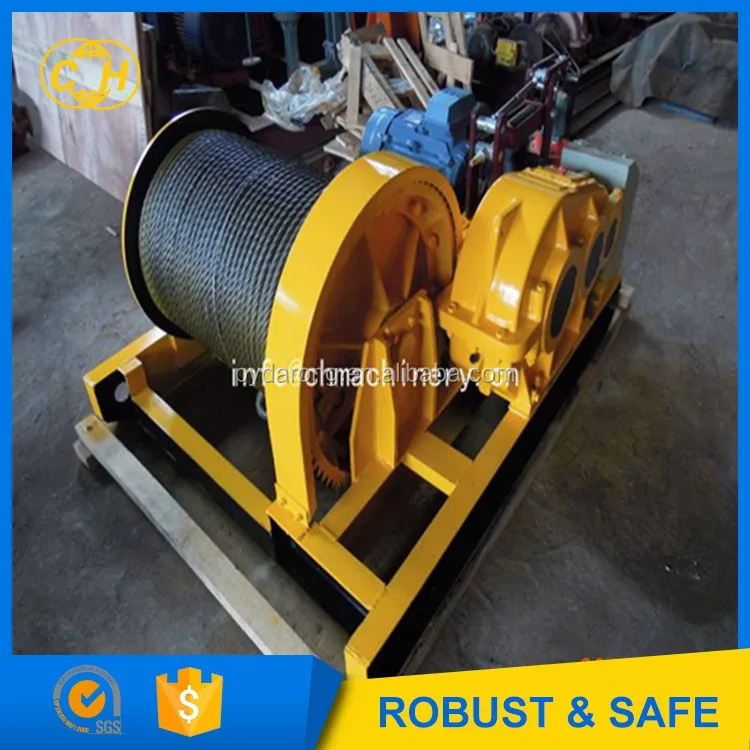

5ton electric hoist (lifting hoist), rope speed: 28m/min, power: 30kw, soft start,rope dia 22mm,for construction, building, mine, port, factory as material lifting and traction necessary equipment,also for dry dock of shipyard slipway pulling boat.



MODEL		Wire Rope Rated Pull			Wire Rope Rated Speed			Rope Capacity	Wire Rope				Diameter						Size		N.W.
		(KG)			M/MIN)			(m)	Dia.Φmm)	Type	Transmission Ratio		(Φ)		Length	Type		Brake	MM)		KG)
JK 3		3000			35			180	17	JZQ500	23.34		270		570	YZR225M-8		TJ2-300	1560*1370*900		1000
JK 5		5000			28			300	22	JZQ650	40.17		400		840	YZR250M1-8		TJ3-300	2200*1800*945		2700
JK 8		8000			20			300	26	JZQ650	23.34		500		900	YZR250M1-6		YWZ-300	2400*1800*1100		4000
JK 10		10000			19			450	30
