RT S6 14B RT1121DF SPDT 250V мгновенный вкл. Переключатель
- Category: Toggle Switches >>>
- Supplier: Yueqing Renew Electronic Co. Ltd.
Share on (241742656):
Product Overview
Description
Product Description

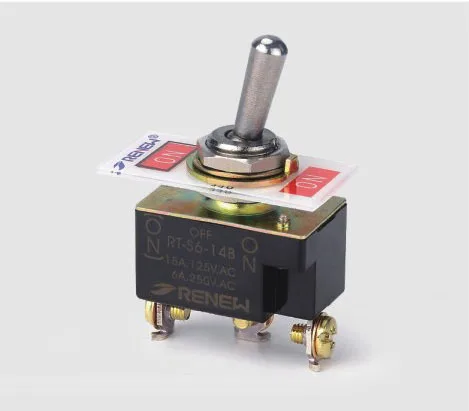

Product Name: SPDT type One pole (ON)-ON 3P Toggle Switch

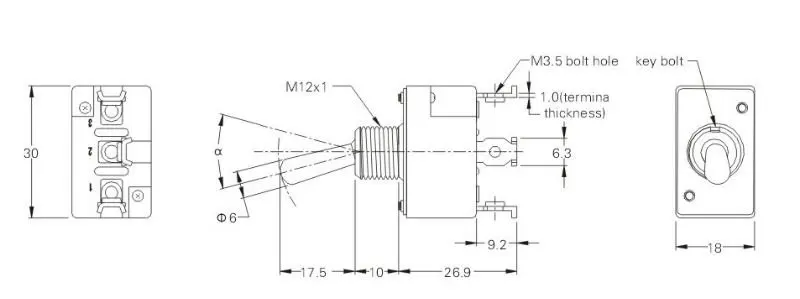

Model No.: RT-S6-14B
Technical parameters:
Rated working current | 15A,10A,6A,3A/125V,250VA(resistive load) | ||
Contact type | Contact resistance (initial value ) | 15mΩ max. | |
Contact material | Sliver cadmium oxide contact (if no need cadmium,[according with ROSH certificate ] can customize | ||
Electrical | Insulation resistance(initial value ) | 100 mΩ min. (at 500VDC ) | |
Dielectric strength | Between Non-continuous terminals (initial value):1000V 50/60HZ for 1 min Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
| ||
Mechanical | Shock resistance | In the free position | 98m/s2(10G) max. |
In the full operating position | 500m/s2(30G) max. | ||
Vibration resistance | 1.5mm double amplitude, 10 to 55HZ (contact gap is under 1ms ) | ||
Expected life | Mechanical | 50,000 operations min. (on/off frequency 20 operations/min) | |
Electrical (resistor load) | 25,000 operations min. (rated load, 7 operations/min) | ||
Using condition | Ambient temperature/ Ambient humidity | -20~+70(with no icing ), 85%RH max.(+5~20) | |
The max on/off frequency | 30 operations/min | ||
Purpose:
Project vehicle, electric power screen controller, industry, the output controller of civilian machine and so on.
Packaging & Shipping
400 PCS /CARTON
Our Services
Warranty period: 12 months.
Company Information
Our company was founded in 1996, We are specialized in developing and producing micro-switch, limit switch, travel switch, toggle switch
All kinds of test machine:
Workshop:
WHY CHOOSE US?
1. More than 17 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL. ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.
FAQ
1.Q:What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. We do not have a paypal account at present.
2. Q: Do you have a price list?
A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.
3. Q: What are your warranties?
A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
4. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
5. Q: What about the package?
A: All use thickening export carton with "RENEW" mark, your specified mark or none.
6. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
7. Q: Do you accept small order quantity?
A: Yes, order quantity without limited.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
9.Q: Do you bear the freight charge?
A: We can offer you EXW, FOB or CIF price.
For more information, please contact us. Email: cnrenew at foxmail.com
