Product description

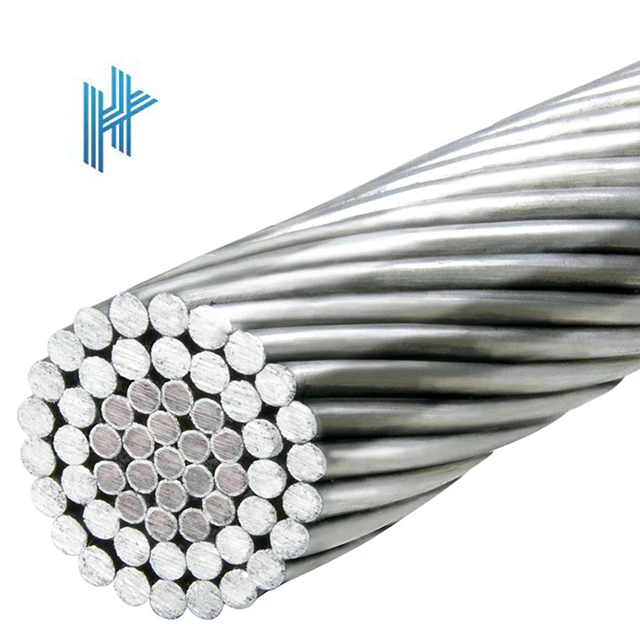

Aluminum Conductor Steel Reinforced Cable
Advantage:
Thanks to the great number of combinations that can be made between the wires of aluminum and the wires of steel, the proportions can vary among them to obtain the best relation between the mechanical resistance and the current-carrying capacity for each type of application.
For a better protection in an atmosphere of extreme corrosion, Huaxing Cable recommends to use Class B or C galvanized steel core (zinc-coated). It produces a small reduction on the total mechanical resistance when using these types of galvanization. We can produce special orders if desired. It’s not practical to show all the types of combinations and dimensions of the cables.
Parameter：

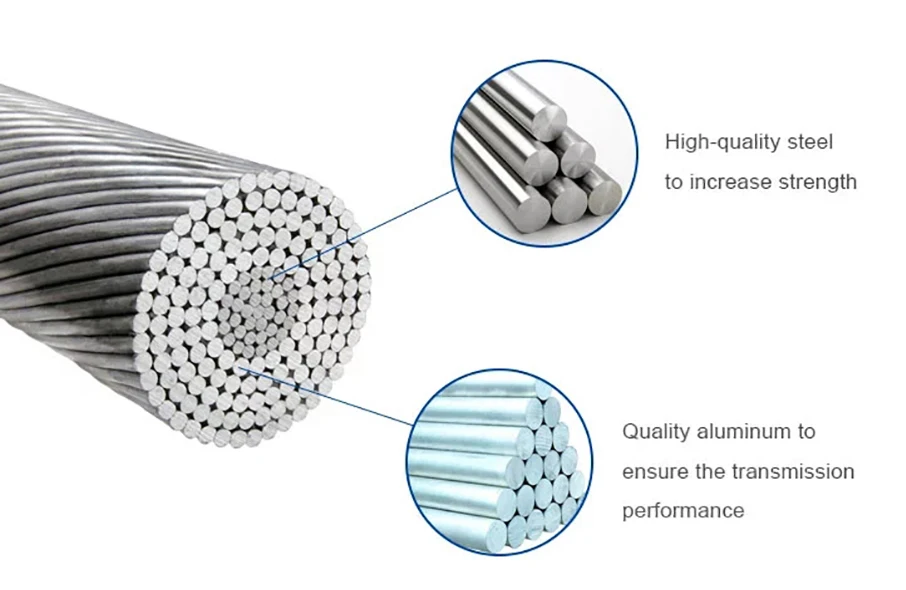

Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Application :
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved withoutsacrificing ampacity


Product Standard




Code Name
Size
No./Dia.of Stranding Wires

Approx. Overall Dia.

Approx. Weight

AWG or MGM
Alum.
ST.
No./mm
No./mm
mm
kg/km
Swanate
4
7/1.96
1/2.61
6.53
93
Sparrow
2
6/2.67
1/2.67
8.01
129
Sparate
2
7/2.47
1/3.30
8.24
148
Robin
1
6/3.00
1/3.00
9
163
Raven
1/0
6/3.37
1/3.37
10.11
206
Quail
2/0
6/3.78
1/3.78
11.34
259
Pigeon
3/0
6/4.25
1/4.25
12.75
327
Penguin
4/0
6/4.77
1/4.77
14.31
412
Waxwing
266.8
18/3.09
1/3.09
15.45
422
Merlin
336.4
18/3.47
1/3.47
17.35
532
Linnet
336.4
26/2.89
7/2.25
18.31
656
Oriole
336.4
30/2.69
7/2.69
18.83
737
Chickadee
397.5
18/3.77
1/3.77
18.85
629
Ibis
397.5
26/3.14
7/2.44
19.88
775
Lark
397.5
30/2.92
7/2.92
20.44
871
Pelican
477
18/4.14
1/4.14
20.7
754
Flicker
477
24/3.58
7/2.39
21.49
877
Hawk
477
26/3.44
7/2.67
21.8
931
Hen
477
30/3.20
7/3.20
22.4
1044
Osprey
556.5
18/4.47
1/4.47
22.35
880
Parakeet
556.5
24/3.87
7/2.58
24.21
1023
Dove
556.5
26/3.72
7/2.89
24.2
1085
Eagle
556.5
30/3.46
7/3.46
24.51
1219
Peacock
605
24/4.03
7/2.69
25.25
1112
Squab
605
26/3.87
7/3.01
23.88
1180
WoodDuck
605
30/3.61
7/3.61
27.84
1325
Kingbird
636
18/4.78
1/4.78
25.15
1007
Rook
636
24/4.14
7/2.67
25.88
1170
Grosbeak
636
26/3.97
7/3.09
23.62
1240


Product packaging

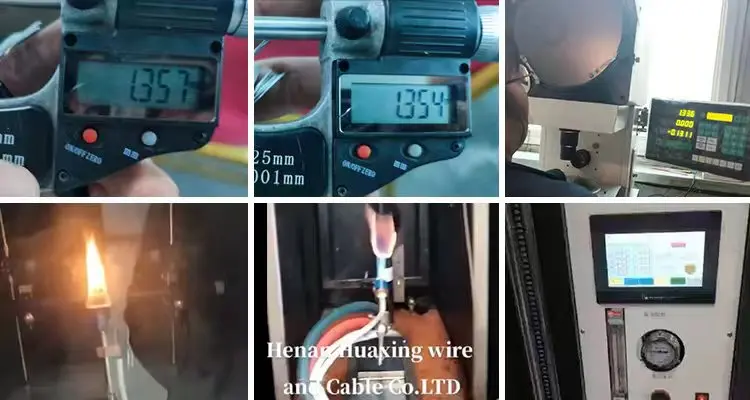

Inspection of quality
