ZH-800g Factory price High Productivity lock bottom folder gluer
US $11500-$13000
ZH 880BFT Box Folding Gluing Machine
- Category: Gluing Machines >>>
- Supplier: Wenzhou Hoson Printing Machinery Co. Ltd.
Share on (252774107):
Product Overview
Description

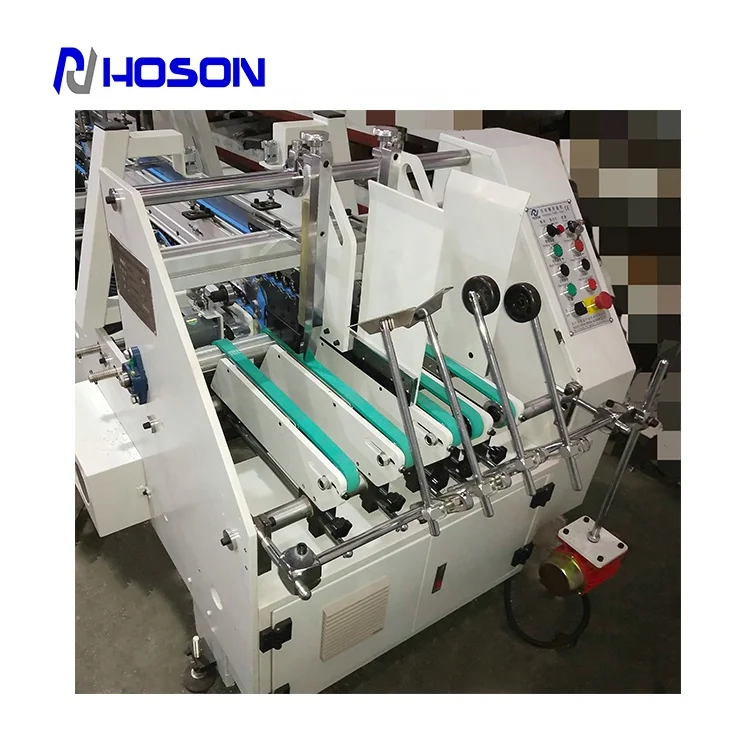

ZH-880BFT Box Folding Gluing Machine
Product Description
Feature:
1. The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.
2. The motor is controlled by transducer (inverter) which is available for automatic timing. It is power saved and it helps to work stably.
3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine, to make gluing more stable and firm.
5. Two sets of gluing units: top unit for bottom glue and lower unit for side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.
6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

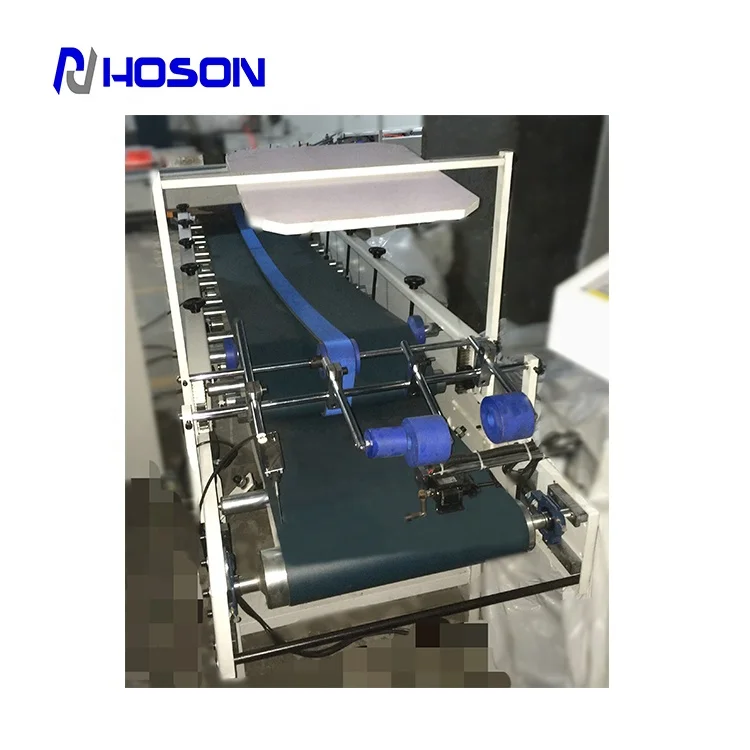

7. Conveyor unit use pressing sponge belts for pressing to ensure out-put in a perfect condition. A transverse paper collection table after the conveyor unit helps to collect boxes quickly.

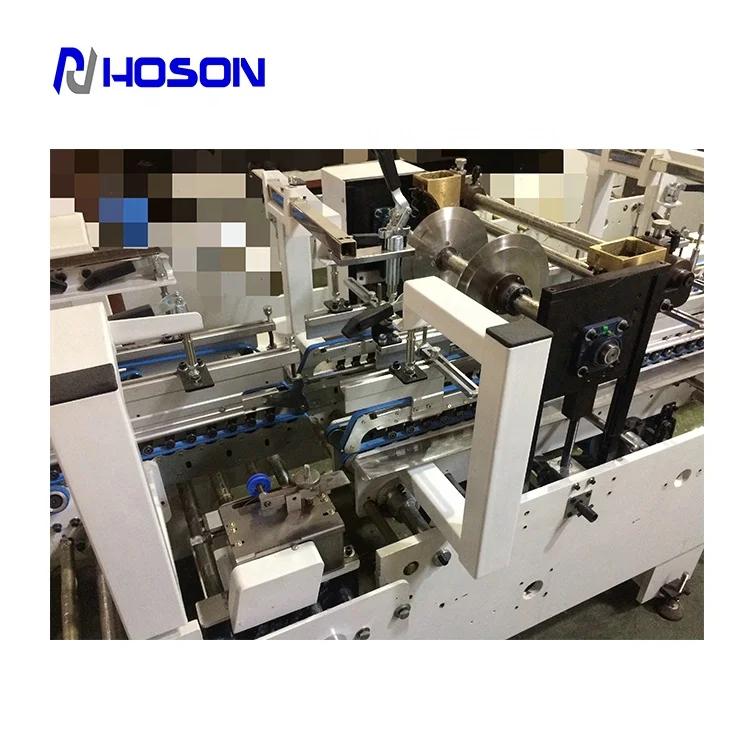

8. The machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180°, the third fold at 90°. The second fold and the fourth fold box at 180°.
9. Small box like out-put size at 30mm is able to be done after the special design according to customer requirement.
1 | Line speed | 0-200m/min , Continuous adjustment |
2 | Usage paper | 250-500 g/ms, paperboard |
3 | Box forming | Bottom-lock, straight line box, double walls box |
Fold method | 1st folds 180°, 3rd folds 90°, 2nd & 4th folds 180° | |
5 | Paper feeding | Automatic feeding, grinding unit |
6 | Electric Power | 6.0kw |
Dimension | 9.0*1.15*1.15m | |
8 | Weight | 2350kg |
9 | Condition | New |
FITTING PARTS OF 880BFT BOTTOM LOCK TYPE
Parts Sourced Area / Brand | Item Name |
Siemens | Main engine |
Taiwan | Second engine |
Schneider- France
| Air switch |
AC Contactor AC | |
Press button | |
Urgency | |
Italy-Taiwan(joint venture) | Belt |
Schneider -France | Transducer |
Schneider -France | PLC |
Taiwan | Power switch |
China | Bearings |
Packaging & Shipping
Our Services
According to the customer's requirement, we will arrange one technician to help you to install the machine and train the worker, but all the expenses like round-trip air tickets, accommodation, meals and salary USD80/day, incurred therefrom shall be born by the buyer.
Company Information
We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder and gluer machinery in Wenzhou,Zhejiang,China
Through about 15 years' efforts, a mode integrated with production-sale-service has been built and completed.
Our main series of folder gluers are 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. We have these advantages: special design, easy operation, quick adjustment and high automation.
Optional Equipment
Germany hhs Spray Gluing System Cold Glue Chinese Spray Gluing System Cold Glue
Chinese Plasma Surface Treatment System
One Gun Tow Guns Three Guns
