RK2671BM Withstand Voltage Tester Dielectric Withstanding Voltage 0 10kv Digital Only 630*500*330mm Rek,rek Manual Control 5%

Product Overview

Description

RK2671 _M series   10 kV  Withstand voltage tester

K2671AM     RK2671BM  RK2671CM



Product introduction

The RK2671_M Withstand voltage tester of Meiruike is the measurement instrument for  compressive strength,it mainly used for insulation leakage safety test of product.It can test the electrical safety performance index of breakdown voltage,current of which all kind of the measured object intuitive,accurate and fast,and can be used for testing the components and overall performance as a high voltage source.



This series of tester according to the following standards:Standard for household electrical appliances(IEC6035,GB4706.1-2001, GB4706.1-1998),Standard for lamp(IEC60598-1-1999, GB7000.1-2000),Standard for information (GB8898-2001,GB12113.GB4943-2001, IEC60065,IEC60950) and so on.

Application area

Components:diode,triode,high-voltage silicon stack,all kinds of electronic transformer, connector assembly,high voltage electrical equipment.

Household Electric Appliances:TV,refrigerator,air conditioner,washing machine,dryer, electric blanket,charger etc.

Insulation material:heat shrinkable tube,capacitor film,high pressure tube,insulating paper,insulated shoes,rubber insulating gloves,PCB circuit board etc.

Instruments and meters:oscilloscope,signal generator,DC power supply,switching power supply and other types of machine.

Lighting appliances:ballast,road lights,stage lights,portable lamps and other types of lamps.

Electric heating appliances:electric drill,pistol drill,cutting machine,grinding machine,electric welding machine etc.

Wire and cable:high voltage cable,optical cable,electric cable,silicone rubber cable, etc.

Performance characteristics

n AC/DC voltage 10kV universal withstand voltage tester.

n The output voltage regulated output by the regulator,which has high reliability and high durability.

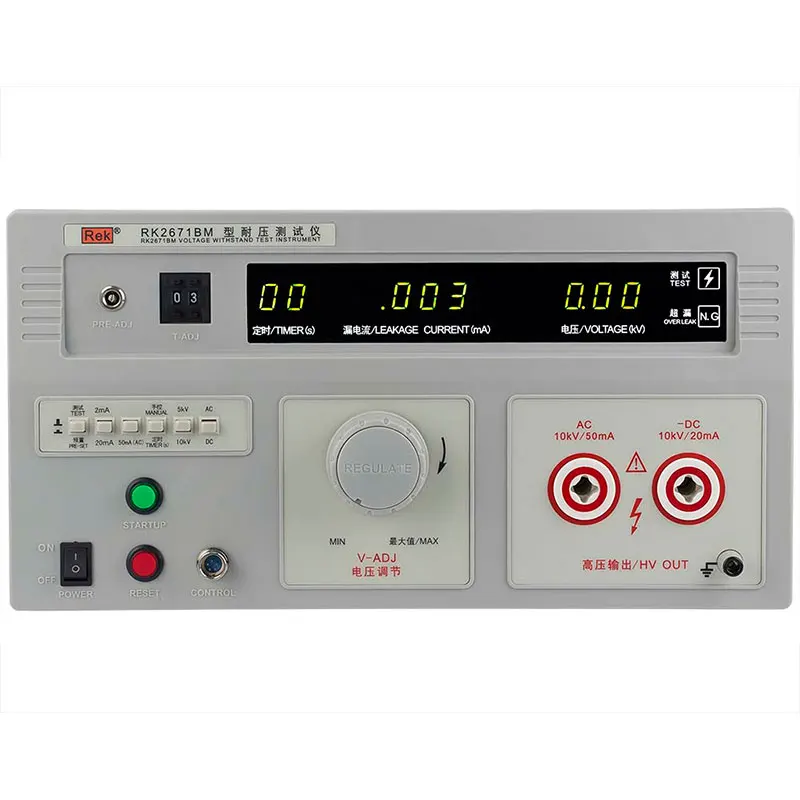

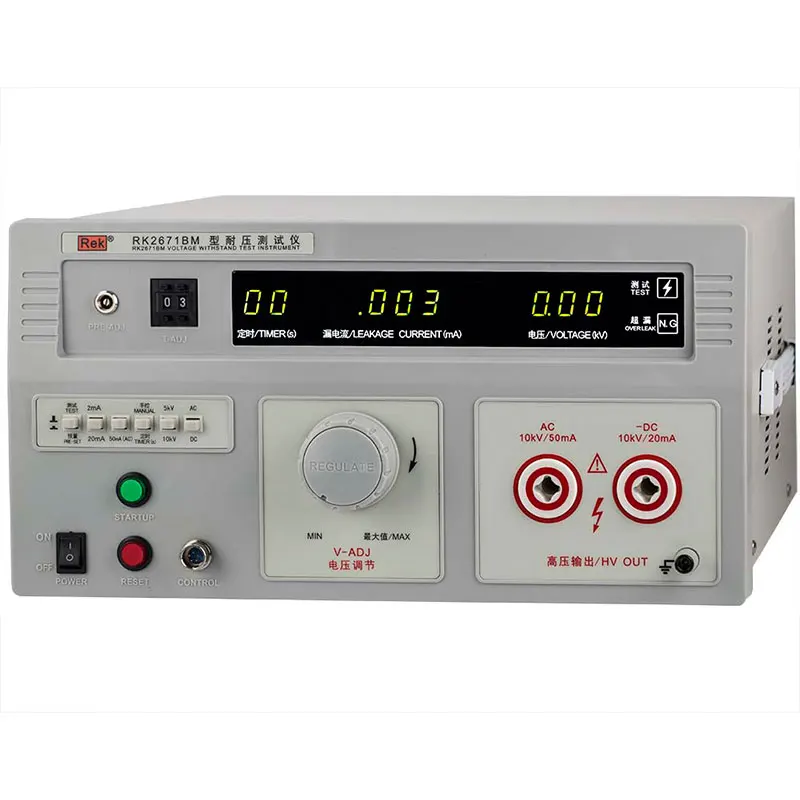

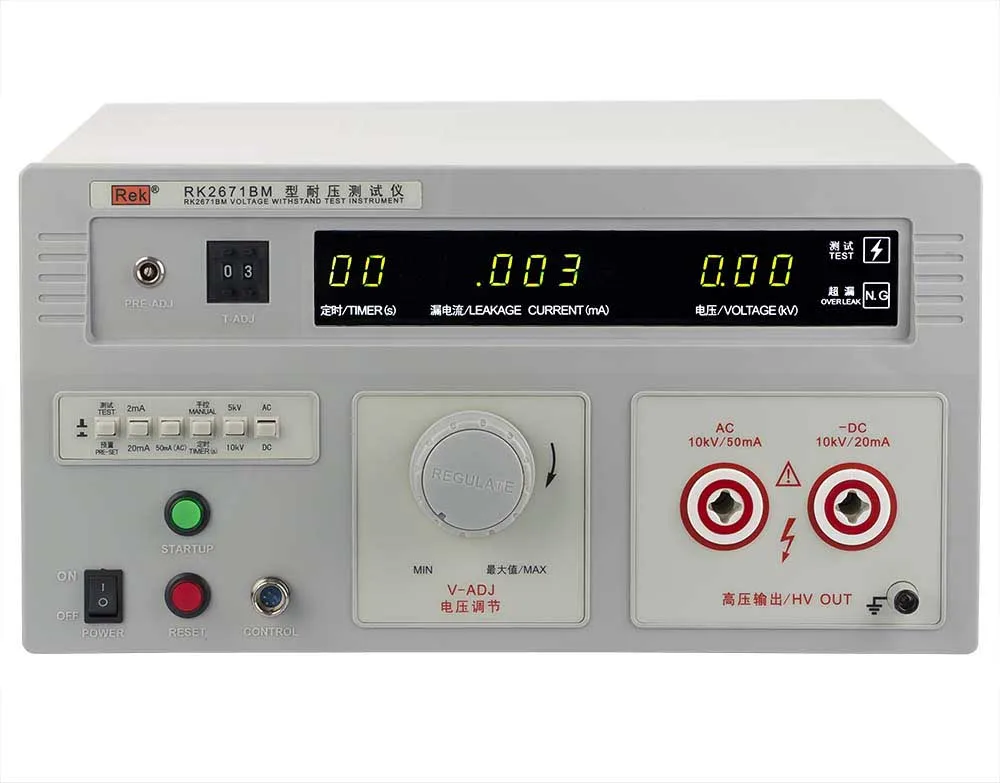

n Using high brightness LED digital displaying test time,voltage,current,it can display the breakdown current value and voltage value in real time.

n Alarm current value can be preset arbitrarily.

n Test time using three digital tube display

n Equipped with PLC signal input,output interface,it can constitute easily integrated test system with PLC expediently.(optional)

Technical indicators

Parameter   Type		RK2671AM	RK2671BM	RK2671CM
Output Voltage (kV)	AC	0~5/10
	DC	0~5/10
Output Current (mA)	AC	0~2/20	0~2/20/50	0~2/20/100
	DC	0~2/10	0~2/20	0~2/20
Test accuracy		±(5%+3 words)
Test time		(0.0~999)s     0.0=continuous test
Transformer capacity		200VA	500VA	1000VA
Interface of PLC		optional

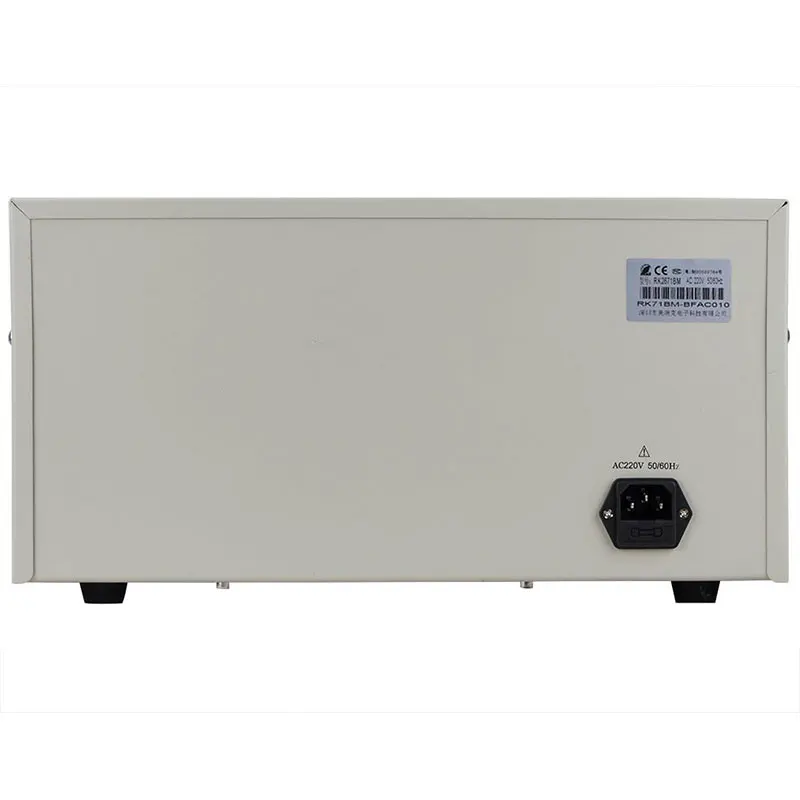

Power Requirments		AC:220V±10%   50Hz/60Hz±3Hz
Working environment		Temperature:(0-40)℃ Humidity≤75%RH
Exterior dimension		390×310×200mm	443×390×200mm
Weight		14.5kg	25kg	32kg

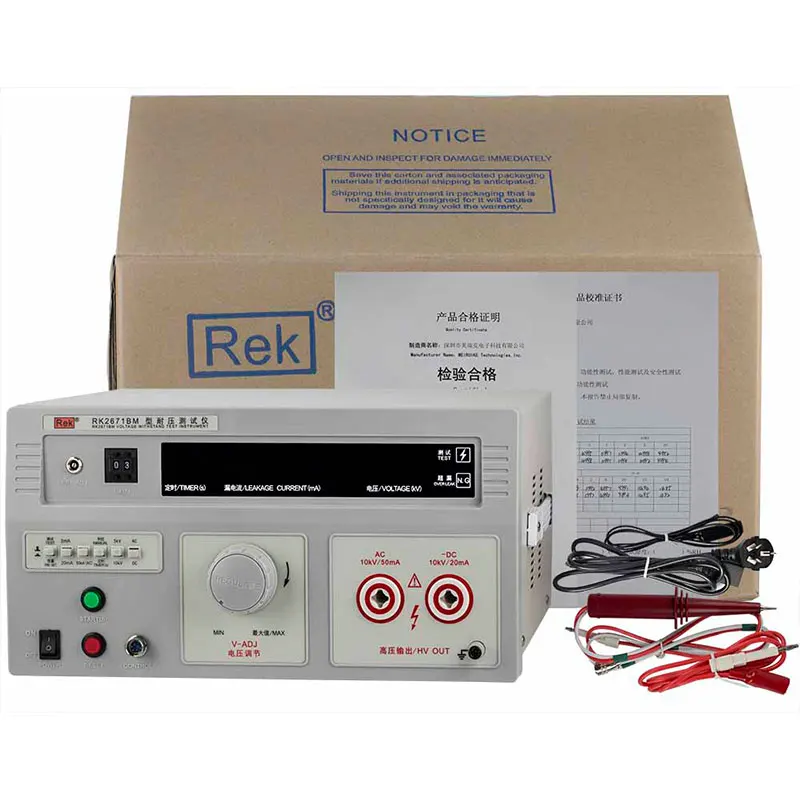

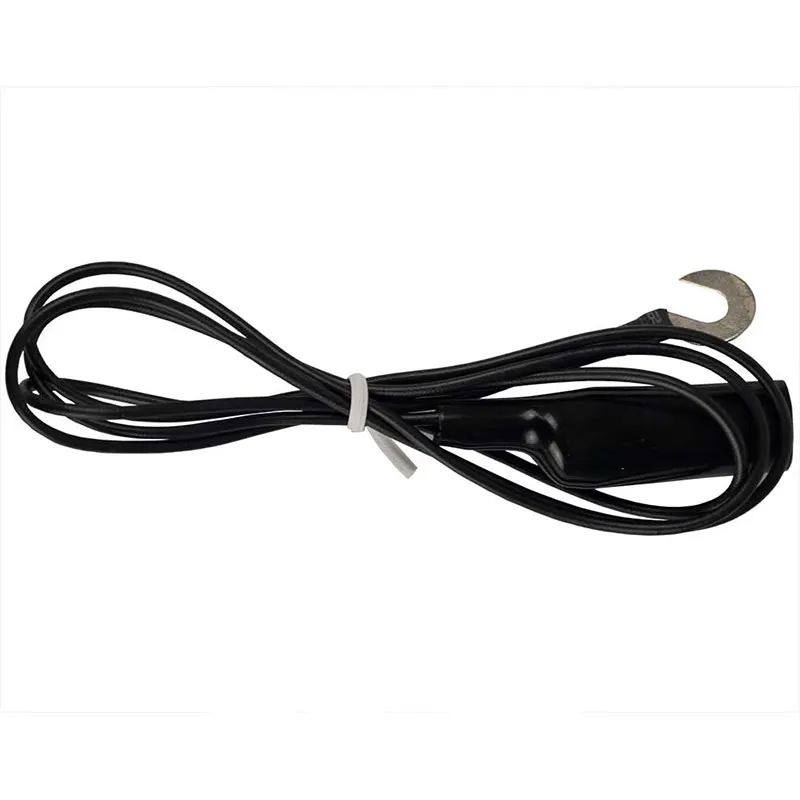

Accessory		High voltage test line,grounding wire,high-voltage stick,power line(standard) Communication line,interface of PLC(optional)
