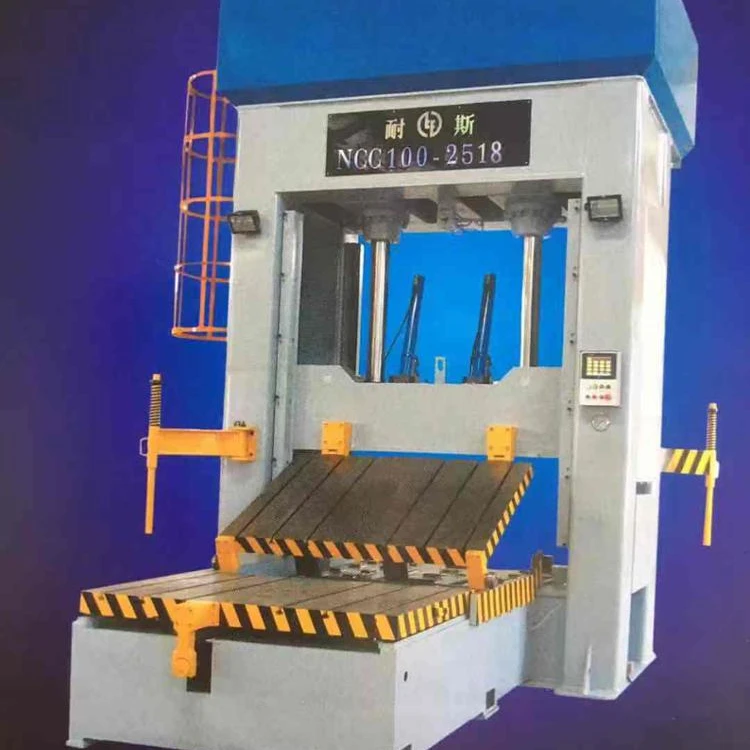

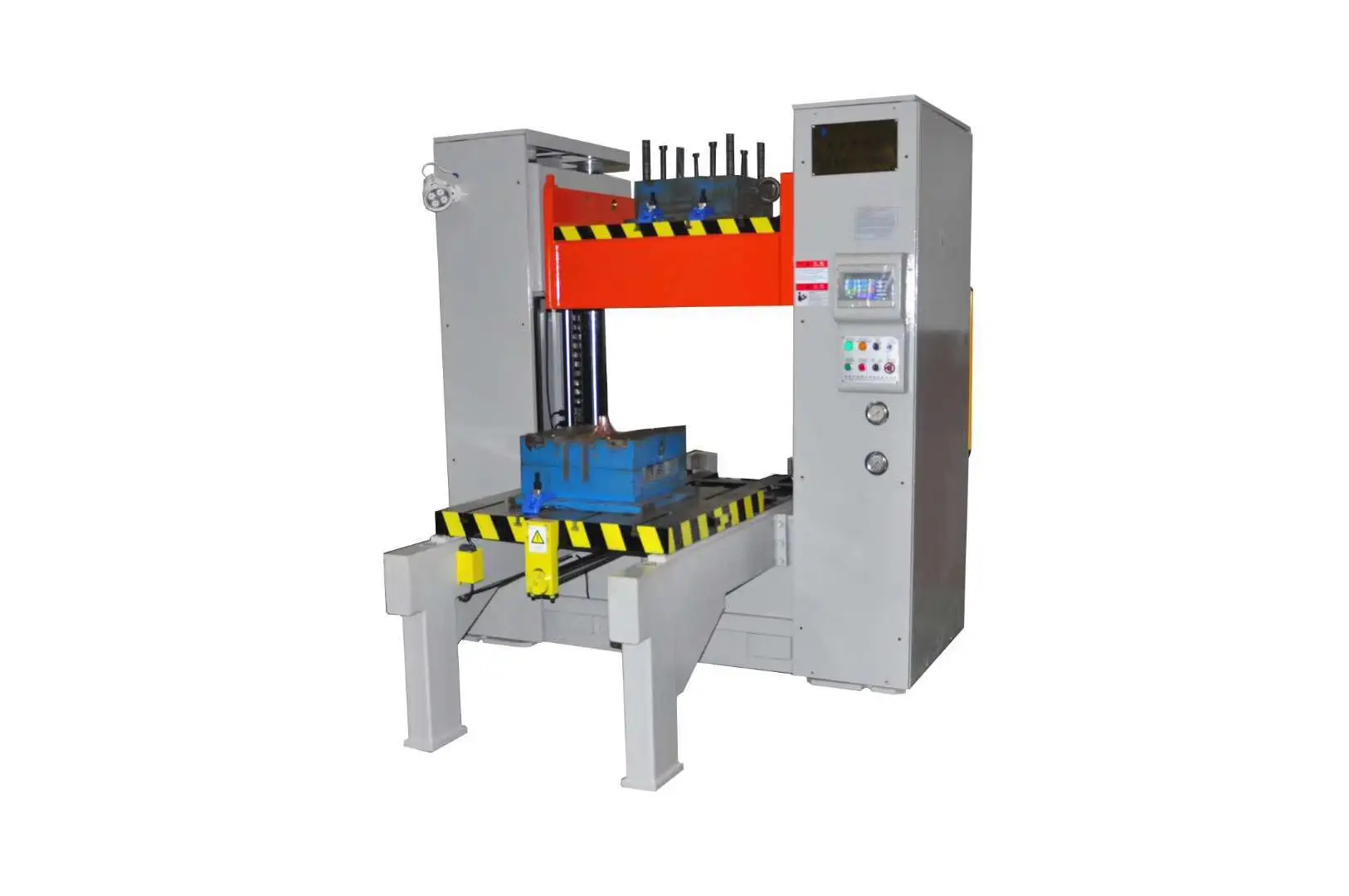

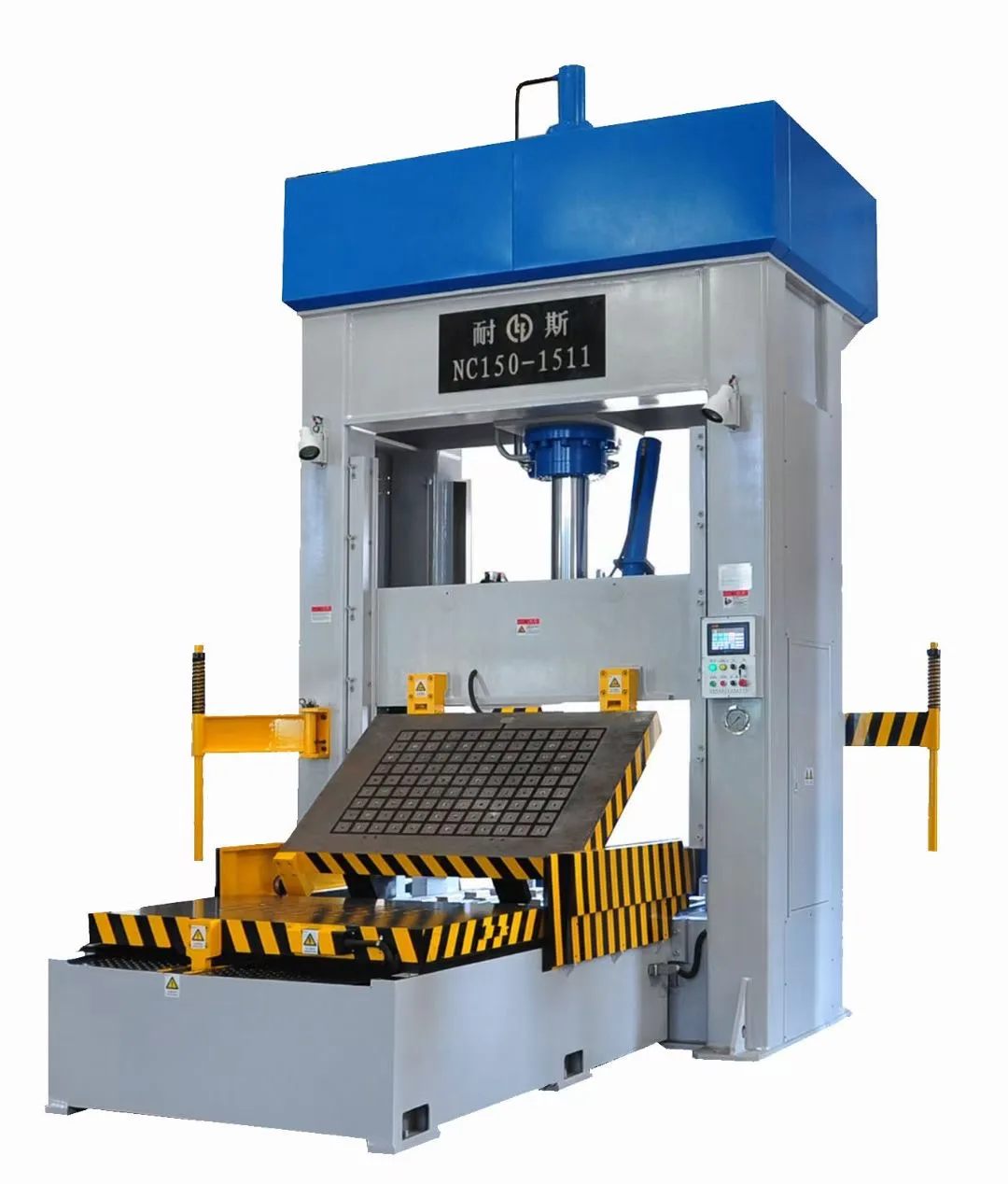

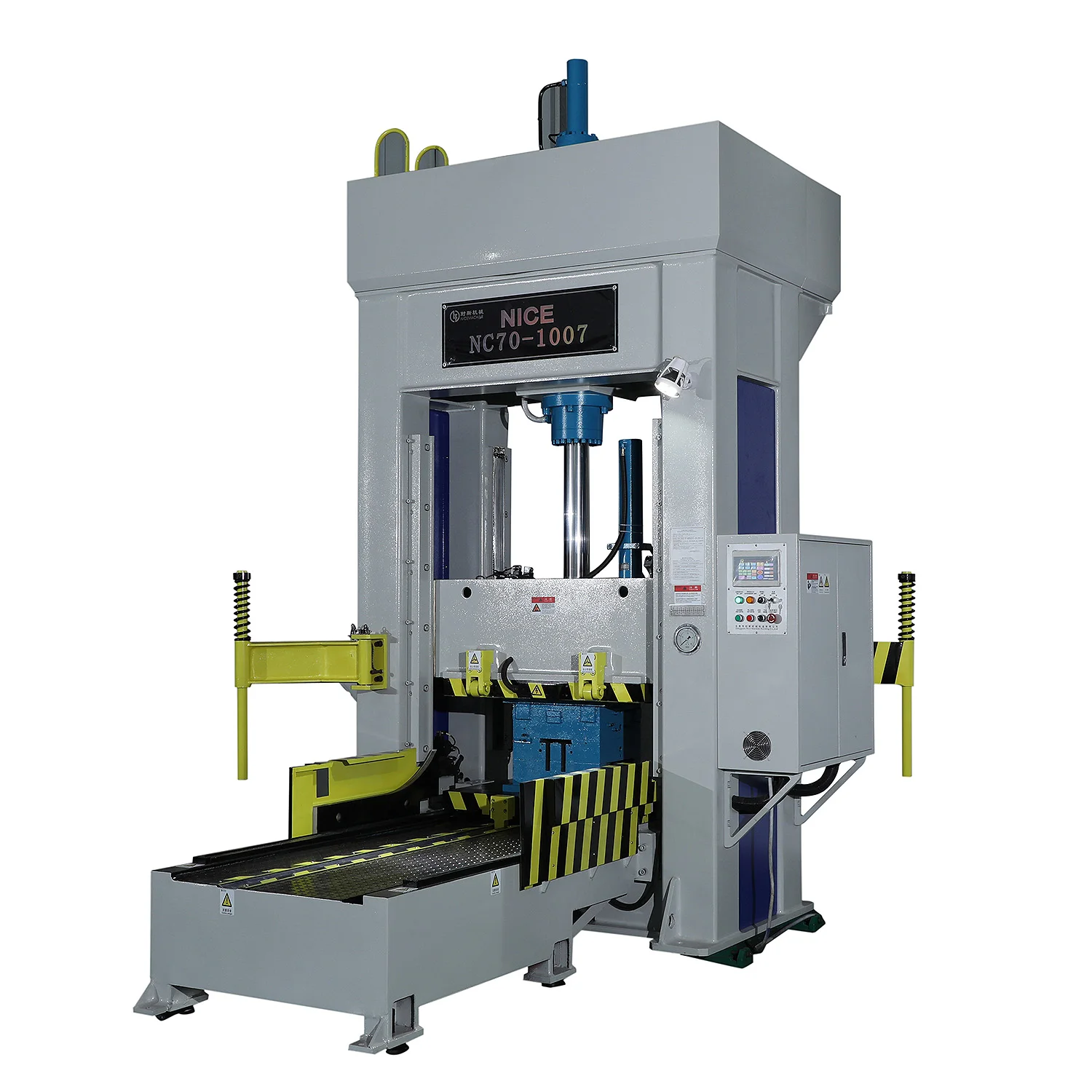

NC100 Vertical Disk Die Spotting Machine

Product Overview

Description



Max. Spotting Force :100T

Die Opening Space : 1300mm

Size of Working Bench : 1300x1000mm

Suction Force of Upper Magnetic Disk : 55T

Suction Force of Lower Magnetic Disk : 40T

Out Stroke of Lower Working Bench : 2200mm

Machine Height : 4350mm

Machine Occupied Land Size : 4300x3600mm









1. The machine uses PLC control, and human-machine interface operation. It's automatic and manual optional.



2. The upper and lower working tables use electric c ontrolled permanent magnetism system, which can maintain the magnetic force when power is shut off. Only simple magnetizing and demagnetizing steps should be taken for operation. The electric power could be shut off after magnetization process is finished, without losing magnetic force. And there is no demagnetizing occurs by doing so. When the machine is in working condition, there is no power needed. So this machine featrues energy saving and operation safe.



3. The machine uses unique vibration absoption system and the hydraulic impact is minimized, which ensures equipment precision.



4. The machine has low-voltage protection function and has fast pressing function, which enables good red lead pressing effect.
