HR 150A Rockwell Hardness Tester

Product Overview

Description

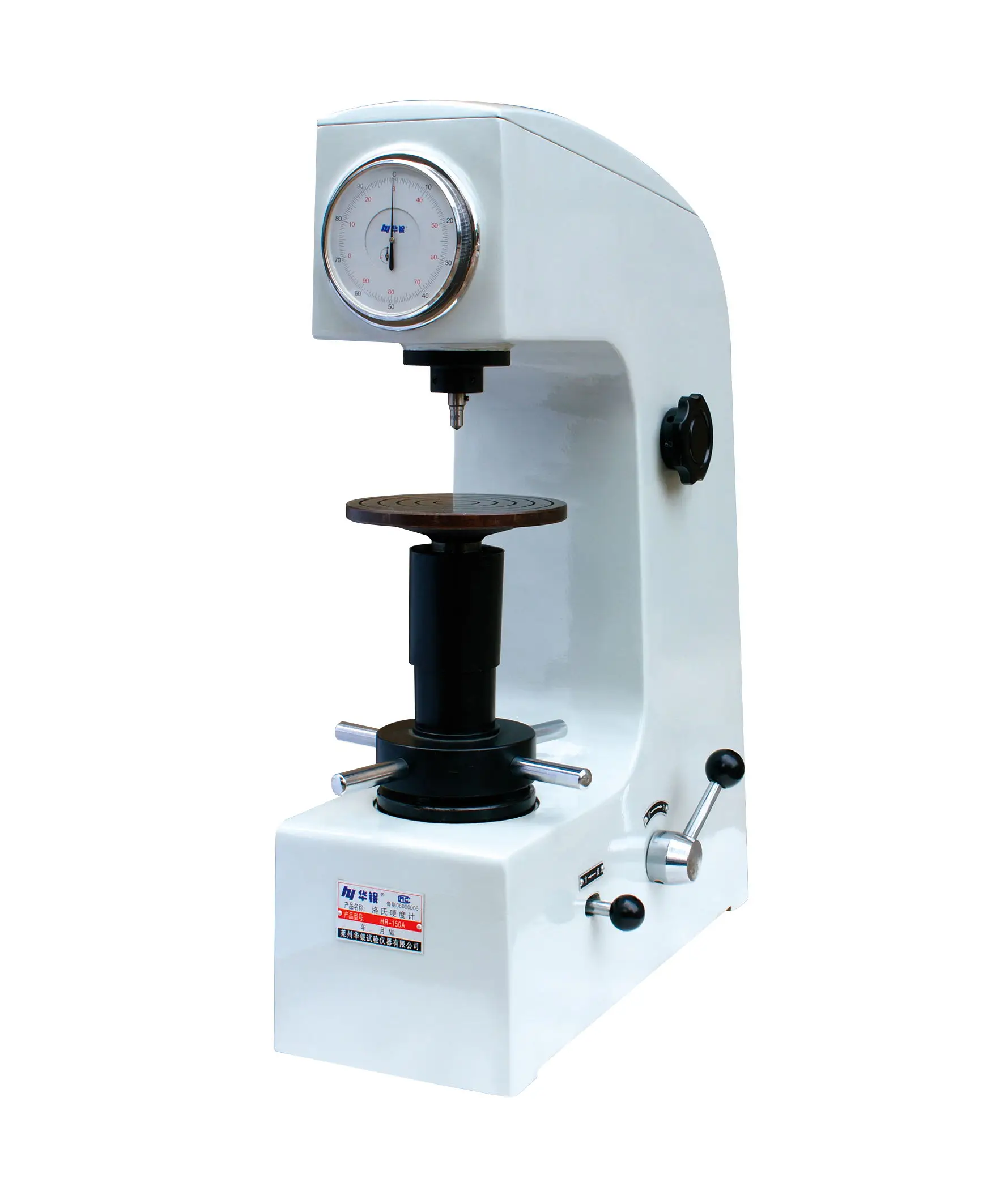

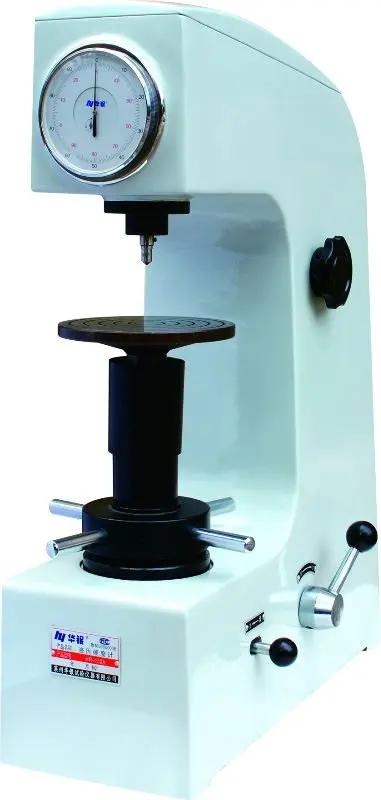

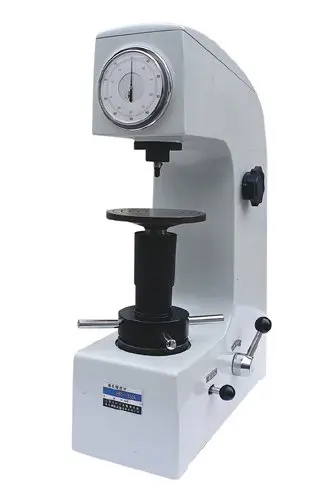

Rockwell Hardness Tester Model HR-150A



Feature & Use:

•


  Manual testing process, no need for electric controlling





•


  It's steady and reliable for testing of curved surface





•


  Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18




     It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

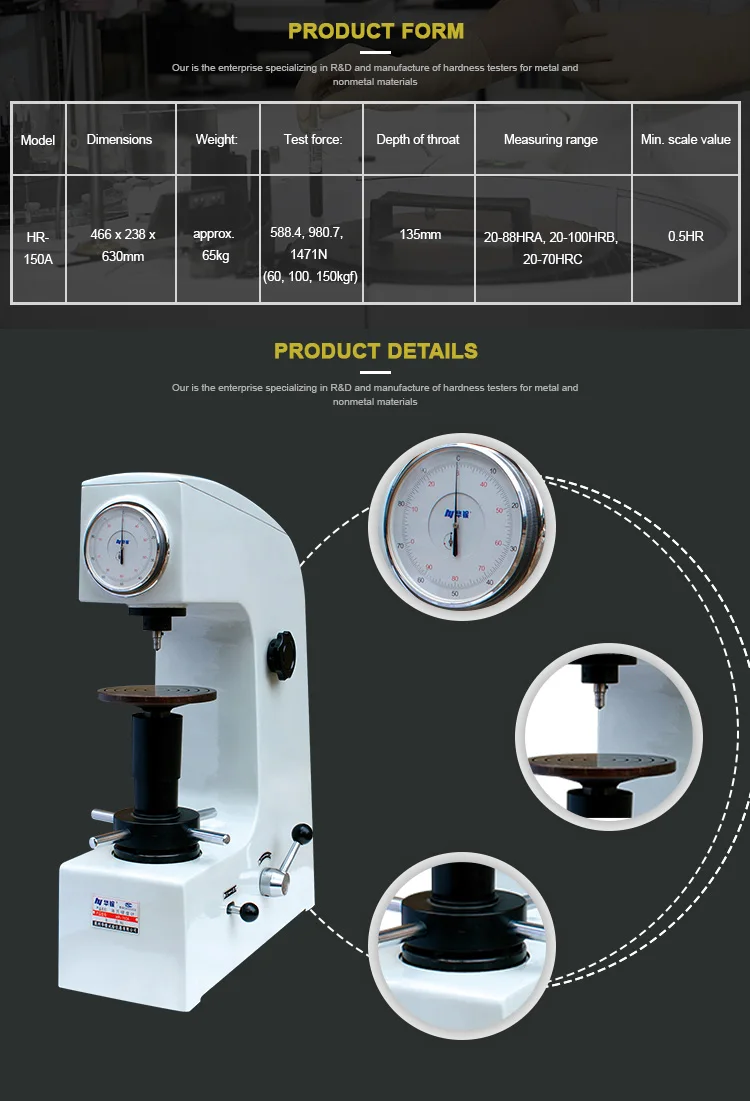

Specifications

   Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

   Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

   Max. height of test piece: 170mm

   Depth of throat: 135mm

   Min. scale value: 0.5HR

   Dimensions: 466 x 238 x 630mm

   Weight: approx. 65kg



Standard accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond cone penetrator: 1 pc.

   1/16" steel ball penetrator: 1 pc.

   Rockwell standardized block: 5 pcs.
