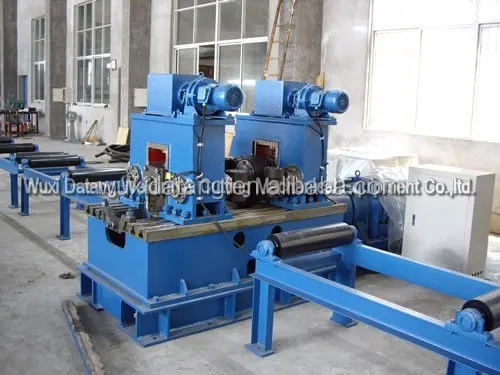

HYJ type H BEAM Straightening Machine

Product Overview

Description



 Straightening Machine

This machine is used for the straightening of H-beam flange plate after welding and distortion. It has mechanical and hydraulic two series. Mechanical straightening machine (DTJ-600DTJ-800),has simple structure and easy operated. Hydraulic straightening machine (DTYJ-60A\\DTYJ-60B) has big straightening ability, wide range and high automatic standard. Wheel and roller adopt high quality alloy steel, can be used for a long term.

 Main parameter

Model	HYJ-600	HYJ-800
Flange width(mm)	150-600	200-800
Flange thickness (mm)	≤20	≤40
Web plate minimum height (mm)	160	350
Material	Q235A	Q235A
Straightening speed (m/min)	5.7	18
Power(Kw)	9	25
Size (mm)	3600*720*1800	3500*1500*1700
