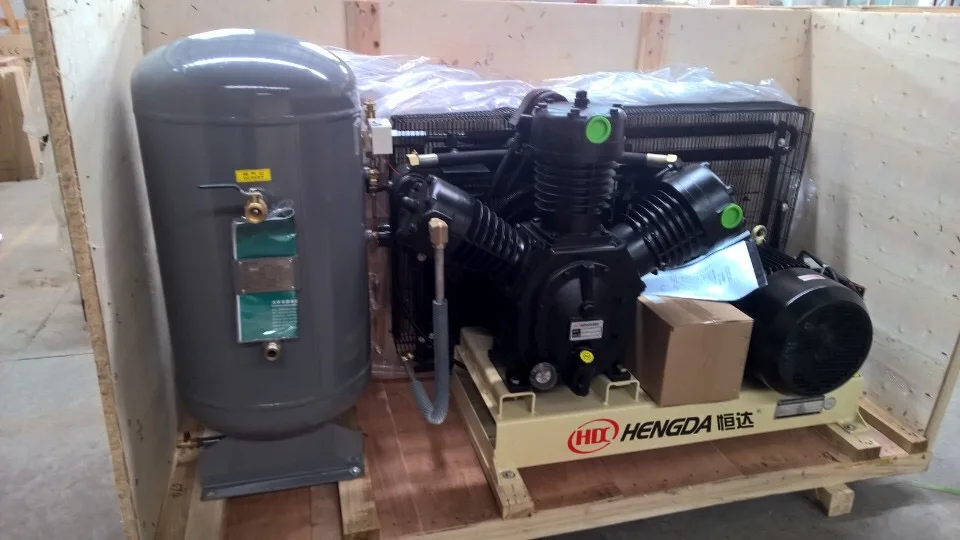

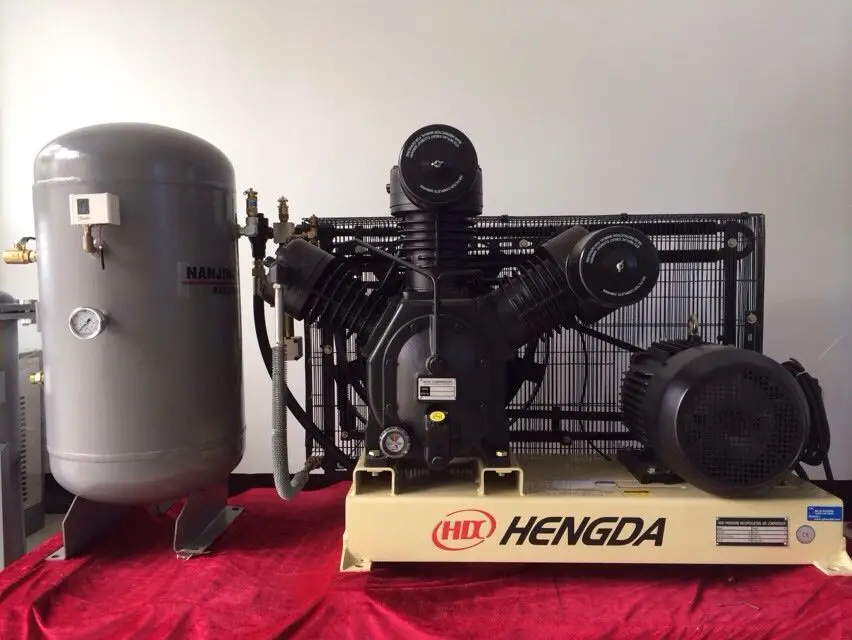

Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000
Воздушный компрессор высокого давления
- Category: General Industrial Equipment >>>
- Supplier: Zhejiang Lebao Plastics Equipment Factory
Share on (275465187):
Product Overview
Description
Product introduction
The high pressure compressors(from 0.7cbm to 4.0cbm)are widely used for making plastic bottles and other industrial use.
Technical Spefications
| No. | Model | air flow M3/Min | Woring pressure Mpa | Motor power KW | air tank M3 | weight Kg | Dimension L*W*H mm |

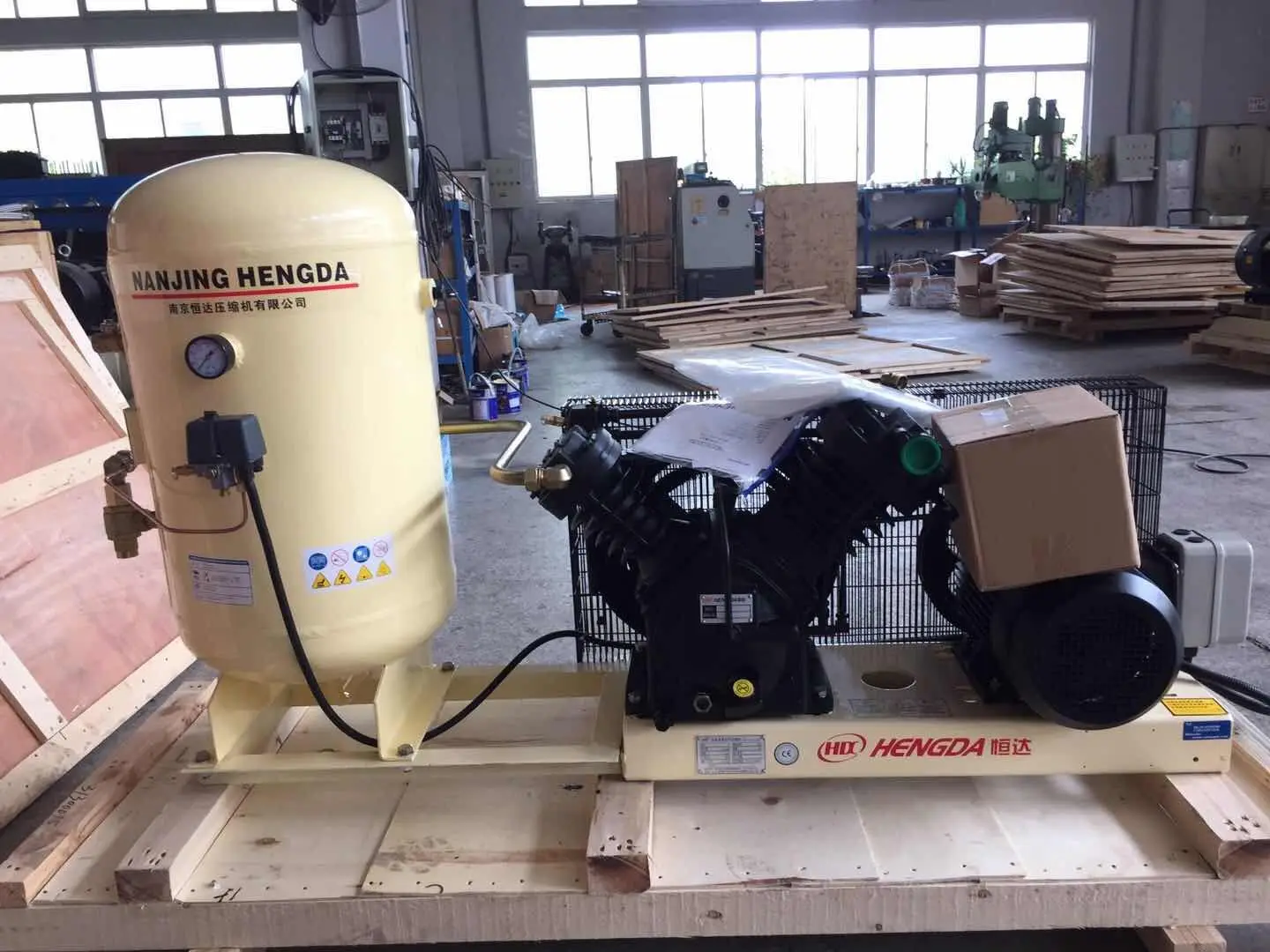

| 1 | 0.7/30-SB | 0.7 | 3.0 | 7.5 | - | 310 | 1450*750*1025 |
| 2 | 0.7/30 | 0.7 | 3.0 | 7.5 | 0.13 | 410 | 1910*760*1370 |
| 3 | 1.2/30-SB | 1.2 | 3.0 | 11 | - | 430 | 1580*850*1110 |
| 4 | 1.2/30 | 1.2 | 3.0 | 11 | 0.13 | 530 | 2000*860*1275 |
| 5 | WH-1.2/30-SB | 1.2 | 3.0 | 15 | - | 430 | 1580*850*1110 |
| 6 | WH-1.2/30 | 1.2 | 3.0 | 15 | 0.13 | 530 | 2000*860*1275 |
| 7 | 1.65/30 | 1.65 | 3.0 | 18.5 | - | 520 | 1750*1010*1420 |
| 8 | 2.0/30 | 2.0 | 3.0 | 22 | - | 550 | 1750*1010*1420 |
| 9 | 2.4/30 | 2.4 | 3.0 | 22 | - | 1050 | 2010*1730*1360 |
| 10 | WH-2.4/30 | 2.4 | 3.0 | 15*2 | - | 1050 | 2010*1730*1360 |
| 11 | 3.3/30 | 3.3 | 3.0 | 18.5*2 | - | 1350 | 3550*1010*1420 |
| 12 | 3.6/30 | 3.6 | 3.0 | 15*3 | - | 1580 | 3760*1730*1360 |
| 13 | 4.0/30 | 4.0 | 3.0 | 22*2 | - | 1400 | 3550*1010*1420 |
| 14 | 1.0/40 | 1.0 | 4.0 | 11 | - | 470 | 1530*910*1110 |
| 15 | 2.0/40 | 2.0 | 4.0 | 22 | - | 710 | 2300*950*1400 |
| 16 | 3.0/40 | 3.0 | 3.0 | 30 | - | 920 | 2210*1180*1450 |
FAQ
1)how many size do you have
A: we have compressors from 0.7 to 4.0cbm HP air compressors
2)what is the voltage for the compressor
A: it is standard 3P 380V. and it can be designed on 3P 220V or other voltage as well.
3)what is guarantee time?
A: one year
4)what comes with the compressor
A: necessarge spares and manual, certificate etc.
