purified water stainless steel storage tank

Product Overview

Description

Usage:
It is used to store purified water or other liquids in pharmacy, agriculture, veterinary, biology, chemistry, and fermentation industries.

Technical parameters of purified water stainless steel storage tank:
1.Material adopts SS316L or 304,

2. Surface finish: inside surface roughness is Ra0.28~0.4μm by mechanical polish or electropolish, outside surface roughness is Ra0.6-0.8μm by satin finish.
3..Form: vertical or horizontal.

4. working pressure can be normal pressure or with pressure. if with pressure, please let us know the working and design pressure inside tank and inside jacket.

5. can be single layer, or with jacket or insualation. we make according to client detail requirment.
6.Components: vent filter, manhole, cleaning ball, liquid level gauge, and control system or according to clients specific requirement.
7.Specification: 50L-20000L.

8. normal pressure according to JB7431.

Pressure vessels can be made according to ASME VIII DIV1, PED 97/23/EC, GB150-2011 (it depends on clients' requirements with different cost.)

Packaging: wooden case or iron rack

Shipping: by sea

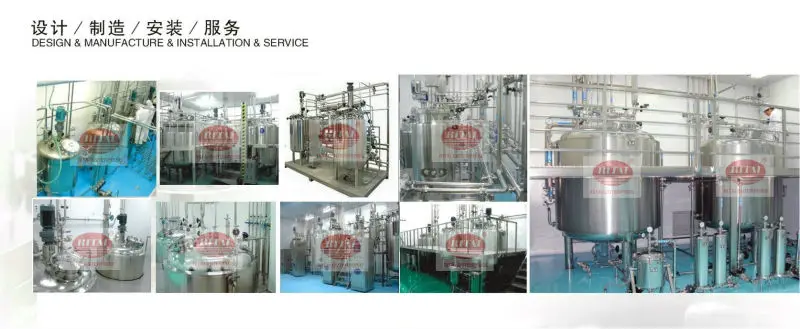

 We offer design, customization, manufacture, installation, maintenance services, etc.

Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmaceutical, biological, chemical, food, agricultural, veterinary industries.

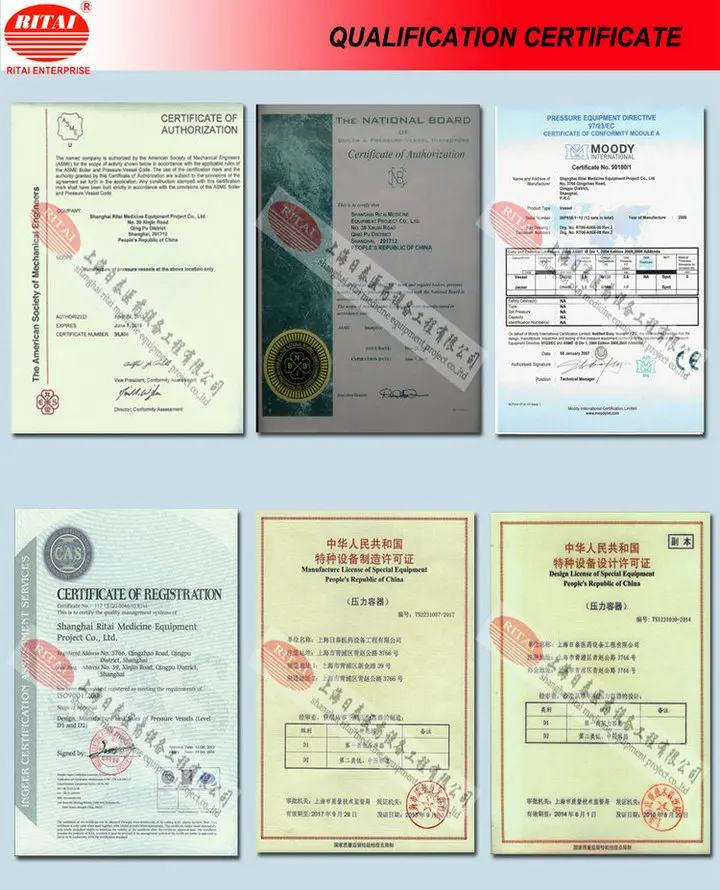

Shanghai Ritai is qualified to manufacture and design pressure vessels with the certificate of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
