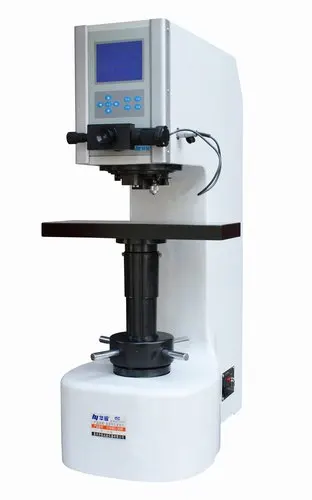

hardness tester 320HBS 3000 DIGITAL DISPLAY BRINELL HARDNESS TESTING MACHINE

Product Overview

Description

HARDNESS TESTING MACHINE MODEL 320HBS-3000

DIGITAL DISPLAY BRINELL HARDNESS TESTER



Feature & Use:

• Digital display of hardness value

• Full automatic closed loop control system

• Auto turret, electronic loading system

• Automatic test process, no human operating error

• Large LCD display of testing process, easy operation

• Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

     It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.



Specifications

   Measuring range: 4-650HBW

   Test force: 980.7, 1225.9, 1838.8, 2451.8, 4903.5, 7355.3, 9807, 14710.5, 29421

                  100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf)

   Max. height of test piece: 280mm

   Depth of throat: 150mm

   Optical magnification: 20X, 40X

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Dimensions: 570 x 330 x 910mm

   Weight: Approx. 320kg



Standard accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

   Brinell standardized block: 2 pcs.
