Fermenter Project
- Category: Food & Beverage Machinery >>>
- Supplier: Shanghai Ritai Medicine Equipment Project Co. Ltd.
Share on (278289628):
Product Overview
Description
Product Description
Name: Fermenter Project
Feature:

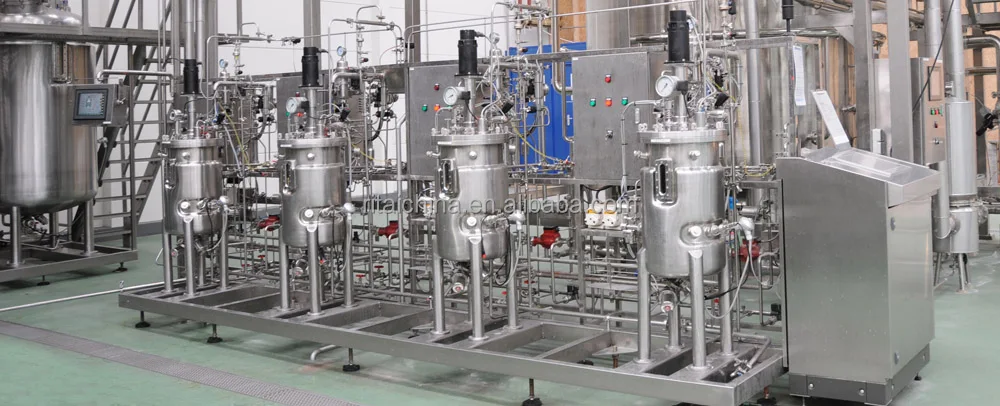

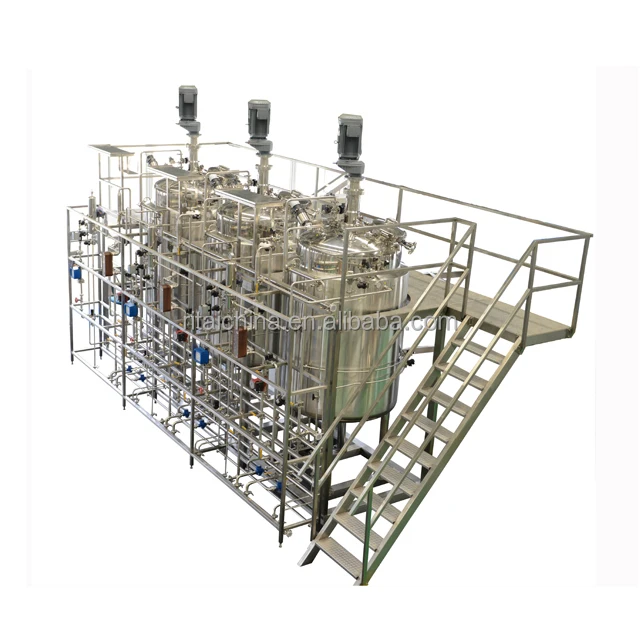

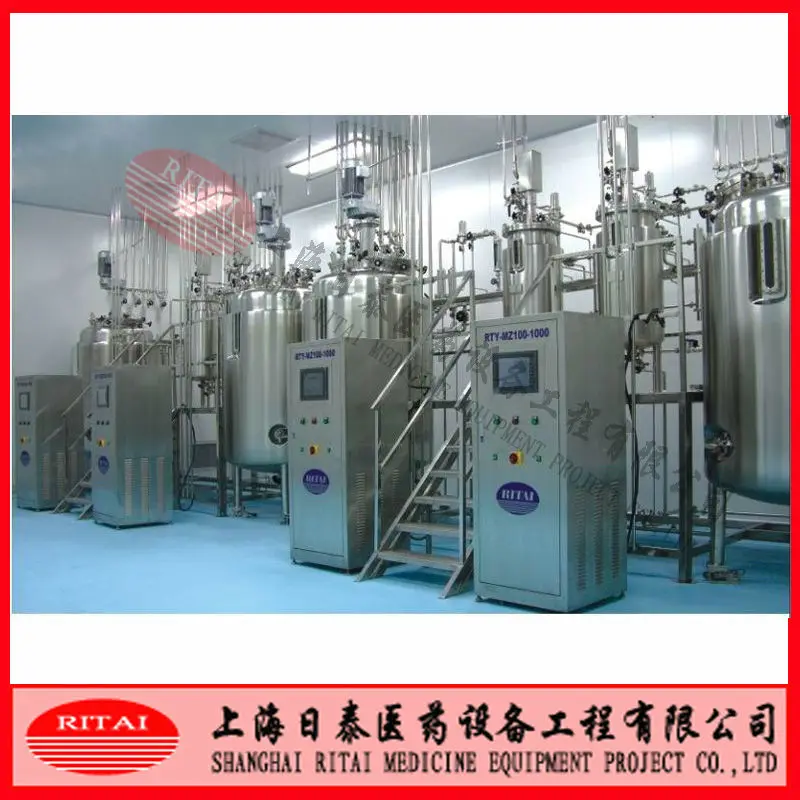

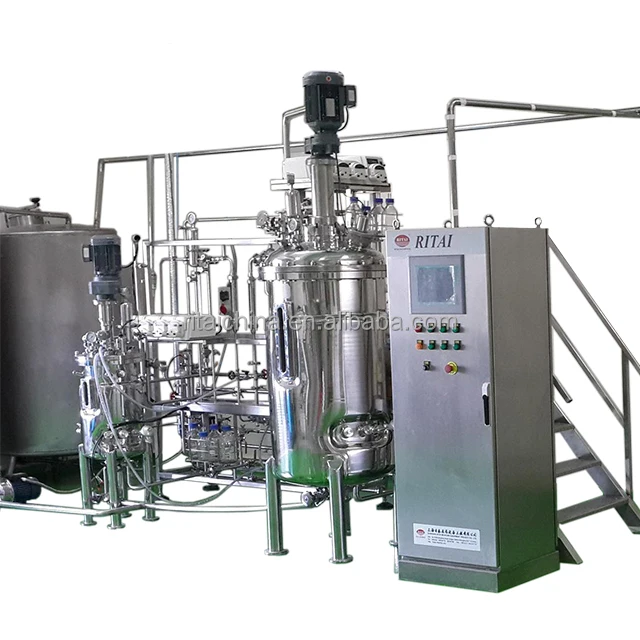

This system is made up of three fermentors or more than three fermentors, muti-fermentors are operated on one control panel-HMI, although they all with each small control cabinet which each PLC control system. The muti-fermentors are installed on
one platform, these fermentors can work independently and can work together at same time. These fermentor can be same
volume or be different volume to do one step fermenation, two step fermenation or three step fermentation or more. It adopts
top mechanical agitation system, the rotate speed can be adjustable. Parameters of temp., PH, DO, feed, foam, etc can be
automatically controlled, recorded, stored and printed. It has the following features: excellent stability and convenient operation.
Application:
This series of products suit for various kinds of microbiology lab, pilot and industrial scale fermentation. It is an ideal
equipment for different step pilot scale fermentation. User can choose appreciate model according to client detail requirement.
Struction: From lab scale to pilot scale, floor stand, one fermentor vessel with one control system.
Range:
This series of products suits for various kinds of microbiology fermentation test, such as bacteria culture, vaccine, fungi, enzyme, environmental, agricultural, pharmaceutical, and micro biological ,etc. The equipment has the following features: excellent stability and convenient operation. Users can choose appropriate configuration according to fermentation process.
| Control parts for fermentor | ||||||
| No. | Parameter name | Technical indicator | ||||
| 1 | PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH; 4.It has auto alarm function. 5.pH sensor and signal transmission line. . | ||||
| 2 | DO control | 1.On-line check and measure, DO and rotate speed gang control; 2.Range 0-100% or 0-200%, precision ± 1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line.. | ||||
| 3 | Foam control | 1.Automatically control and automatically alarm; 2.Eletrode check, peristaltic pump automatically add defoamer. | ||||
| 4 | Feed control | 1.Maunally control; 2.Automatically add according to fixed max. height . | ||||
| 5 | Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree 4.Pt 100 Ω temp. Sensor | ||||
| 6 | Rotate speed | 1.Fully automatic control settings, With automatic alarm function 2.Speed range, please checking the drawing, precision ± 1% 3.It is mechanical agitator, turbine type, vertical impeller 4.Speed:50-200/400rpm | ||||
| 7 | Sterilization | Manually control Automatic control(optional) | ||||
| 8 | Pressure | Checking by pressure gauge, manually control, range 0-0.4Mpa. automatic control (optional) | ||||
| 9 | Air flow | Display on the rotormeter. automatic adjust(optional) | ||||
| Remarks: the table is only for reference, if clients have different requirements on the control points, we can also make it according to clients' requirements. | ||||||
Packaging & Shipping
Packaging: plywood case Shipping: by sea or by air
Our Services
We offer design, customization, manufacture, installation, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
