High quality aging resistance single phase mini air compressor pressure switch

Product Overview

Description

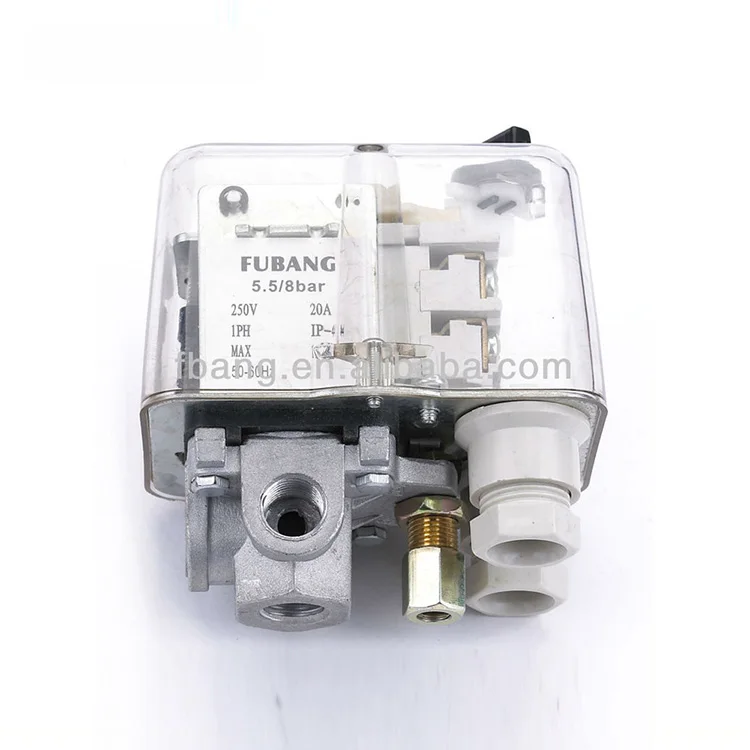

High quality aging resistance single-phase mini air compressor pressure switch

FB19

FB19 pressure switches are used to regulate the tank pressure between two preset values on  electrically driven air compressors.They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor .



MODEL	Max In (Cut-In) (Bar)	Max Off (Cut-Out) (Bar)	Differential  (Bar)	Factory Setting (Bar)	Electrical Rating	Pipe Fittings	Contact Arrangement
FB19-1	1.0	6.0	0.8-3.5	2.0-3.0	16A/250VAC	G1/4" or G1/2"  Femle	NC
FB19-2	2.0	11.0	1.0-4.0	4.0-5.5	16A/250VAC	G1/4" or G1/2"  Femle	NC



Conversion: 1Mpa =10bar,1bar = 14.5PSI,1Kgf/cm2 = 14.2PSI
