•The comprehensive ventilation modes including PCV-VG，SIMV-PC provide more flexibility to ventilation strategy, suitable for various patients operation including pediatric and adult • Advanced ventilation management, provides a accurate and broad of settings enabling effective care across a wide range of patient sizes and acuity types • Support both low-flow anesthesia and mini-flow anesthesia • Compact breathing system, easy to remove and clean, fully autoclavable, optional CO2 bypass • Electronic flow-meter, precise control and convenient operation • 12.1’’ TFT LCD with color touch screen, highlighted display • Optional comprehensive gas monitoring include: oxygen (paramagnetic), CO2, AG, etc. • CE marked, meets EU clinical requirement
Physical & Environment Specifications
Dimensions(W×H×D)
1403mm×704mm×750mm or 55.2in×27.7in×29.5in
Weight
100kg or 220.5 lb
Storage Humidity:
≤93% (noncondensing)
Operation Humidity
≤80% (noncondensing)
Electrical Specifications
Mains
100~240V AC, 50/60Hz
Battery
24V DC, minimum 120 min
Cylinder yokes
Optional: O2, N2O, AIR
Pneumatic Specifications
Gas Supply
Air, O2, N2O; 280kPa ~ 600kPa
Range of fresh gas flow indicators
O2, N2O (0.05~10.0 l/min), AIR (0.05~12.0 l/min)
O2 flush
25~75L/min
ACGO
Optional auxiliary common gas outlet
AGSS
Optional anesthetic gas scavenging system
Breathing System Specifications
Operational Modes
Closed, Semi-closed, Semi-open
CO2 Canister
2 Loose fill (3L) or 2 prepacks, optional single canister (1.8 L)
APL Range
Spontaneous breathing (SP) -70 cmH2O
Material
Autoclavable (except O2 cell and mechanical pressure gauge)
CO2 bypas
Optional
Ventilator Specifications
Driven Mode
Pneumatically driven and electronically controlled
Patient Types
Adult, Pediatric
Ventilation Modes
IPPV, PCV, SIMV+PS, PS and Manual
Setting Modes
Touch key & navigator wheel knob
Tidal Volume
20~1500ml
Ventilation Frequency
4~100bpm
I:E Ratio
4:1~1:8
Pressure (inspired) Range
5~70cmH2O
Pressure (support) Range
3~50cmH2O
Pressure limit (Pmax)
10~70 cm H2O
Tslope
0~2s
Inspiratory Plateau
Off, 5%~60%Ti
Trigger Sensitivity
1~15L/min
Compensation
Compliance and Leak compensation, fresh gas compensation, altitude compensation
Ventilator Monitoring
Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidal volume, minute volume, peak airway pressure, PEEP, mean or plateau pressure, CO2 concentration (optional), anesthetic gas concentration (optional) paramagnetic oxygen sensors (optional)

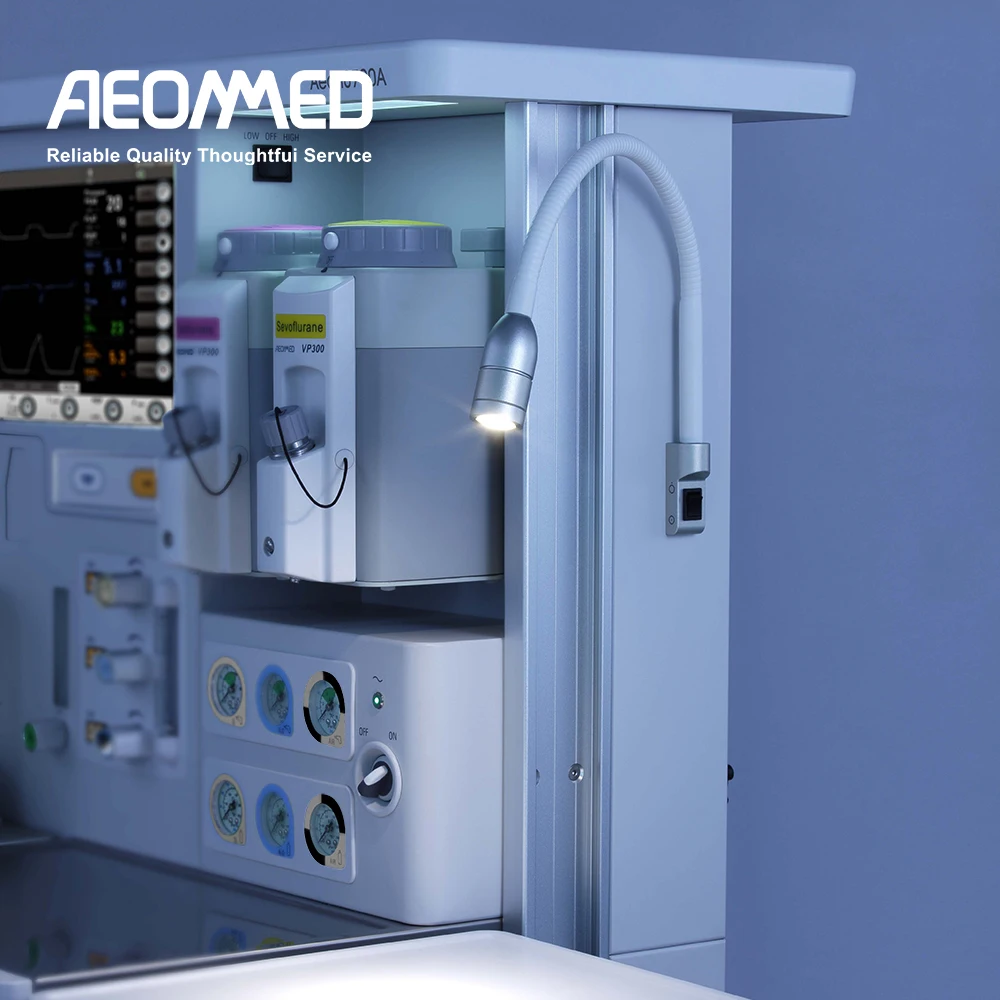

Selectatec® with interlock, optional standby vaporizer parking holder
Filling Type
Pour Fill, Key Fill, Quik-Fil
