3 в 1/200 TTMC листового металла машины, гильотен ножницы пресс листогибочный и роликовая листогибочная
- Category: Shearing Machine >>>
- Supplier: Tengzhou,Tri-Union,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
TTMC Roladora Dobladora Cizalla de lamina 3 en 1

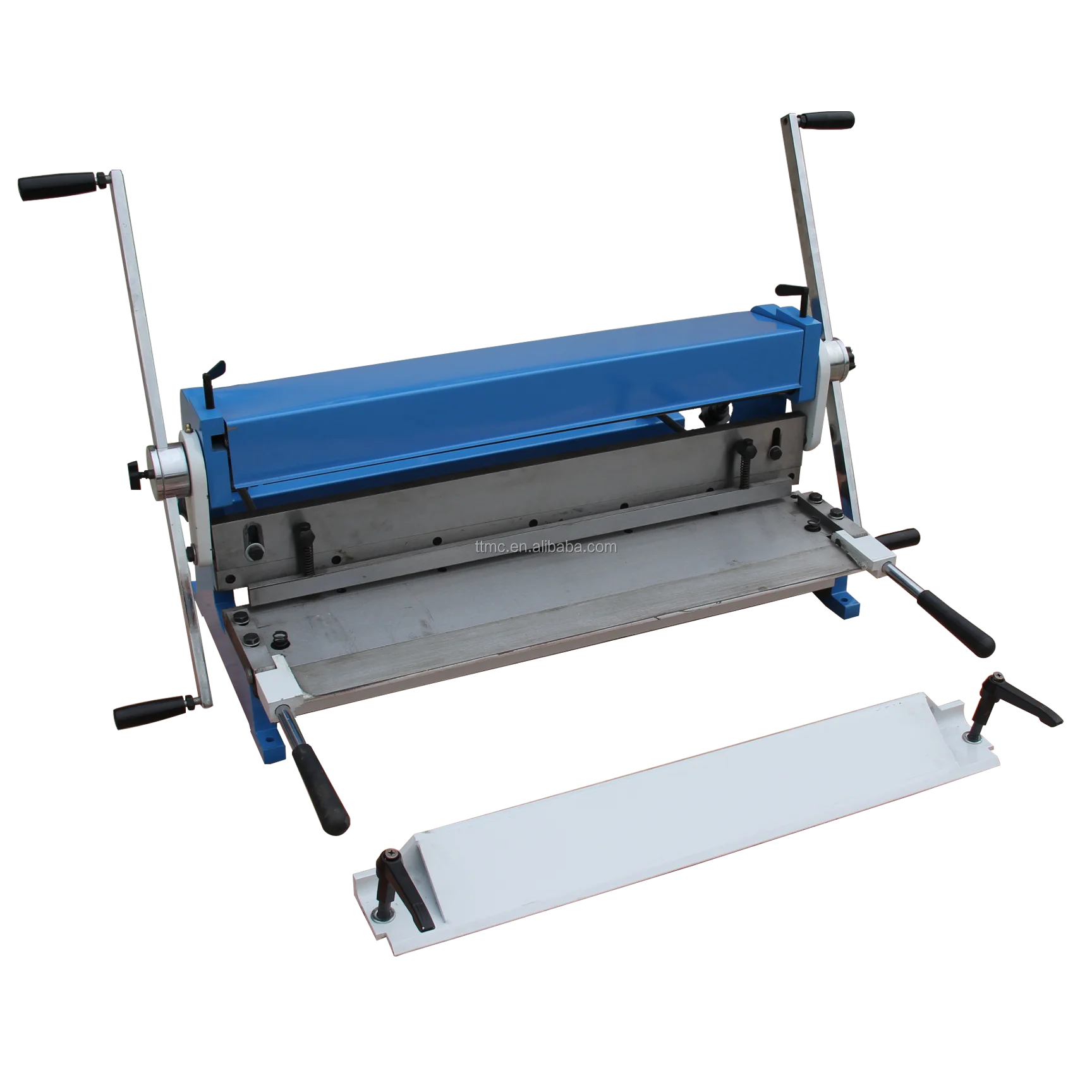

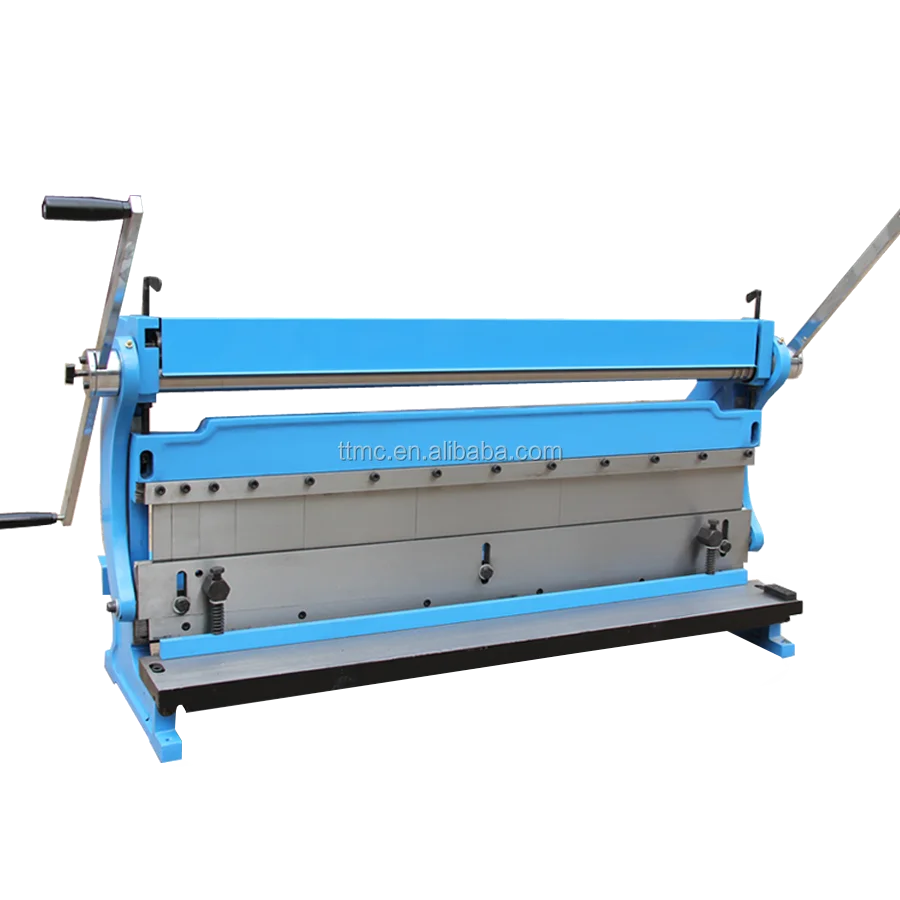

The 3-IN-1/200 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space and cost.
FEATURES AT A GLANCE
8"/200 mm working width
20Ga/ 1.0mm thickness

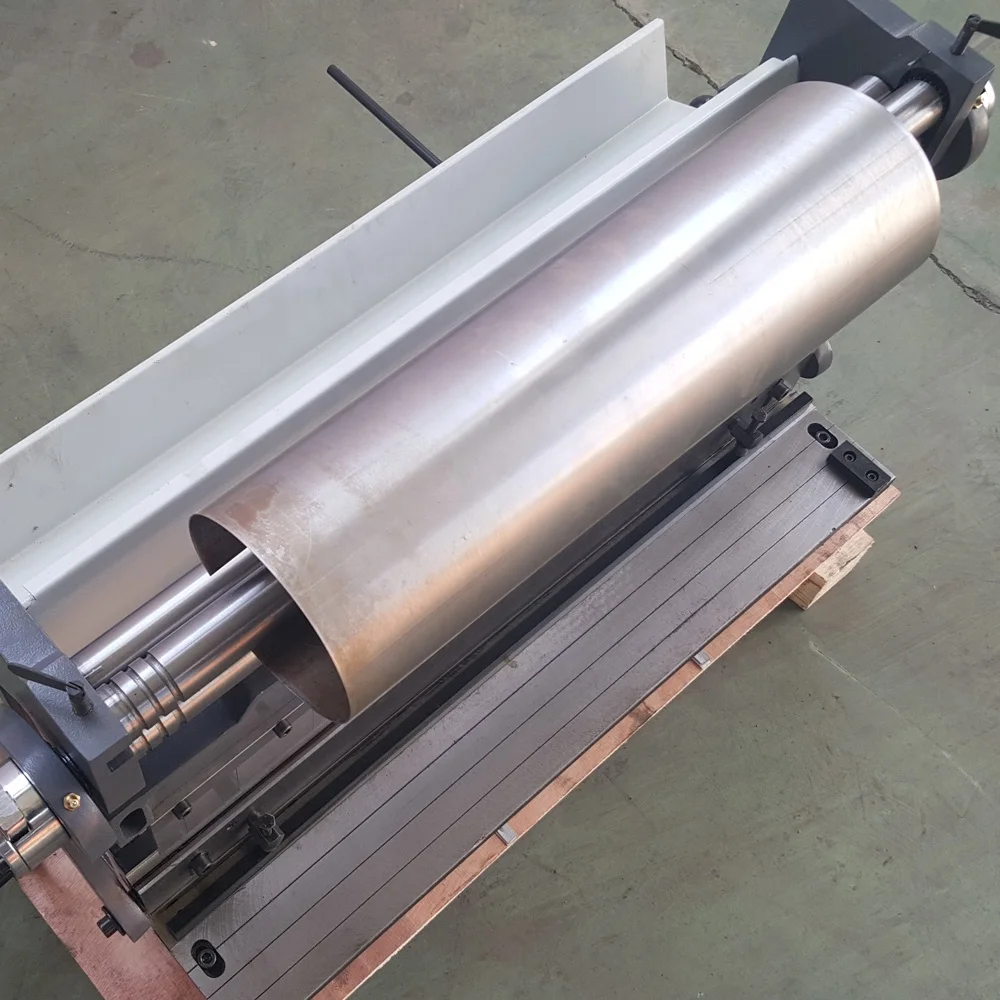

3 grooves in the roll let you form wire perfectly.
Segement finger for box pan brake, 90°
PRODUCT SPECIFICATIONS
TTMC 3-IN-1 Machine Series, manual type suitable for home use machine tools
SKU | 371000 | 371001 | 371002 | 371003 |
Model | 3-IN-1/200 | |||
Bed width | 200 mm | 305mm | 610mm | 760mm |
Max. shear thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
Max. bend thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
Max. bend angle | 90° | 90° | 90° | 90° |
Max. roll thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
Min. Roll dia | 29mm | 39mm | 39mm | 39mm |
Packing Size | 36x25x30 cm | 49x33x42 cm | 84x41x66 cm | 100x45x72 cm |
N.W./G.W. | 17/19 kg | 43/45 kg | 112/128 kg | 136/143 kg |
