Triplex or duplex aerial bundle NFC standard ABC cable

Al/XLPE+ACSR 0.6/1kV overhead ABC cable

Detailed Product Description

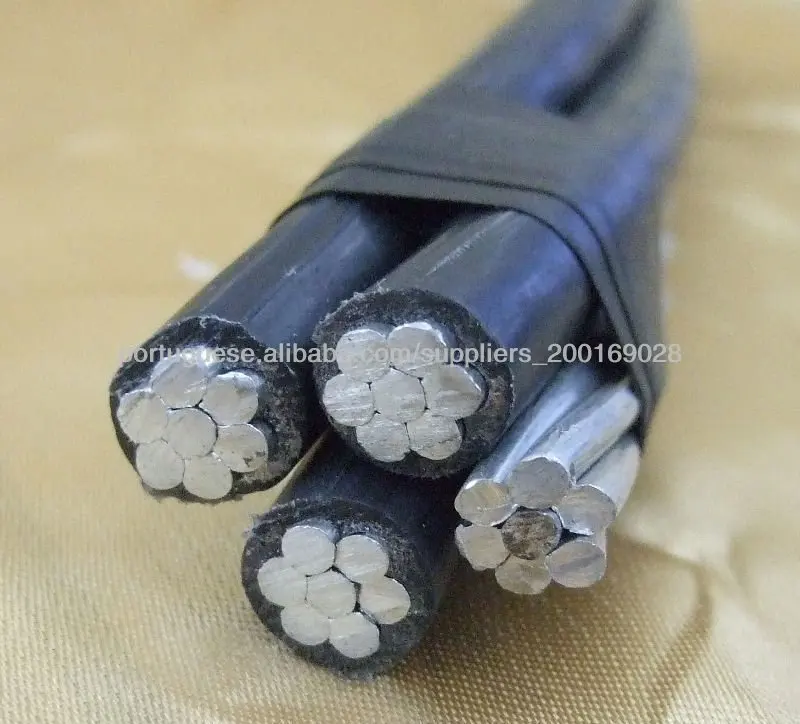

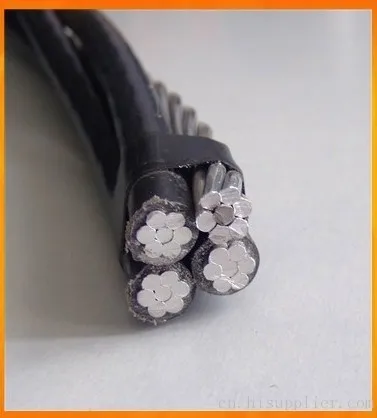

ABC cable
(Service drop cable)

1. Stranded aluminium conduct

2. PE or XLPE insulation
3. ACSR, AAAC Messenger wire

Application

It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas
where the cost of underground networks is expensive and also
for electrification of rural areas like villages.

Voltage

Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV

Technical Data
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.

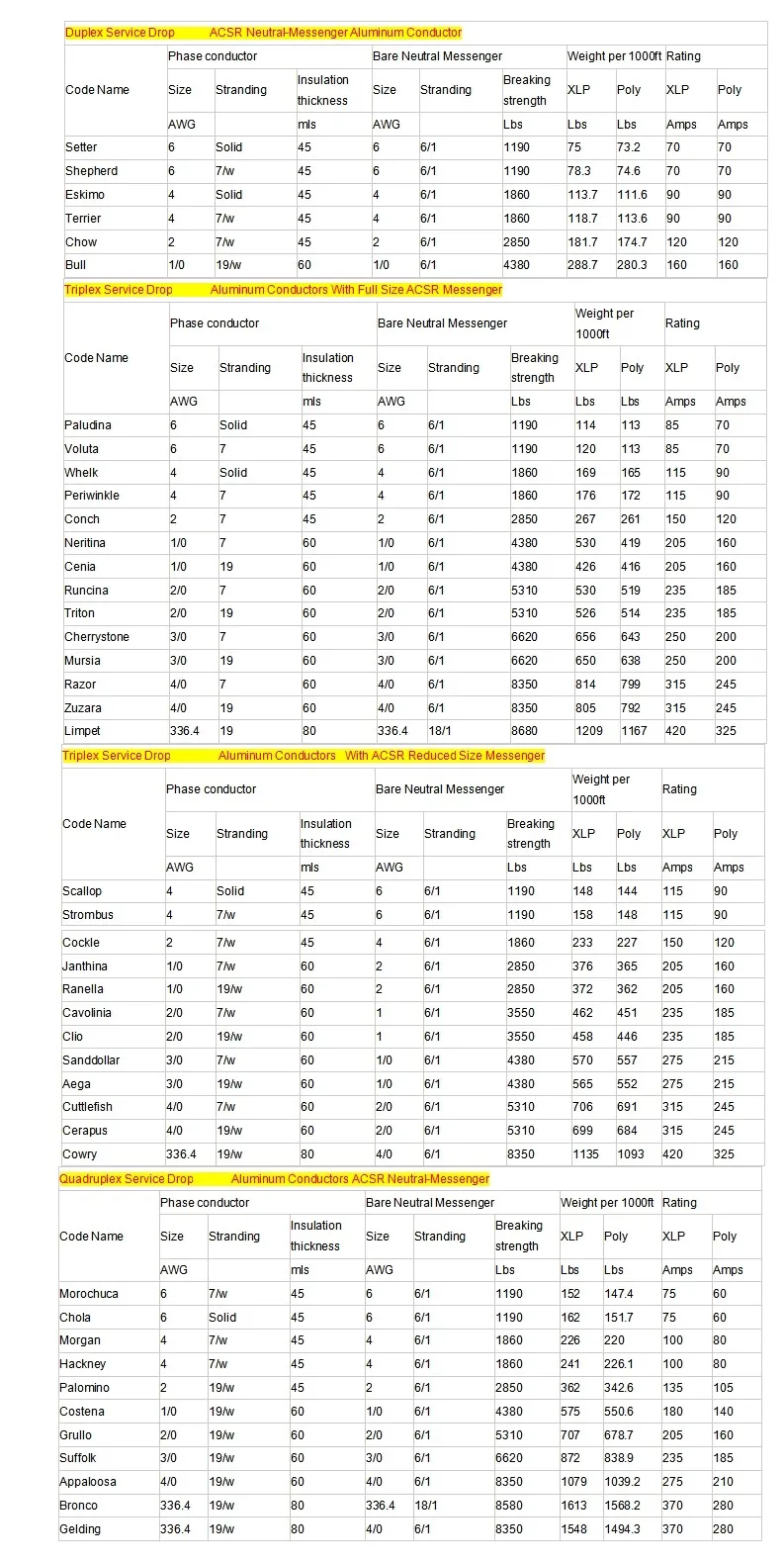

ABC technical charaters based on Standard ASTM ANSI/ICEA S-76-474 and NFC 33-209
