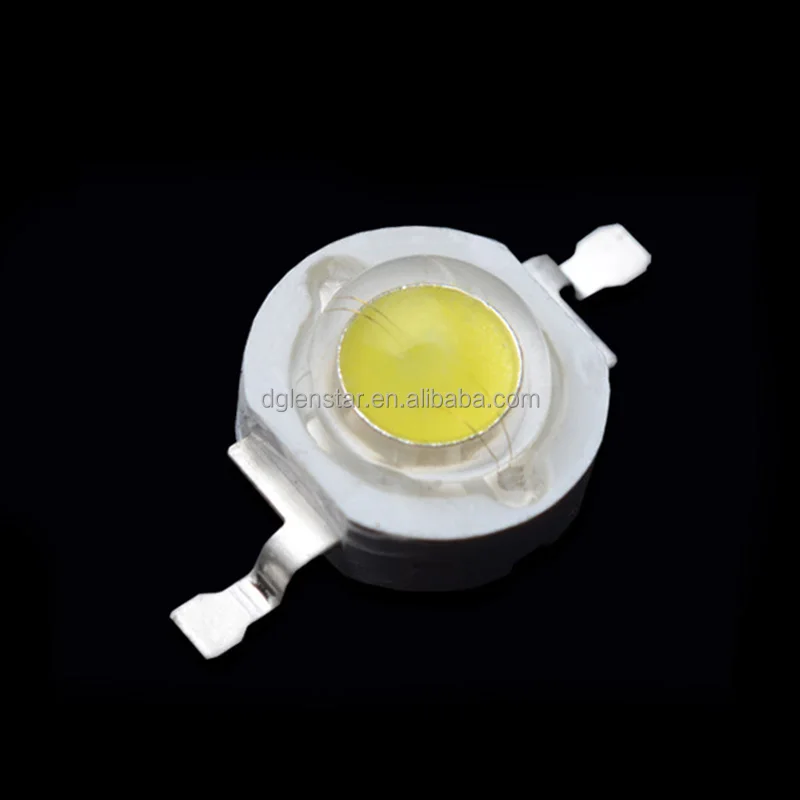

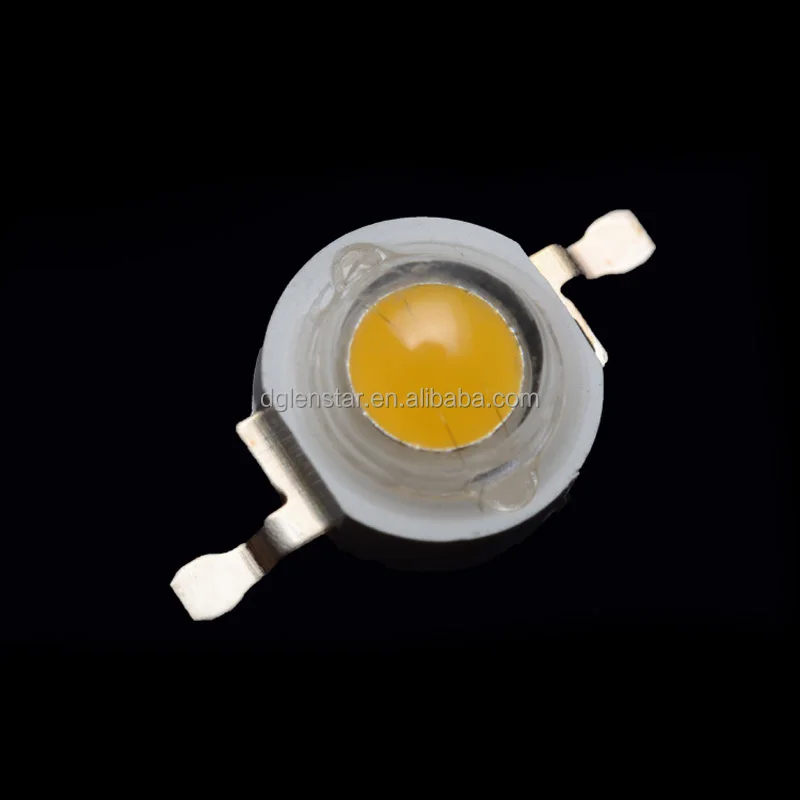

K2 Series 1-5Watt 120deg. White holder White color type High Power LED emitters are one of the highest flux LED in the world what it was manufacturing be LENSTAR. Utilizing advanced LED chip technology. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission Ideal for Automotive Lighting, Traffic Lamp, Electronic Signals, Special Lighting ... ...
Features:
Longer Life Span
Highest Flux
Low voltage DC operated
Wide Viewing Angle
Available in white: 2000K to 25000K.
Lamberatian Radiation Pattern
More energy efficient than incandescent and most halogen lamp
Cool beam, safe to touch
No UV
Instant light (less than 100ns)
Fully dimmable
Rohs compliant

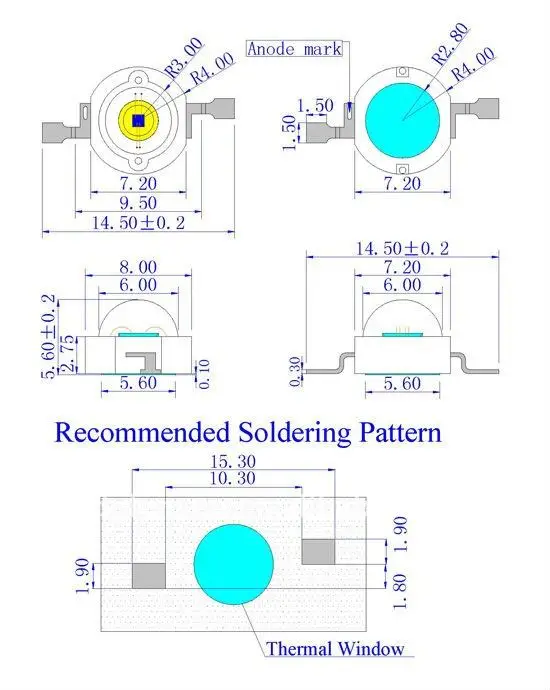

Size
All in millimeter,Tolerance +/- 0.1mm.
Parameters
Part Number
Chip Size
Chip Qty.
Power
Forward Current
Voltage
LM
Re-mark
LS-LP001CWTAIL-W3B
30mil X 30mil
1PCS
1Watt
350mA
3.0V-3.6V
100-130
LS-LP003CWTAIL-W4B
45mil X 45mil
1PCS
3Watt
700mA
3.2V-3.8V
220-240
LS-LP005CWTAIL-W4B
45mil X 45mil
2PCS
5Watt
1300mA
3.2V-3.8V
400-450
Packaging & Shipping
All the items will be shipped within 3-7 working days for samples, 10-30days for batch, except Chinese weekend or holiday. All the items will be 100% tested carefully before shipping.
Generally 5-8 working days via Express, 14-20 working days via AirMail. 30-40 working days via economical post.
Due to shipping policies change frequently, we will send out clients' parcel by similar efficiet forwarder if our promised method is failed to ship out. For example, we might change Singapore Post to Netherland Post, Swiss Post or Sweden post. Sometimes Netherland/Swiss/Sweden is much faster and has less customs problems.
If you have not received your items within 40 working days, please contact us. We will track the shippment and get back to you as soon as possible with a satisfying reply.
Buyers are responsible for (in case) all additional customs fee or taxes in their country. These additional fees maybe charged at the time of delivery. We will not refund shipping charges for refused shippments.
The shipping cost is not including any import taxes, so the buyers should be responsible for Customs duties.
We ship to worldwide, except APO/FPO. Please kindly check your address carefully before placing order, we will not responsible for additional remote charges which will usually cost USD35.
Company Information

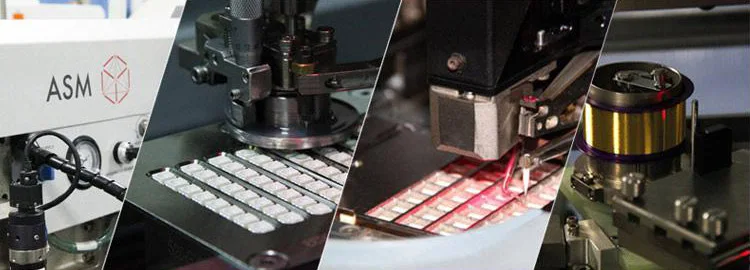

Dongguan Lenstar Opto-Electronics Co., Ltd. has been dedicating to be a professional manufacturer, designer, exporter of LED Diodes, LED Lights and LED related products in Dongguan, China since her establishment of 2010. LENSTAR is situated at Dalang Town, Dongguan City. We strictly pursue our policy of "first-class quality, the best credit". Through hard work and innovation, our company is now composed of hundreds of staff members and occupis more than 1000 square meters. She has a well-trained team and international advanced equipments to ensure the quality of products. The entire production process is strictly monitored and 5 steps of QC testing is our standard policy to supervise the quality. The advanced temperature testers, luminance testers and photoelectric instruments are adapted to conduct strict testing such as voltage withstand, shock proof andsalt spray tests. All our operations are according to ISO9001:2000 and ISO14000 systems. Our qualification rate is above 99.8%. Al our products comply with CE standard and the RoHS Directive.
Our Services
1. Are you factory directly?
Yes, we have our own factory, all of our products are with competitive factory price.
2. Do you have a special price and service for wholesale?
Yes, we have the most competitive price and best service to support our wholesale clients. We do supply OEM&ODM service for the wholesale; we can make your brand and logo on the package.
3. What payment methods can I use? And how sevure is my payment?
Currently, you can pay by Visa, Paypal, MasterCard, Bank Transfer and Western Union.
4. How long does it take for my order to be shipped? And how long can I receive it?
Generally, your order will be shipped within 7-15 working days after your payment verified by us or the third party. But in case of any hot products without raw materials, it will need more time.
As usual, we recommend the economical shipping method. Of course, you can also choose the others, such as UPS, DHL, FEDEX express services. The shipping time according to the real time when it was evaluated by the courier.
5. How about the warranty?
We offer 3 years warranty. All products are gone through strict test by our experienced QC before shipment. But there may be some unpredictable problems, we will repair the products for free cost of labor within the warranty period. Manual made fault and damaged do not in our warranty.
6. How about the after sale services?
Your satisfaction is affirmation of our work always. If you are satisfied with our products you ordered, please leave positive feedback. If you are not satisfied with the items you ordered, please contact us before leaving negative feedback. We can work together to resolve any disputes. If you have any problem or doubt about our service or policy, welcome to contact us by E-mail or phone. We will respond you within 24 working hours.
Notice
In order to let our customers enjoy our high power LEDs. We are recommended a good radiator should be used. Before it would be used, to make sure that the working temperature under 60℃.
In order to make a better sticking tape or silicon gel between LEDs to MCPCB. We hope that our customers whom use high heat transition ratio thermal grease or thermal silicon. Such as the heat transition ratio >/= 2W/mk.
