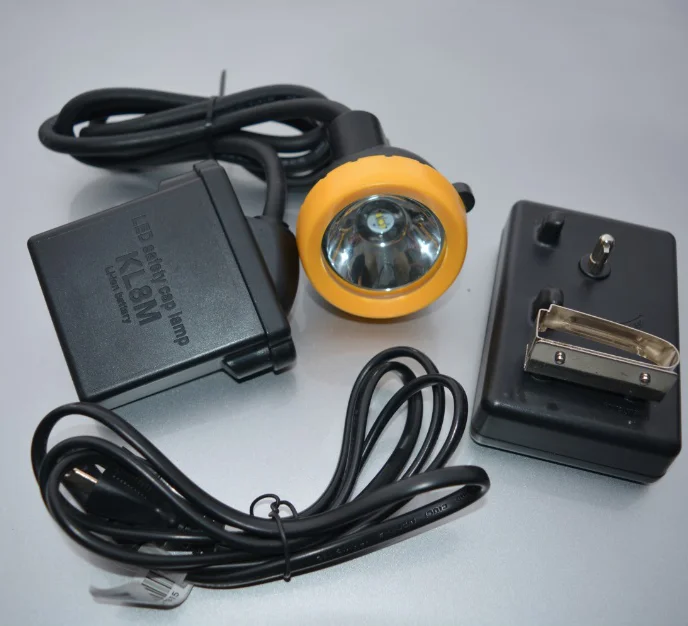

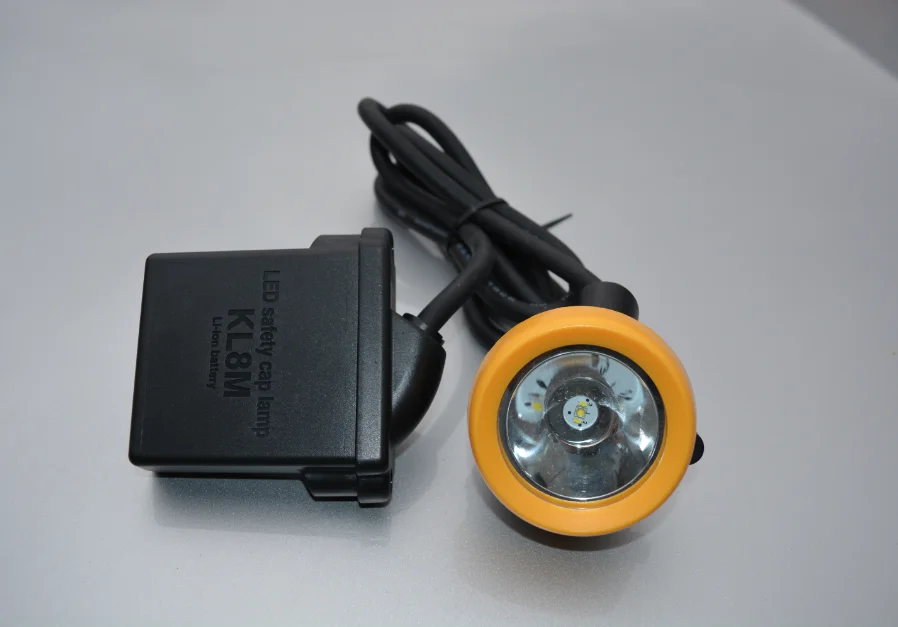

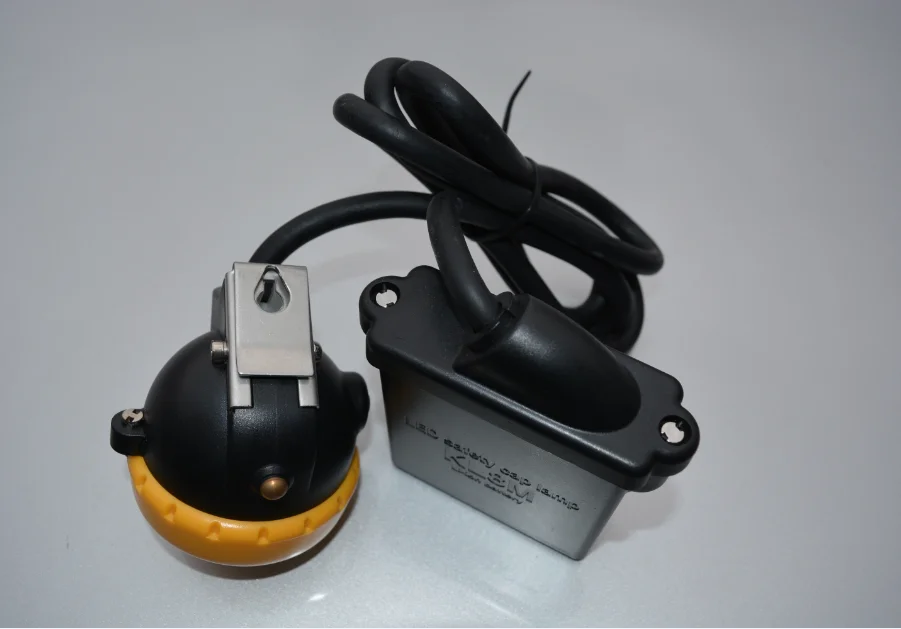

IP68 KL8M LED mining safety lamp

Product Overview

Description



The kind of IP68 KL8M LED mining safety lamp is a new type of environmental-friendly lamp, which is adopted the most advanced 1w LED made by Lumileds Lighting Company  and lithium batteries. This kind of miner's lamp can be applied in flammable and explosive environment such as coal mines, chemical industry, oil and road transportation, also can be applied in other mobile lighting places. The kind of miner's lamp got flameproof certificate ratified by National Coal Mining Machinery Quality Supervision and Testing Center.



The kind of miner's lamp is designed based on GB7857-2003 General requirements for safety of miners lampand MT927-2004KL miners lamp, which have characteristics of small size, light weight, long service life, free of maintenance, environmental protection.



We can produce the mine lamp according to customers' requirement.such as shape of the battery box and lamphead,illumination of the bulb,capacity of the battery,color of the lamp.



Technical Data for  KL8LM



rated voltage: 3.7V

rated capacity: 8.8Ah

lighting time: 20-40H (main illuminant)

illumination: 10000-12000Lx (start of lighting)

LED current: 0.55A (main illuminant)

battery life: >800 cycle time

amperage of charge: 0.6A (average)

weight: <600G

Ambient Temperature: -15~40 °C
