16mm waterproof led pushbutton switch dot illuminated push button
- Category: Switches >>>
- Supplier: Yueqing Hiwell Trade Co. Ltd.
Share on (318915972):
Product Overview
Description
16mm waterproof led pushbutton switch dot illuminated push button
Banner
Product Description
--------- Product Details ---------
Welcome to HIWELL, Welcome to contact us
--------- Product Description ---------
Welcome to HIWELL, Welcome to contact us

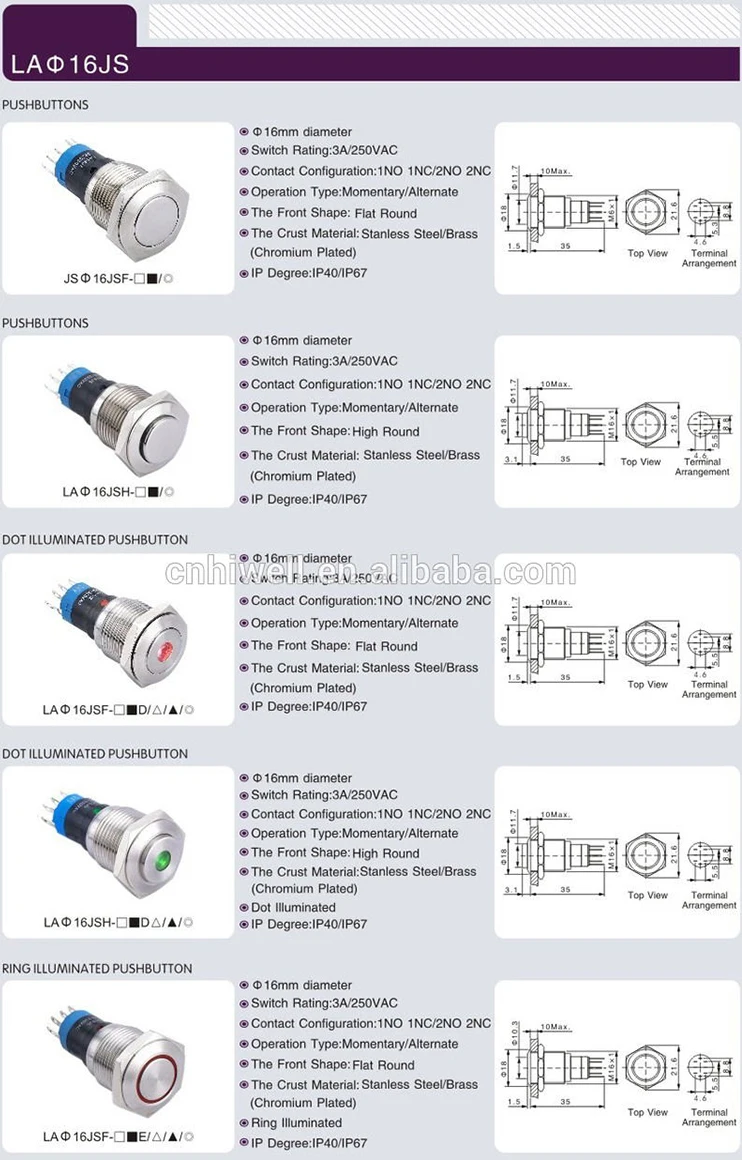

Specification | LA 16JSF LA 16JSH | LA 16JSF-D LA16JSH-D | LA 16JSF-E LA16JSH-E | |
The front shape | Flat round High round | Flat round High round | Flat round High round | |
Terminal type | Pin terminal (1.8*0.4mm) | Pin terminal (1.8*0.4mm) | Pin terminal (1.8*0.4mm) | |
Switching | No.3 | No.3 | No.3 | |
Max.SwitchRating | Ith:3A Ui:250VAC | Ith:3AUi:250VAC | Ith:3AUi:250VAC | |
Contact resistance | ≤50mΩ | ≤50mΩ | ≤50mΩ | |
Insulating resistance | ≥1000MΩ | ≥1000MΩ | ≥1000MΩ | |
Dielectric strengh | 2000VAC | 2000VAC | 2000VAC | |
Operating temp | -20℃~+55℃ | -20℃~+55℃ | -20℃~+55℃ | |
Mechanical life | 1,000,000cycles | 1,000,000cycles | 1,000,000cycles | |
Electrical life | 200,000cycles | 200,000cycles | 200,000cycles | |
Panel thickness | 1~10mm | 1~10mm | 1~10mm | |
Tortque | 5~14Nm | 5~14Nm | 5~14Nm | |
Operation pressure | 2.5~4N | 2.5~4N | 2.5~4N | |
Operation distance | About 2.8mm | About 2.8mm | About 2.8mm | |
IP degree | IP40/IP67 | IP40/IP67 | IP40/IP67 | |
Material | Contact | Silver alloy | Silver alloy | Silver alloy |
Button | Stainless steel | Stainless steel | Stainless steel | |
Body | Stainless steel (Chromium plated) | Stainless steel (Chromium plated) | Stainless steel (Chromium plated) | |
Base | PBT | PBT | PBT | |
Rohs | Made to order | Made to order | Made to order | |
LED SPECL
| Type | Without lamp | Dot illuminated(LED) | Ringilluminated(LED) |
Rated voltage | ---- | 6V/12V/24V/36V /110V220V | 6V/12V/24V/36V /110V220 | |
Color | ----- | R G Y O B W | R G Y O B W | |
Life | ---- | 40000 hours | 40000 hours | |
VANDAL RESISTANCE METAL LOW VOLTAGE ELECTRONIC STAINLESS STEEL PUSH BUTTON SWITCHES WITH CE ROHS CERTIFICATIONS
1.16mm diameter
2. Switch Rating:3A/250VAC
3.Contact Configuration: 1NO 1NC/2NO 2NC
4.Operation type:Momentary/Alternate
5.The Front Shape:HIGH Round
6.The Crust Material:Stanless Steel/Brass(Nickel Plated,Gold Plated)
7.IP Degree:IP40/IP67
Our Services
--------- OUR SERVICE ---------
Welcome to HIWELL, Welcome to contact us
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

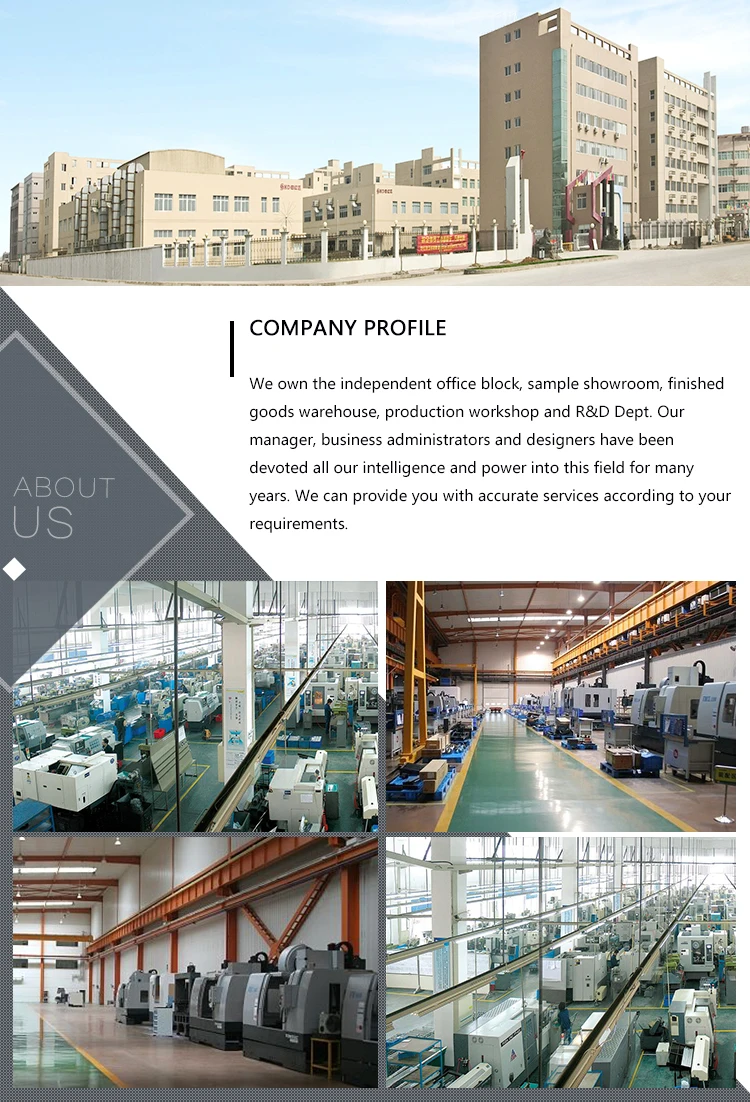

Company Information
--------- Company Information ---------
Welcome to HIWELL, Welcome to contact us

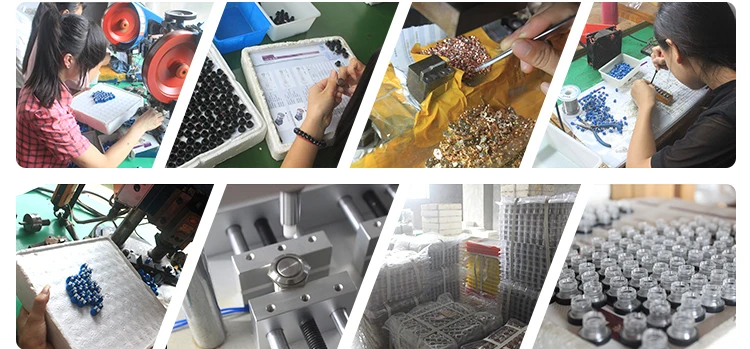

Product Process
