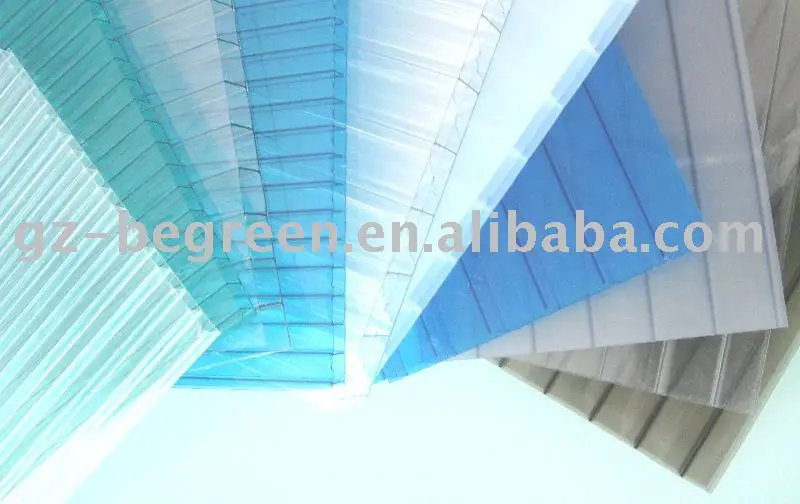

unbreakable transparent polycarbonate hollow sheet use as roofing Sheet
unbreakable transparent polycarbonate hollow sheet use as roofing Sheet
unbreakable transparent polycarbonate hollow sheet use as roofing Sheet

unbreakable transparent polycarbonate hollow sheet use as roofing Sheet

Share on (322491207):


Price:

Quantity:


Product Overview

Description


PC hollow sheet



is a type of engineering plastic of excellent intergration capability,ideal material for roofing panel.



Polycarbonate two-wall hollow sheet

Thickness : 4mm / 6mm / 8mm 10mm

Maximun width : 2100mm



Polycarbonate three wall hollow sheet

Thickness : 10mm / 12mm / 14mm / 16mm

Maximun width : 2100mm



Polycarbonate 5-wall hollow sheet

Thickness : 12mm / 14mm / 16mm / 20mm / 25mm

Maximun width : 2100mm



Polycarbonate X-wall hollow sheet

Thickness : 10mm / 12mm / 14mm / 16mm / 20mm / 25mm

Maximun width : 2100mm



Polycarbonate honeycomb sheet(PC Alveolate sheet)

Thickness : 6mm / 8mm / 10mm / 12mm / 14mm / 16mm / 20mm

Maximun width : 2100mm



Length : 5800mm / 11800mm

Color : Clear , Opal , Green , Blue , Bronze , Lake-blue

Note : Special specification and color can be processed against customer’s demand

 Features:

1.  Light transmission:up to 88%

2.  Impact resistant:80 times that of glass, 15  times thats of acrylic sheeting

3.  Temprature service : -40°C  ~~120°C

4.  Light weight: only 1/12 of the weight of glass at same thickness

5.  UV Protection

6.  Fire retardance: Rated Class B1

7.  Sound & Heat Insulation

Applications:

1)Roofing for swimming pool,shopping malls,commercial streets

2)Sunshade for stadiums and bus stops,gazebo,open-air carport

3)Lighting canopy for corridors,passages and subway entries

4)Flashing for bank ATMs,telephone box,gateways,garages

5)Sound and heat insulation wall for expressways and houses

6)Heat preservation material for agricultural greenhouse,flower greenhouse

7)Soundproof material for partitions

8)Unbreakable material for glazing windows,roof glazing

 .jpg









 PC hollow sheet,polycarbonate solid sheet, polycarbonate twin-wall sheet

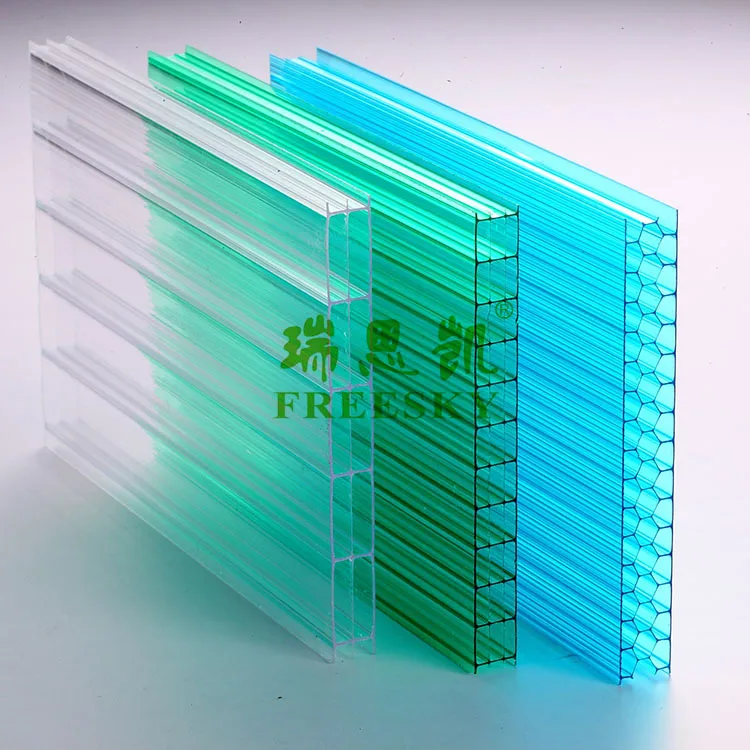

PC Muti-wall Sheet

Name:Polycarbonate Multi-wall Sheet

Specifications:

No.DescriptionDimensionStandard ColorQuantity 40'ft  (pcs)
Thickness (mm)Width (mm)Length (mm)Weight (kg/M²)
1PC hollow sheet (2-wall)4210058000.8Clear, Opal, Bronze, Lake Blue, Green, Blue1100
2PC hollow sheet (2-wall)6210058001.2750
3PC hollow sheet (2-wall)8210058001.4550
4PC hollow sheet (2-wall)10210058001.6440
5PC hollow sheet (3-wall)10210058001.9440
6PC hollow sheet (3-wall)12210058002.1380
7PC hollow sheet (3-wall)14210058002.3315
8PC hollow sheet (3-wall)16210058002.6275
9PC hollow sheet (4-wall)6210058001.3750
10PC hollow sheet (4-wall)8210058001.6550
11PC hollow sheet (4-wall)10210058001.8440
12PC hollow sheet (4-wall)12210058002380
13PC hollow sheet (4-wall)14210058002.3315
14PC hollow sheet (4-wall)16210058002.6275
15PC hollow sheet (4-wall)18210058002.9245

 Note: Special colors and specifications can be customized.

             Material: Grade A--virgin material . Grade B --- first class recycled material .

             Max Width: 2100mm

             Packing: Both sides covered with PE protective film

Technical Features:



1) Impact strength: 850J/m. About 200-350 times of common glass.
2) Light weight: About 1/2 times of glass of the same thickness.
3) Light transmission: 80%-92% for different thickness of clear color
4) Specific gravity: 1.2 g/cm3
5) Coefficient of thermal expansion:0.065 mm/m° C
6) Temperature range: -40° Cto 120° C
7) Heat conductivity: 2.3-3.9 W/m2 º
8) Tensile strength: >=60N/mm2
9) Flexural strength: 100N/mm2
10) Heat deflection temperature140 ° C
11) Modulus of elasticity: 2, 400mPa
12) Tensile street at break:>=65mPa
13) Elongation at break:>100%
14) Specific heat: 1.16J/kgk
15) Soundproof index: 4mm-27dB,10mm-33dB

Certification

Test result of hollow sheet.jpg

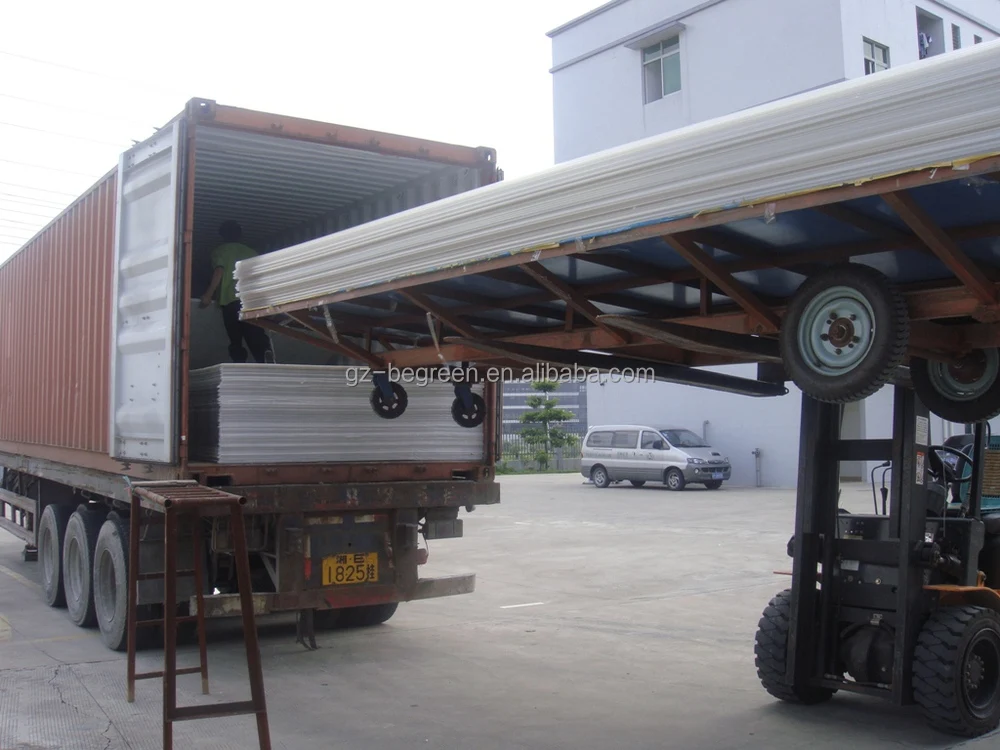

Packaging & Shipping

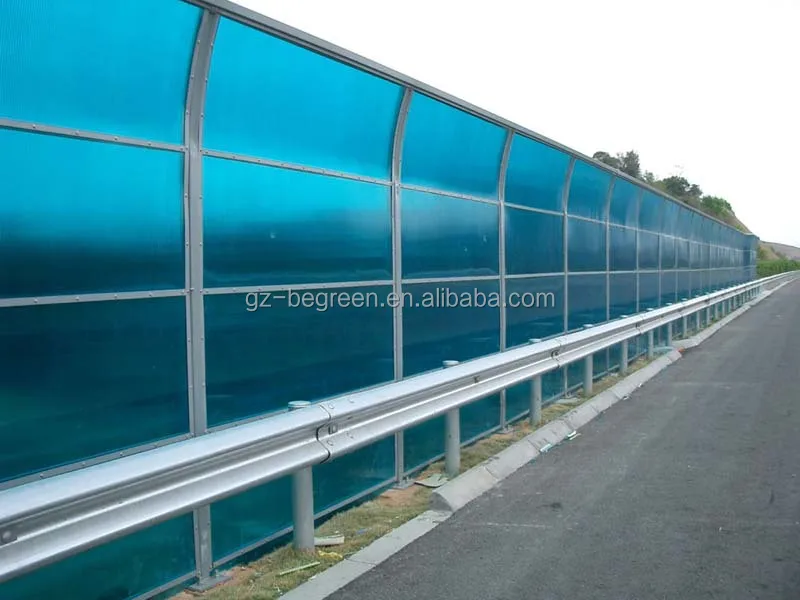

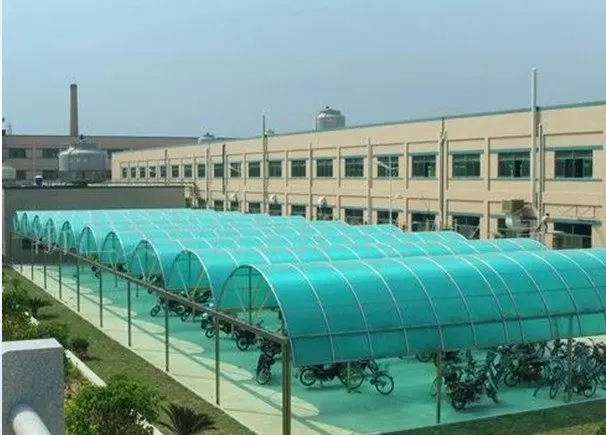

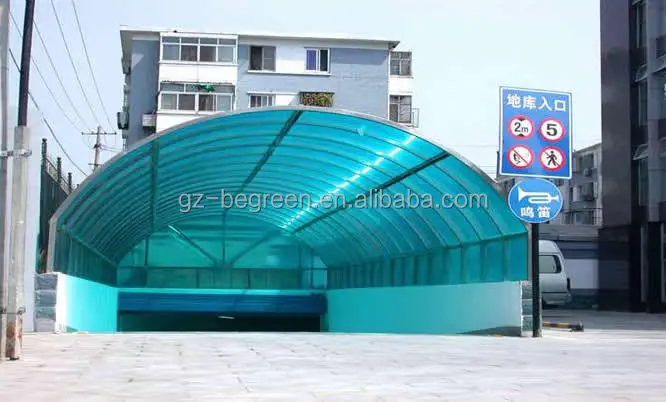

Project

5.jpg2.jpg6.jpg 5.jpg.jpg

More Pics








Company Information



GUANGZHOU BEGREEN PLASTIC ARTICLES CO., LTD is an enterprise specialized in producing various plastic articles. We take plastic sheets, especially polycarbonate(PC)  sheet as the main items and also process thermoplastic products. We have accumulated rich experience in the polycarbonate sheet market. We know well the market demands and how to develop and promote new related products. Now we have been cooperating with international renowned equipment and material suppliers to produce PC multi-wall sheet, PC solid sheet, PC embossed sheet, PC skylight, PC DIY awning/canopy, PC carport, PC greenhouse and matched accessories for projects.







Our PC sheet features excellent properties of good light transparency, high impact resistance, anti-aging, sound & heat insulation, light weight and beautiful appearance etc. Nowadays PC hollow sheet, PC solid sheet have been widely used in architectural lighting series of large-scale projects, for instance, sunshades for stadiums, airport, hotel and bus shelters, and sound & heat insulation screen for expressways and houses.  They have been also widely applied as the "urban furniture" materials, for instance, advertising lamp boxes, shelter for Bank ATMs, Eco-garden restaurants, lighting for corridors, passages and subway entries, all kinds of shapes solarium and smoking shelters, flashing of home balconies etc. With the rapid development of modern agriculture and aquaculture industry, PC sheet has become a new kind of material for greenhouse and shade canopies.
