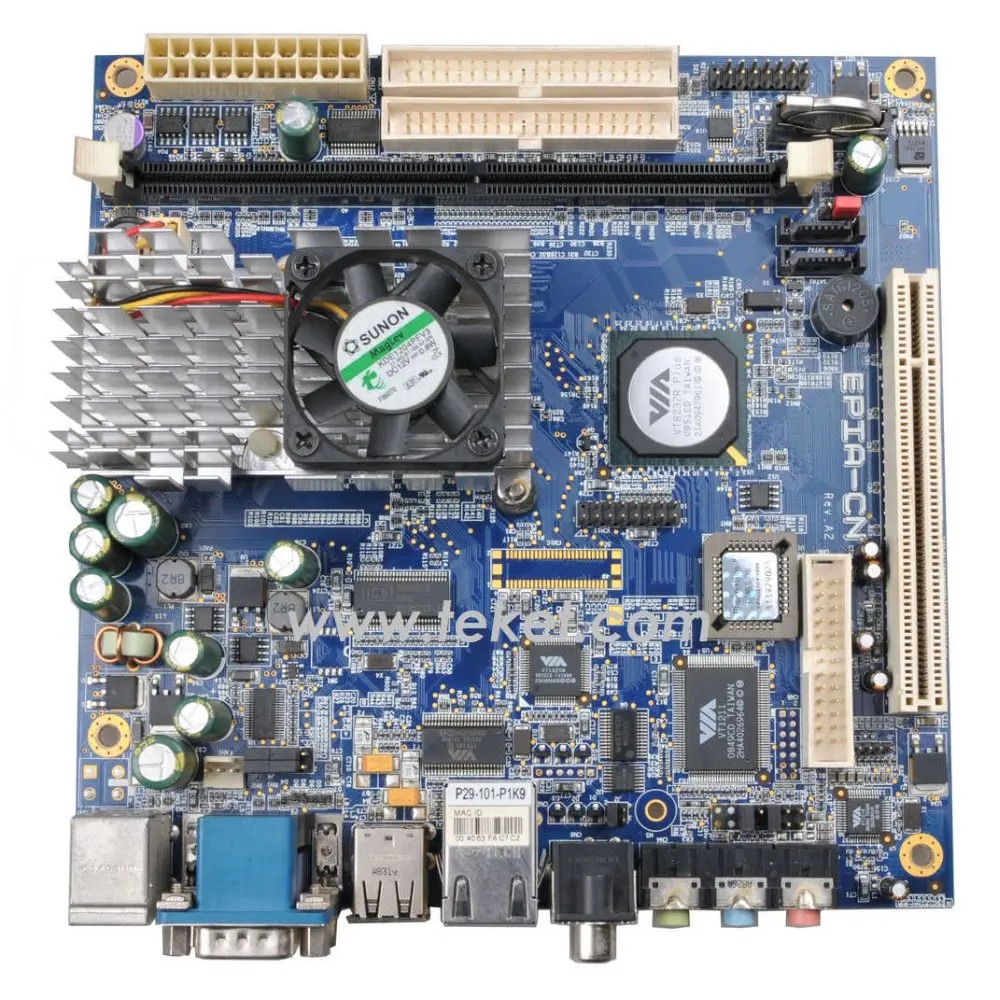

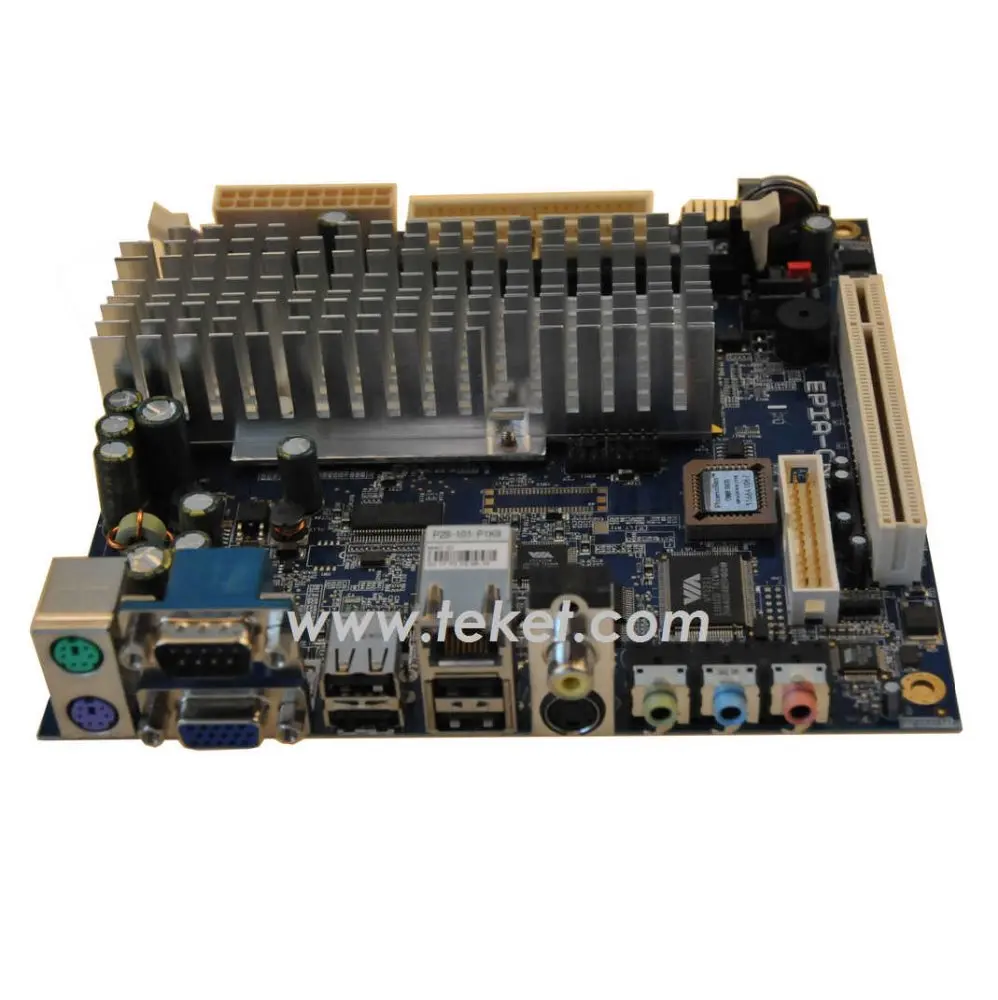

VIA Mini ITX Board CN13000G/CN10000EG,VGA, TV out, USB, LAN, COM, IDE & SATA

Product Overview

Description

Teket Innovation was founded in 2003 in Beijing, China. Nearly 20 years of experience in embedded industrial motherboards, computers, chassis, power supplies, flash memory and panel kits.

Intel,VIA,Gigabyte,MSI,ASUS and TEKET embedded motherboard Intel,Zotac,ASUS,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply, RAM and SSD support Our main target customers are system integrators and equipment manufacturers,not traders, distributors or retailers. We can provide total solution for you to build space and energy saving embedded computer systems.

      VIA Mini-ITX Board CN Series



The VIA EPIA CN Mini-ITX mainboard extends the VIA C7 processor based EPIA family and offers developers a powerful and flexible platform solution.



Specification:

Model Name :VIA EPIA CN13000G,VIA EPIA CN10000EG
Processor :1.3GHz VIA C7 Processor,1.0GHz Fanless VIA C7 Processor
Chipset :VIA CN700 North Bridge,VIA VT8237R Plus South Bridge
System Memory :1 x DDR2 533 DIMM Socket,Up to 1GB Memory Size

VGA :Integrated VIA UniChrome Pro AGP Graphics with MPEG-2 Decoding Acceleration
Expansion :Slots 1 x PCI slot
Onboard IDE :2 x UltraDMA 133/100/66 Connectors
Onboard LAN :1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio :VIA VT1618 Muliti-channel AC’97 Codec
Onboard TV Out :VIA VT1625M HDTV Encoder





Onboard I/O Connectors :

1 x USB connector for four additional USB 2.0 ports
2 x SATA connectors
1 x LPT connector
1 x CD-in connector
1 x CIR connector (switchable for KB/MS)
1 x Front panel connector
1 x Front panel audio connector for Line-out and Mic-in
2 x Fan connectors for CPU and system fans
1 x ATX power connector

Back Panel I/O :

1 x PS2 mouse port
1 x PS2 keyboard port
1 x VGA port
1 x Serial port
1 x RJ-45 LAN port
4 x USB 2.0 ports
1 x RCA port (S/PDIF or TV out)
1 x S-Video port
3 x Audio jacks: Line-out, Line-in and Mic-in (Horizontal, Smart 5.1 support)

BIOS :Award BIOS
LPC: 4/8Mbit flash memory
Operating System :Windows 2000/XP, Linux, Win CE/XPe

System Monitoring & Management :

CPU voltage monitoring
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature: 0~50°C
Operating Humidity: 0% ~ 95% (relative humidity; non-condensing)
Form Factor :Mini-ITX (4-layer),17 cm x 17 cm
