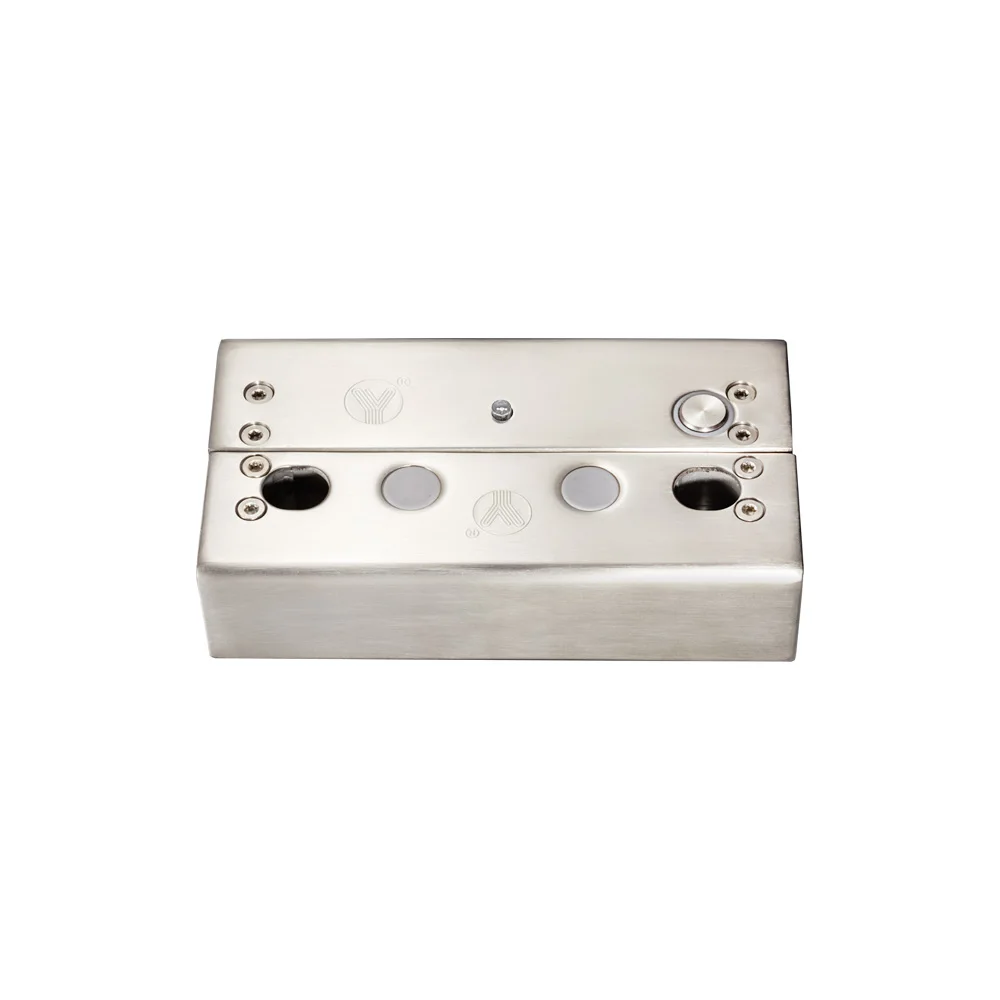

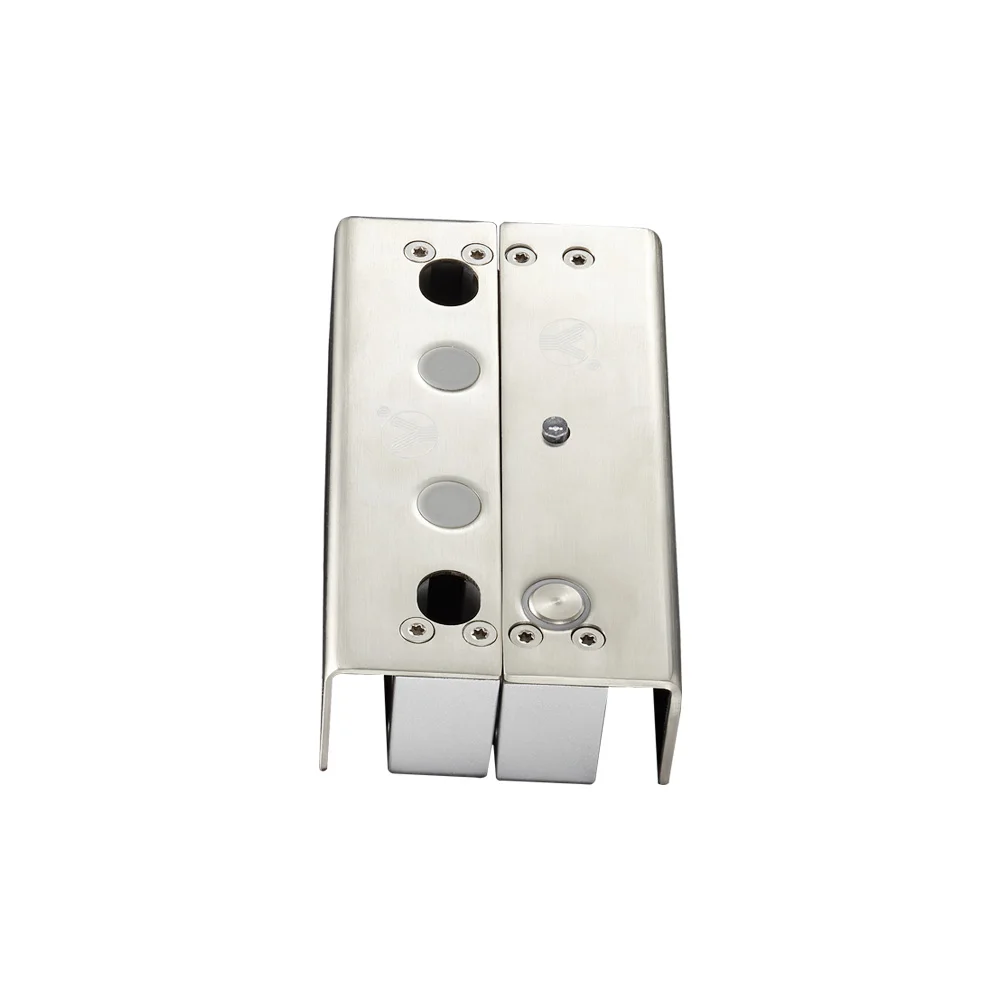

Electric Bolt Lock For Fully Frameless Glass Door YB 500U(LED)
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (326934139):
Product Overview
Description
Product Description
Product Application

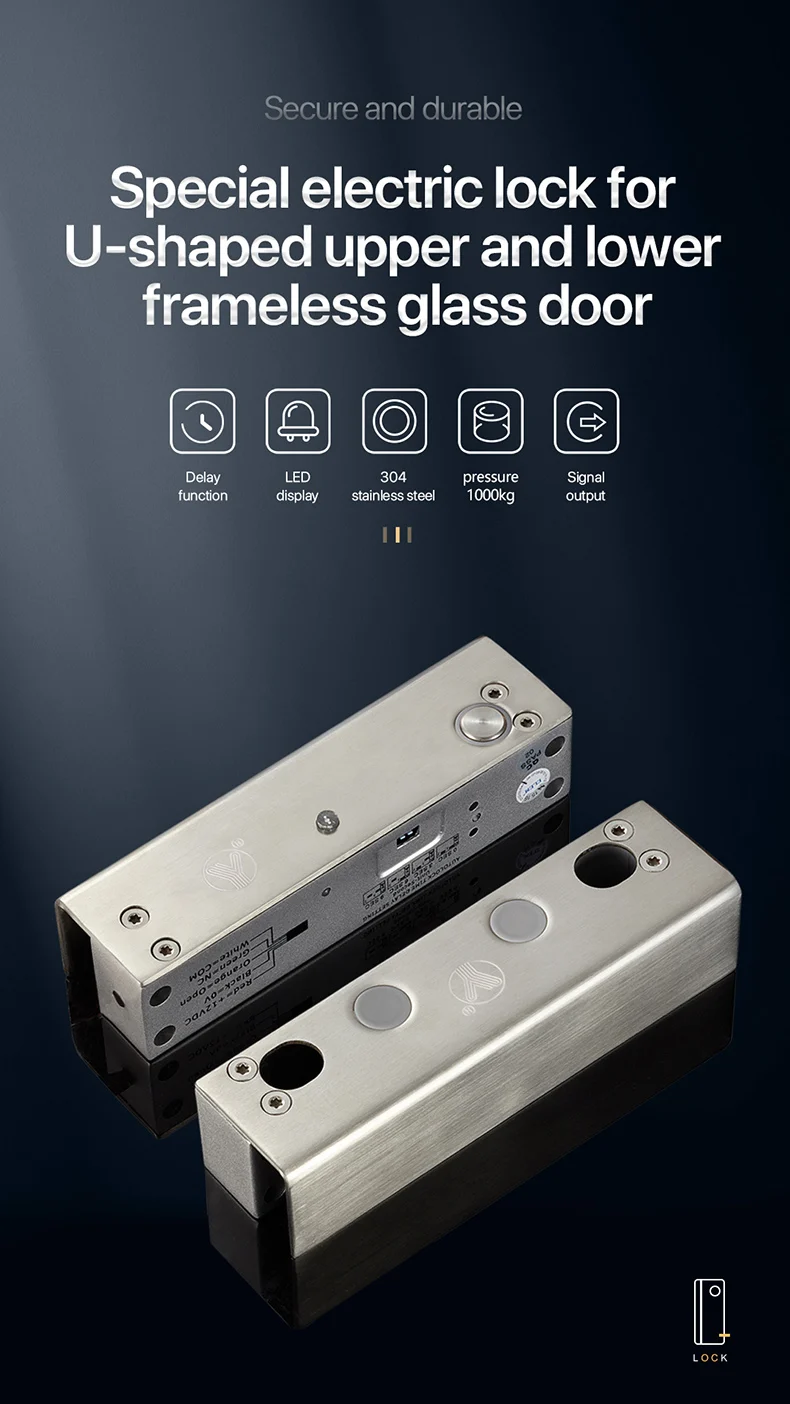

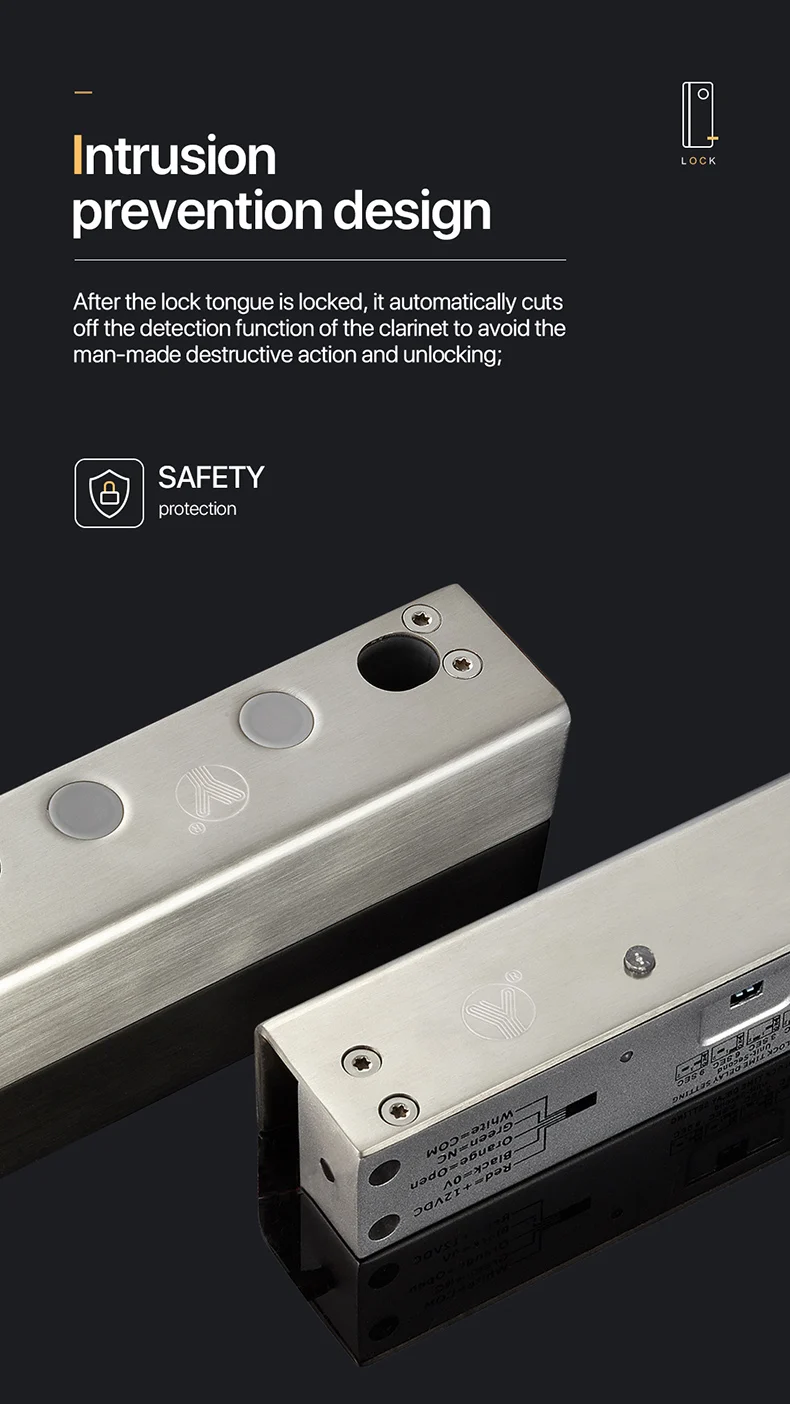

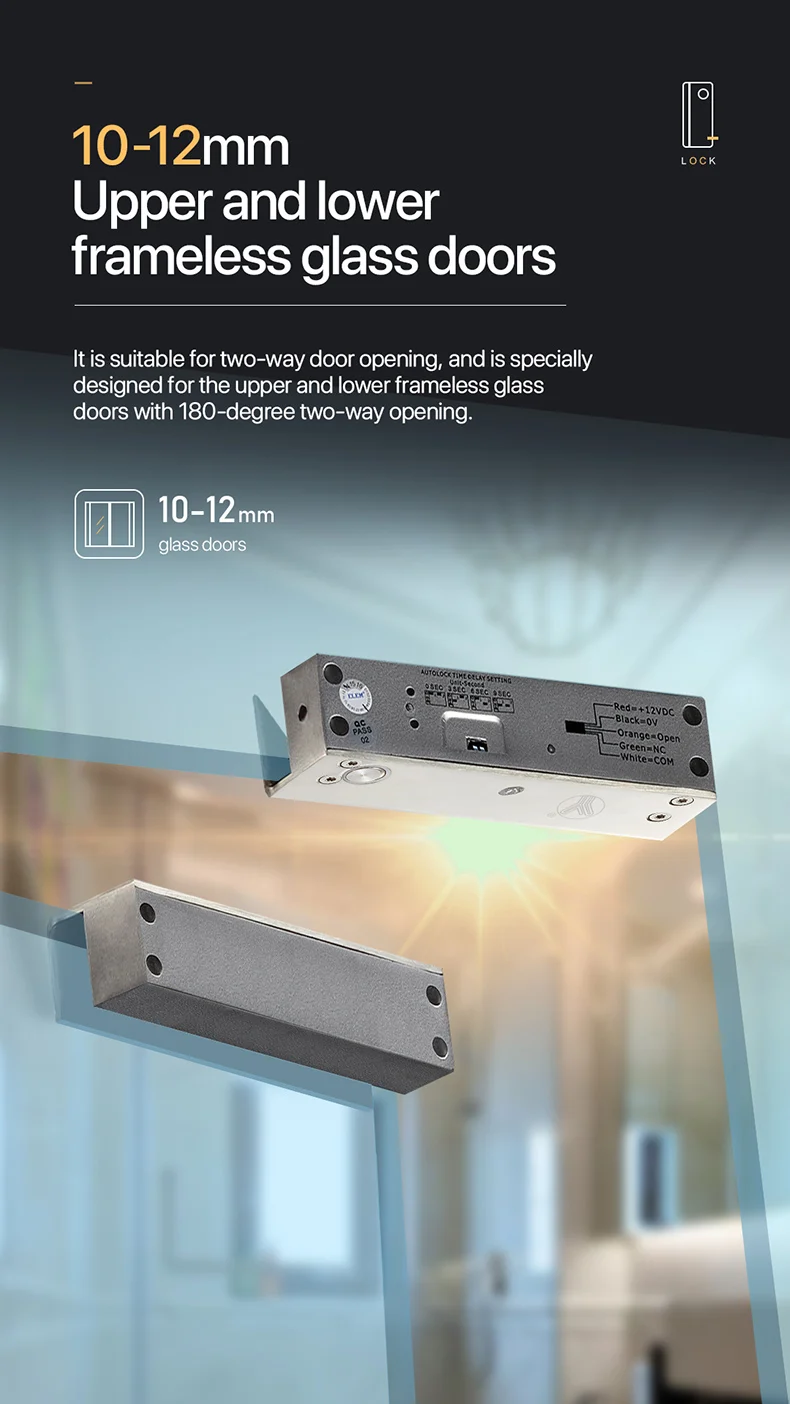

YB-500U (LED) is an all-metal construction electric bolt .specially designed for fully frameless glass doors. It can be worked bear the temperature of 60 ℃ or -40 ℃ The bolt of the lock is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design. With the multiple designs of durable magnetic valve, special photoelectric control system, LED Indicator ,Door statue signal output contact,ultra-low temperature and power consumption design, anti-intrusion and smart circuit.

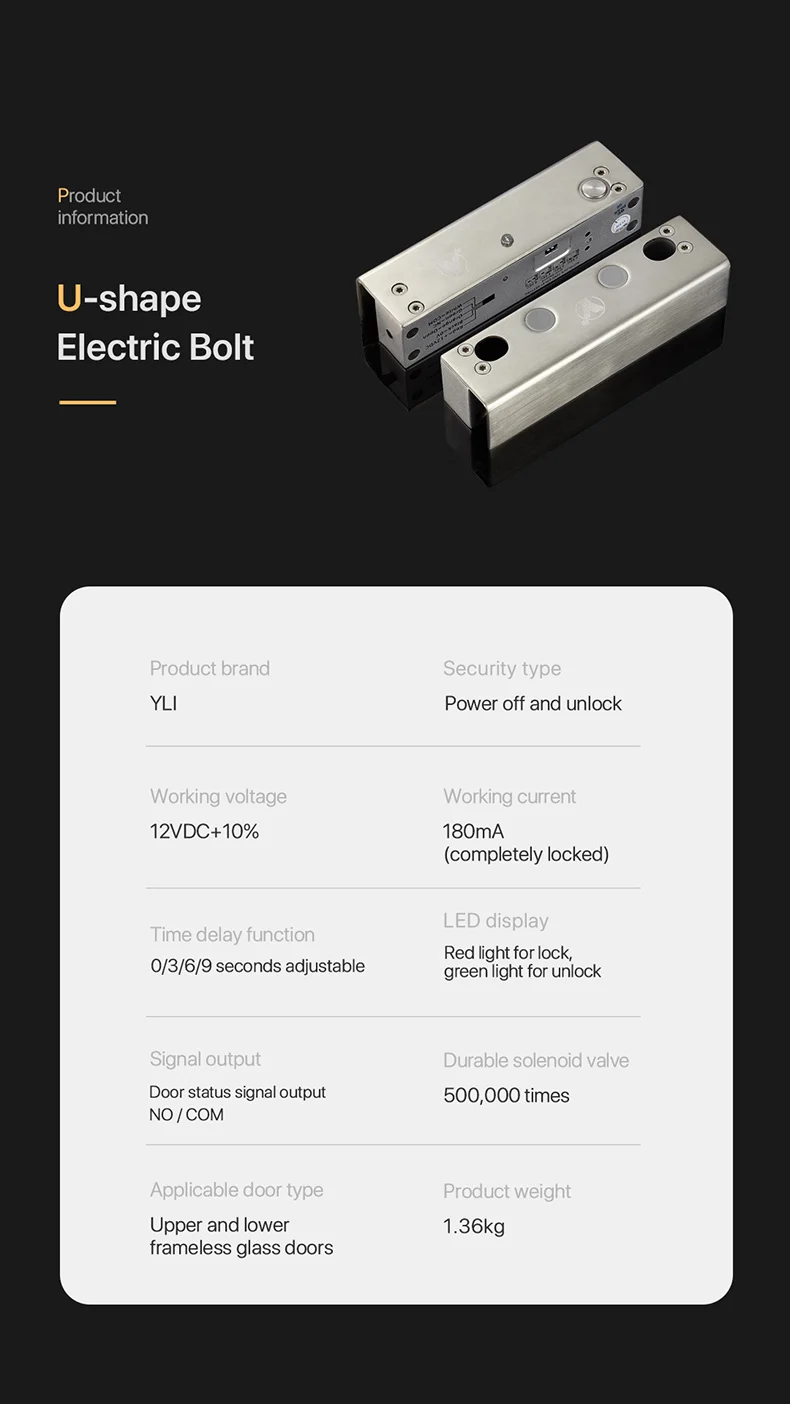

Feature | Fail Safe | ||||

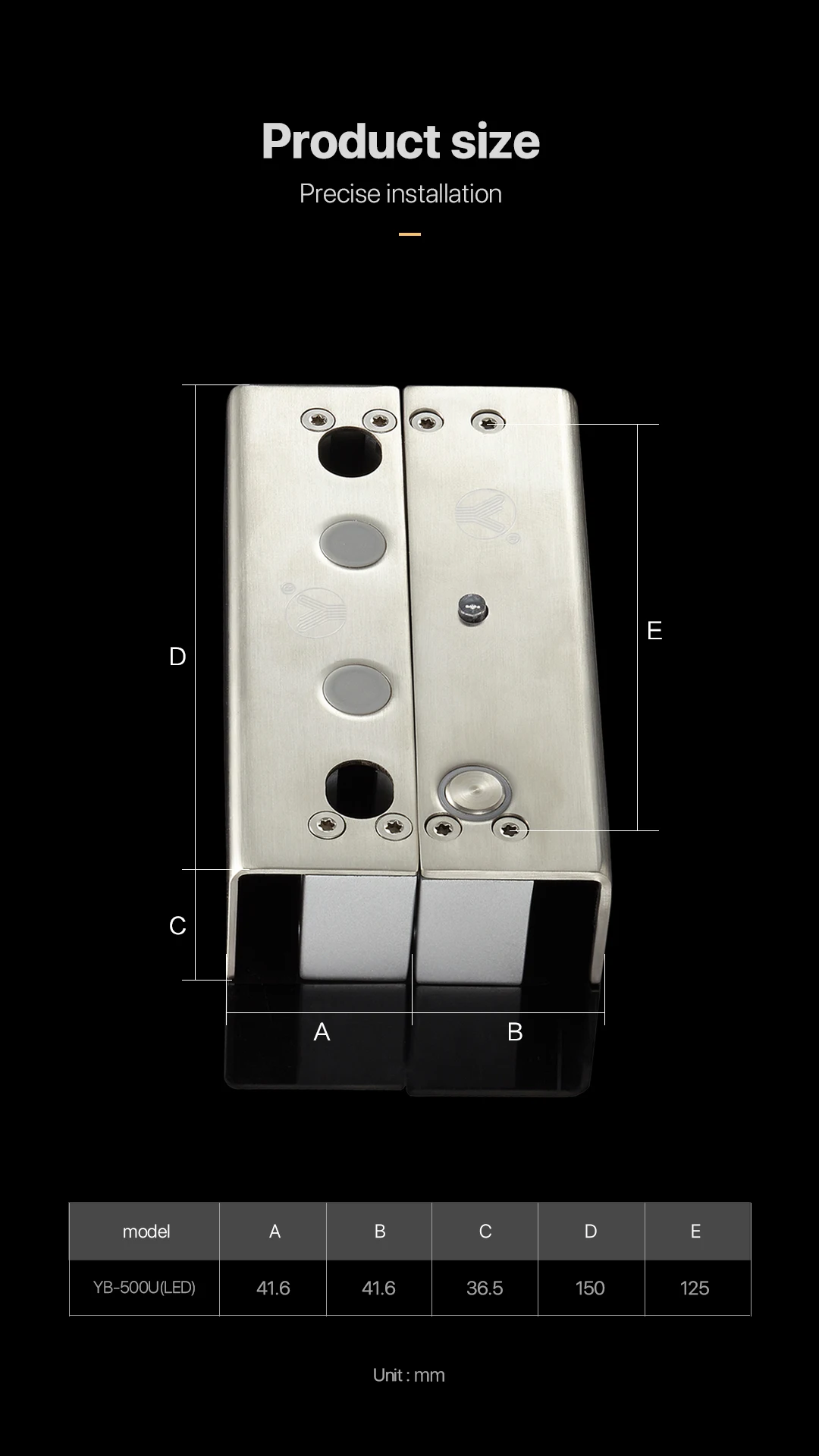

Face Plate | 150Lx40WX37H(mm) | ||||
Bolt | 16(length)*13(diameter)(mm) | ||||
Voltage | DC12V(DC24V) | ||||
Start Current | 960mA | ||||

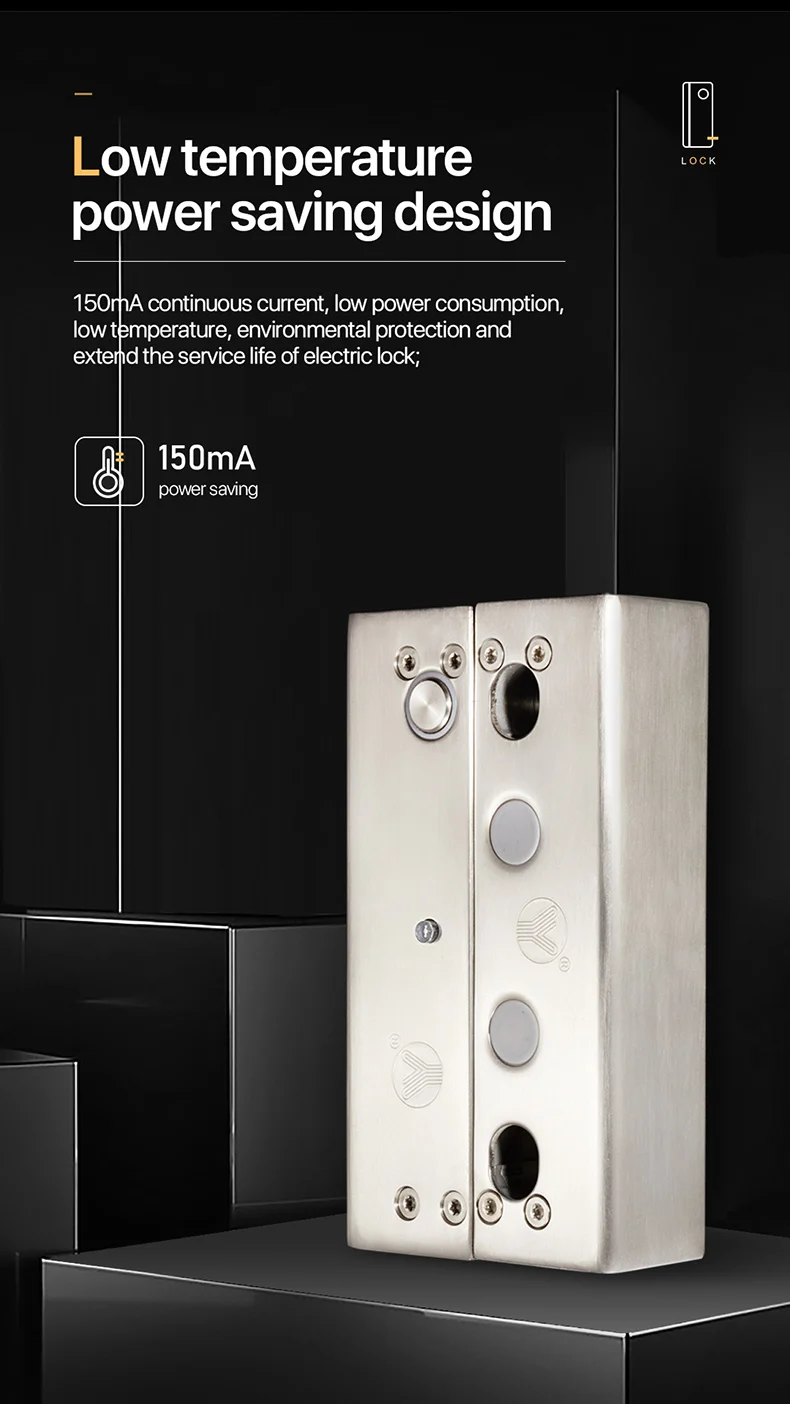

Standby Current | 180mA | ||||
Solid Bolt | polishing housing, 1000kg Holding Force | ||||
Suitable For | 12mm Electric Bolt For Fully Frameless Glass Door | ||||

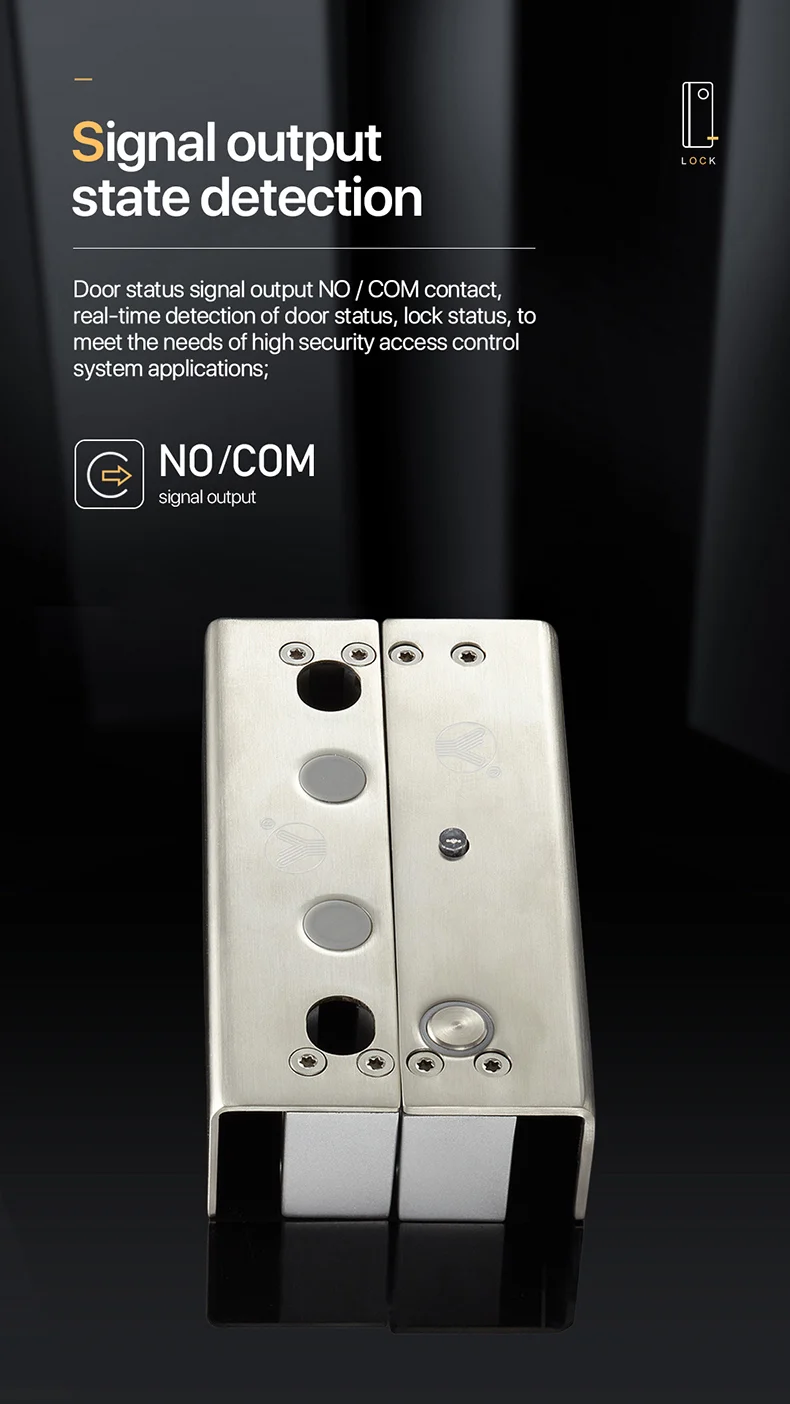

Signal Output | Door status Output,NC/COM | ||||

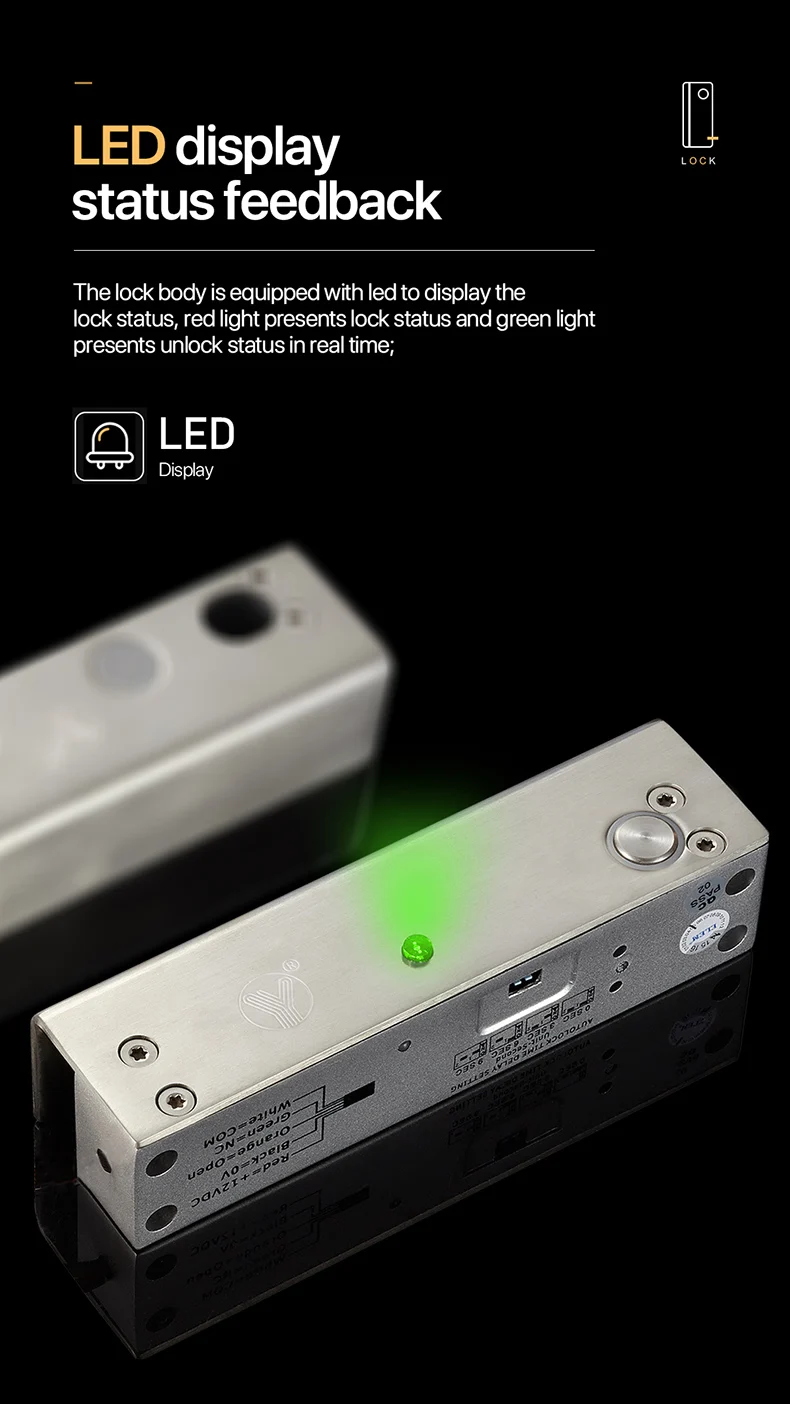

LED | Light on indicates locked, light off indicates unlocked | ||||
Surface Temp | Low Temperature | ||||
Induction Distance | 8mm | ||||

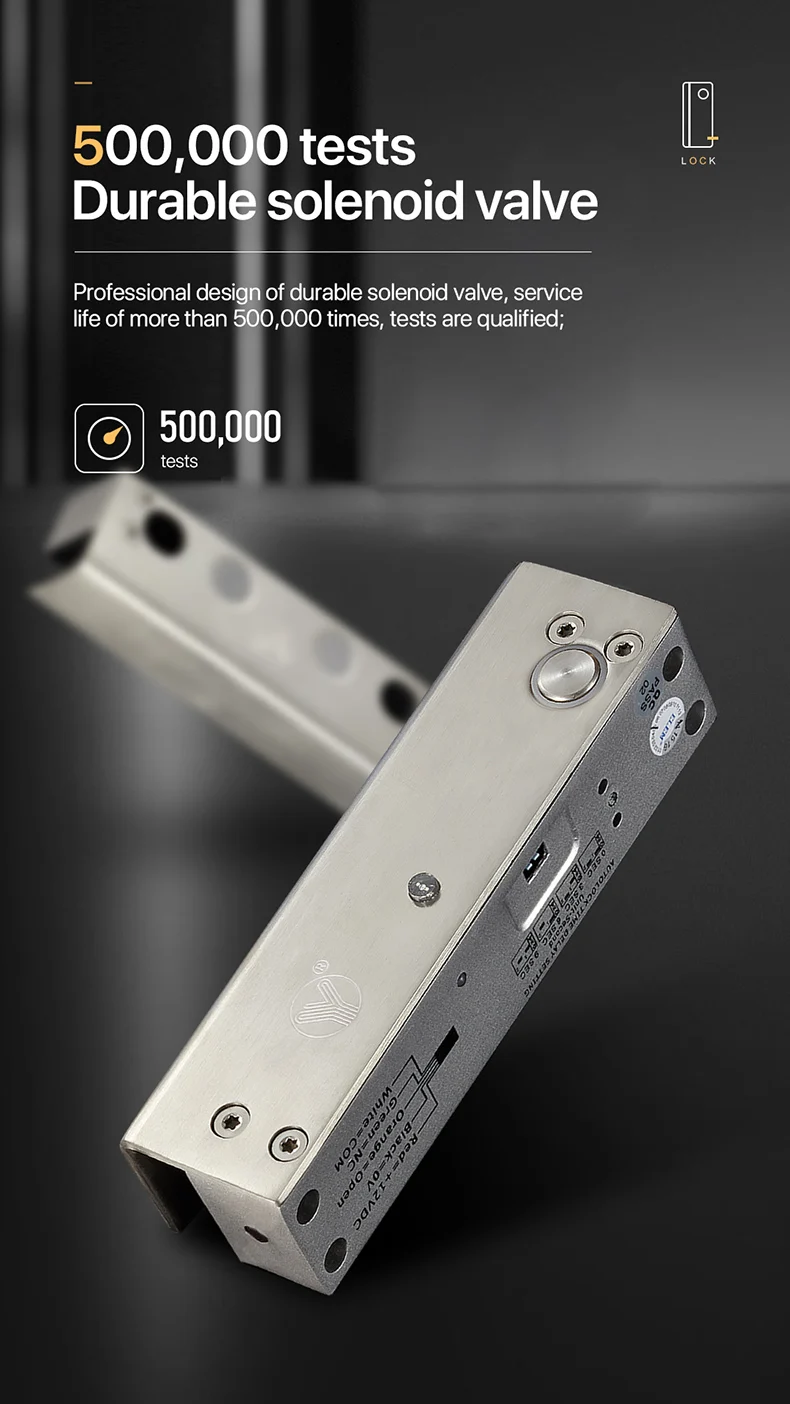

Special Designed | Tested to 500000 operations | ||||
Face place material | Stailess Steel | ||||
Weight | 1.36kg | ||||

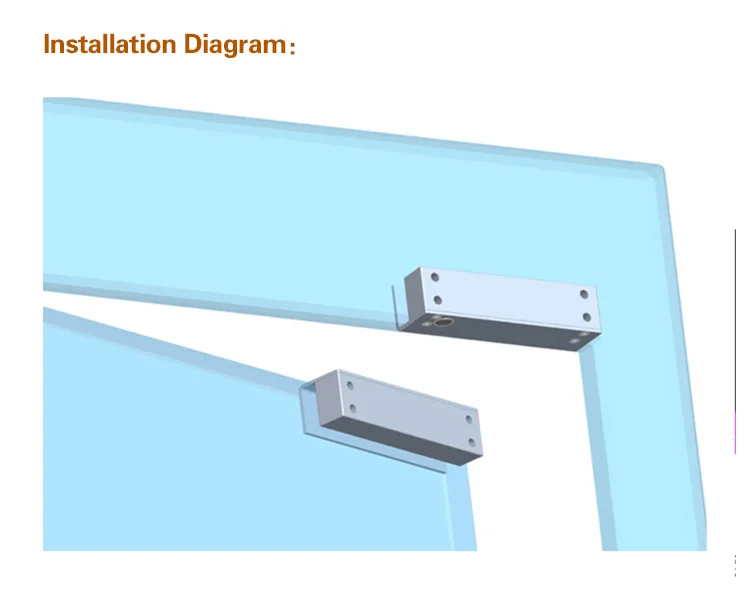

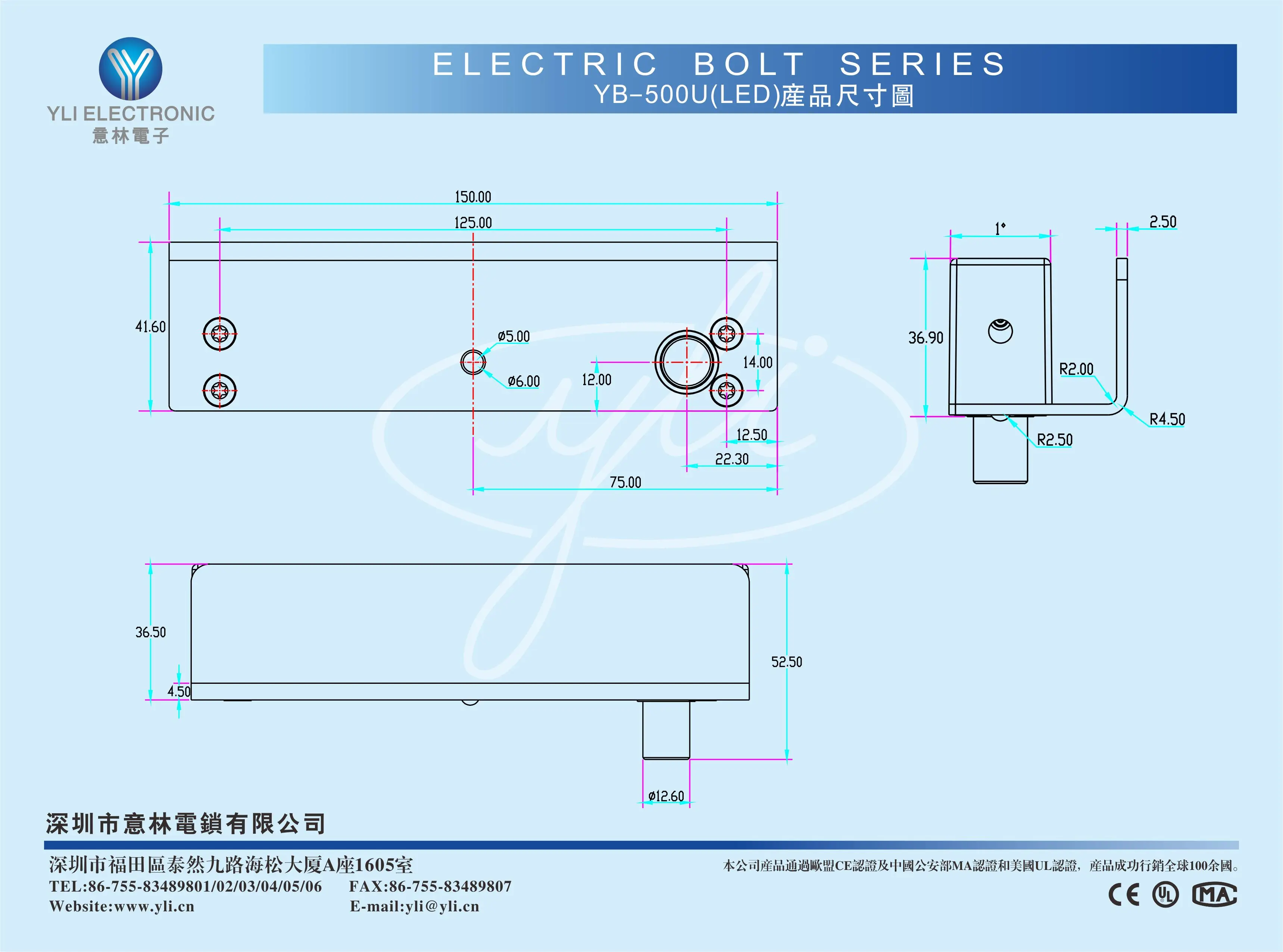

Installation Diagram
Quality Details
About YLI
Our Certification
Exhibitions
We Recommend
Water Meter Supplier Remote Read LoRa Ultrasonic Water Meter
US $0.87-$1.95

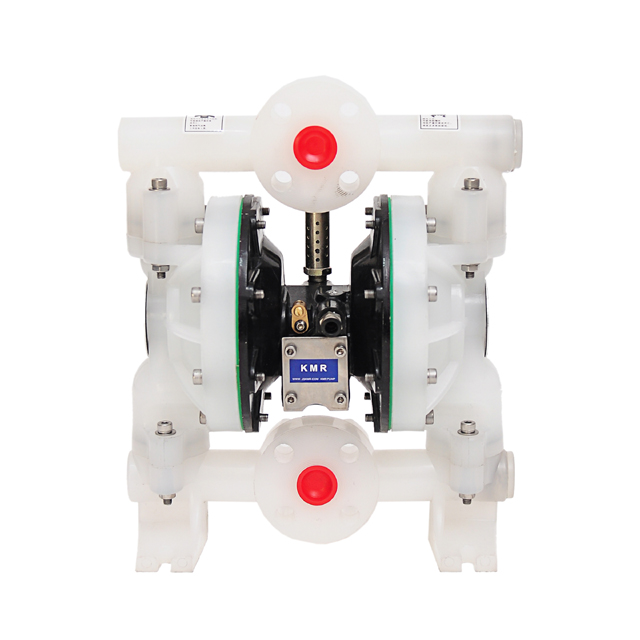

aro type diaphragm pump 6661AF-344-C
