ZLG Series Spray Dryer for Chinese Traditional Medicine Extracet

Share on:

Price in USD:Details


Product Overview


ZLG Series Spray Dryer For Chinese Traditiona Medicine Extract

 1.jpgLPG CE.jpg

The industry standards for This type of spray dryer is drafted and issued by YIBU Industry standards No.:JB/T2032


The machine adopts full sealing for it . All parts are made of stainless steel. It is equipped with three grades of filter. The filtered air is one hundred thousand grades. The cooling device of wall is installed at the cylinder body. It makes the wall temperature less than 80℃.Air sweeping device is installed inside the drying tower. The product will not be burnt or deteriorated even stays on the way. The collection rate of powder is raised greatly. Moreover will not cause medicine mixed or wall stick.




Basic Principle: high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique. It is an high-speed atomizing dryer. The following problems are solved.

 1. Raw material is stick to the wall and the rate of powder collecting is low.

 2. Because the staying time of raw material at wall is long, the phenomenon of burnt and degeneration can be produced.

 3. It is difficult to clean and can not meet the requirement of GMP

4.Low in output: Model LPG-150 atomizing centrifuge dryer can process 50-60kg/h of raw material liquid. In view of this, according to the properties and process requirements of the extract of traditional Chinese medicine, our factory researched and designed the special dryer for the extract of traditional Chinese medicine and won items of china patent.It solves the historical difficult problems in drying the extract of traditional Chinese medicine.The color of dried raw material is good.The dried raw material does not degenerate.It raises the economic benefit greatly.



Compared to ordinary LPG high-speed atomizing dryer,it has the following features: (1).Adopted three-grade air filter,the inlet air is one hundred thousand grade.

 (2).Adopted wall cooling device,the temperature of inner wall will be on more than 80℃.Even if raw material is stayed on the wall,it will not be burnt

(3).Its whole volume is 3.5 times of standard LPG high-speed atomizing dryer.

(4).Adopted quick washing device,it is can meet the requirements of production for varieties if products.

(5).Adopted wet-dedusting,there is no powder dust out.It is in conformity with the requirements of GMP.

(6).Adopted air sweeping device ,the clean effect is satisified.

(7).Equipped with two sets of atomizer and adopted frequency inverter control.

(8).Adopted PLC control and display,and adapted frequency control.

(9).Equipped with washing device on request.

(10).Adopted the seal transport by dry air on request.

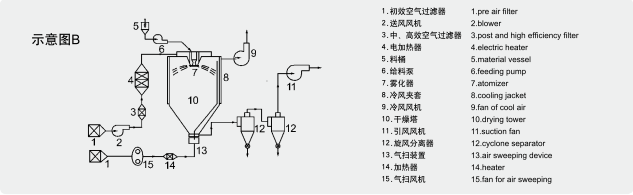

Flow chart




Technical parameters









evaporation capacity(kg/h)








process amount of material liquid(kg/h)








output of finished product(kg/h)








solid content of material liquid(%)


moisture content of finished product(%)


electric powder(kw)








heat source

steam plus electricity

collecting method of product and its efficiency

two-grade cyclone or one-grade cyclone and one-grade web-method dedusted of 95%

automatic control meters and instruments

indicator of not air and exhaust air temperature

temperature of air inlet()


temperature of air outlet()


overall dimensions(mm)








15000~based on design








9000~based on design








12000~based on design



Attention to order
1.Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.

2. Dry powder density residual water contents allowed, particle size, and maximum temperature allowed.

3. Output: shift time daily.

4. Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas.

5. Control requirement: whether or not the inlet and outlet temperatures should be controlled. Powder collection requirement: whether it's necessary to use cloth bag filter and the requirement of the environment of the exhausted gas.

6. Other special requirements.
