Induction Forging Machine,automatic hot forging equipment, metal heat treatment equipment

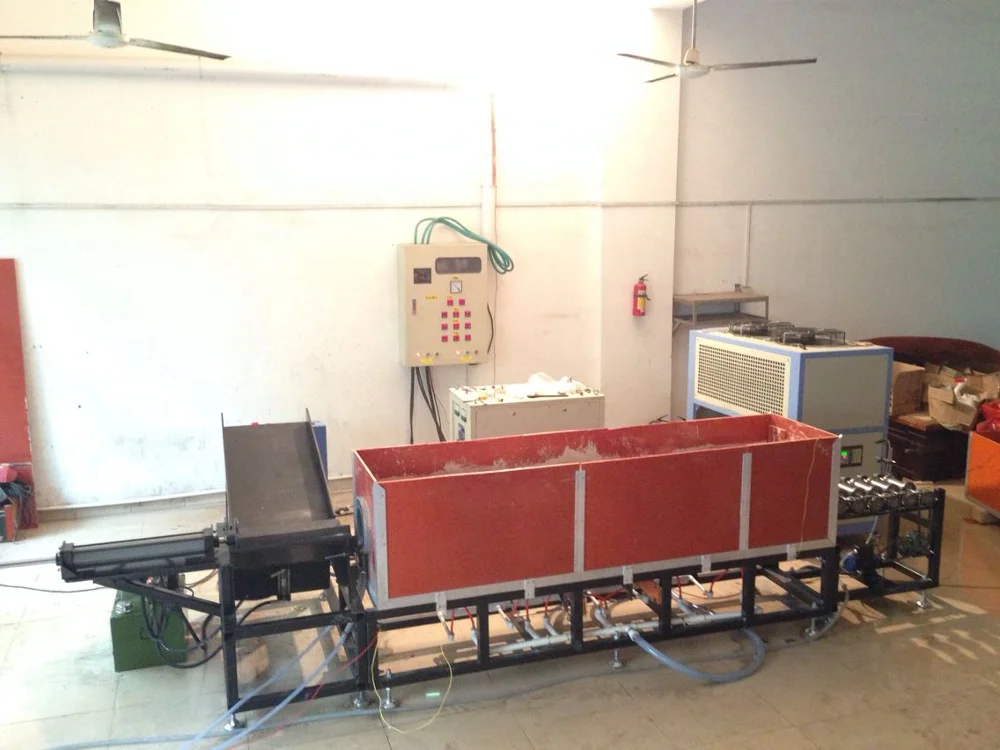

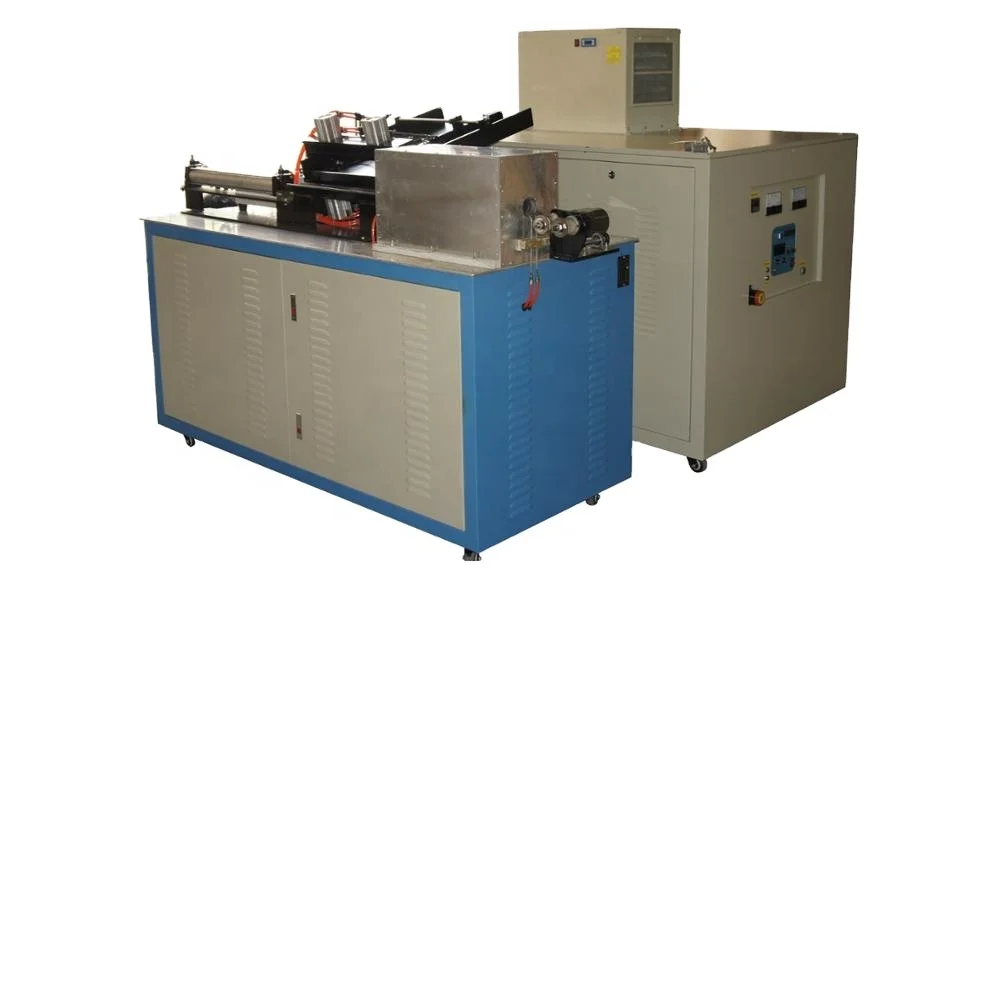

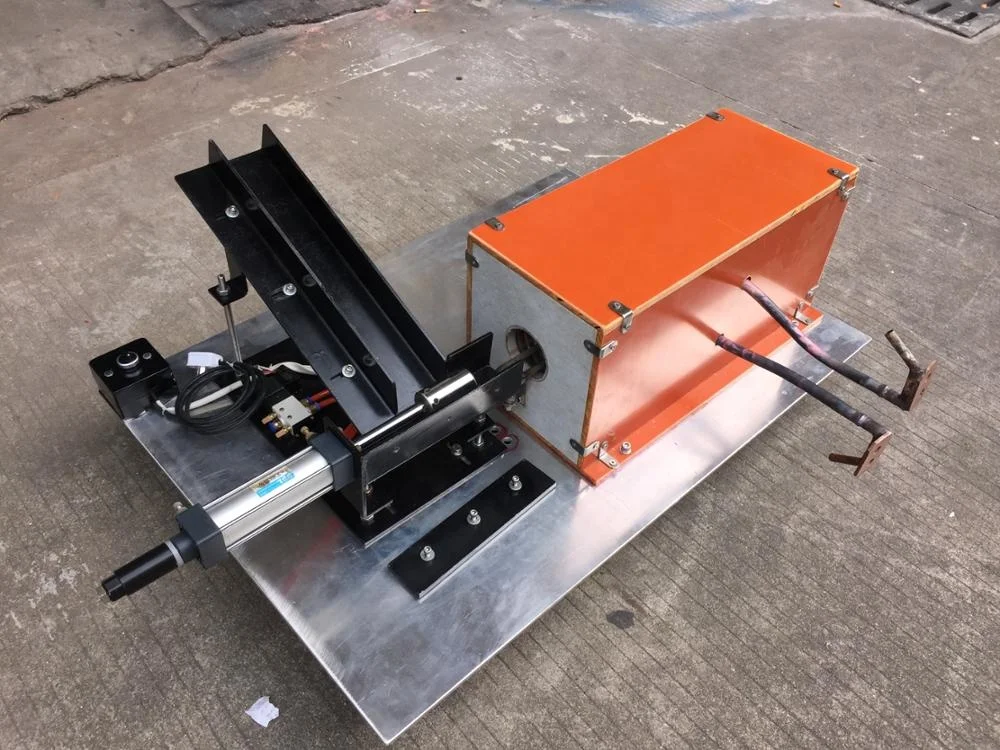

The equipment includes medium frequency induction heating machine, worktable, induction coil, feeding machine, Infrared temperature detector and some other parts.

1, Wide frequency range : 1khz - 20khz, according the diameter of working piece to choose suitable frequency.

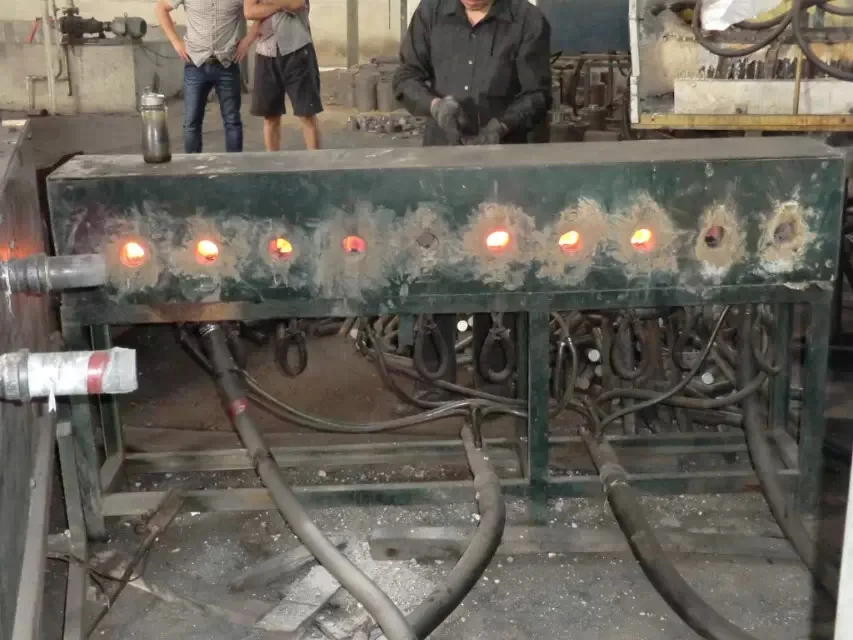

2, When heating a whole piece of material, the length of induction coil can bemade from 500mm - 1m, when heating multiple pieces, better penetrating results can be guaranteed.

3, It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of workpiece reach 1100C.

4, When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.

5, Compare with controllable silicon frequency machine, our equipment is of smal size, easy maintenances, and can save power by approximately 15 - 20%.
