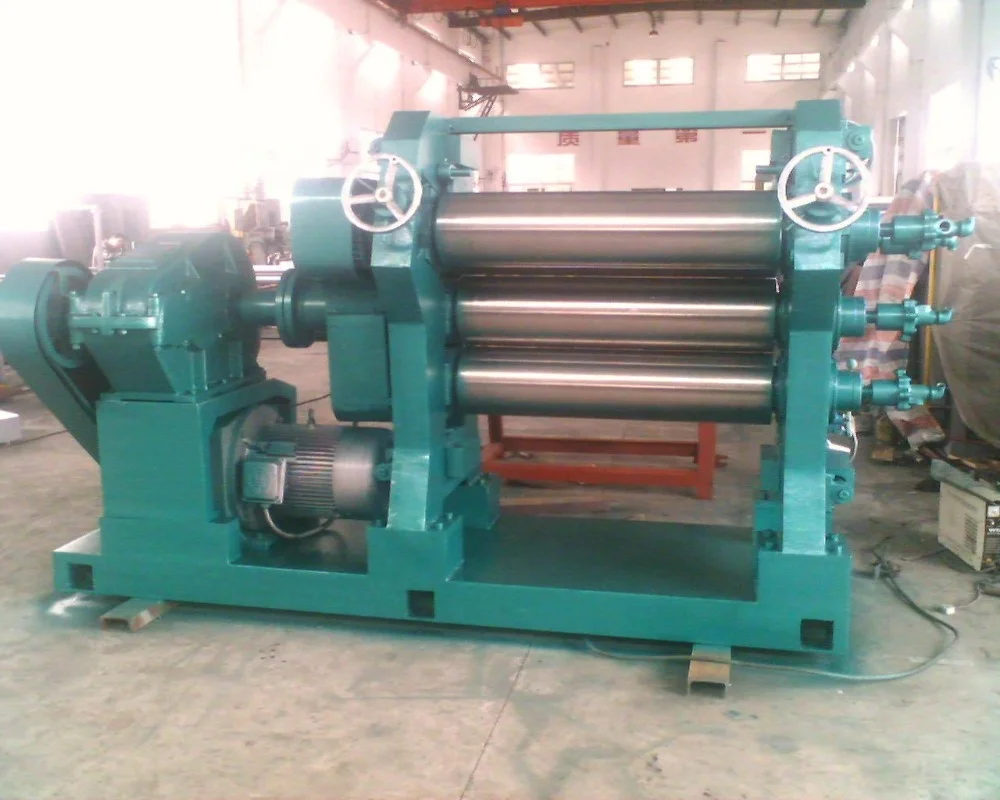

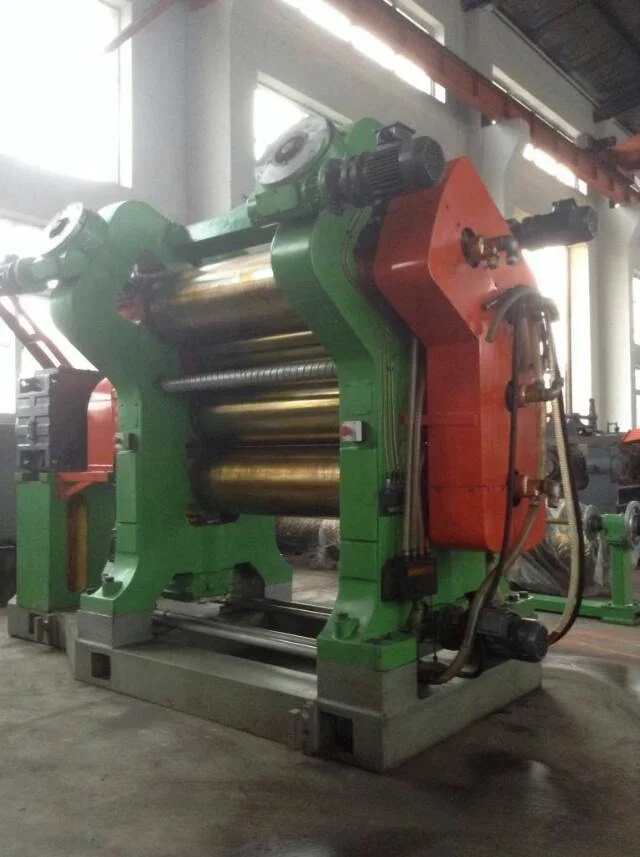

three roll rubber calender

Product Overview

Description

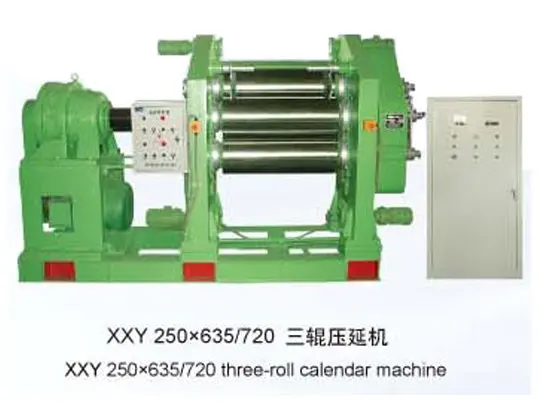

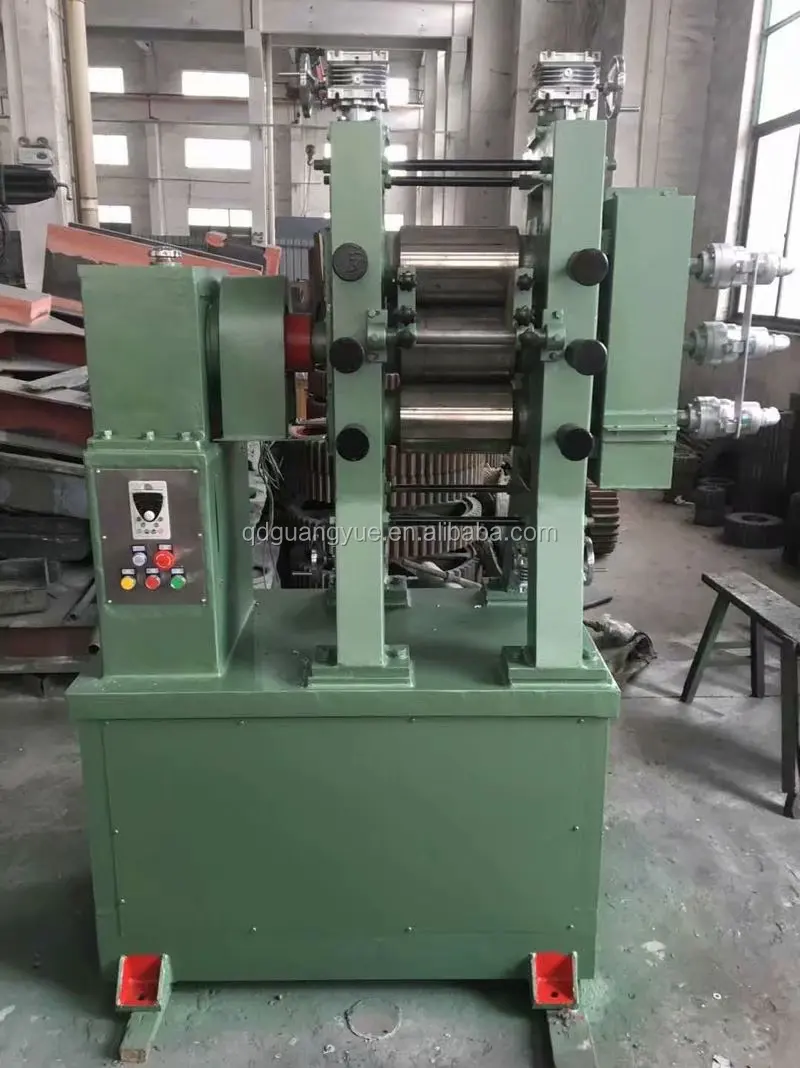

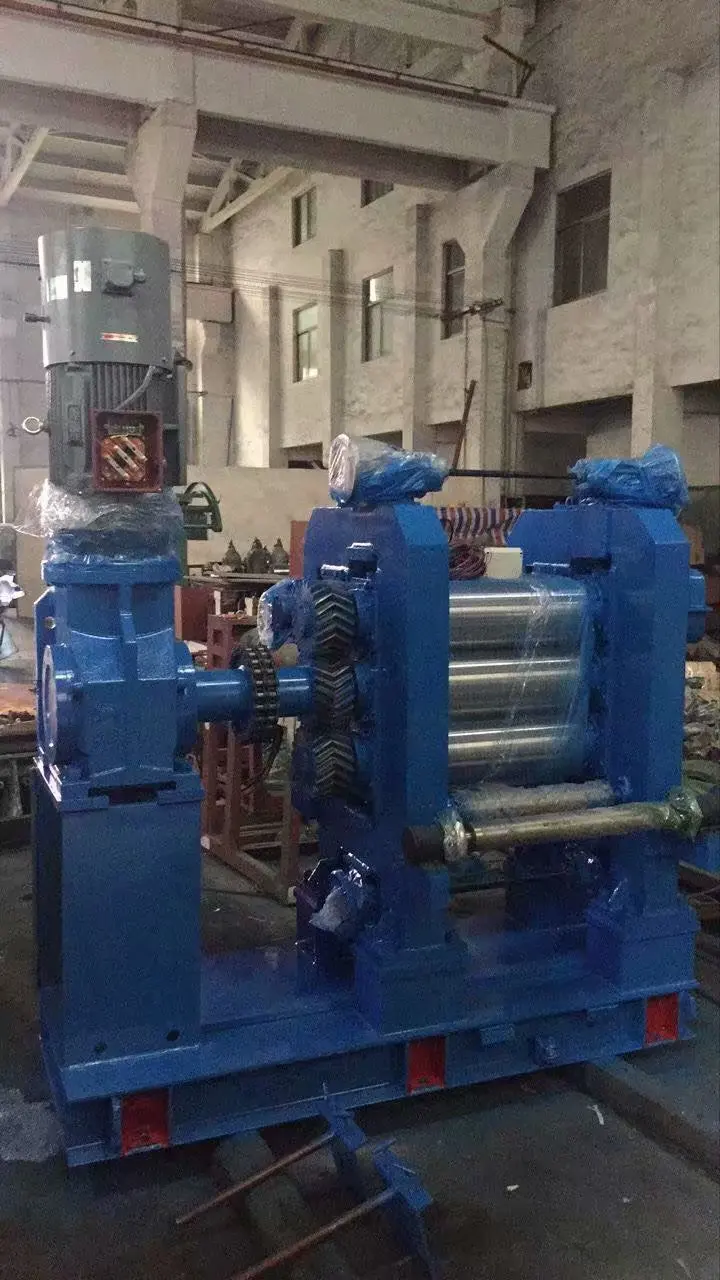

1.three-roll rubber calender
2.version: XY3I630



version	XY-3I 630	XY-3I 1120A	XY-3I 1400
Roll diameter (mm)	230	360	400
Roll working length(mm)	630	1120	1400
Roll  ratio	1:1:1	1:1:1	1:1:1
Middle-roll linear speed(r/min)	0.8-8	3-21.6	2.6-26
Adjusting nip range (mm)	0-7	0-10	0-10
Min.Calendering product thickness(mm)	0.2	0.2	0.2
Calendering product width(mm)	100-500	500-920	1200
Motor power (KW)	7.5	45	55
Overal dimension(L/W/H) mm	3168×890×1830	5550×1640×2120	6500×1500×2440
Weight (t)	2.6	11	22



Qingdao Guangyue Rubber machinery manufacting Co.,Ltd is a the partner of Acooperating Unit Of  China Science institute, and also we export rubber machines to all the world ,such like south asia, south america ,africa ect.

Excellent design,good quanlity , competitive price and best sale service  to win more and more clients, please contact us for the long-term business!
