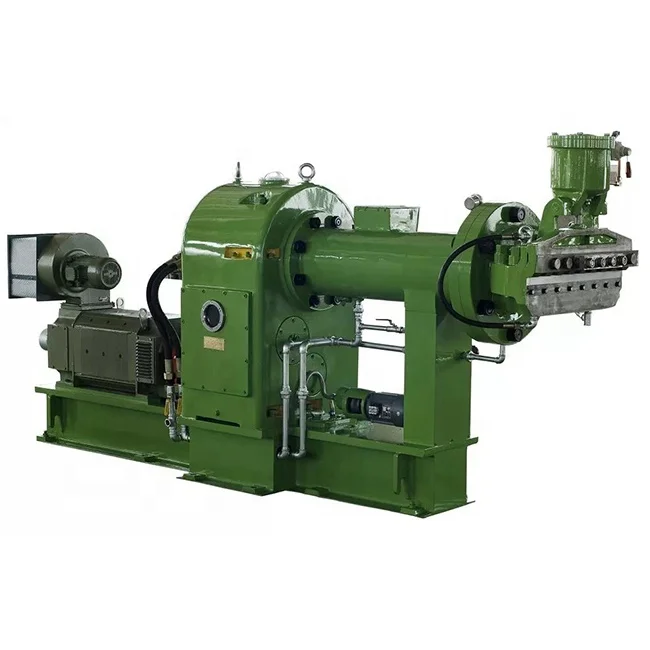

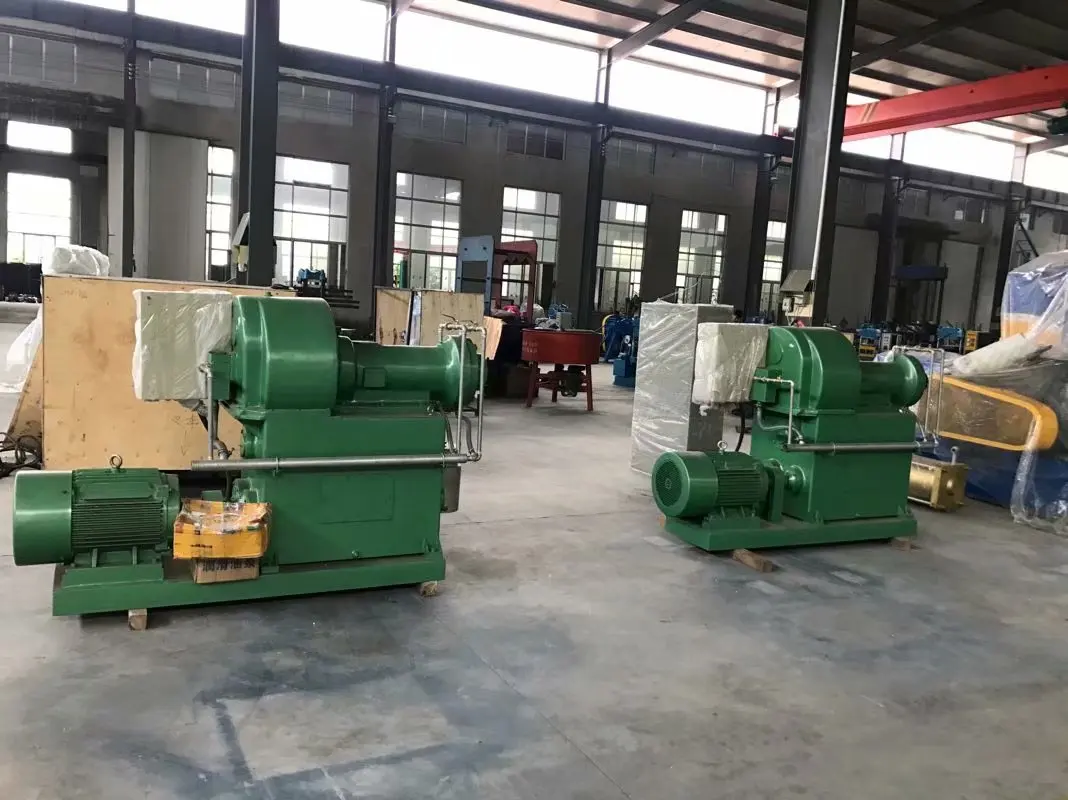

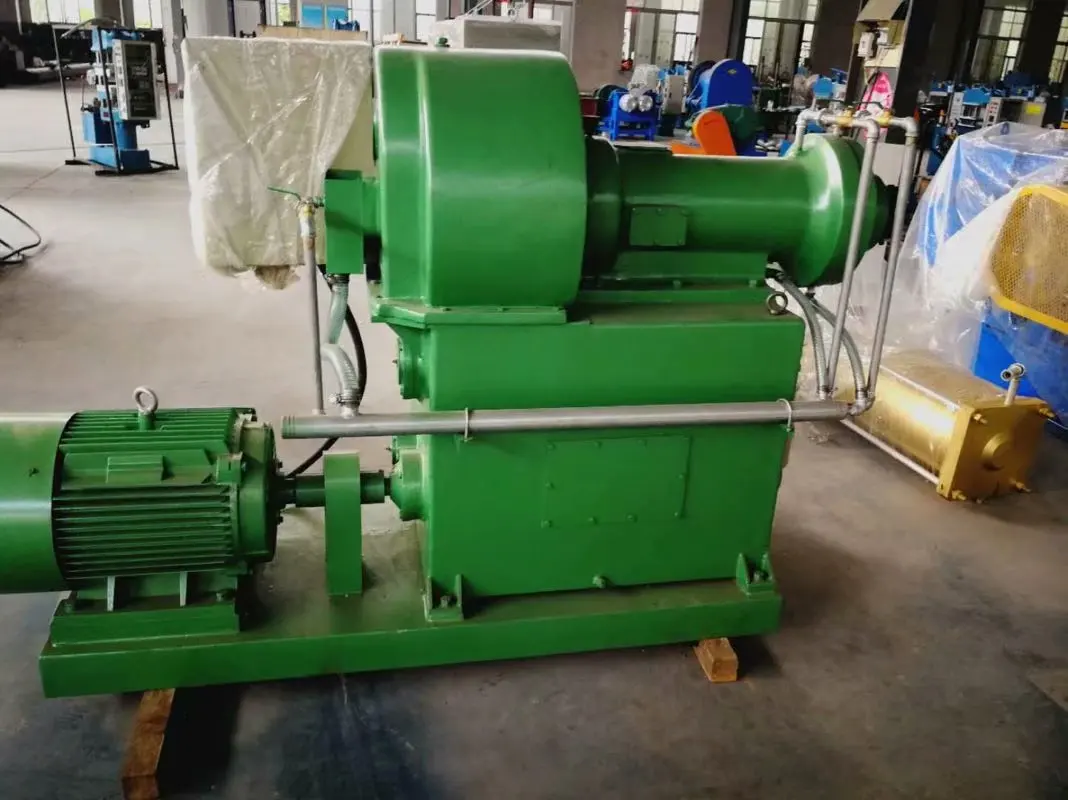

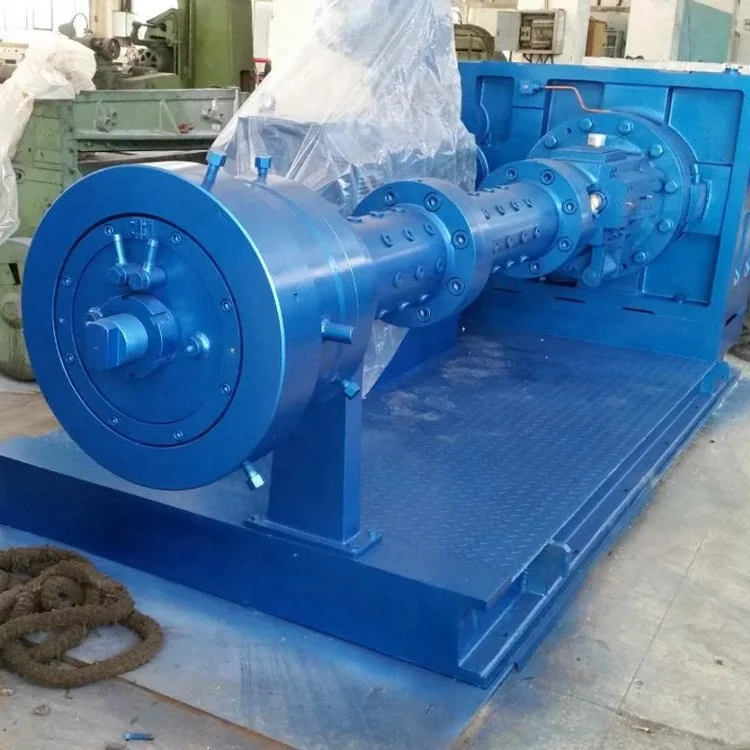

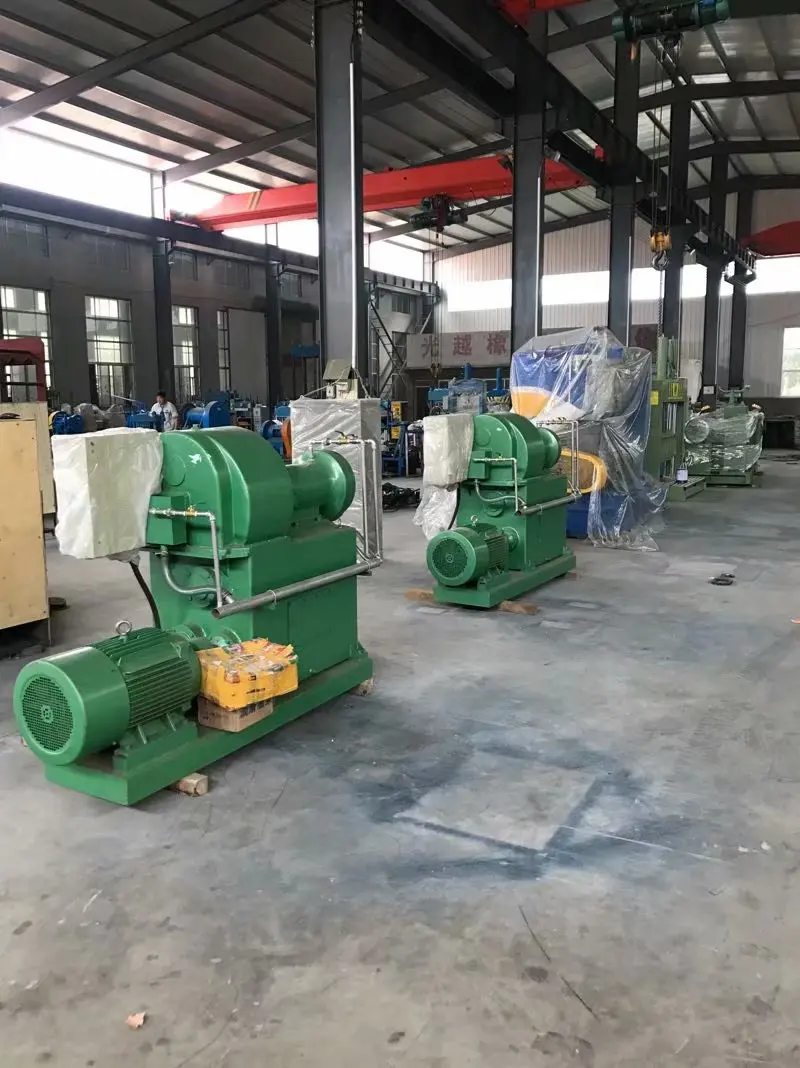

XJ 200 Hot Feed Rubber Extruder machine for rubber sheet production line
- Category: Rubber Extruders >>>
- Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co. Ltd.
Share on (333856595):
Product Overview
Description
XJ-200 Hot Feed Rubber Extruder machine for rubber sheet production line
Rubber extruder is used for extrusion of half-finished rubber products such as tire tread, inner tube, rim bancl and rubber tube
Parameters for hot feed rubber extruder
Version
Parameters | XJ-60 | XJ-65 | XJ-85 | XJ-90 | XJ-115 | XJ-120 | XJ-150 | XJ-200 | XJ-250 | ||
Screw | Diameter(mm) | 60 | 65 | 85 | 90 | 120 | 120 | 120 | 120 | 250 | 250 |
L/D(Length to Diameter) | 4.5:1 | 4.5:1 | 4.8:1 | 4.8:1 | 4.6:1 | 4.6:1 | 6:1 | 4.6:1 | 4.35:1 | 4.5:1 | |
Highest rotational speed of screw shaft(r/min) | 80 | 80 | 75 | 75 | 65 | 65 | 65 | 65 | 55 | 55 | |
Motor power(kw) | 7.5 | 7.5 | 18.5 | 22 | 30 | 37 | 37 | 55 | 75 | 90 | |
Productive capacity(kg/h) | 60 | 75 | 210 | 260 | 420 | 530 | 530 | 1050 | 1800 | 3600 | |
ersion: XJ-65, XJ-85 XJ-115 XJ-150 XJ-200
1. USE:
For profiling of extrudand, rubber covering of filter cable of rubber compound, rubber covering of press plate and tinsel, etc.
2. Features:
The machine is heat-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing. We can get different filting and rubbe-covering of press plate of semi-product for constant outline. So the machine has many uses.
After sals service
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
| Parameters/ Version | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 |
| Screw outer diameter(mm) | 65 | 85 | 115 | 150 | 200 |
| Length-diameter ratio | 4 | 4.3 | 4.8 | 4.43 | 4.35 |
| Compression ration | 1.3 | 1.3 | 1.34 | ||
| Screw rotation speed (r/min) | 20.27.35.47 | 28.40.56.80 | 33.46.60 | 27-81 | 22.4-67.2 |
| Power (kw) | 7.5 | 11/15 | 22 | 18.3-55 commutator machine | 25-75 commutator machine |
| Product capacity (kg/h) | 50-80 | 70-210 | 100-420 | 700-1200 | 1500-2200 |
| Steam pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0.3 |
| Cooling water pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0..3 |
| Compress air pressure (Mpa) | 0.3-0.6 | ||||
| Size (l*w*h) (mm) | 1630*604*1050 | 2050*700*1200 | 1630*604*1050 | 3411*814*1470 | 4564*1800*1750 |
| Weight (nohead) | 1200 | 2500 | 3000 | 5000 | 8000 |
