Product Name: DPDT Two pole on-on type wrench switch

Model No.: RT-S6-22B



Technical parameters

Rated working current: 15A,10A,6A,3A/125V,250V AC (resistive load)

Contact type

Contact Material: Silver cadmium oxide contact (if no need cadmium,[according with ROHS certificates] can customize

Contact  resistance (initial value): less than 15mΩ



Electrical

Insulation resistance (initial value):  100mΩ (at 500VDC)



Expected Life:

Mechanical: 50,000 operations min. (on/off frequency 20 operations/min)

Electrical: 25,000 operations min. (rated load,7 operations/min)



Using condition

Ambient temperature/ Ambient humidity: -20°c~+70°c (with no icing), 85%RH max. (+5°c~20°c)

The max on/off frequency: 30 operations/min

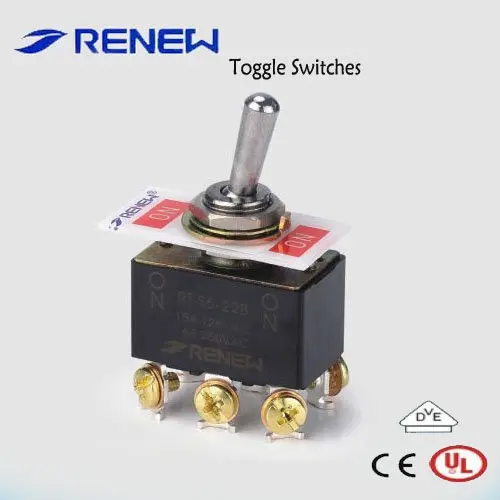

RT-S6-22B ON ON WITH LOGO

Remark: The fixed screw terminal material in this picture is brass, if don't need brass, also have iron terminal for your selection.



OUTLINE DIMENSION

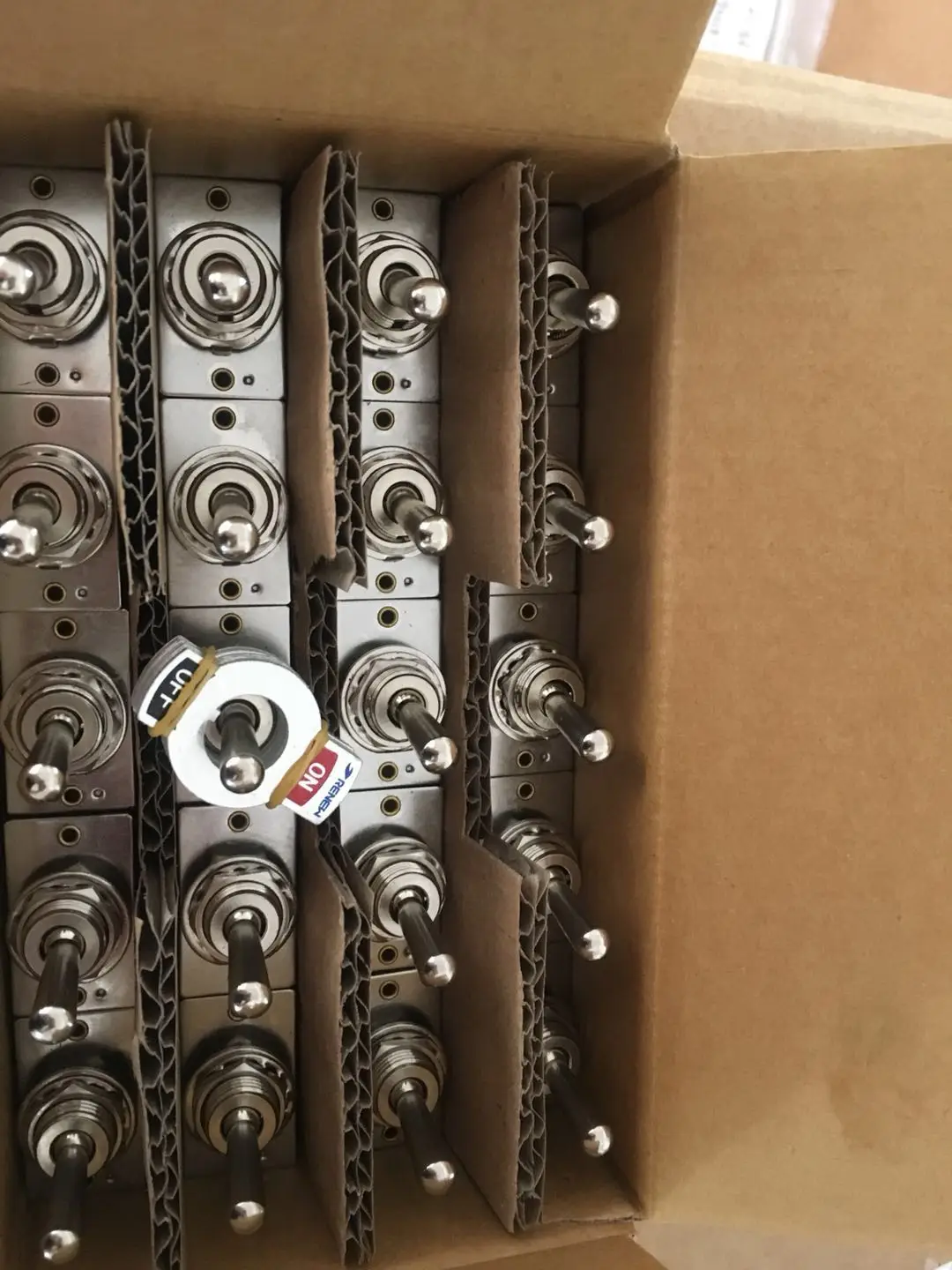

Package:

Toggle switch 1.jpg

FAQ



 1.Q:What are your payment terms? Do you accept paypal?

     A: 100% T/T in advance. We do not have a paypal account at present.



2. Q: Do you have a price list?

      A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.



 3. Q: What are your warranties?

    A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.



4. Q: Can you accept OEM?

      A: Yes, need your trademark authorization letter.



5. Q: What about the package?

     A: All use thickening export carton with "RENEW" mark, you specified mark or none.



6. Q: Do you provide sample?

     A: Yes, free sample can provide to you, express freight collect.





7. Q: Do you accept small order quantity?

     A: Yes, order quantity without limited.



 8. Q: How about the delivery mothod?

      A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS......  If not by sea or by air transport.



9.Q: Do you bear the freight charge?

    A: We can offer you EXW, FOB or CIF price.
