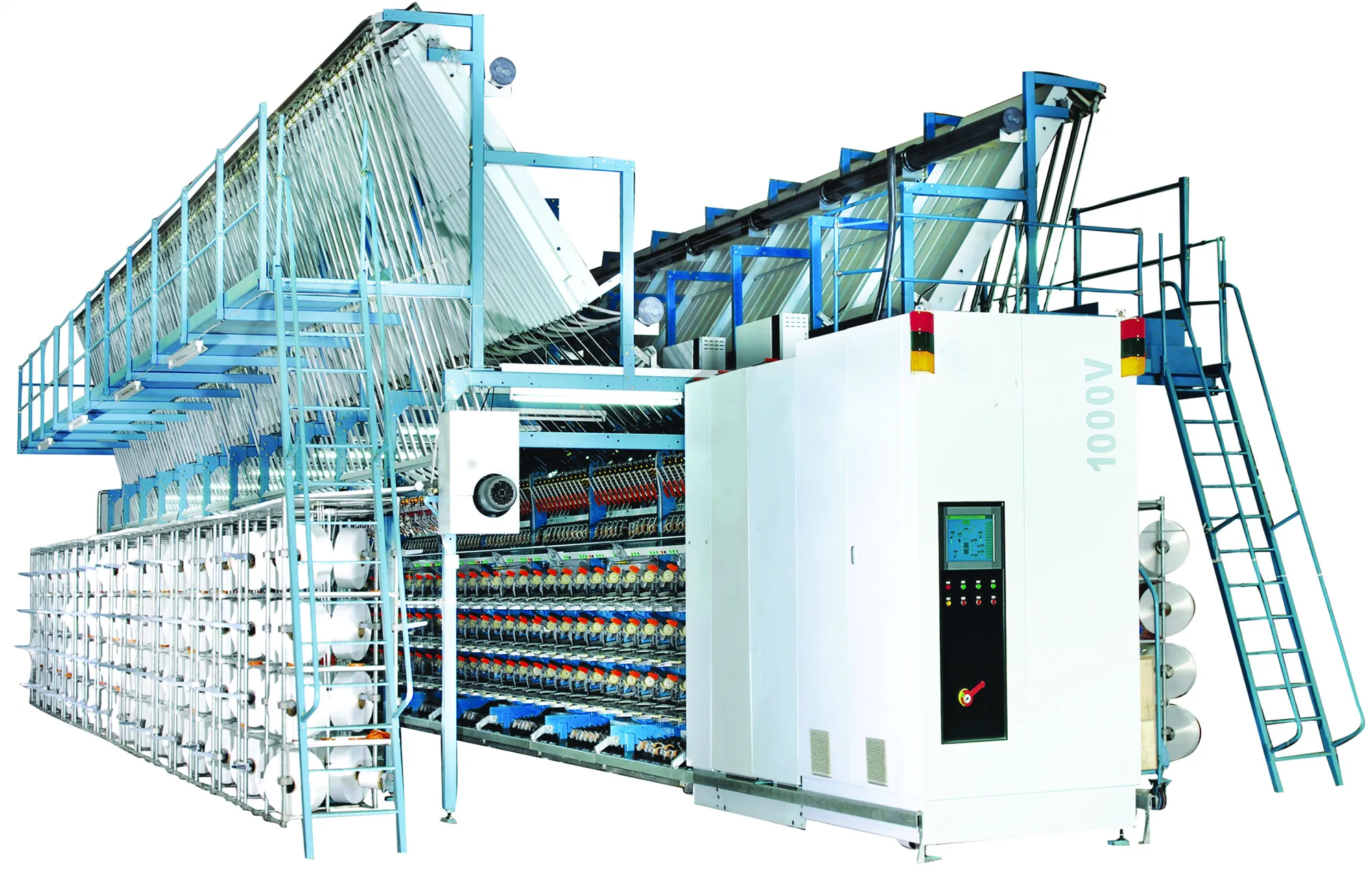

High speed electronic controlled draw texturing machine poy to dty machine

Product Overview

Description

Main datas:





Spindle number	240 spindles(standard),264/288/312 spindles
Max.mechanical speed	1000m/min(W2 feed roll speed)
Twist	Type 8 disc friction unit
First heater	Biphenyl/2000mm
Second heater	Biphenyl/1460mm
Cooling rail length	1100mm
Diameter of take-up roll	100mm
Diameter of feed roll	75mm
Diameter of oiling roll	75mm
Distance of both spindles	110mm
Pitch	1440mm
Denier of fiber	55-250dtex
Package of take-up	dia.250*250mm
Overal size(288 spindles)	22100*6724*5250mm(fixed creel)
Whole power	218kw(288spindles)
Effective power	81kw(288 spindles)for reference





Use:



This machine is used to make the polyester fiber and polypropylene fiber to be low, middle and high stretch fiber through twister. If equipped with intermingle nozzle, this machine can make intermingle fiber.





Features:

1. The first heater (deforming heater) and the second heater (setting heater) adopt biphenyl air heating .The computer controls the heating and the temperature control. The precision of temperature control is ±1 °C, assure every spindle s temperature to be almost same .This is beneficial for even dying.


2. The machine has the features of simple structure, reliable transmission ratio, low noise level and easy technological adjustment.


3. The advanced designed electrical control system makes the operation simple, running reliable .Man-machine interaction can be realized by touching screen.


4. Two sides of this machine are relatively independent .The technology can be set separately. Different types and denier texturing yarn can be processed at the same time.

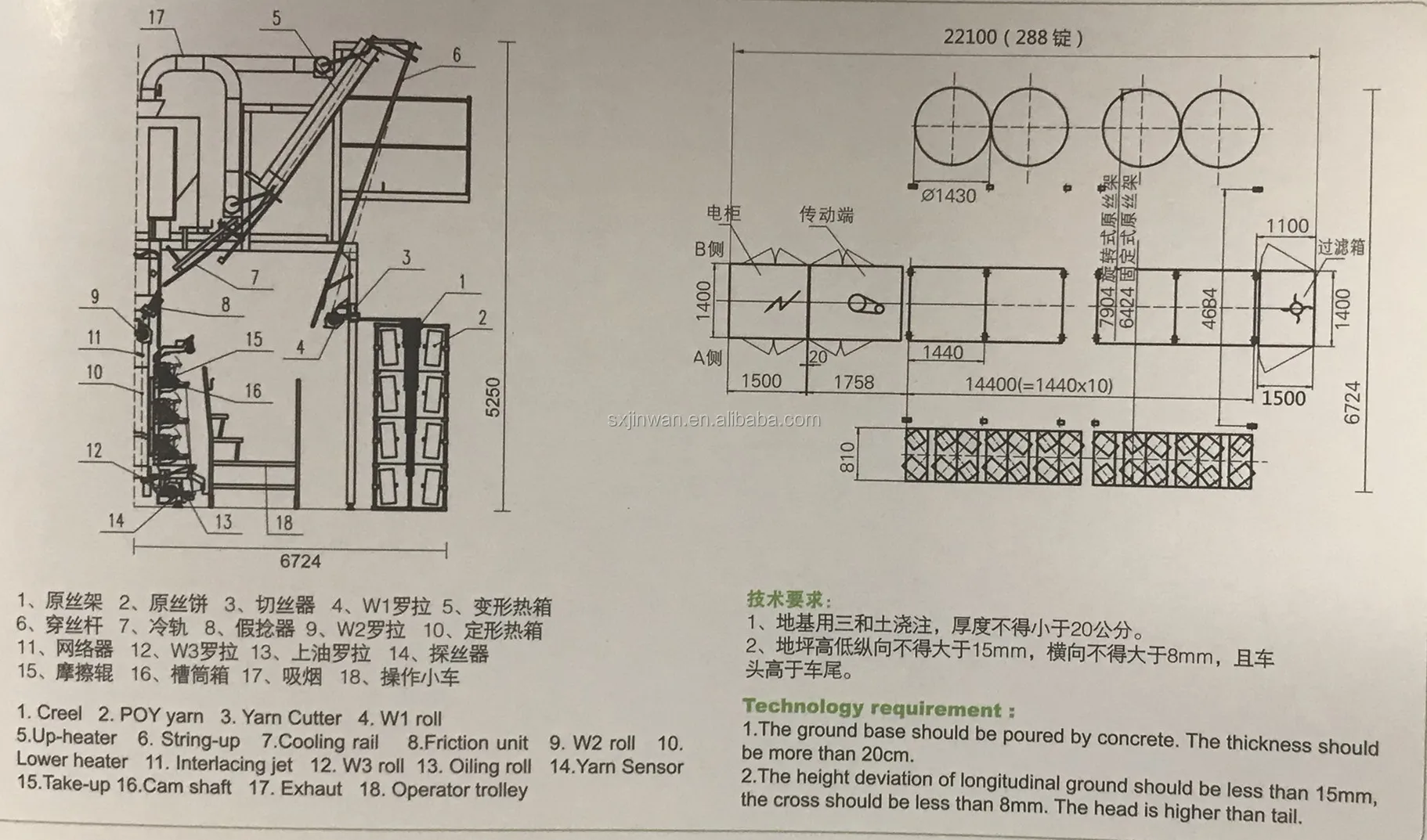

Main parts:









Technology requirement:





Package and loading:
