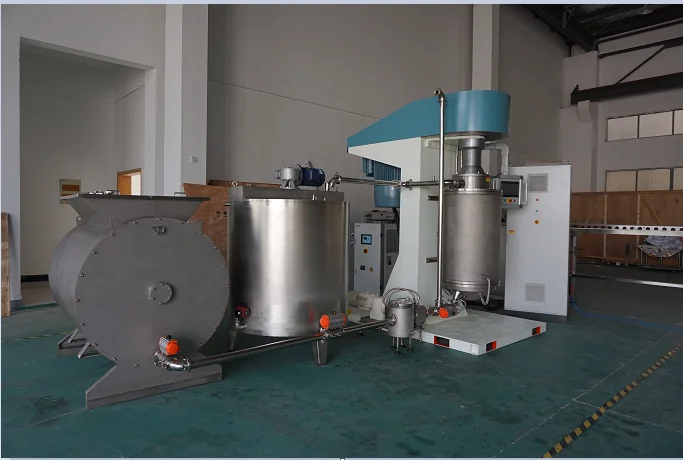

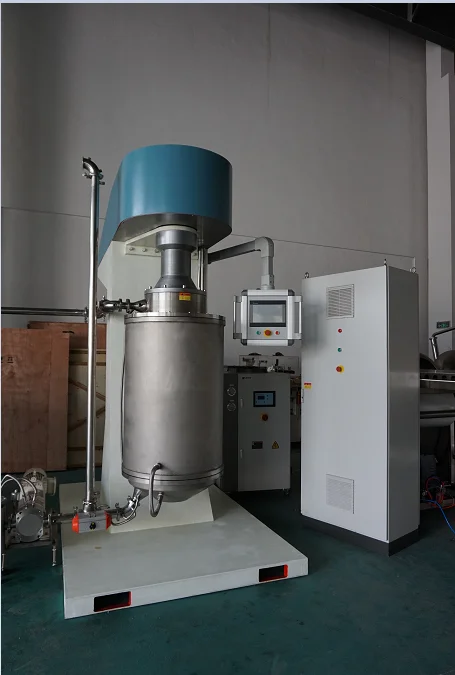

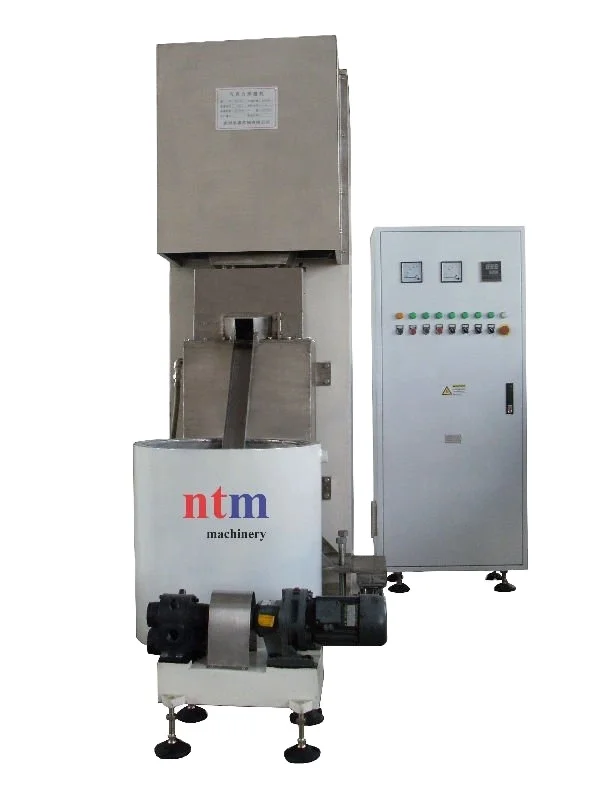

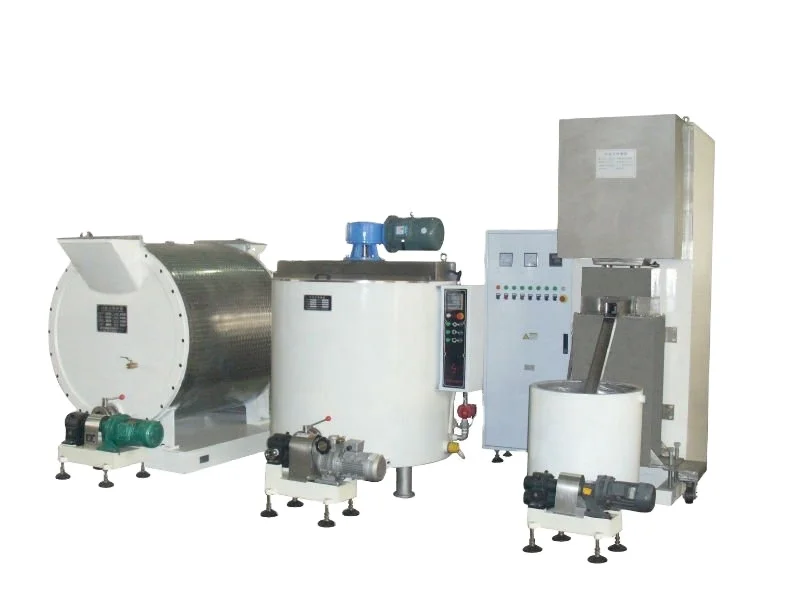

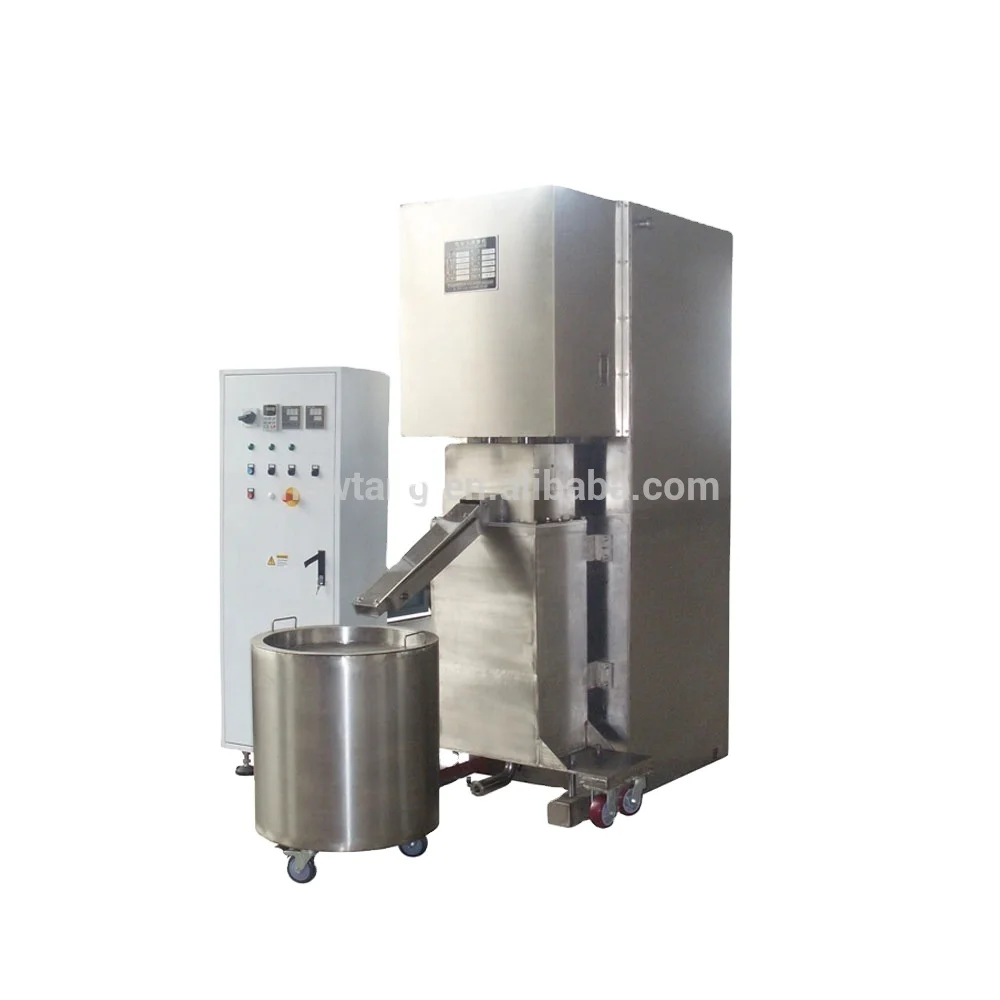

This machine is used for fine grinding the chocolate paste material.It is a special machine for fine milling chocolate mass and its admixture. Through the impact and friction between the material and the steel balls inside the vertical cylinder, the mass is fine milled into the required fineness.
The body is Q235 carbon steel with paint,tank is stainless steel 304.The impellers and balls are Gcr15 bearing steel after heat treatment ,the balls are 5mm,it is about 180kg balls in each machine.The shaft is 40Cr.
Technical Data:
Model NTM-QMJ250
Main motor 15kw
Spindle Speed 250-500rpm
Grinding Medium 180kg(weight of balls)
Average Process Ability 150-250kg/h
Cooled Water: 1500kg/h
Temperature: 15-20°C
Outside Dimension: 1250x1100x2330mm
Weight of machine 2000kgs
Input/Output Pump: 0.75kw*2
Company Information
Newtang Machinery and Electric Co., Ltd,involved in confectionery and chocolate machinery area for more than twenty years, has gained a high reputation among our customers. We are specialized in chocolate machines, jelly candy machines, toffee machines, hard candy and lollipop machines And related wrapping machines. We will continue to provide quality based, cost efficient products to our clients.
Certificats
After service
1. We provide free training of machine installation, operation and maintenance service to our customers, the business trip charge and tips are born by the users.
2. We supply free spare parts with the machines upon the time of shipment. After that, users can purchase the necessary parts from us at our factory cost price.
3. We offer technical support service by call, email or video within 24 hours upon requested.
