Трехвалковый резиновые рецептуры: резиновый магнит машина/лаборатории четырехвальный каландр для машинного оборудования

Product Overview

Description

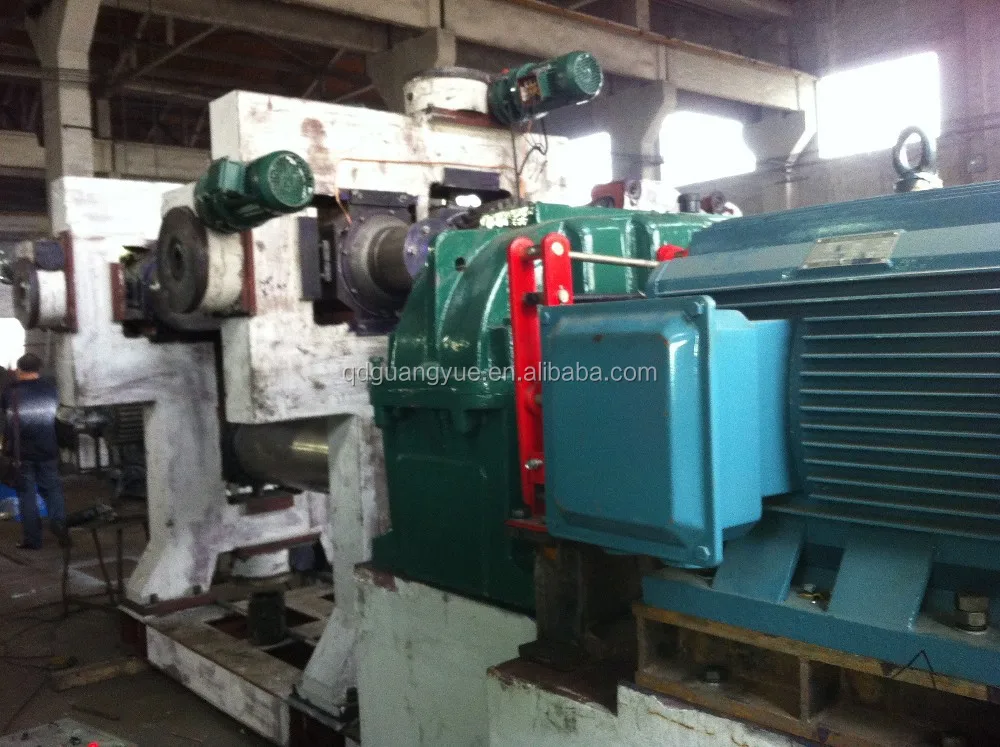

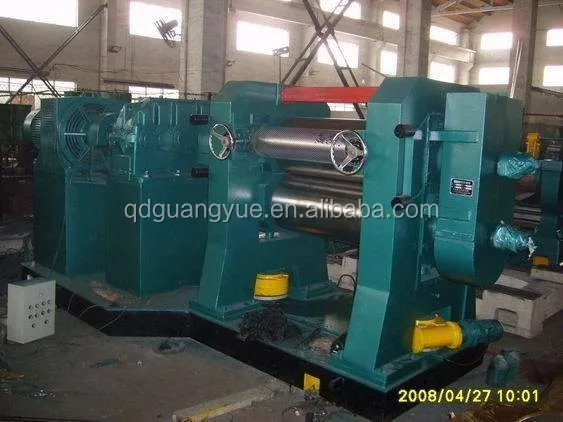

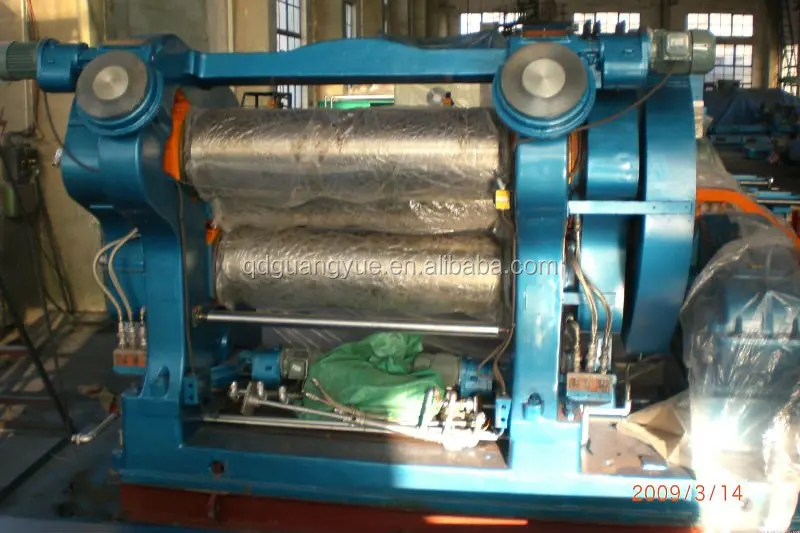

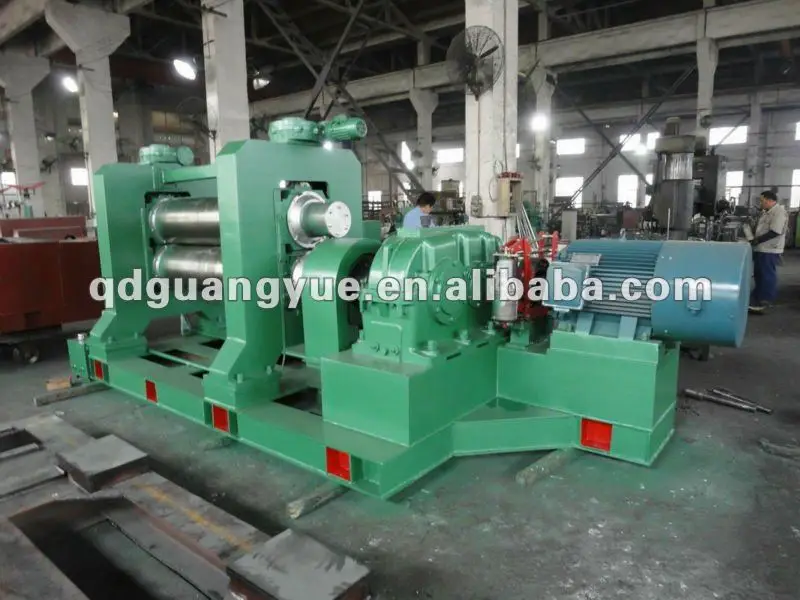

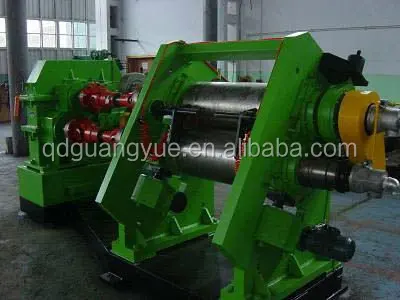

three-roll rubber calender from 30 years experience manufactuer



1. Application:

Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.

2. General design:

It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.

3. Features:

The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life. Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.

Roll spacing can be adjusted both by manual or electric mode.

Roller bearings lubricating can adopt drier oil or dilute oil



 Parameters



Mode & specifications		XY-3L630  (230)	XY-31900  (360)	XY-311200(450)		XY-311730550)		XY-311800( 610)
Arrangements of rolls		L Form	I Form	I Form		I Form		I Form
Number of rolls		3	3	3		3		3
Working Diameter of Rolls (mm)		230	360	450		550		610
Working Length of Rolls (mm)		635	900	1200		1730		1800
Linear Speed of Middle Speed (m/min)		8.7	7.3-21.9	3-30	1.5-15	4-42	5-50	0-45
Rotating Speed Ratio of Rolls (UP:Middle:Low)		1:1:1 1:1.33:1	1:1:1	1:1:1 1:1.5:1	1:1:1 1:1.25:1	1:1:1 1:1.5:1		1:1:1 1:1.5:1
Nip Range		0-6	0-6	0-10		0-20		0-25
Max. Roll Temperature		130	130	130		130		130
Min. Thickness of Products (mm)		0.2	0.2	0.2		0.2		0.2
Max. Width of Products (mm)		500	700	1000		1500		1600
Main Motor Power (kw)		7.5	40/13.3	75	75	132	160	160
Speed Reducer		Hard Facing Gear Reducer
Steam Pressure (MPa)		0.3-0.5	0.3-0.5	0.3-0.5		0.3-0.5		0.3-0.5
Cooling Water (Mpa)		0.2-0.3	0.2-0.3	0.2-0.3		0.2-0.3		0.2-0.3
Overall Dimension (mm)	L	2500	5400	6340	5580	8500	8700	8630
	W	1200	1900	2650	2680	3000	3300	3620
	H	1450	1910	2760	2615	3770	3770	.3875
Weight		3800	11000	22000	21500	41100	42000	51500
Note								Preloading Device Fixed With Top

















5 After-sales Service:

 1 overseas service, technician provides debug and training

2 during warranty, if quality problem appears (not include man made problem), we can replace it by free..

 3 we will reply during 24 hours once problem appears, we can solve through guide picture or video; if problem can not solved, we can send engineer to your factory.



one year guarantee for whole machine

24 hours technical support by email or call

 calling or door-to-door service

--------- about us:

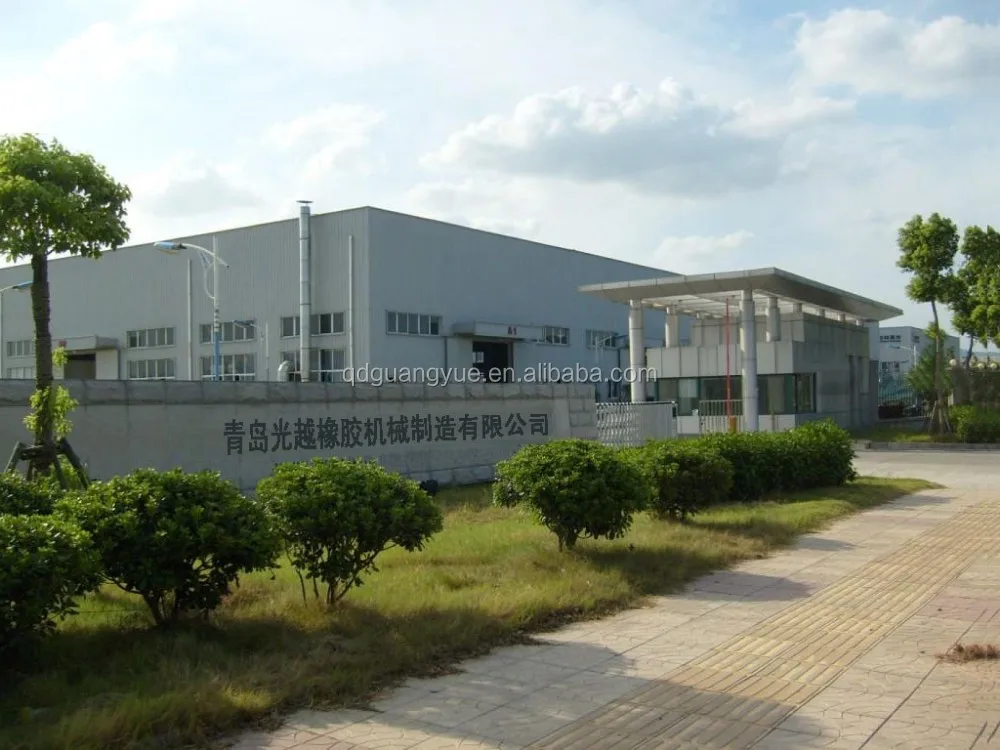

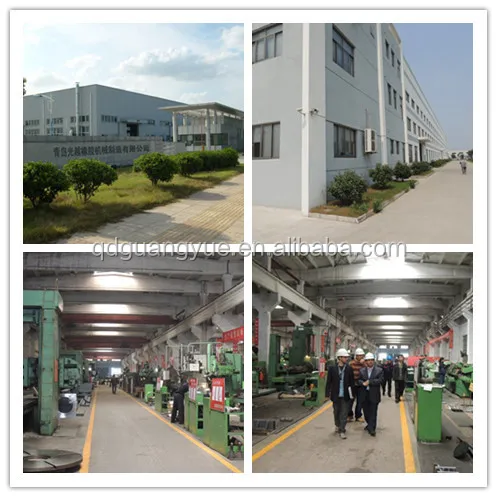

 Qingdao Guangyue Rubber Machinery Mnanufacturing Co.,Ltd make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we had a great feed back from south America,north Europe,Middle East,Aisa and so on we hope to be one reliable factory for you! welcome to visit our manufacturer!
