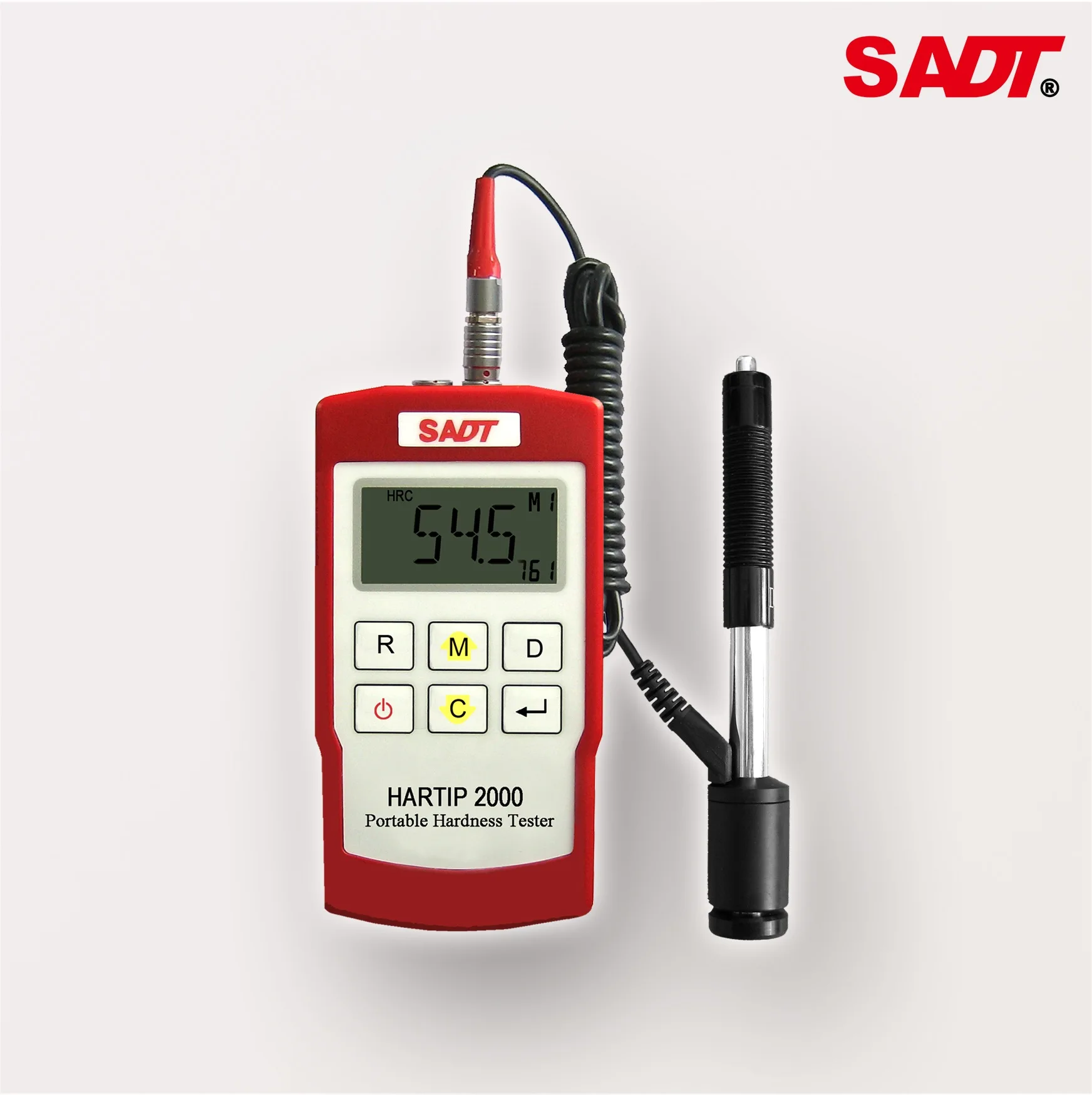

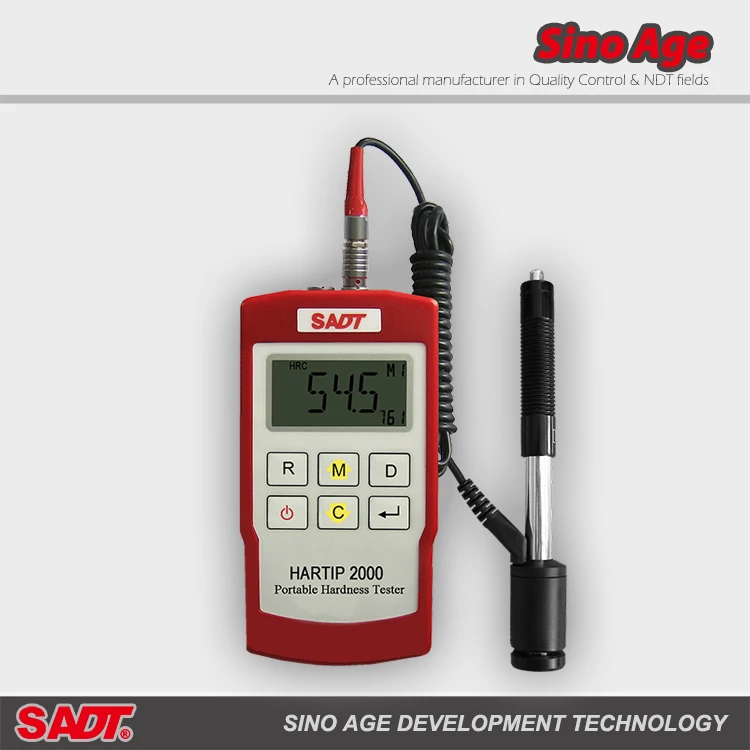

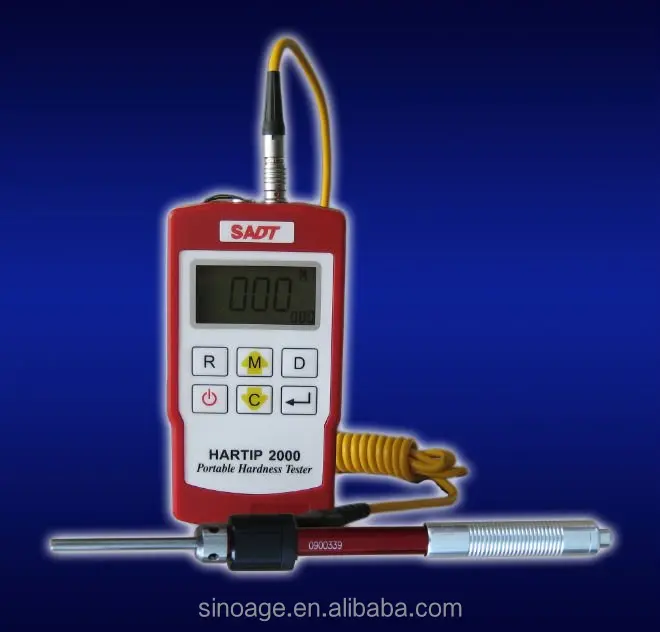

SADT HARTIP2000 Hardness Tester with universal angle (accuracy / 2 HLD)

Product Overview

Description

 SADT HARTIP2000 hardness tester with universal angle(accuracy +/-2 HLD)



HARTIP 2000 hardness tester is an innovative portable Leeb hardness tester with our new patent technology. Which make HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.

Details:

UNIVERSAL ANGLE

• More accurate: ±2 HL


• Linear accuracy for any angles


• No need to setup impact direction


• No compensation for impact direction Principle:Leeb hardness tester



Display:Digital LCD with backlight

Hardness scale:HL/HRC/HRB/HB/HV/HS

Measuring range:HL170-960/HRC17-69/HRB13-101.7/HB20-655/HV80-940/HS32-99.5

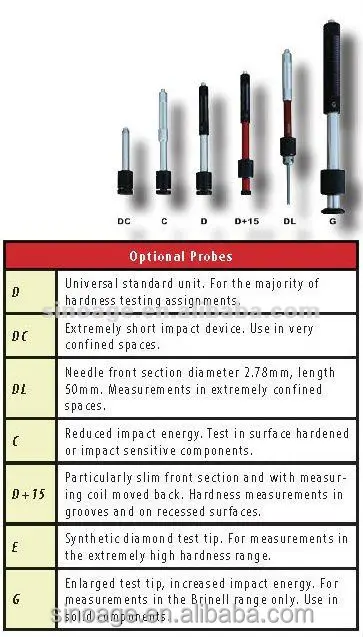

Impact device:Du(default) Du-DL TWO-IN-ONE probe(Optional)

Impact direction:Universal angle type, it can recognize imapct direction automatically

Materials:10 common metal materials

Memory:300 data can be stored and re-readable

Communication interface:RS232 to micro-printer

Standards: Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Model	HARTIP 2000
Principle	Leeb hardness measurement
Accuracy	±0.3% @ HL=800, Repeatability: ±2HL
Display	Digital LCD with backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS/σb
Measuring range	HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5
Impact device	D (External)
Impact direction	Universal angle type, it can recognize impact direction automatically
Materials	10 common metal materials
Memory	300 data can be stored and re-readable
Statistics function	Calculated automaticly
Recalibration	Allowed by user
Interface	RS232 to Micro-printer, blue tooth microprinter
Indicator	Low battery
Power off	Auto
Power supply	1.5V AA alkaline battery x 2
Working environment	-10~+40ºC
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
Dimension (mm)	124x67x30
Net weight (g)	240



Special Support Rings
