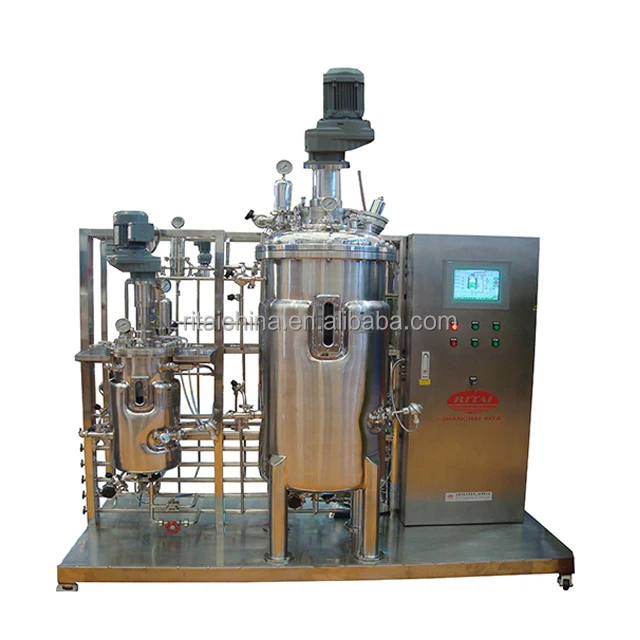

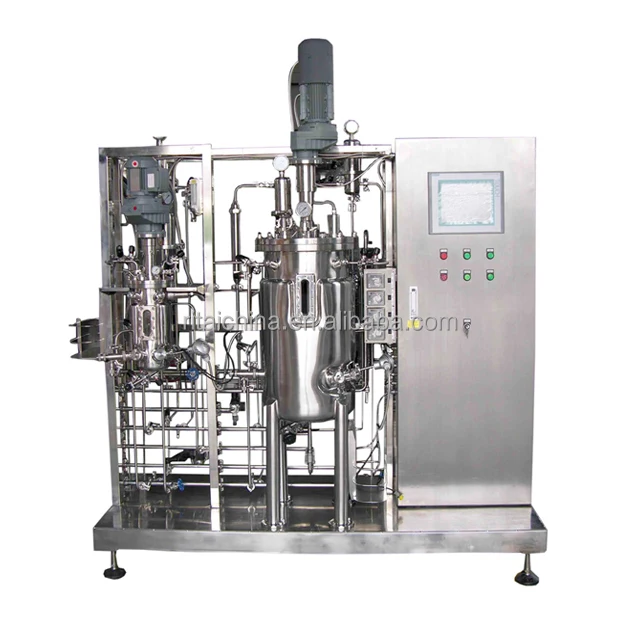

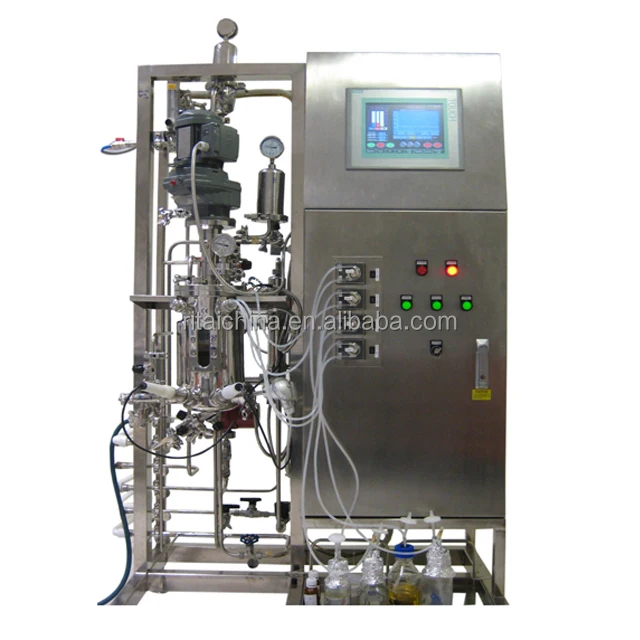

Stainless Steel Bioreactor
- Category: Reactors >>>
- Supplier: Shanghai Ritai Medicine Equipment Project Co. Ltd.
Share on (388244109):
Product Overview
Description
Product Description
BIOREACTOR-STAINLESS STEEL TYPE
Model:
CELLIPOWER08
Feature:
Shanghai RITAI introduces a new generation of Cell Culture Bioreactors. We adopt
centrifugal lifting type Agitator, which has
features of low shearing force, rapid solution
circulation , shorter mixing time, and ability
of linear scale up. And we adopt new type of
aeration tube, which has features of foam free
deep aeration, oxygen Transfer Rate
(Kla between 4-8) satisfy.. Moreover, we also
adopt unique decanting column, which has features
of Simple structure, stable and reliable,
Perfusion rate higher than 5 times of the
working volume/per day, a self cleaning
function and of features of liquid level being
automatically controlled
centrifugal lifting type Agitator, which has
features of low shearing force, rapid solution
circulation , shorter mixing time, and ability
of linear scale up. And we adopt new type of
aeration tube, which has features of foam free
deep aeration, oxygen Transfer Rate
(Kla between 4-8) satisfy.. Moreover, we also
adopt unique decanting column, which has features
of Simple structure, stable and reliable,
Perfusion rate higher than 5 times of the
working volume/per day, a self cleaning
function and of features of liquid level being
automatically controlled
Application:
It suit for mammalian animal cell culture. it is also
available for suspension culture , anchorage
independent and anchorage dependent cell line.
Continuous perfusionis applicable, it can increase
cell density, improve the health pattern of cell,
and greatly increase cell product.
available for suspension culture , anchorage
independent and anchorage dependent cell line.
Continuous perfusionis applicable, it can increase
cell density, improve the health pattern of cell,
and greatly increase cell product.
Description:
| Model | CELLIPOWER08 SYSTEM | ||||||
| Working volume | 5L -2000L | ||||||
| Filling volume | 65-80% | ||||||
| Material | Wetted parts are SS316L, and others is SS304. | ||||||
| Stainless steel part finish | inside surface is 0.28-0.6μm by mechanical polishing, ( passivation or electropolish are optional) outside surface is 0.4-0.8μm by satin finish. | ||||||
| Pressure | Working pressure inside vessel:0.2mpa Design pressure inside vessel: 0.25mpa Working pressure inside jacket:0.3mpa Design pressure inside jacket: 0.35mpa Pressure can be also designed according to client’s detail requirement. | ||||||
| Agitation | 1.Fermentor use servo motor or SEW decelerator 2.top mechanical agitator , single mechanical seal 3.speed range:50-200rpm 4.Centrifugal lifting type agitator or pitch imepller or bottom magnetic agitator | ||||||
| Equips of vessel | 1.using alcohol flame inoculation 2.electrical heater 3.PH,DO, temp. sensor foam and level probe port, etc. | ||||||
| construction | Floor type One fermentor vessel with one control system (simens PLC and HMI) | ||||||
| Operating panel | Chinese and English version | ||||||
| Main components and controls of system | |||||||
| PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, CO2 and base gang control. Mass flow meter automatically adjusting CO2, peristaltic pump automatically adjusting base. 3.Control range 2-12pH, measure precision±0.01 pH, control precision±0.1 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line, mettler Toledo | ||||||
| DO | 1.On-line check and measure; digital display. 2.Range 0-200%, precision ±1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line, mettler Toledo | ||||||
| Feed controlperfusion | 1.Automatically control and automatically alarm; 2.peristaltic pump automatically feeding and perfusion | ||||||
| Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Measure range 0-150℃, control range 15-45℃,control precision±0.2℃ 3.Pt 100Ωtemp. Sensor 4.system with electrical heater to control the temp inside vessel | ||||||
| Rotate speed | 1.Automatically control , with auto alarm function 2.servo or simens frequency converter to adjust the speed. | ||||||
| Air flow | Automatically adjusting with massflow meter, four gases | ||||||
| Pressure | Automatically adjusting with pressure transmitter and pneumatic valves | ||||||
| sterilization | 1.it can be SIP by connecting with steam 2.Automaticall control with pneumatic valves (optional) | ||||||
| Control | Siemens PLC, and Siemens 10.4” LCD touch screen(HMI) and RITAI program | ||||||
| PC | 1.PC with kingview software for recording function (optional) 2.PC with simens remote control and kingview recording function (optional) 3.printer (optional) | ||||||
Packaging & Shipping
Packaging: wooden case
Shipping: by sea
Our Services
We offer design, customization, manufacture, installation, maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
