Silicone sealant mixer making machine production line
US $600.00-$650.00
500L Mixing Tank with Jacket and Insulation
- Category: Mixing Equipment >>>
- Supplier: Shanghai Ritai Medicine Equipment Project Co. Ltd.
Share on (388803749):
Product Overview
Description
Product Description

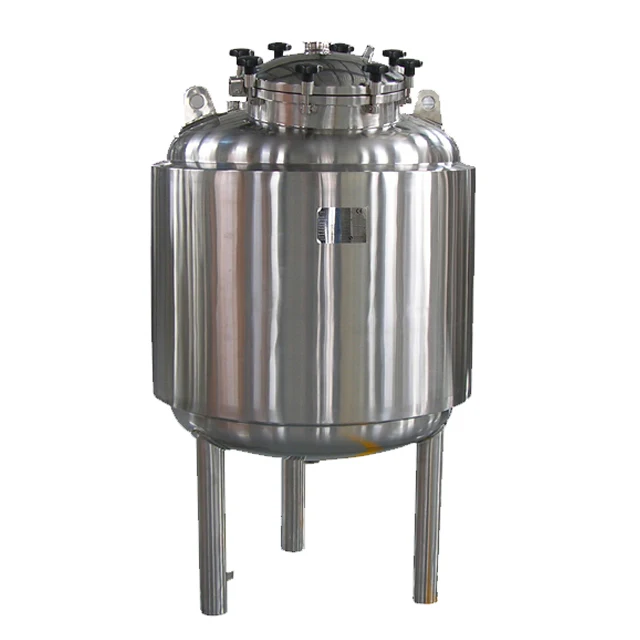

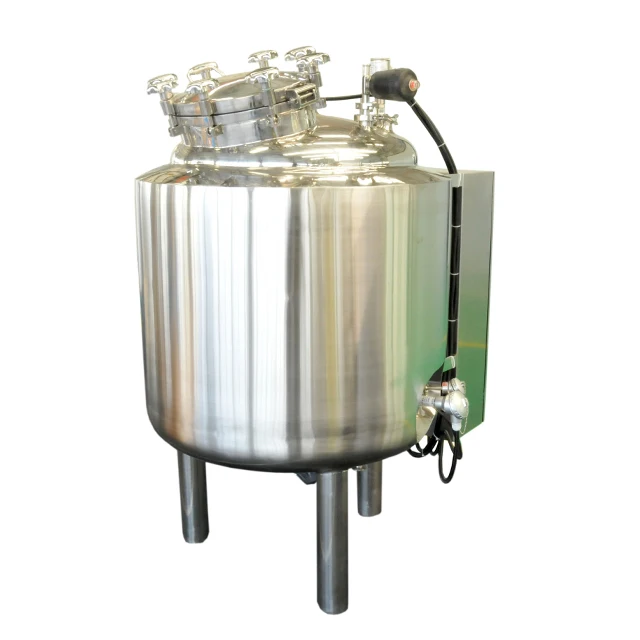

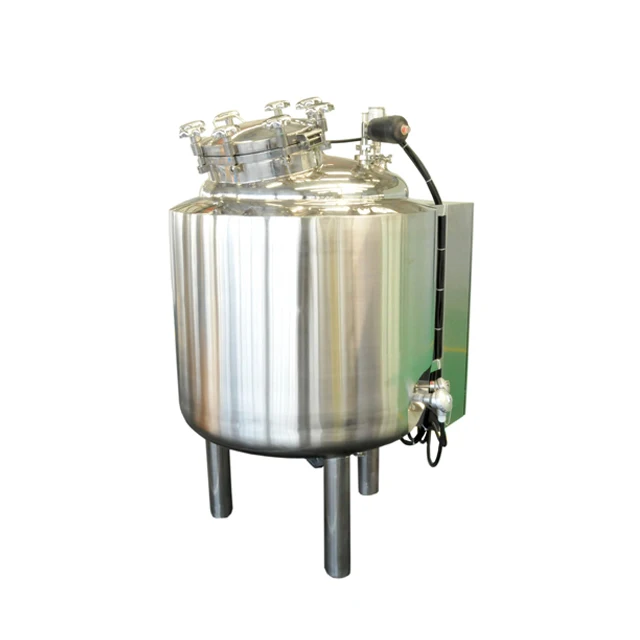

Name: 500L Mixing Tank with Jacket and Insulation
Features:
Mixing tank is designed and manufactured fully according to the demand of GMP and to standards, such as (steel pressure vessels) (GB150-2011), and (steel welded atmospheric pressure vessels) (JB/T4735-1997), etc.
Application:
Mixing tank is applied to liquid preparation and various water treatment process in purgative area,such as infusion solution ,injection solution, eye drop, oral liquid and blood preparation.
Description of 500l mixing tank:
Product technical description:
Specification: 500L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: Top mechanical agitator (propeller, spiral and anchor or others)
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Manufacture standards for mixing tank: ASME or PED 97/23/EC, GB150-2011
Working volume | Inner diameter | Outer diameter | Vessel height | Total volume |
30L | 400mm | 500mm | 400mm | 44L |
50L | 400mm | 500mm | 600mm | 69L |
100L | 500mm | 600mm | 650mm | 130L |
200L | 600mm | 700mm | 1000mm | 250L |
300L | 700mm | 800mm | 1250mm | 370L |
500L | 900mm | 1050mm | 1150mm | 650L |
1000L | 1100mm | 1250mm | 1480mm | 1260L |
1500L | 1200mm | 1350nmm | 1700mm | 1780L |
2000L | 1300mm | 1500mm | 1980mm | 2200L |
3000L | 1500mm | 1700mm | 2150mm | 3400L |
4000L | 1600mm | 1750mm | 2630mm | 4000L |
8000L | 1900mm | 2100mm | 3200mm | 8300L |
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. | ||||
Packaging & Shipping
Packaging: wooden case
Shipping: by sea
Our Services

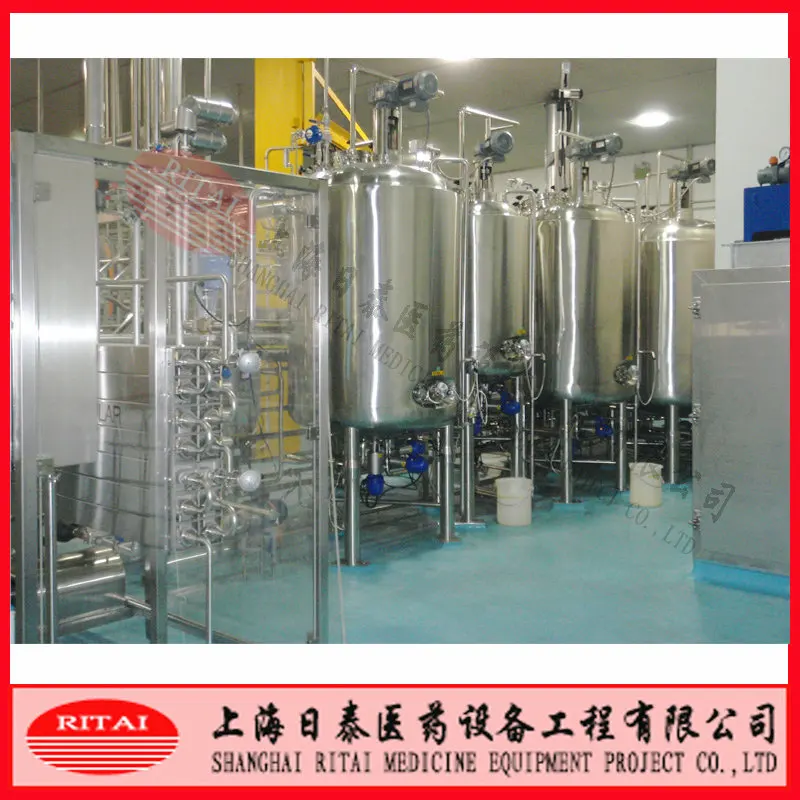

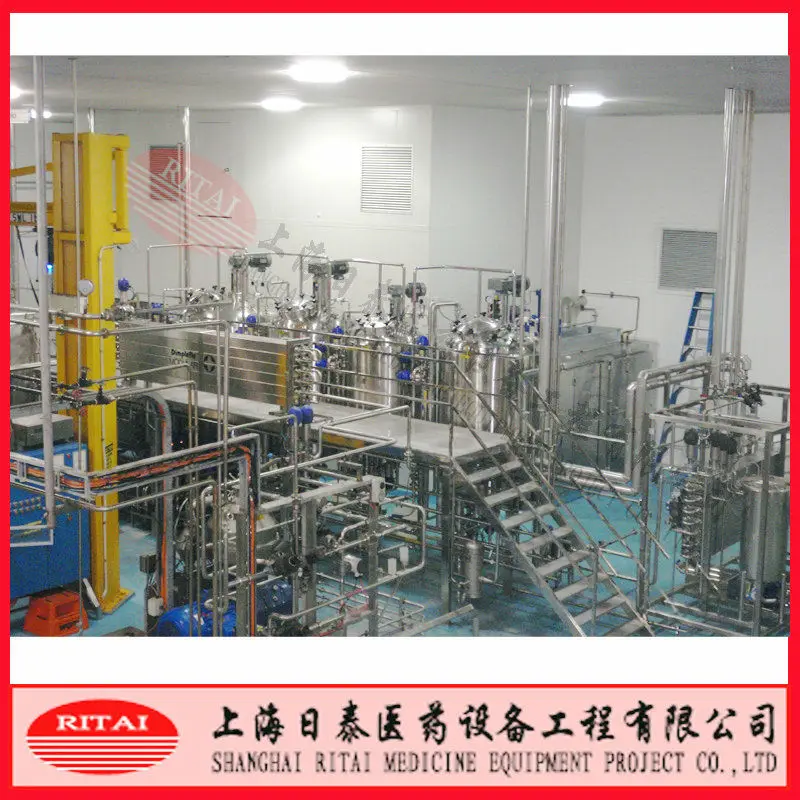

We offer design, customization, manufacture, installation, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
