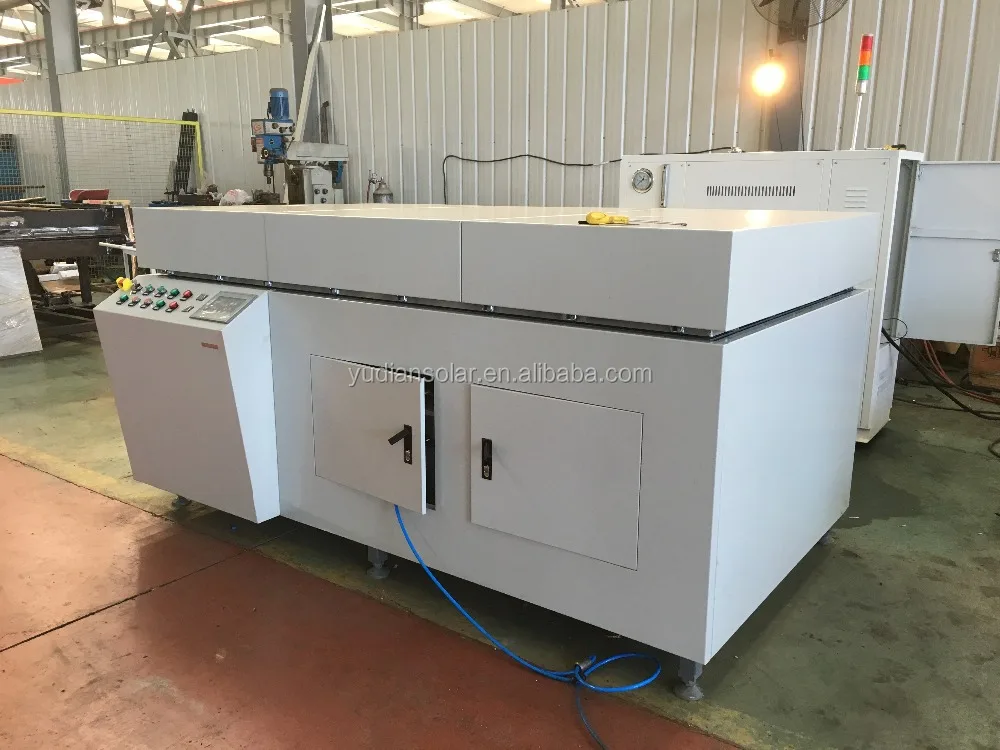

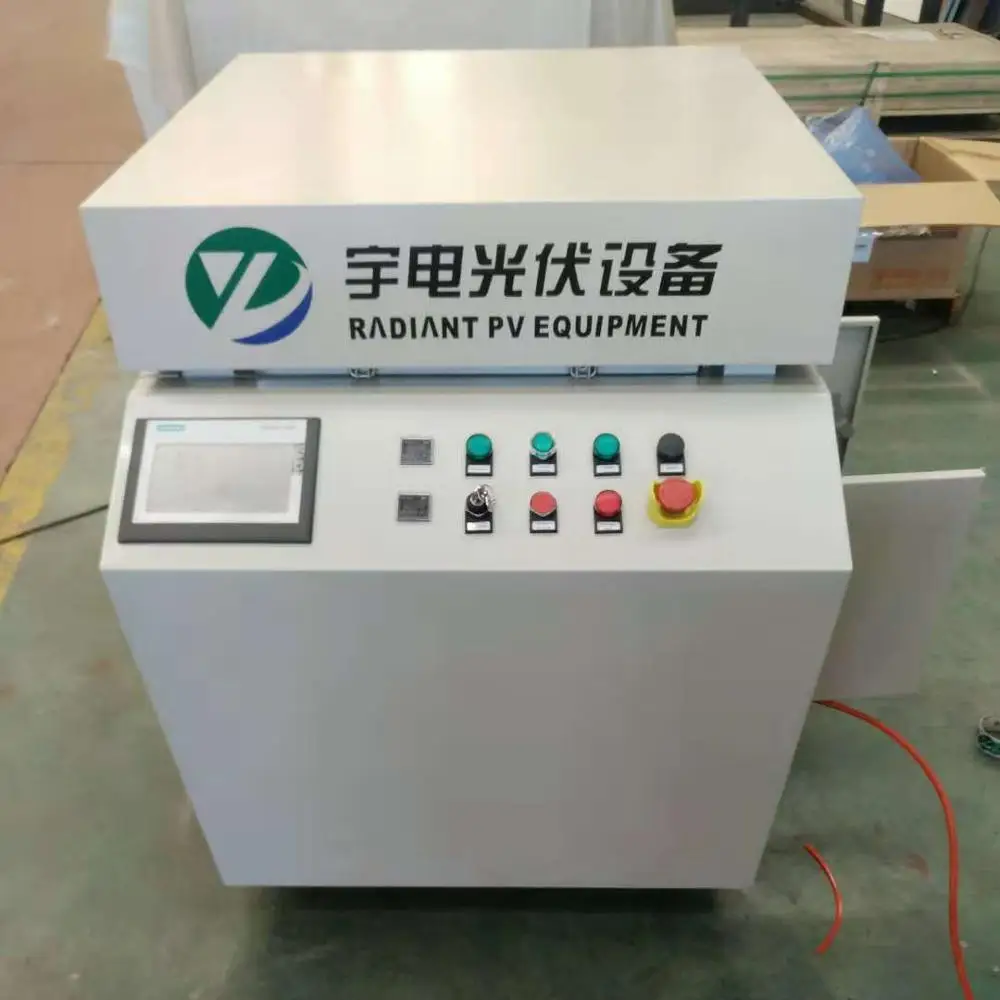

Radiant electrical heating laminator perovskite solar module laminator
- Category: >>>
- Supplier: Qinhuangdao Radiant Automation Equipment Co. Ltd.
Share on (418458097):
Product Overview
Description
Company Information
Yudian is a professional provider of intelligent equipment products and automatic integrated solutions. After decades of development, Yudian has continually forging ahead in the photovoltaic manufacturing equipment field, and gradually forms an integrated service system which combines R&D, production, sales and professional technical consult, is recognized as a national high-tech enterprise.
We provide turnkey solution for solar PV module making line!!
Detailed Images

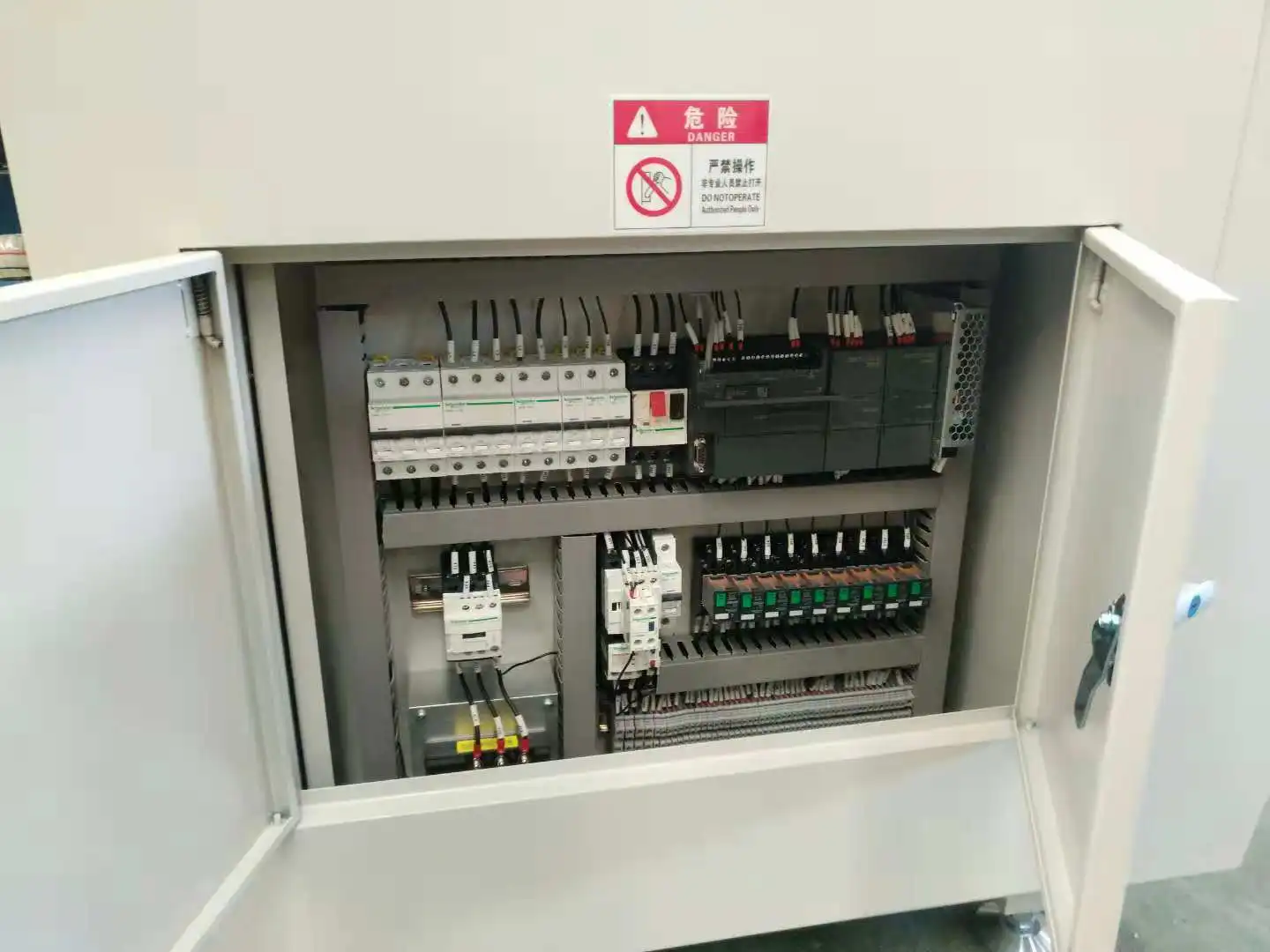

Main Parts brands:
NAME | Brand | NAME | Brand |
PLC | SIEMENS | MOTOR | CHENGPANG TAIWAN |
INVERTER | SIEMENS | REDUCTION GEARS | CHENGPANG TAIWAN |

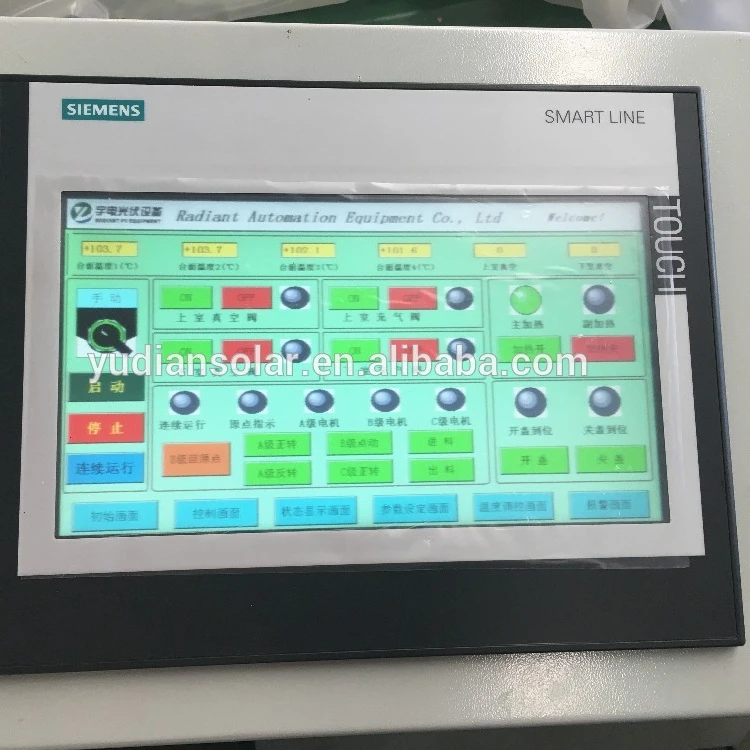

TOUCH SCREEN | SIEMENS | PNEUMATIC PARTS | AIRTECH TAIWAN |
AIR SWITCH | SCHNEIDER | VACUUM PUMP | GERMAN PUMP |
CONTACTOR | SCHNEIDER | STEEL | SHOUGANG GROUP |
RELAY | SCHNEIDER | FASTENERS | GEMYEAR |
PRESSURE SENSER | KEYENCE JAPAN | PLUG | WEIDMULLER |
Package and delivery :
1. Technical Information:
Model | YDS-0405 | Laminate Length * Width | 400mm x 500mm |
Dimension | 700×800× 1100mm | Weight | 400kg |
Power supply | 380V 3 phase | Peak power | 3 Kw |
Pumping speed | 8L/S | Work power | 1.5Kw |
Control mode | Automatic/ Manual | Ultimate vacuum | 20 Pa |
Heating mode | Electrical heating system | Temperature control mode | PID Control |
Maximum temperature | 180℃ | Temperature uniformity | ±3℃ Multi-point temperature control |
Work temperature | 100℃~160℃ | temperature precise | ≤±3℃ |
Unevenness | ≤300 μm/m² | Air discharge speed | Can adjust continuously within 0~50L/S |
Press of compressed air | 0.5~0.8MPa | Laminate time | about 15 min. |
Pumping time | 4~5min | Compressed air speed | 1-8L/S |
Work vacuum degree | 80~20Pa | Ambient temperature | 0~50℃ |
2. Main Parts Brand :
NAME | Brand | NAME | Brand |
PLC | SIEMENS | MOTOR | CHENGPANG TAIWAN |
INVERTER | SIEMENS | REDUCTION GEARS | CHENGPANG TAIWAN |
TOUCH SCREEN | SIEMENS | PNEUMATIC PARTS | AIRTECH TAIWAN |
AIR SWITCH | SCHNEIDER | VACUUM PUMP | GERMAN PUMP |
CONTACTOR | SCHNEIDER | STEEL | SHOUGANG GROUP |
RELAY | SCHNEIDER | FASTENERS | GEMYEAR |
PRESSURE SENSER | KEYENCE JAPAN | PLUG | WEIDMULLER |
Our Services
- Plant Layout
- Equipment deployment
- Production line planning
- Semi-automatic production line
- Fully Automatic production line
