Product Overview

Description

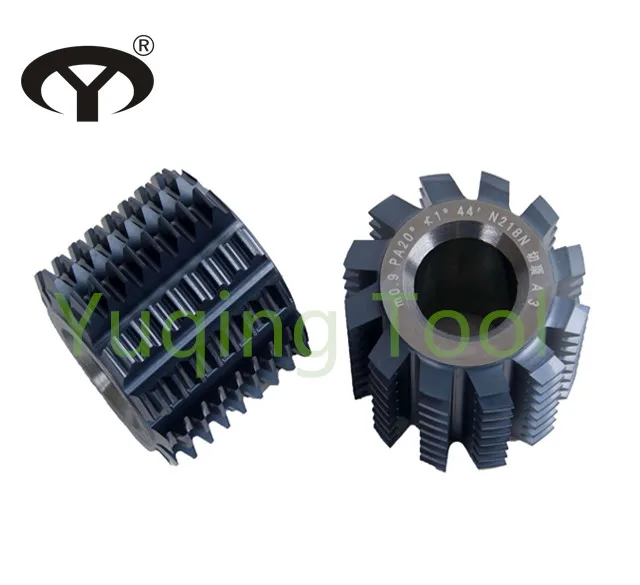

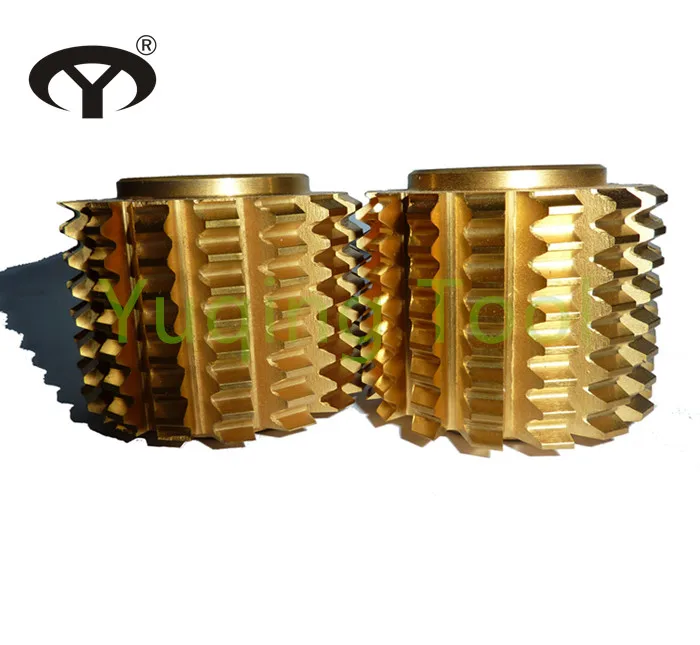

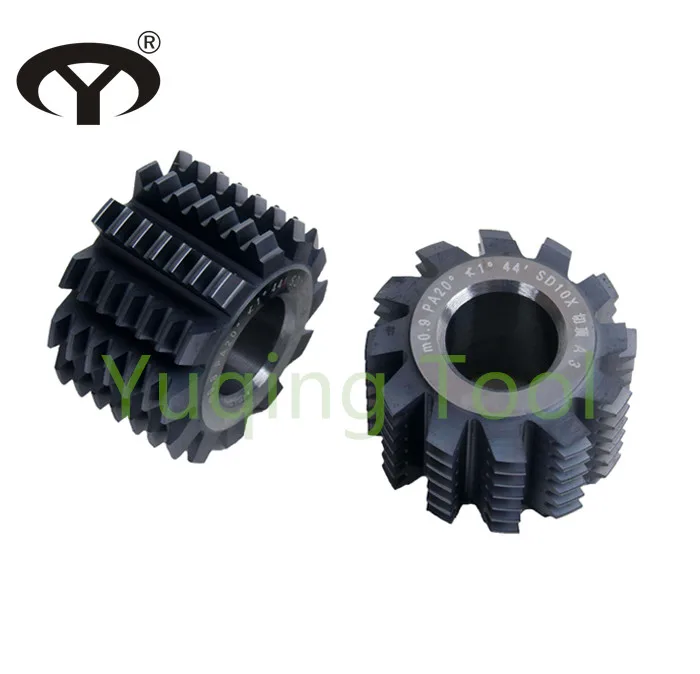

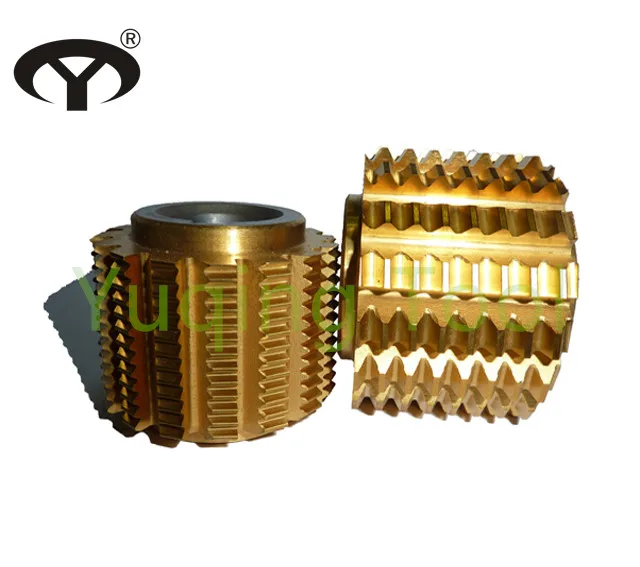

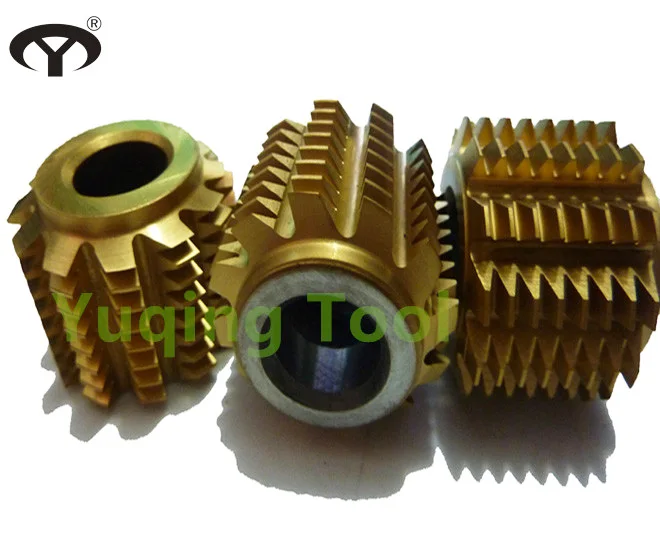

HSS M2 Small Module Fine Pitch Gear Hob Cutter with PA20





gear cutter hob; gear hob; gear hobber; generating hob; hob milling cutter; generating milling cutter; hob; hob cutter





Specification table :























































































Module



Outside Dia.



Overall Length



Hole Dia.



0.10



25



10



8



0.12



0.15



0.20



0.25



0.30



15



0.35



0.40



0.50



0.60



0.70



25



0.80



0.30



32



15



13



0.35



0.40



0.50



0.60



20



0.70



0.80



0.90



1.00









Hole dia. Of 10mm can be selested for Fine Pitch Gear Hobs with 32mm Outside .


Fine Pitch Topping Hobs can be ordered by customers .





fine pitch gear hob2






fine pitch gear hob1

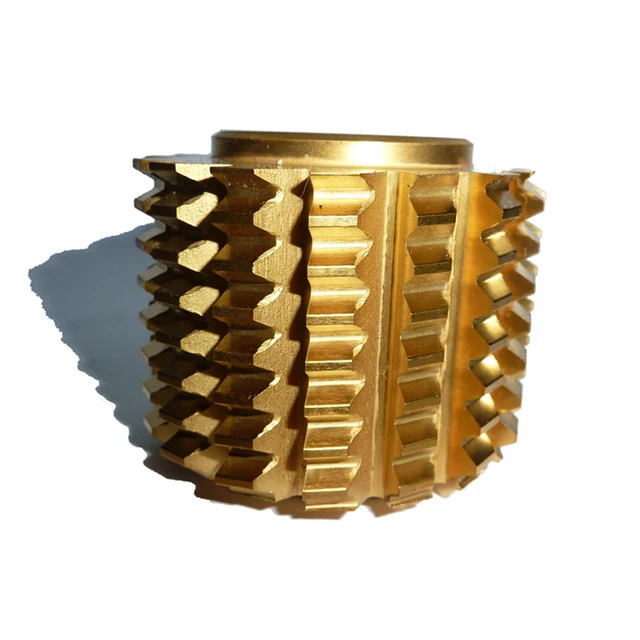

fine pitch gear hob








P1050859





fine pitch gear hob4








fine pitch gear hob3








Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.








Production process of HSS M2/M35 small module fine pitch gear hob cutter with PA20 :












Material Introduction:





A. W6Mo5Cr4V2 (GB), M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application: It is widely used for making all kinds of cutters and durability cold-work die








B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), S6-5-2-5(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application: It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
