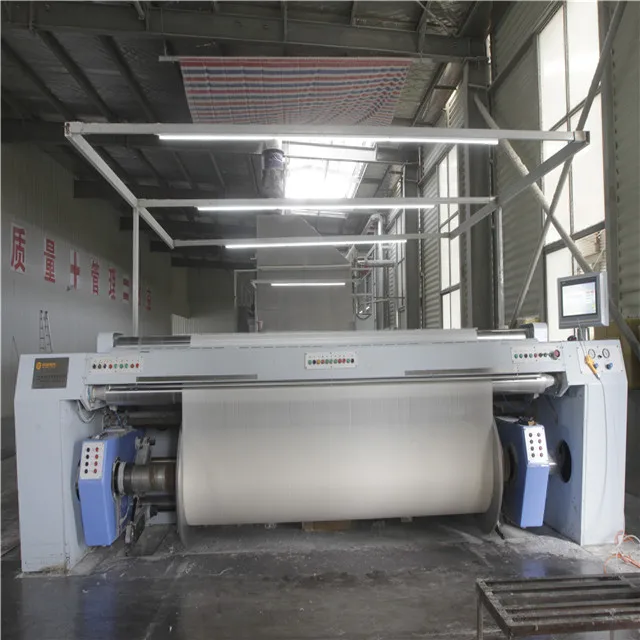

GA306A Type Textile Sizing Machine

Product Overview

Description



Textile Sizing Machine GA306



Description of Textile Sizing Machine:



Application and feature Expert authenticated conclusion: This machine is of high-tech product, which occupies the top technology domestically and achieves the same advanced level overseas. This machine has the 7-unit frequent conversion con


Application and feature of Textile Sizing Machine

1.Good reliability(fine processing, advanced fittings)

2.Good controllability (high-level automatization, easy control)

3.High precision (elongation, temperature, moisture regain automatically controlled by computer)

4.Advanced technics (parameters can be set, shown, adjusted and stored in computer)

5.Economizing the sources of energy (all cylinder drying with high effectiveness)

6.Higher cost-performance ratio (substitute of imported top-grade equipment)













Headstock

Headstock with large package, adjustable width and wide adaptability can be matched various shuttle looms and shuttleless looms home and abroad.

Advanced controlling system software to ensure the controlling trustiness.







Main specifications



Item	GA306-240	GA306-300	GA306-360
Style	With headstock adjustable width, double sizing box,dring cylinder split-sheet
Nomial width(mm)	2400	3000	3600
speed(m/min)	1-80(doffing:0.5)
Diameter of beam winding(mm)	110-800/1000	110-800/1000	110-800/1000
Max.length of beam(mm)	2650	3250	3960
Number of drying cylinder	12
Working width of drying cylinder(mm)	1800 or 2000
Working width of sizing box(mm)	1800 or 2000
Number of warping beam(mm)	16	20	20
Max.diameter of warp beam(mm)	800/1000
Total power(kw)	64kw
Occupied area LxWxH(m)	26.1x4.45x4.2	28.3x5.05x4.2	29.36x5.73x4.2





Company Information:

 Hi-tech heavy industry Co.,ltd. is the company of textile sizing machinery mainly of large modern enterprises. It has a Chinese textile machinery industry's first recognized by the national enterprise technical centers, is a national model enterprise manufacturing information application, the National 863 Program CIMS application of plant cell technology, Henan Province, the first task to undertake military production civilian enterprises in Henan Province bulk cement truck production enterprises. Is the world's three carding equipment, and three manufacturers of polyester staple fiber, viscose is the world's largest supplier of equipment and sizing equipment, the only non-woven fabric has provided a variety of capacities Complete Equipment Heavy Industries Company .
