Galvanizing Production Line

Product Overview

Description

Galvanizing Production Line



1. We have gotten ISO9001:2008 standard and certificate

2. Company established year: 1988

3. Company location: Wuxi city, 125km away from Shanghai

4. FOB port: Shanghai

5. Business type: Manufacturer

6. We can offer TUV certificate report

7. Number of employees: 100-200

8. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi



Production process: Pay-off --> Alkali washing(Degreasing,Ultrasonic) --> Water washing --> Pickling washing (Ultrasonic pickling) --> Hot water cleaning --> Fluxing(Coat assisting) -->

Drying --> Hot-dip galvanizing --> Wiping system --> Take-up



Successfully apply Ultrasonic cleaningto our Steel Wire Hot-dip Galvanizing Continuous Line, replace the traditional degreasing and pickling process. Advantage: The solution can be recycled, no pollution to be discharged;To reach the same production capacity, the occupied area is less than traditional pickling bath; No acid mist in the workshop, safe for workers and reduce the damage to workshop.



 Technical parameter

Sr	Item	Specification
1	Raw material	Low, medium and high carbon
2	Wire diameter	Φ0.5mm-Φ12.5mm
3	Zinc thickness	60-350g/m2
4	Wire number	8-40 wires
5	Speed	10-120m/min
6	Production capacity	1000-20,000 tons/year
7	Energy	Natural gas, Liquid gas, Electricity, Diesel, Coal
8	Working hours	24h continuously
9	Line size	100m(L)x3m(W)x1(H)
10	Can be equipped with annealing furnace.



Ultrasonic cleaning:

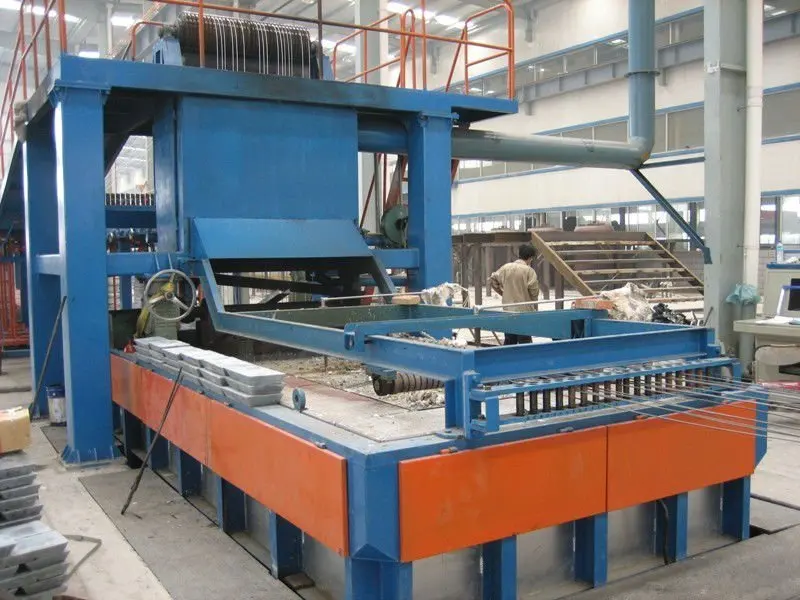

Hot dip galvanizing tank:
