tubular battery plate filling equipment Oxide Filling machine

Product Overview

Description

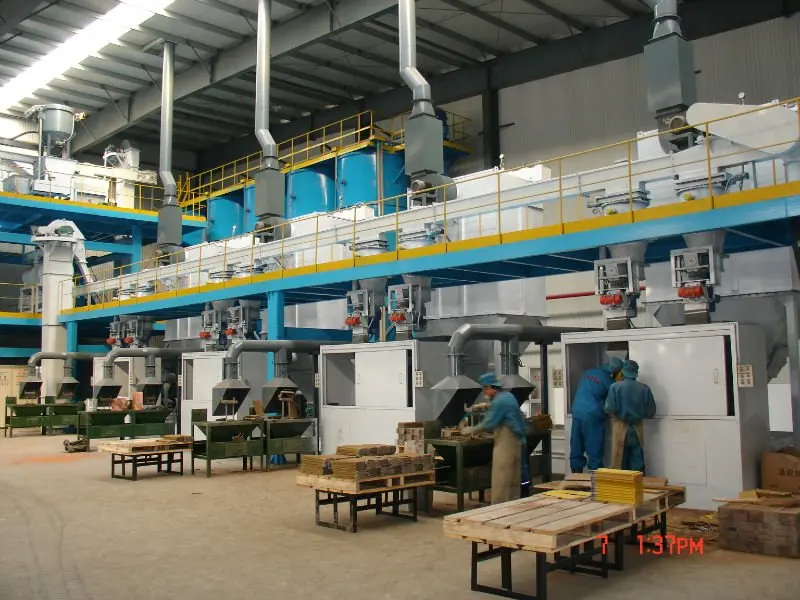

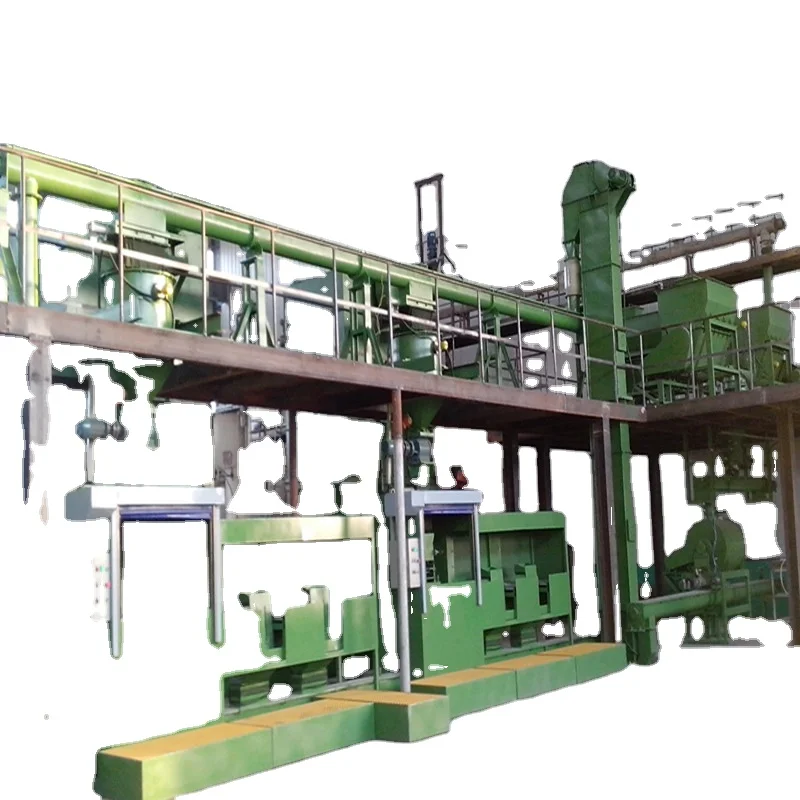

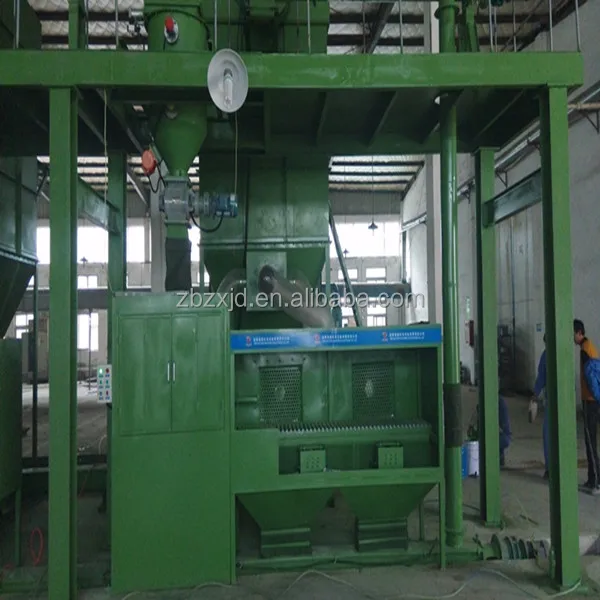

tubular battery plate filling equipment-Oxide Filling machine

Application: used to fill the lead oxide to the positive plates.

Composition: storage silo, weighting devices, blending machine, transportation devices,  material delivery system, vibrator, powder cycling devices, dust collection devices and control system.







Performance & Features

1 The system can weight, convey, mix, and fill the power automatically.

2 The system is controlled by PLC with the functions of level indication, powder weighting and timing.

3 The oxide filling machine amplitude is adjustable.

4 The lead dust can be recycling by the negative pressure collection system and convey into the storage bin.

5 The system operation is safe, stable and reliable with simple maintenance.

6 The noise and dust emissions are up to the national standards.



Specifications:

Parameter   Part No	Spine length (mm)	Width (mm)	Tube length(mm)	Production Capacity	Density (g/cm3)	Total Power (kw)
GF-I	≤650	≤200	≤635	≥5pcs/min	3.0-3.8	45
GF-II	≤650	≤200	≤635	≥10p/min	3.0-3.8	55
