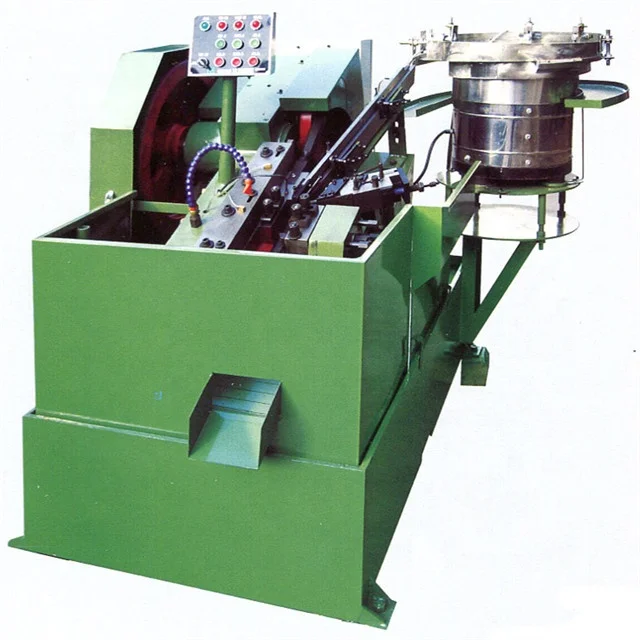

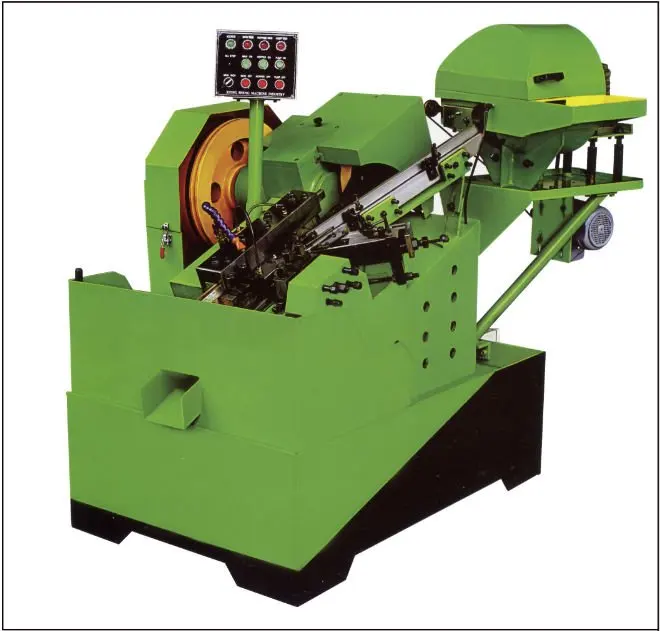

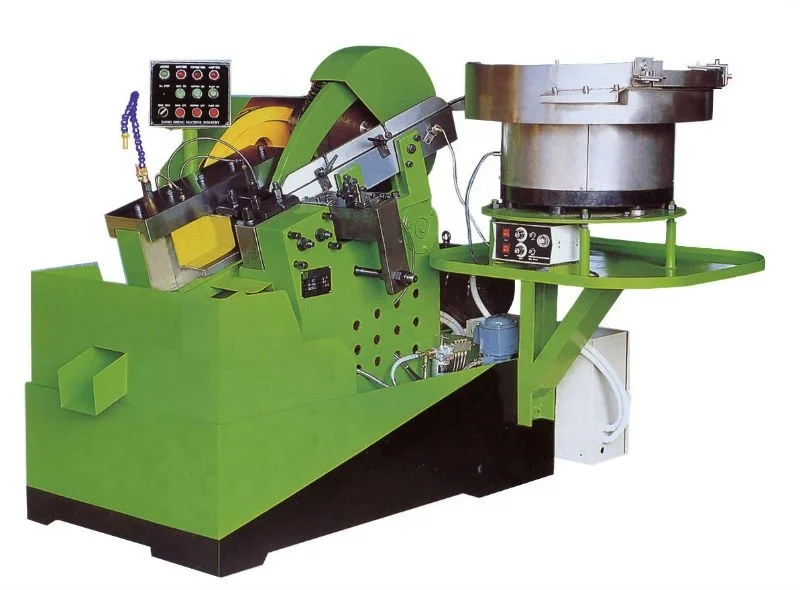

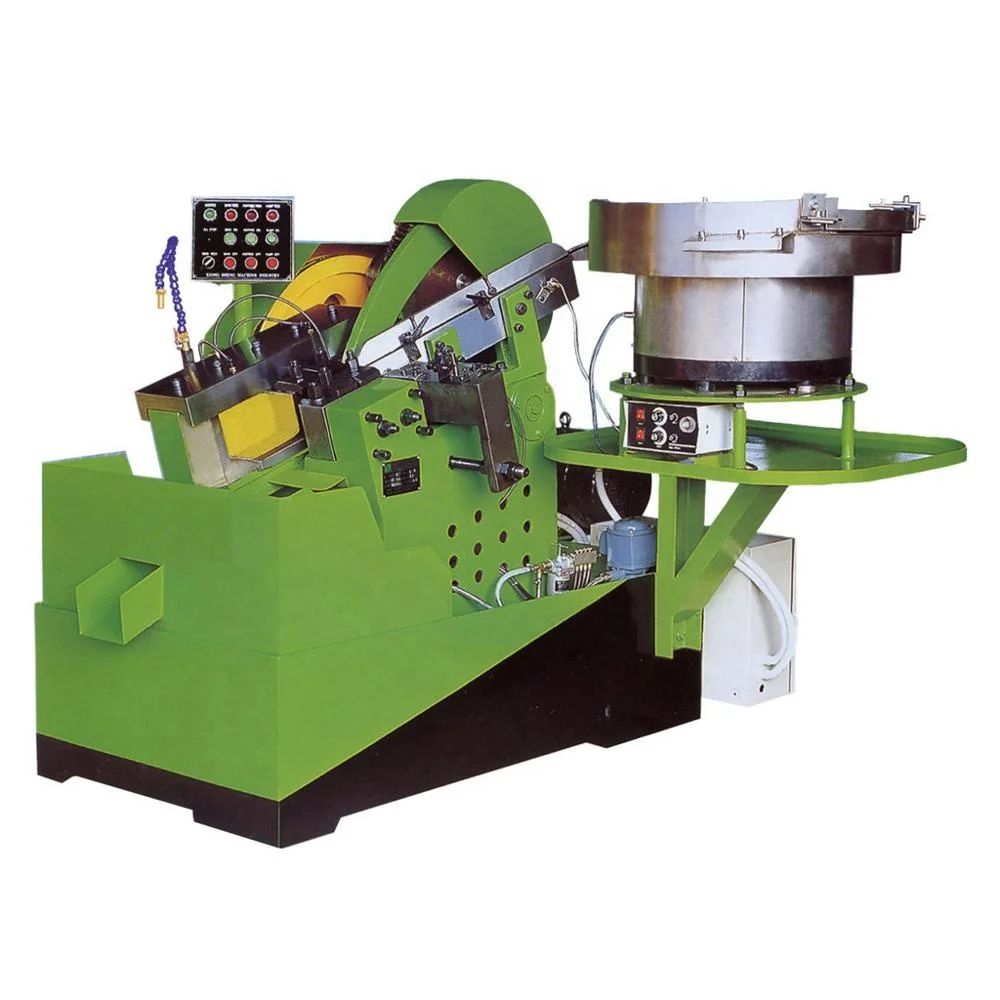

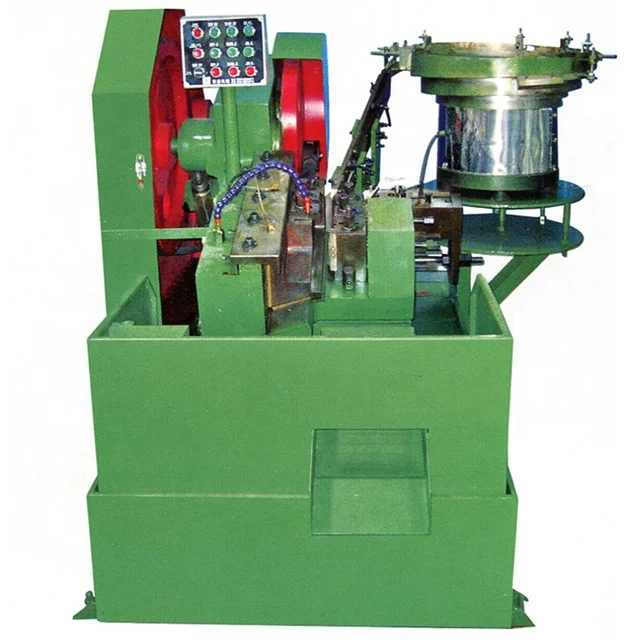

The machine is designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc. Vibrating feeder is available upon customer's request.
Model
Threading Dia.
Range
(mm)
Max. Screw / Bolt Length
to be processed
(mm)
Max. Capacity
(pcs/min.)
Fixed/Moving
Threading
Die Size(mm)
Main
Motor
(kw)
Net
Weight
(kg)
TM-004
Φ2-4
25
200-300
65/80*20*25
2.2
650
TM-4S
Φ2.5-4
50
180-240
75/90*25*50
3
900
TM-6S/6Z
Φ4-6
75
140-180
110/125*25*80
4
1300
TM-8Z
Φ5-8
120
70-100
150/170*30*120
5.5
2000
TM-10Z
Φ6-10
120
60-80
150/170*30*120
11
2200
TM-10ZX
Φ6-10
150
60
190/210*40*150
11
3000
For making self-drilling screws with screw tip/end shown in step 3, a steel chips' separator shall be fixed on the thread rolling machine.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
