Машина для изготовления винтов и крепежных машин с ЧПУ резьбой

Product Overview

Description

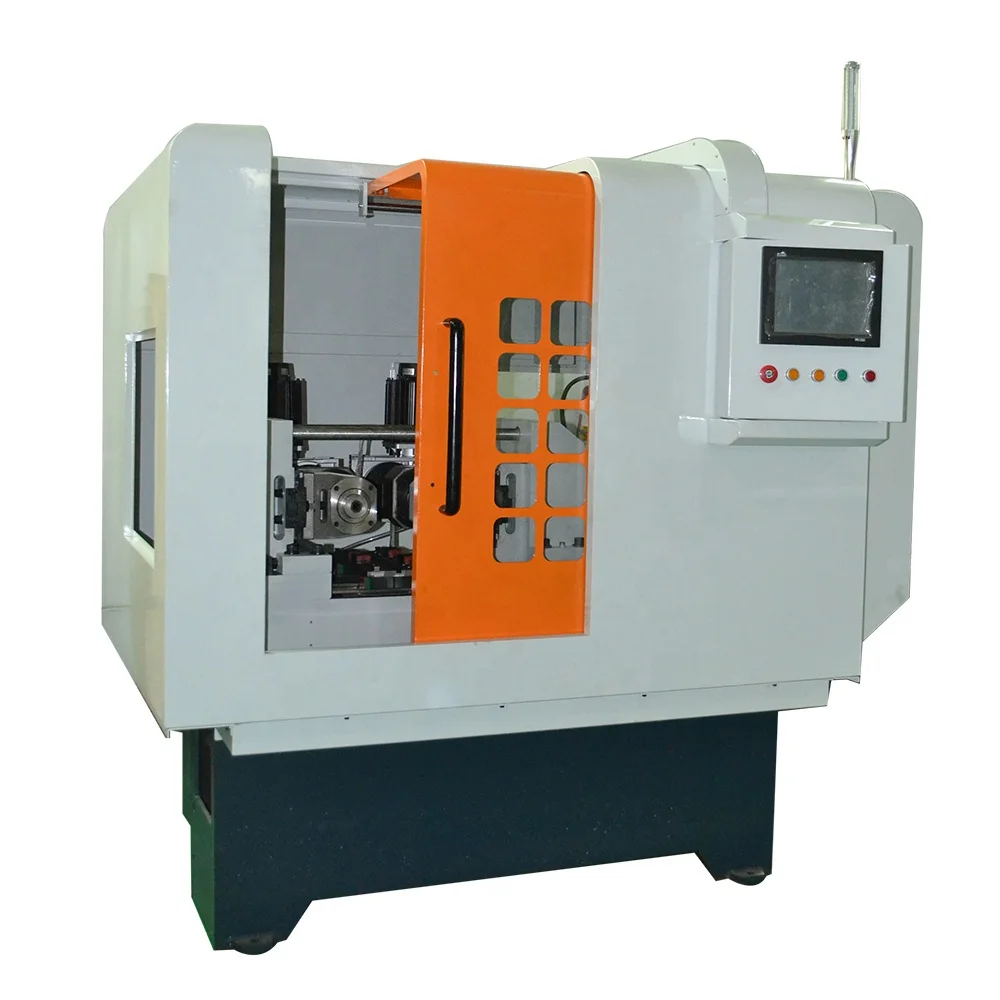

cnc thread rolling machine screws and fasteners making machine



Features:

1.Spindle is powered by two servo motors, can be infinitely adjustable-speed, to realize the forward reverse when rolling products.

2.Precision feeding by servo motor with ball screw structure.

3.HMI Intelligent Control System

4.Overloading ball guide rail, to ensure accurate reciprocation.

5.Center frame structure can be moved along, can be installed servo feed.

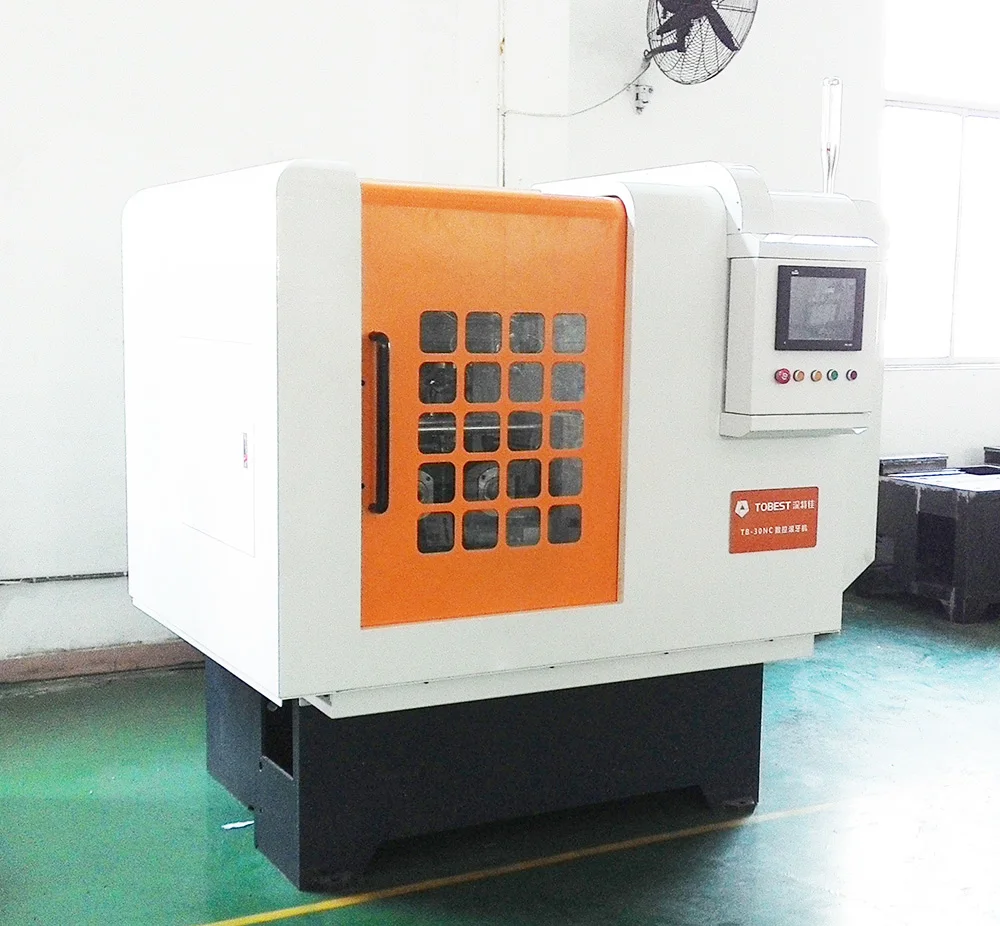

Technical parameter of Tobest TB-30NC

Diameter for the threads rolled	φ2mm-φ35mm
Range of pitch rolled	0.5-4P
Max.length of thread rolled	Fixed and rolling through for option
Rotation speed of Spindle	5-80r/min
Max.rolling pressure	15T
Slider feed rate ( maximum )	Max.800mm/min
Center distance between die spindles	170-258mm
Hydraulic stroke ( maximum )	85mm
Spindle rotation angle	±7.5°
Outside/inside diameter,thickness of rolling dies	φ140-175mm/φ54mm/120mm(Max.)
Cooling pump drive motor power	Servo Motor  2x3KW

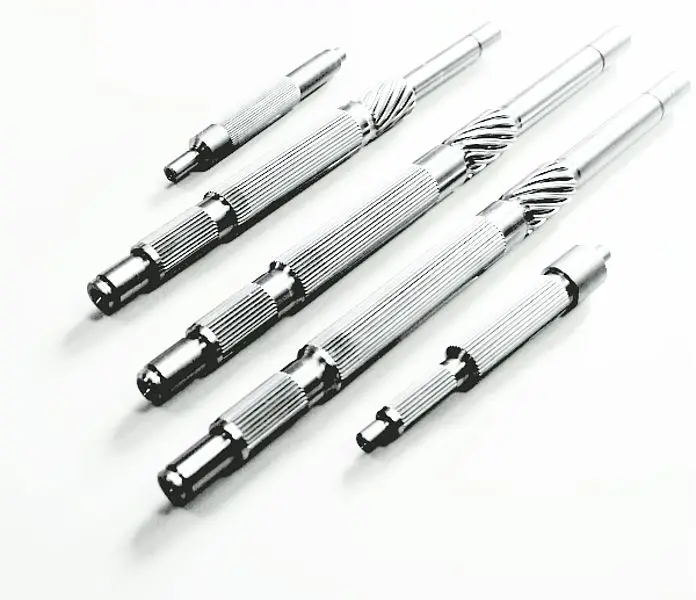

Products display:
